Rsrteng IPC-9800ADH Plus+ 4K security camera tester

Regular price
$409.00
Sale price
$409.00
Regular price
$469.00
Sold out
Unit price
per

This is Rsrteng IPC-9800ADH Plus+ cost-effective 4K security surveillance camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera adn HD CVI TVI AHD camera and CVBS camera.

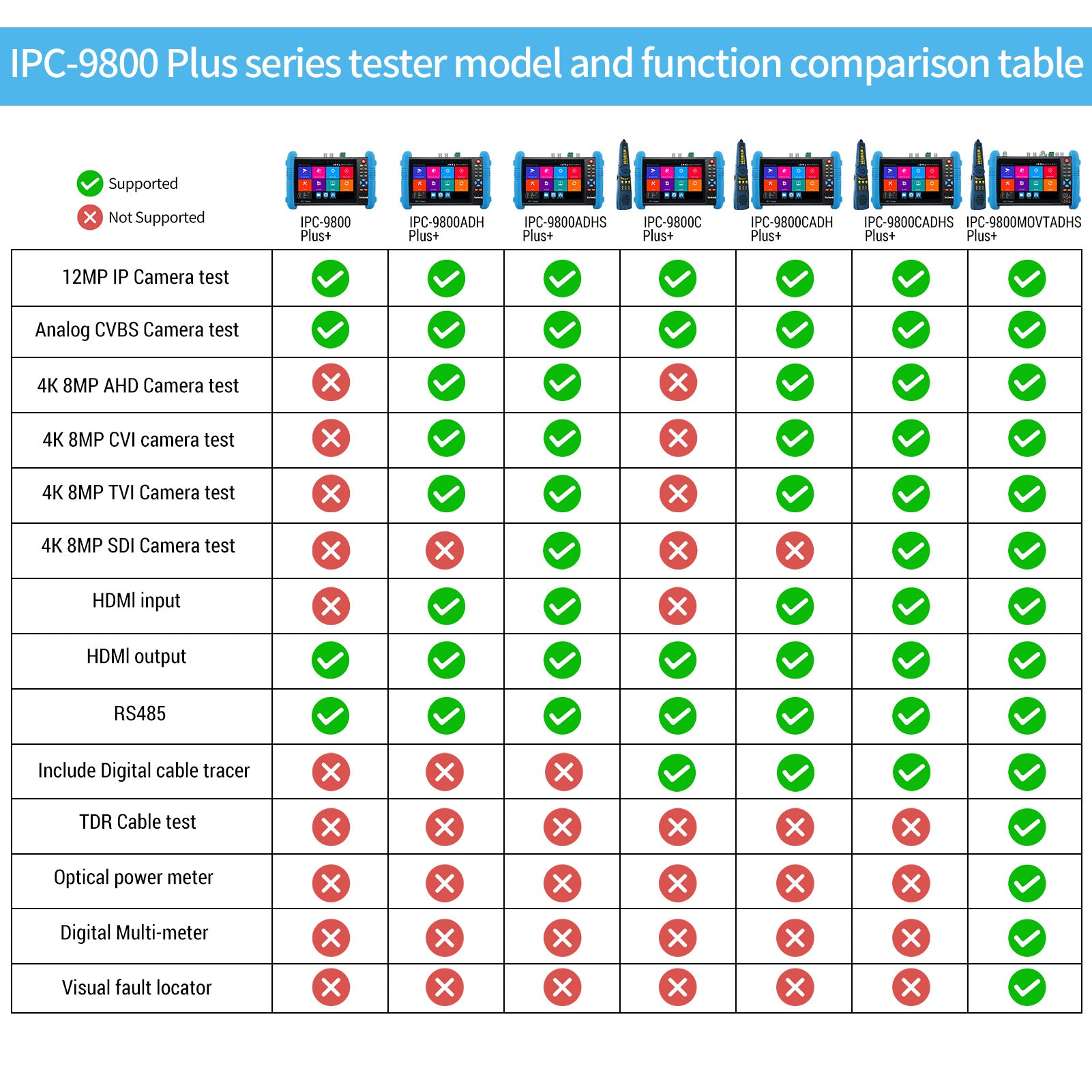

This is of the most people is to buy the model of the IPC-9800 Plus+ series, it can meet the needs of the vast majority of tests. It can support the testing of up to 12MP IP camera, max 8MP HD CVI TVI AHD camera and CVBS cameras, But it does not support SDI camera testing. Professional test app, POE, cable test, WiFi, power output, HDMI I/O, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

Parameters

Brand

Rsrteng

Model

IPC-9800ADH Plus+

Display

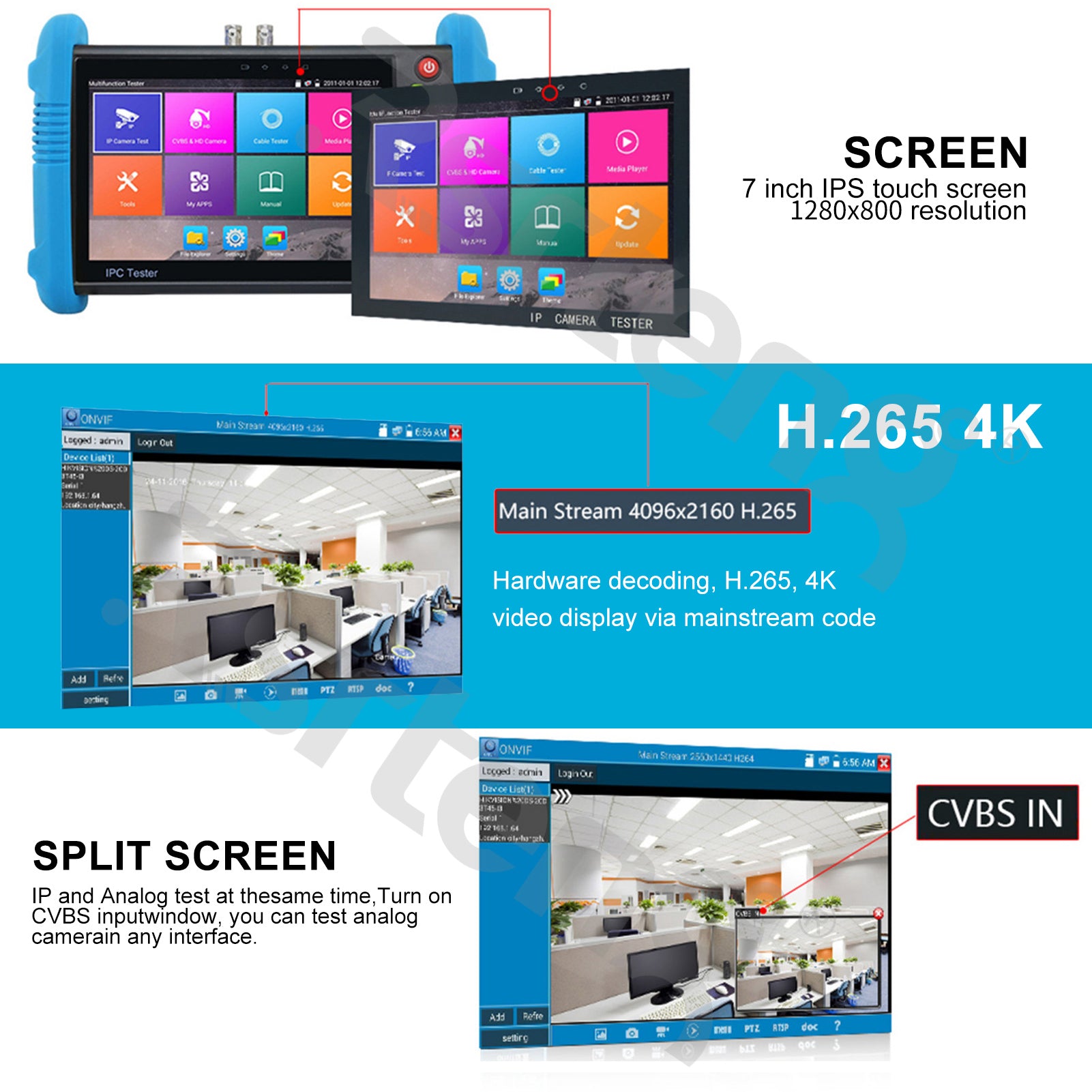

7 inch IPS touch screen, 1920*1200 resolution

CVBS camera test

1 ch BNC input, NTSC/PAL (Auto adapt)

1 ch BNC looped output, send and receive color bar generator signal, check BNC cable

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

12MP 4K

IP camera test

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video: Auto view the video, create testing report

For Hikvision test tool:

Pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

For Dahua test tool:

Dahua camera test, modify the user name, password and IP parameters. Support activate and modify IP in batches

For Axis test tool:

After the tester is connected to the network, install the special test tool APP "AXS Test Tool" through online update for Axis camera test. Note: When using other apps to test the Axis camera, maybe a prompt that the password is incorrect, even if you enter the correct password.

For others Brands camera test:

You can use the "Test pro" or "Ovif" APP to test most IP cameras. Or you can update and install the test APP of the corresponding brand online after the tester connects to the Internet.

Coaxial HD test

Use the "Auto HD" APP to test the coaxial HD camera, which can automatically identify the type of the camera, without manually selecting AHD, CVI, TVI, CVBS.

TVI5.0, 8MP TVI camera test, 3840x2160P 15fps, suppor coaxial audio test, UTC control/call OSD menu

CVI4.0, 8MP CVI camera test, 3840x2160P 12.5/15fps,UTC control/call OSD menu (3MP CVI camera don't support)

AHD4.0, 8MP AHD camera test, 3840x2160P 15fps, UTC control/call OSD menu

SDI camera don't support

IP& CVBS test

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

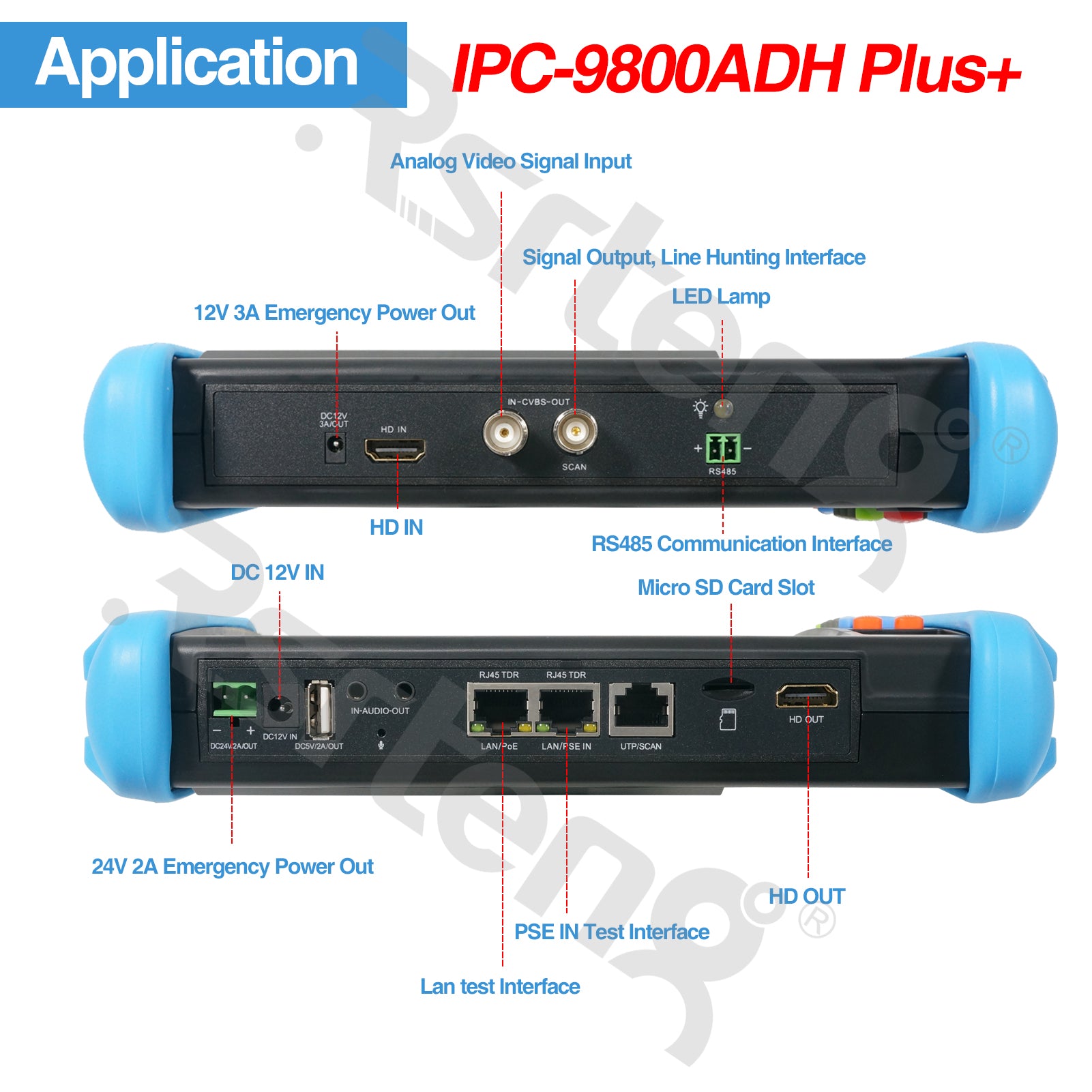

HDMI

HDMI input: 1 ch, support max 4K 3840x2160p/30fps

HDMI output: 1 ch, support max 1920x1080p/60fps

Power output

DC5V/2A power output, supply some home camera, as a power bank for mobile phone

DC12V/3A power Output, supply temporarily power for the camera

DC24V/2A power Output, supply temporarily power for the speed dome camera

POE output, Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

Cable test

Cable tracer: N/A

(only IPC-9800MOVTADHS Plus+ support)

UTP cable test:

Test UTP cable connection status and display on the screen. Read the number on the screen

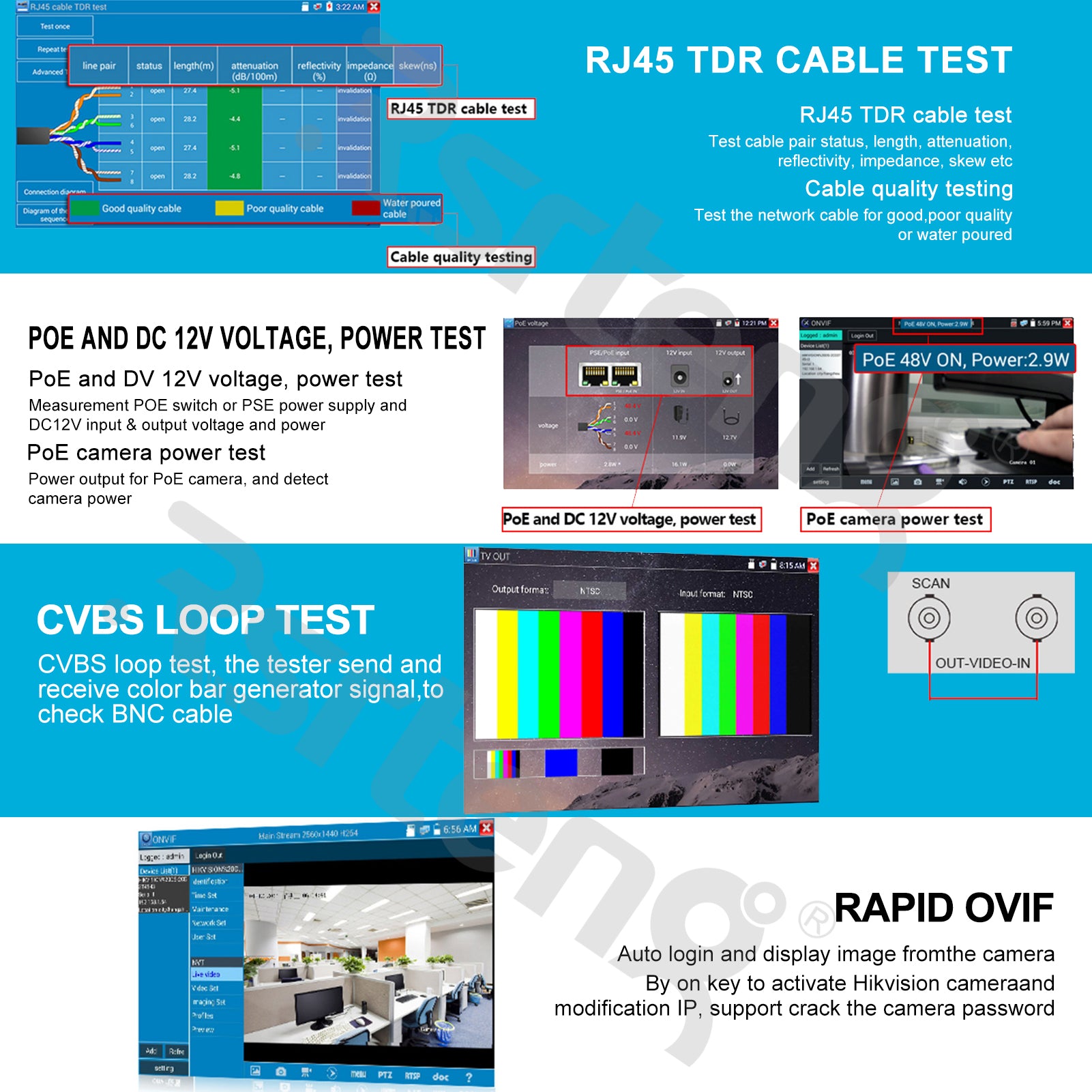

RJ45 cable TDR test(software support):

Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180m(590 ft).

Digital Multimeter

N/A (only IPC-9800MOVTADHS Plus+ support)

Optical power meter

N/A (only IPC-9800MOVTADHS Plus+ support)

Visual fault locator

N/A (only IPC-9800MOVTADHS Plus+ support)

TDR cable test (hardware support)

N/A (only IPC-9800MOVTADHS Plus+ support)

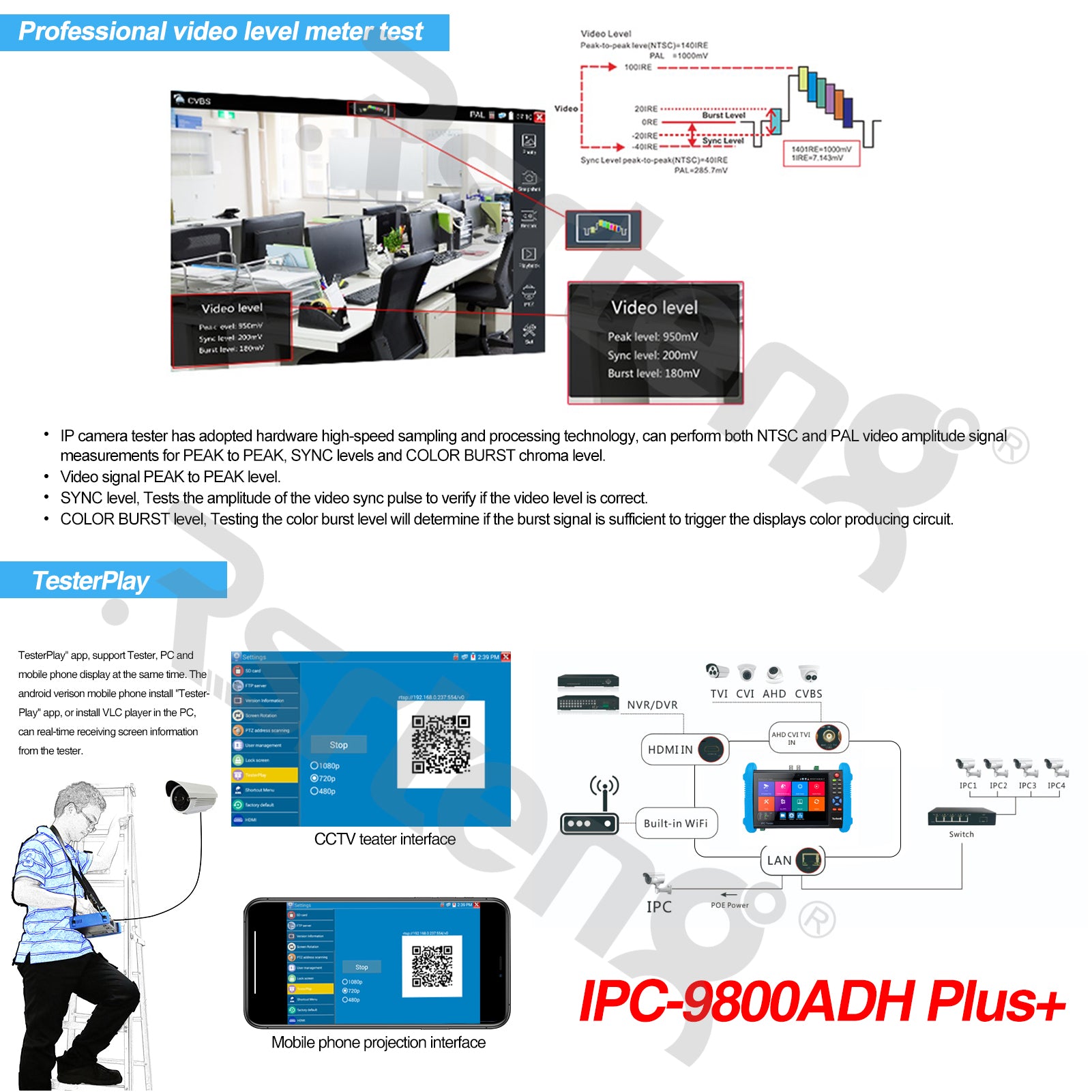

Screen projection

Support tester and mobile phone and PC display at the same time (Only for android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Network port

Dual Gigabit Ethernet Ports, 10/100/1000Mbps adaptive

Wi-Fi

Built in WiFi, speeds150Mbps, Only support 2.4GHz, Display wireless camera image, create WIFI hotspot. Don’t Support 5GHz WiFi.

Audio test

1 ch audio signal input, test whether sound normal

1 ch audio signal output, to connect headphone

RS485

1ch, you can easily use it to control cameras and other devices with RS485 interface

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PoE test

1 POE port and 1 PSE port. Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

External power supply

DC 12V/2A

Battery

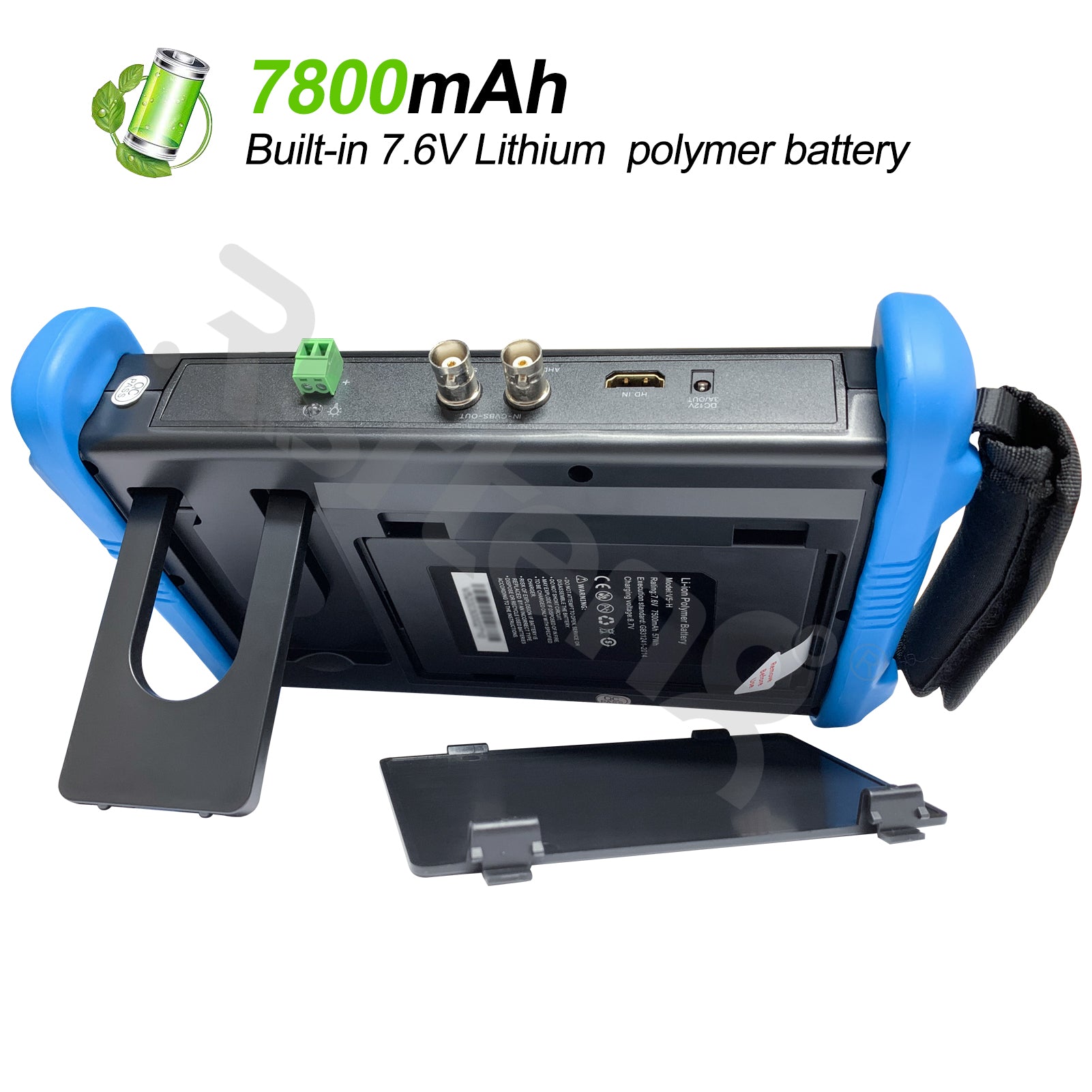

Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh

Rechargeable

After charging 3~4 hours, normal working time 16 hours

OS

Android, Free to add APP (requires version support)

CPU

4core, 1.2GHz

RAM(DDR)

1GB

Flash(EMMC)

8GB

TF card slot

Suport up to 32GB, Pre-installed 8GB TF card

OSD menu language

English, Chinese, Polish, Korean, Russian, Italian, French, Polish, Spanish, Japanese, German, Portuguese, Serbian, Vietnamese, Czech. etc

Auto off

1-30 mins

Working Temperature

-10℃---+50℃ (+14℉---+122℉)

Working Humidity

30%-90%

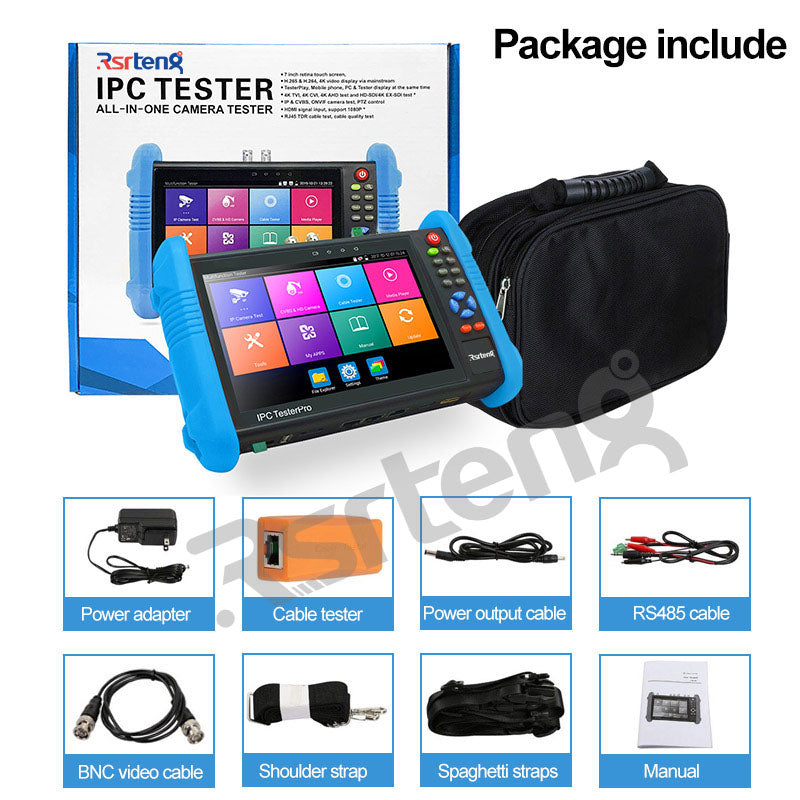

Package includes 1xTester; 1xPower adapter; 1xRJ45 Cable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable;  1xUser manual; 3xShoulder Strap; 1xTool bag;

Weight

Package weight: 2.13kg(4.7lbs)

Tester net weight: 0.96kg(2.1lb)

Dimension

Package Dimension: 320x290x100mm(12.6x11.42x3.94inch)

Tester:240x135x35mm(9.45x5.31x1.38inch)
