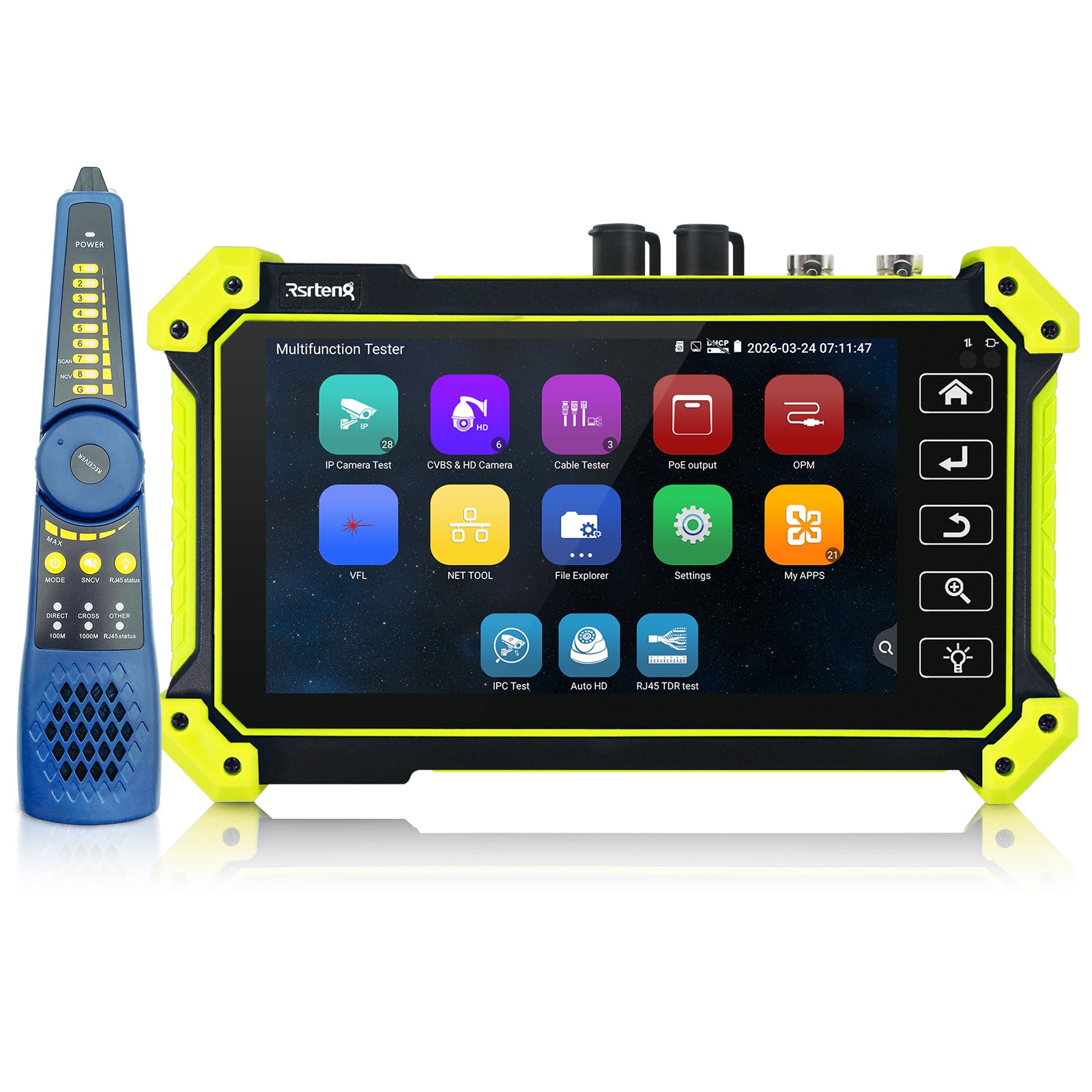

| Brand |
Rsrteng |
| Item series |
E6 Series |
| Models |
E68 |
| Operating system |
Android 10.0 |
|
Display |

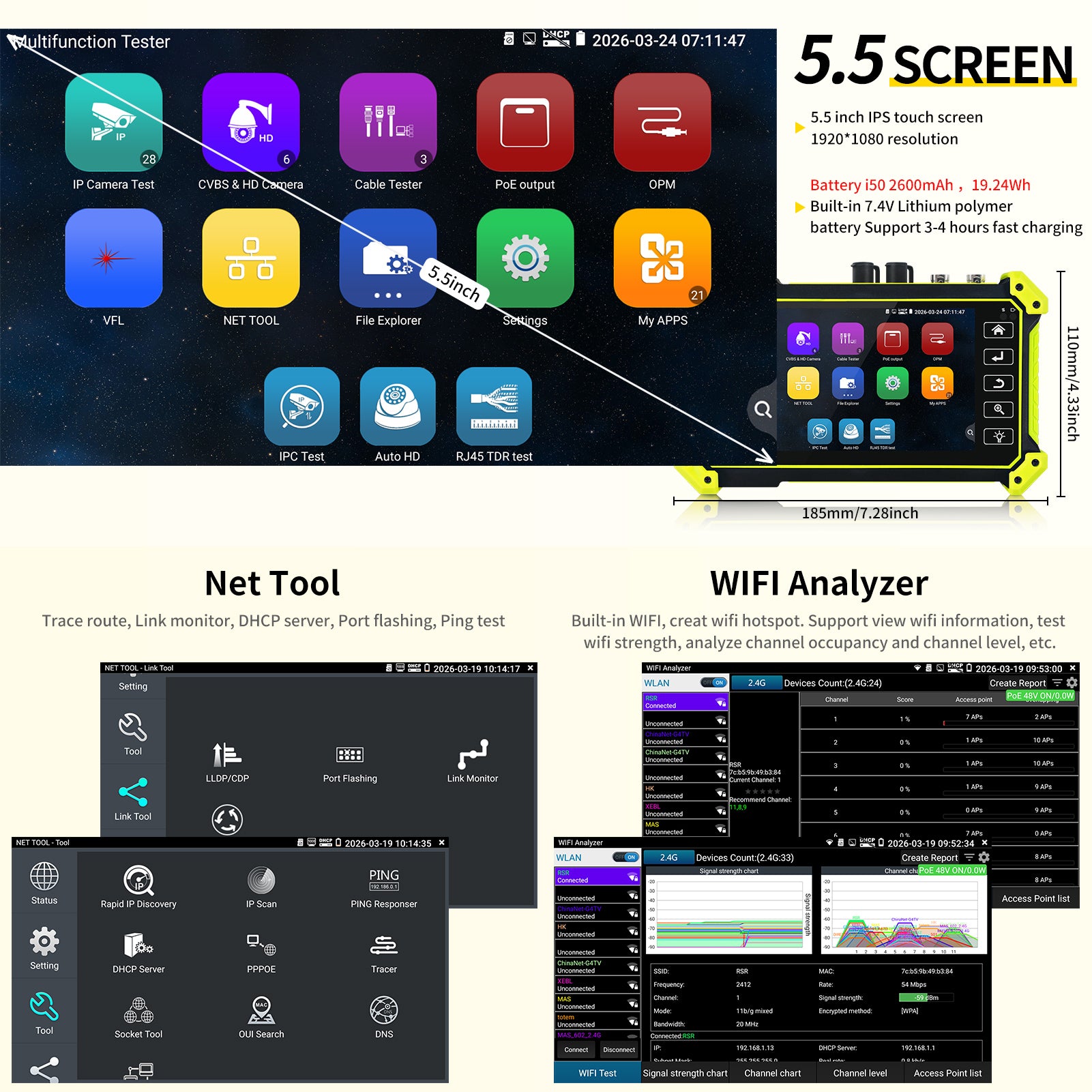

New 5.5 inch IPS touch screen, 1920*1080 resolution |
| Operation method |
Touch screen |
| CPU |
1.6GHz, 4 cores |
| RAM(DDR) |
1GB |
| FLASH(EMMC) |
8GB |

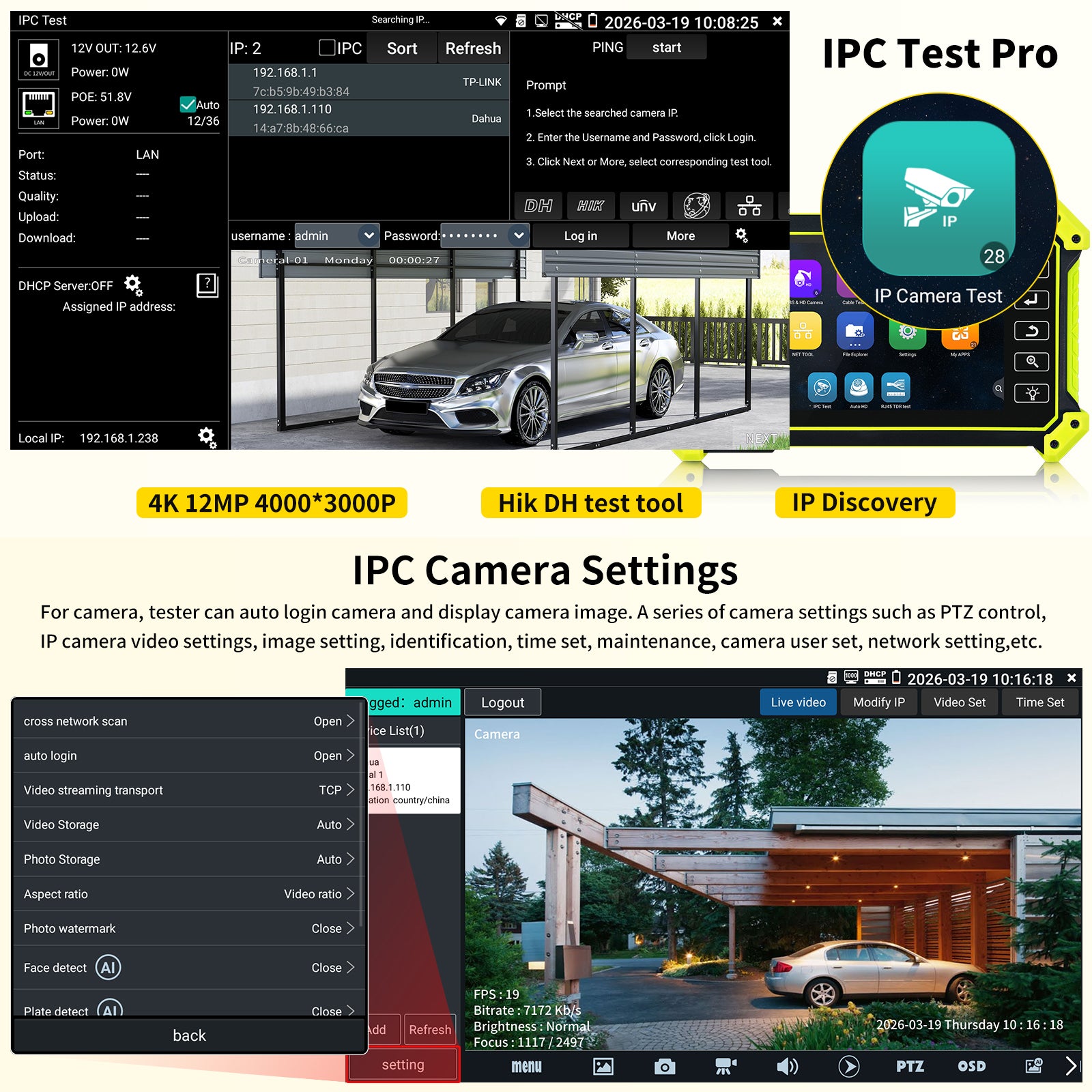

| IP camera test |
Support max 4K 12MP IP camera test via main stream, Support ONVIF protocol |
| IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video: Auto view the video, create testing report
|
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video, open wide dynamic mode. Factory restore, etc. |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. |
| Coaxial HD camera test |
TVI camera test, support coaxial audio, UTC control & call OSD menu
4K/8MP_3840x2160p 12.5/15FPS, 5MP_2592x1944p12.5/20FPS, 4MP_2688x1520p 15FPS,4MP_2560x1440P 15/25/30FPS, 3MP_2048x1536p 18/25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30/50/60FPS
|
CVI camera test, support UTC control & call OSD menu
4K/8MP_3840x2160p 12.5/15FPS,6MP_2880x1920p 20FPS, 5MP_2592x1944P 20FPS,5MP_2880 x1620P 25 FPS,4MP_2560x1440p 25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30/50/60FPS
|
AHD camera test, support UTC control & call OSD menu
4K/8MP_3840x2160p 15FPS, 5MP_2592x1944p12.5/20FPS, 4MP_2560x1440p 15/25/30FPS, 3MP_2048x1536p 18/25/30FPS,1920x1080p 25/30FPS,1280x720p 25/30FPS
|
EX-SDI camera test, support UTC control & call OSD menu
3840x2160p 25/30fps,2560x1440p 25/30fps,1920x1080p 25/30/50/60fps,1920x1080i 50/60fps,1280x720p 25/30/50/60fps.
HD-SDI camera test,1920x1080p 25/30/50/60fps,1920x1080i 50/60fps,1280x720p 25/30/50/60fp
|

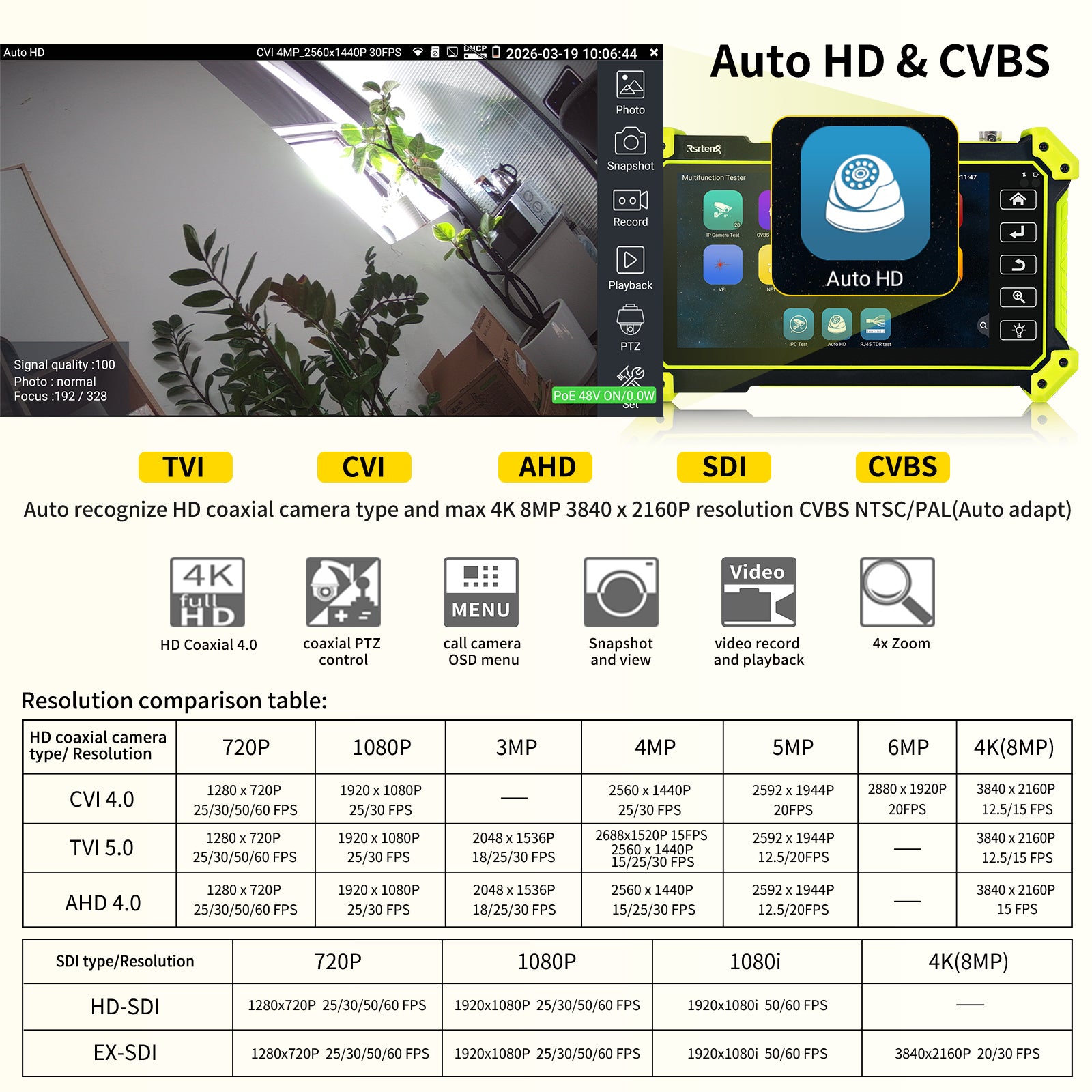

| Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu |
| Coaxial test |
1 channel BNC input CVBS camera test, NTSC/PAL (Auto adapt) |
| Coaxial level test: N/A
|
| Color bar test: N/A
|
| HDMI |
1ch HDMI input, support up to 4K 3840x2160P 30FPS
The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc
|
| HDMI output: N/A
|
| Zoom Image |
4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |
| Power output |
PoE power output: Support standard POE, max power 30W. |
| DC12V/3A power output
|
|
Cable test |
TDR cable test: N/A
|
Cable tracer(Wire Finder): Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
|

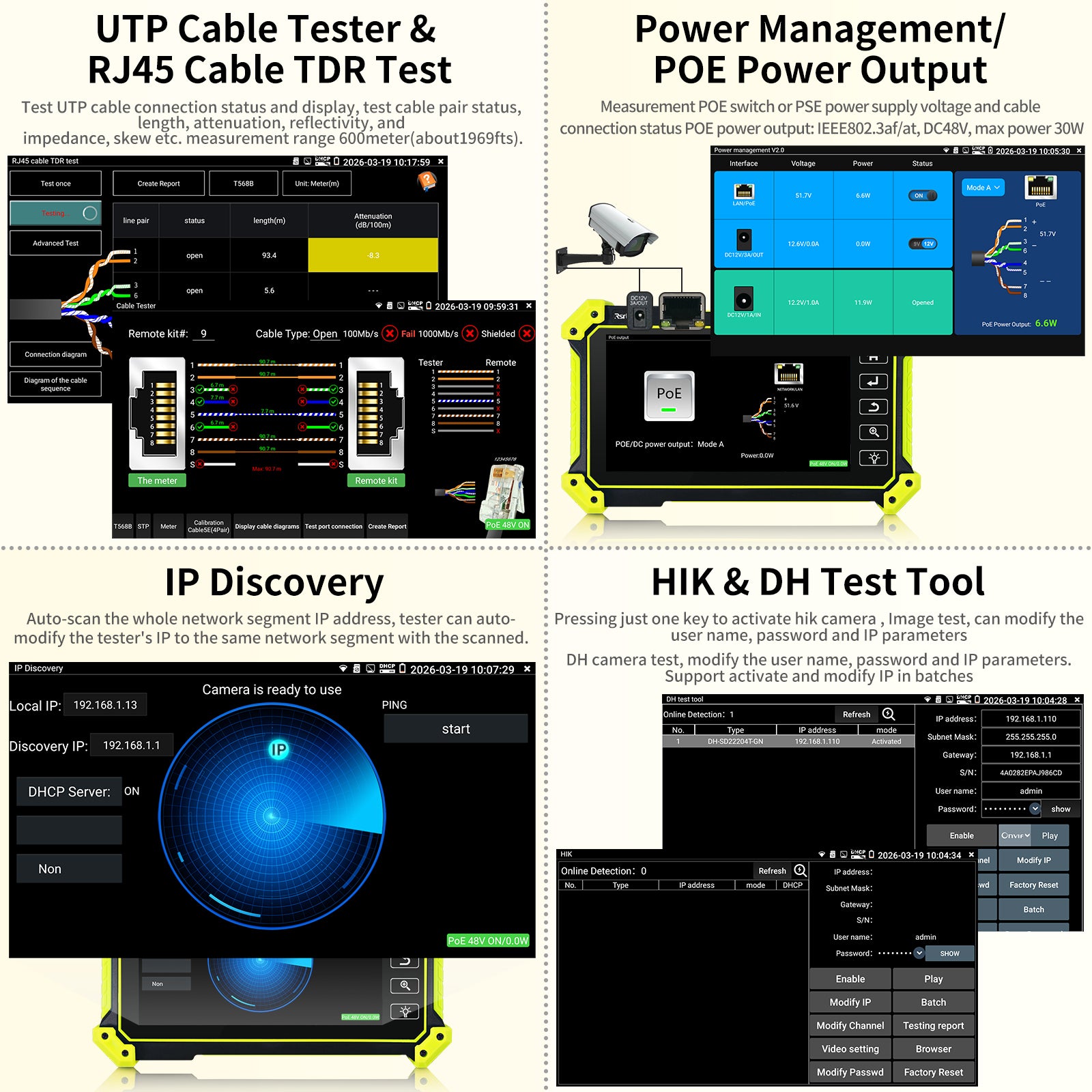

| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug
|
| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). |
|
Cable length test: Measure the disconnection (open circuit status) position of BNC cables, network cables, telephone lines and other cables. Short circuit length detection is not supported. |
Digital Multimeter
(DMM) |
N/A |

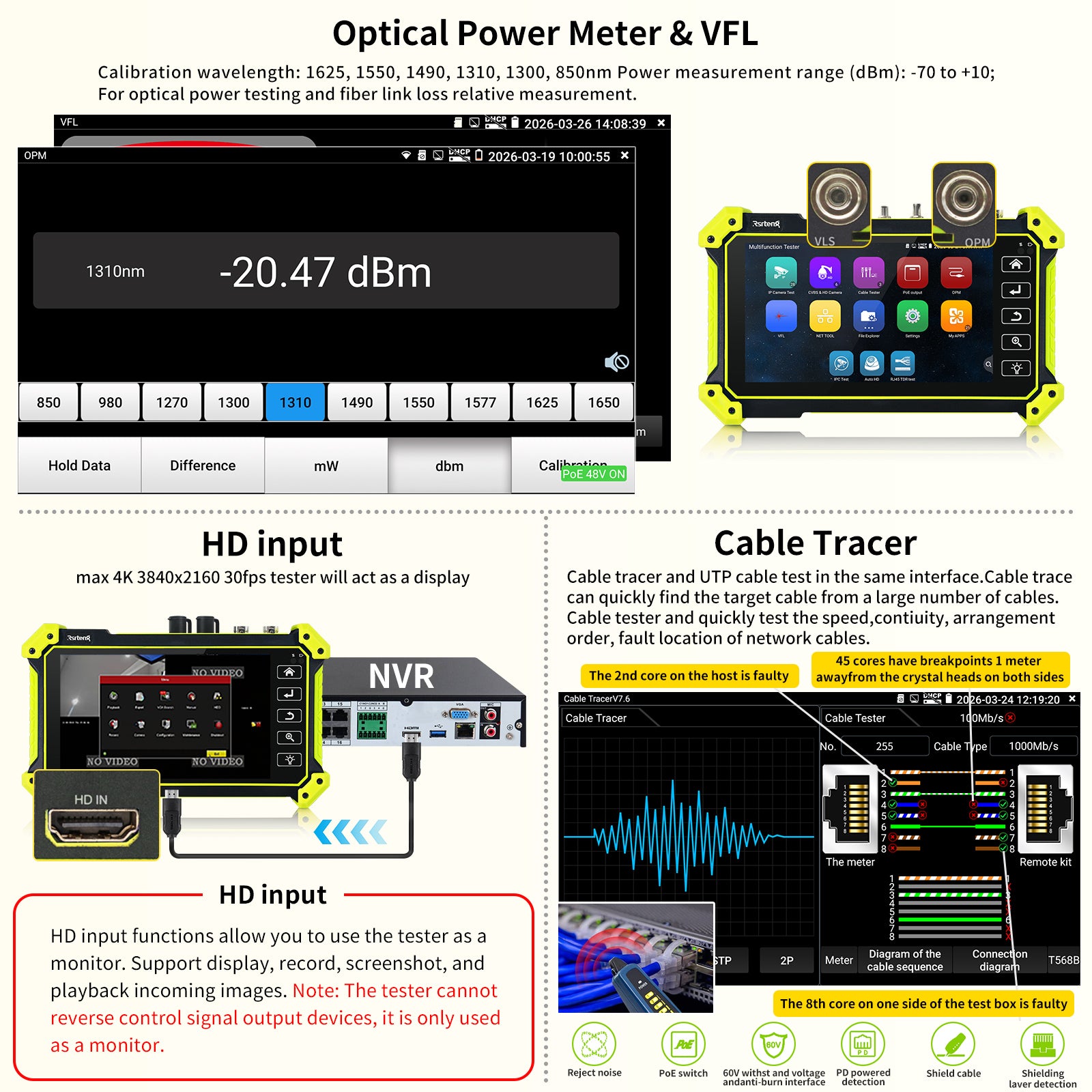

Optical power meter
(OPM) |
Wavelength: 1650/1625/1557/1550/1490/1310/1300/1270/890/850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm
Connector: Active FC/PC
|
Visual fault locator
(VFL) |
To test multi-mode and single mode fiber’s bending and breakage, max test 10km(32,808 ft)
|
| Network interface |
1ch Gigabit Ethernet ports, RJ45, 10/100/1000Mbps adaptive interface |
| Gigabit SFP |
N/A |
| Network test |
Trace route, LLDP/CDP, Link monitor, DHCP server, port flashing, Ping test
|
| WiFi |
Built in WIFI, speeds 150Mbps, support 2.4GHz |
|
WiFi analyzer |
Built-in WIFl analyzer can view wifi information, test wifi strength,analyze channel occupancy and channel rating, etc. |
| Built-in camera |
N/A |
| Distance meter |
N/A |
| TesterPlay |
Screen projection: Tester, mobile phone and PC display at the same time (iOS devices not supported)
|
| Audio test |
1 channel audio signal input, test whether sound normal.(Note: The audio test and RS485 interfaces are shared.) |
| RS485 |
1ch, Support pan/tilt control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic, for Lilin, for Yaan etc. (Note: The RS485 and audio test interfaces are shared.) |
| Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal
|
| Power management V2.0 |
View real-time data such as voltage and power of POE, DC12V output and DC12V input. |
| Drop-down menu |
You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface
|
| Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| External power supply |
DC12V/1A |
| Battery |
Built-in 7.4V Lithium battery, 2600mAh, 19.24Wh |
| Rechargeable |
After fast charging 3 hours, normal working time 4.5 hours(Without supplying power to other devices) |
| Auto off |
5 to 30 (mins) |
| Working Temperature |
-10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity |
30% to 90% |
| Dimension/Weight |
Tester: 185x118x41mm(7.28x4.65x1.61inch) / 430g(0.95lbs)
Package: 255x145x105mm(10.04x5.71x4.13inch) / 1200g(2.65lbs)
NOTE:There may be slight weight differences between different models.
|
