HD-3100 Plus Coaxial Security Camera Tester

Regular price
$199.00
Sale price
$199.00
Regular price
$239.00
Sold out
Unit price
per

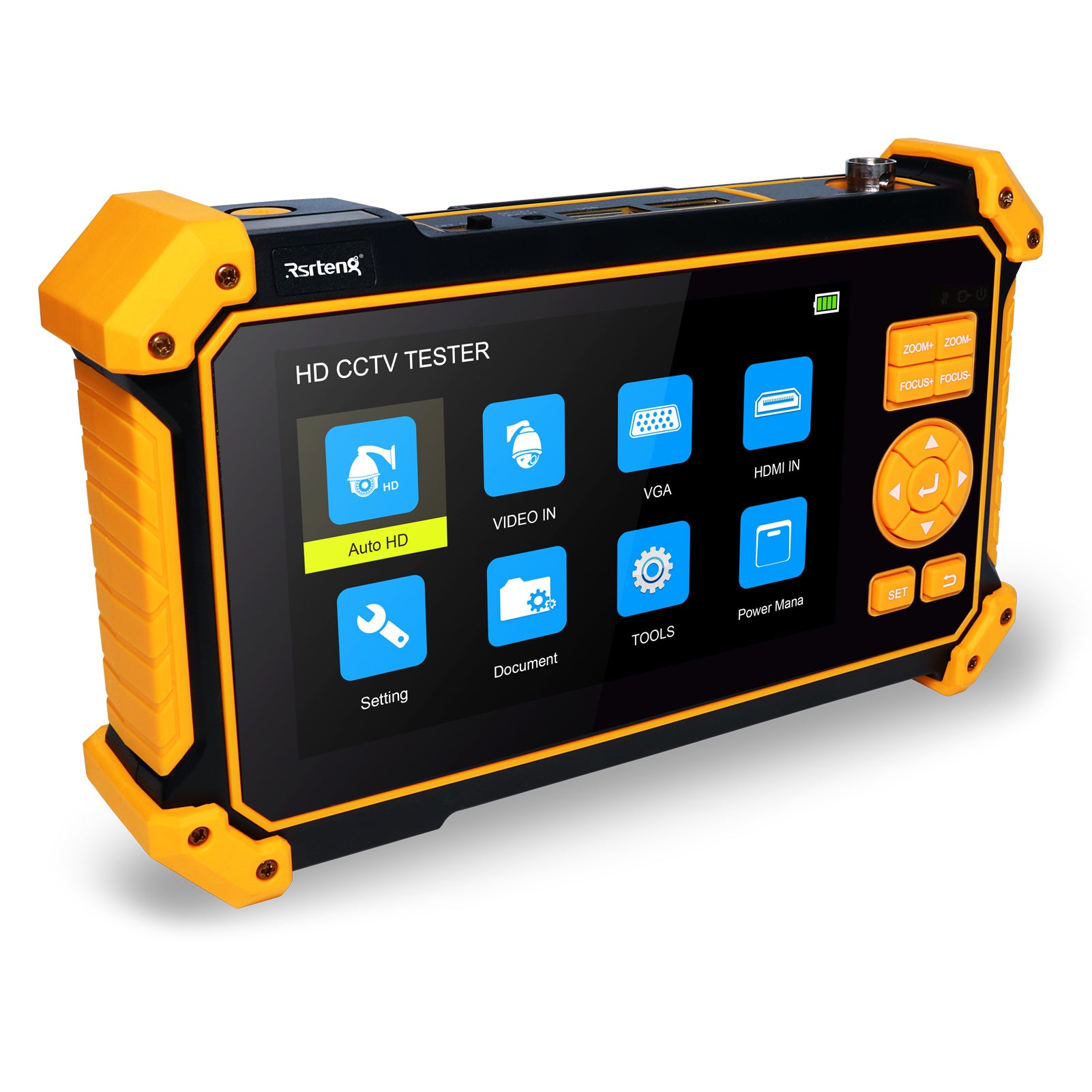

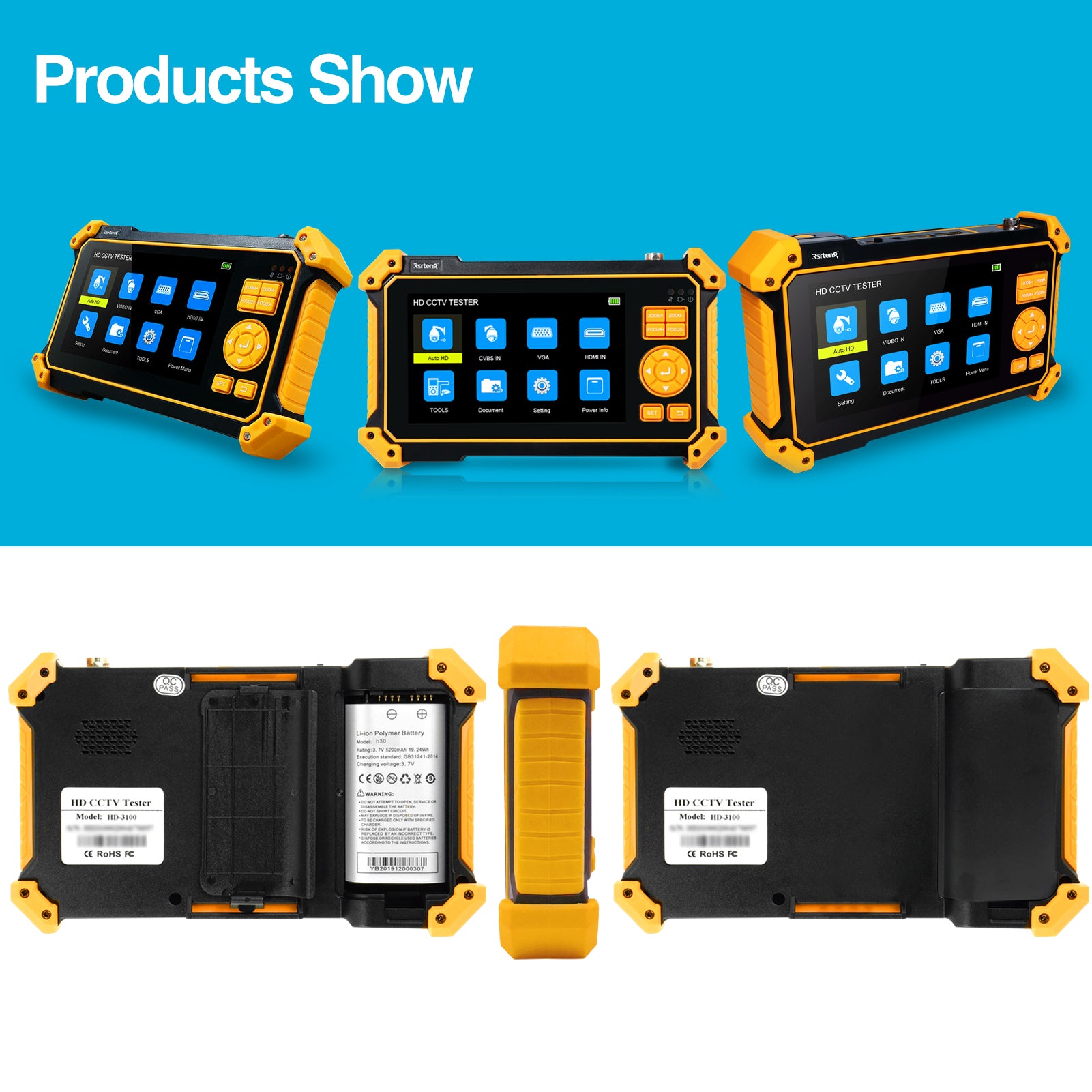

This is the HD-3100 HD camera tester in the Rsrteng HD-3000 series. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance HD coaxial cameras.

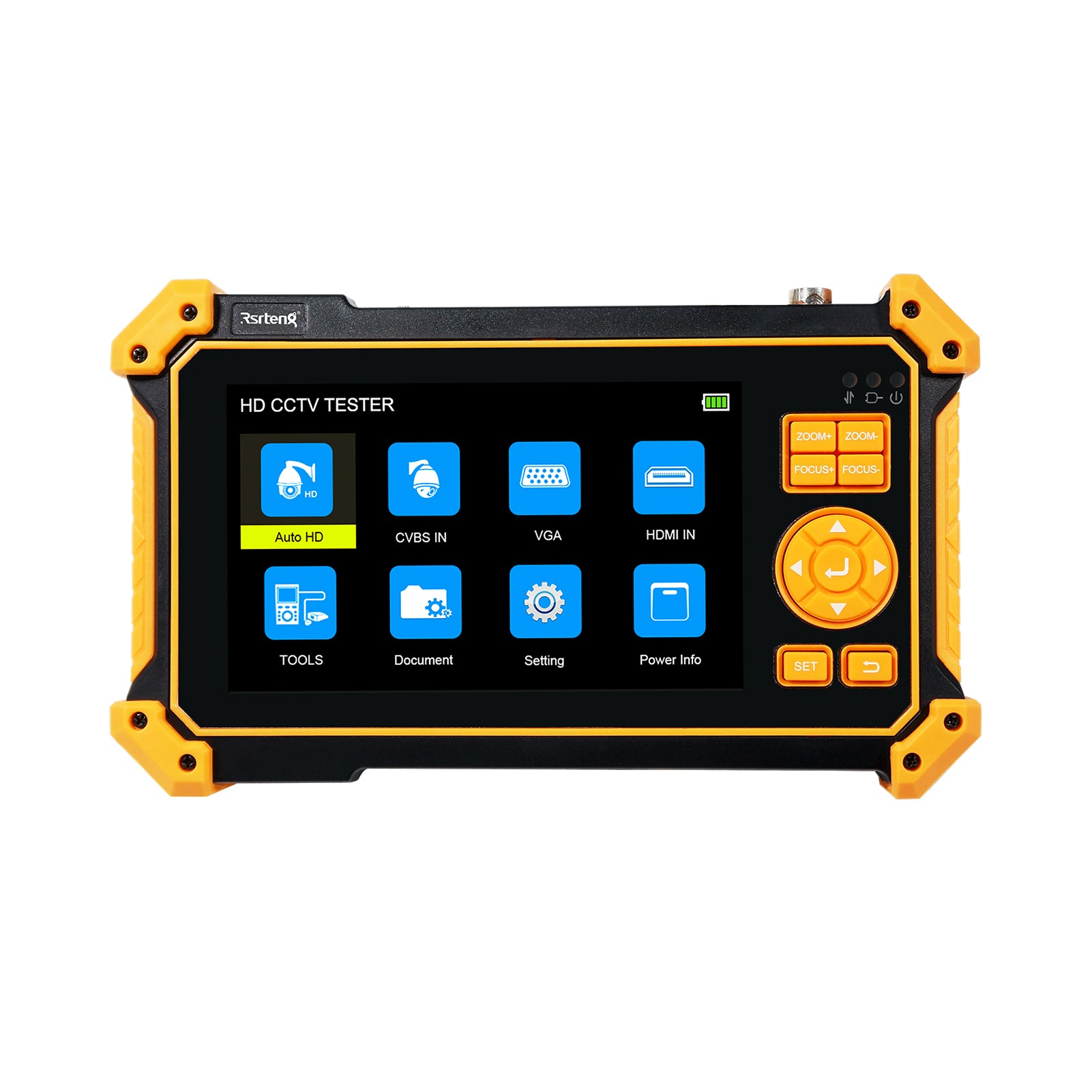

HD-3100 use 5inch TFT-LCD screen(Non-touch screen), can support the testing of up to 4K 8MP HD CVI TVI AHD camera and CVBS cameras, but it does not support IP camera and SDI camera testing. Built-in professional test software, UTP cable test, PTZ controller, power output, HDMI&VGA input, audio input, RS485 are all available. Using self-developed operating system (based on Linux), work is stable and reliable. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

SUPPORT CAMERA TYPE

IP camera test: Don't support

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu. NOTE: don't support SDI camera test.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.



Parameters

Brand

Rsrteng

Model

HD-3100

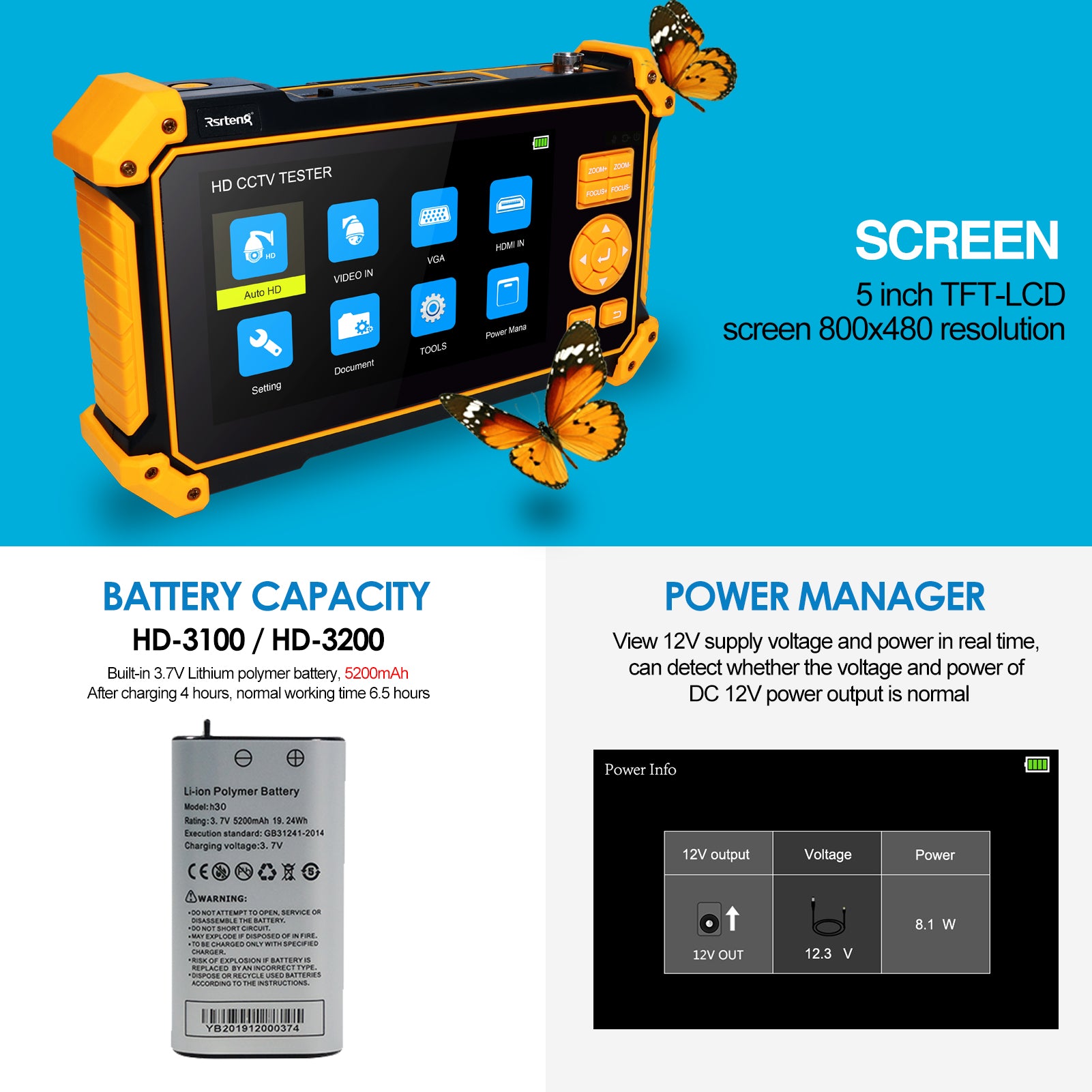

Display

5 inch TFT-LCD screen(Non-touch screen), 800x480 resolution

12MP 4K

IP camera test

H.265/H.264

Doesn't support IP network camera test.

HD Coaxial test

8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu

SDI camera test: N/A (Don't support)

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

CVBS camera test

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

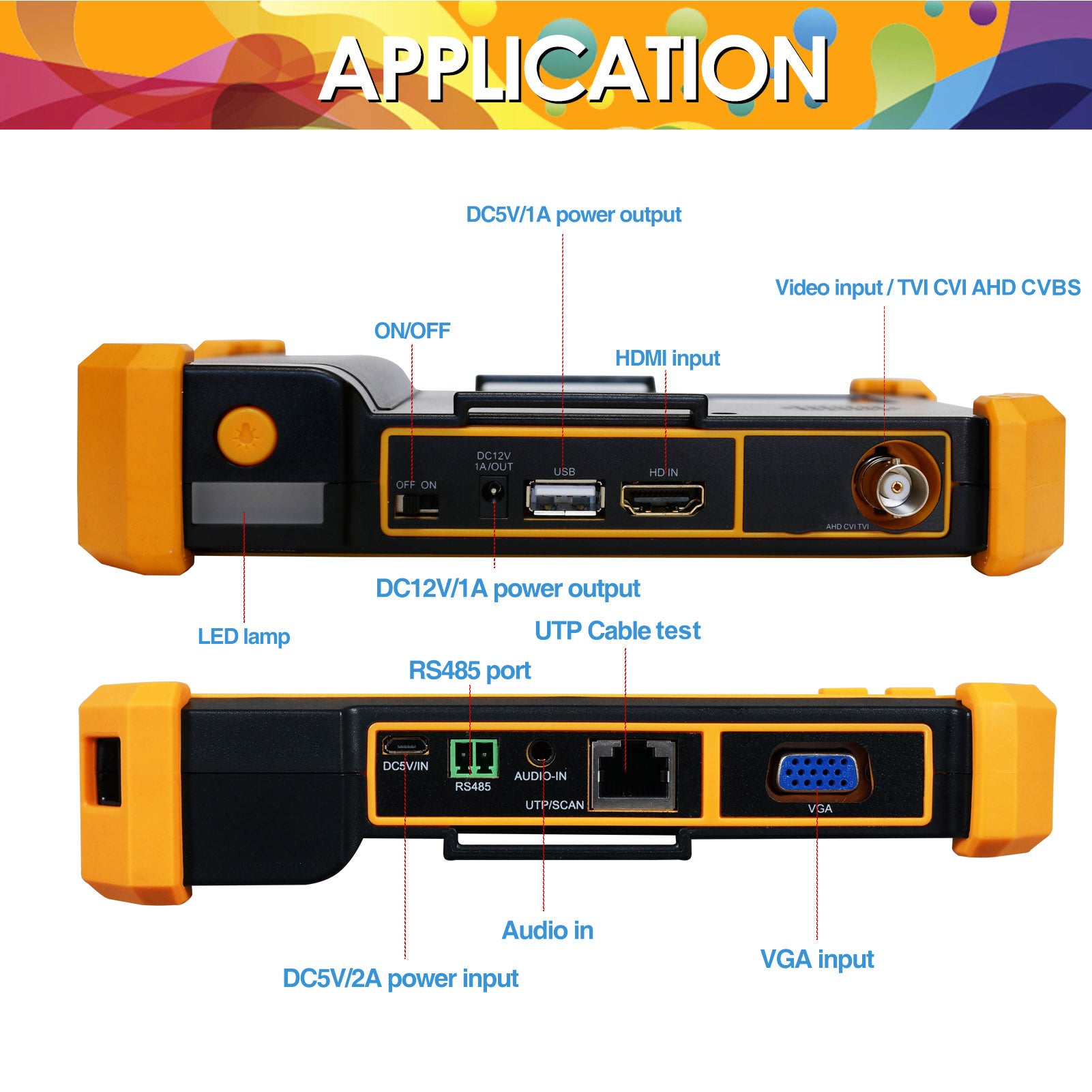

HDMI

HDMI input: 1 ch HDMI input, support max 4K 30FPS.

The resolution asfollow: 4K_3840x2160/2K_2560x1440P/1920×1080P/1920×1080i /720×480P/720×576P/1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc

HDMI output: N/A

VGA

1 ch VGA input, support max 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.

 Cable test

Digital Cable tracer: N/A

UTP cable test:

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

Tester Play

N/A

Network

N/A

Wi-Fi

N/A

Audio test

1 channel audio signal input, test whether sound normal.

Power

Input: DC 5V/1A input, micro USB port

DC output:

DC12V/1A power output, supply temporarily power for the camera

DC5V/1A power output, supply temporarily power for the home camera and phone.

Battery

Built-in 3.7V Lithium polymer battery, 5200mAh, 19.24W/h

Rechargeable

After charging 3-4 hours, normal working time 5-8 hours

OS Self-developed operating system (based on Linux)
USB port 1ch, support reading USB disk and 5V power output
TF card slot N/A

Menu language

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1-30 (mins)

Work Temperature

-10℃---+50℃ (+14℉---+122℉)

Work Humidity

30%-90%

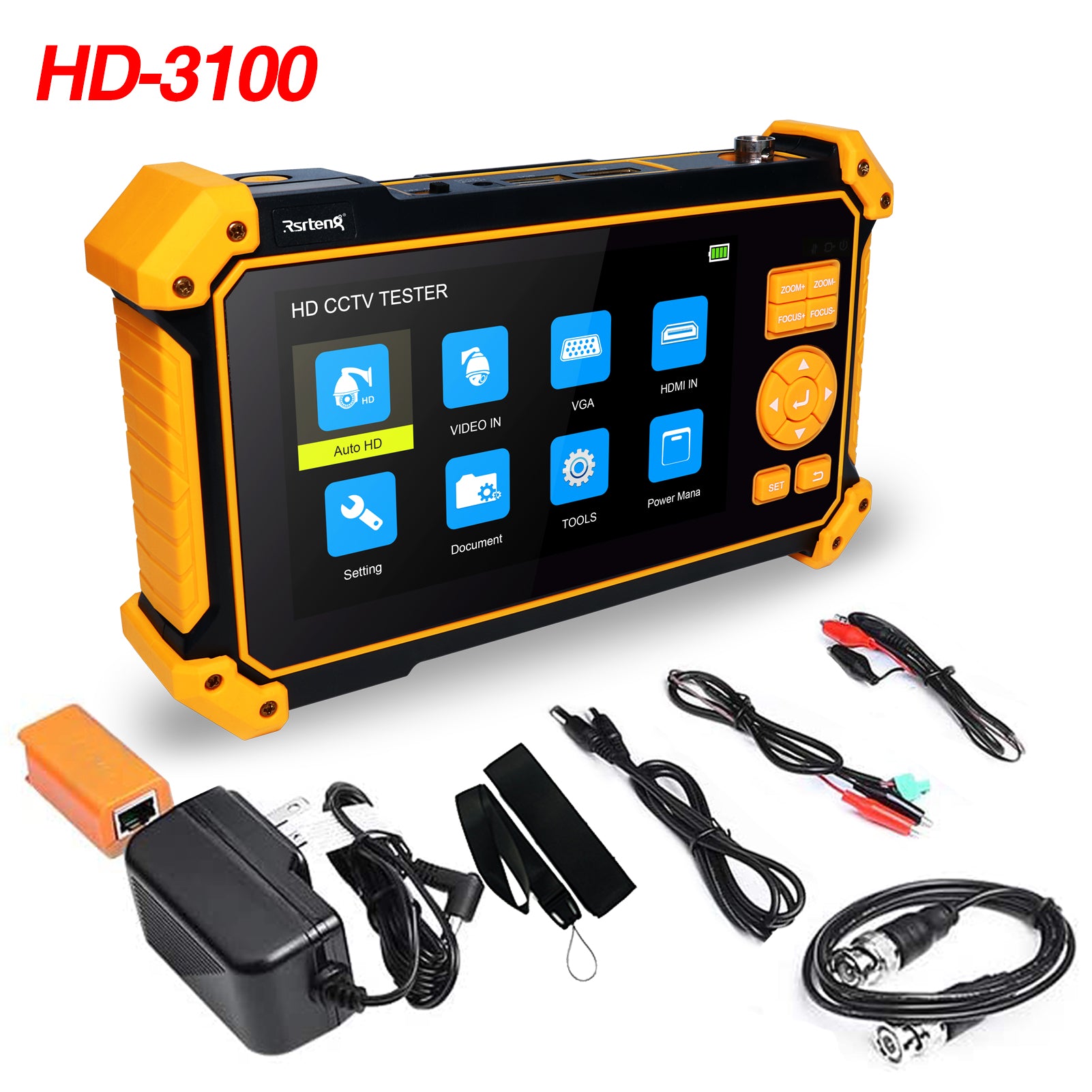

Package includes

1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband; 1x User manual

Dimension

Package Dimension: 260x143x100mm(10.24x5.63x3.94inch)

Tester:183x110x36.5mm(7.2x4.33x1.44inch)

Weight

Package weight:1.05kg(2.31lbs)

Tester net weight: 0.4kg(0.88lb)
