This is Rsrteng IPC-1800ADH Plus security camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and other security equipment.

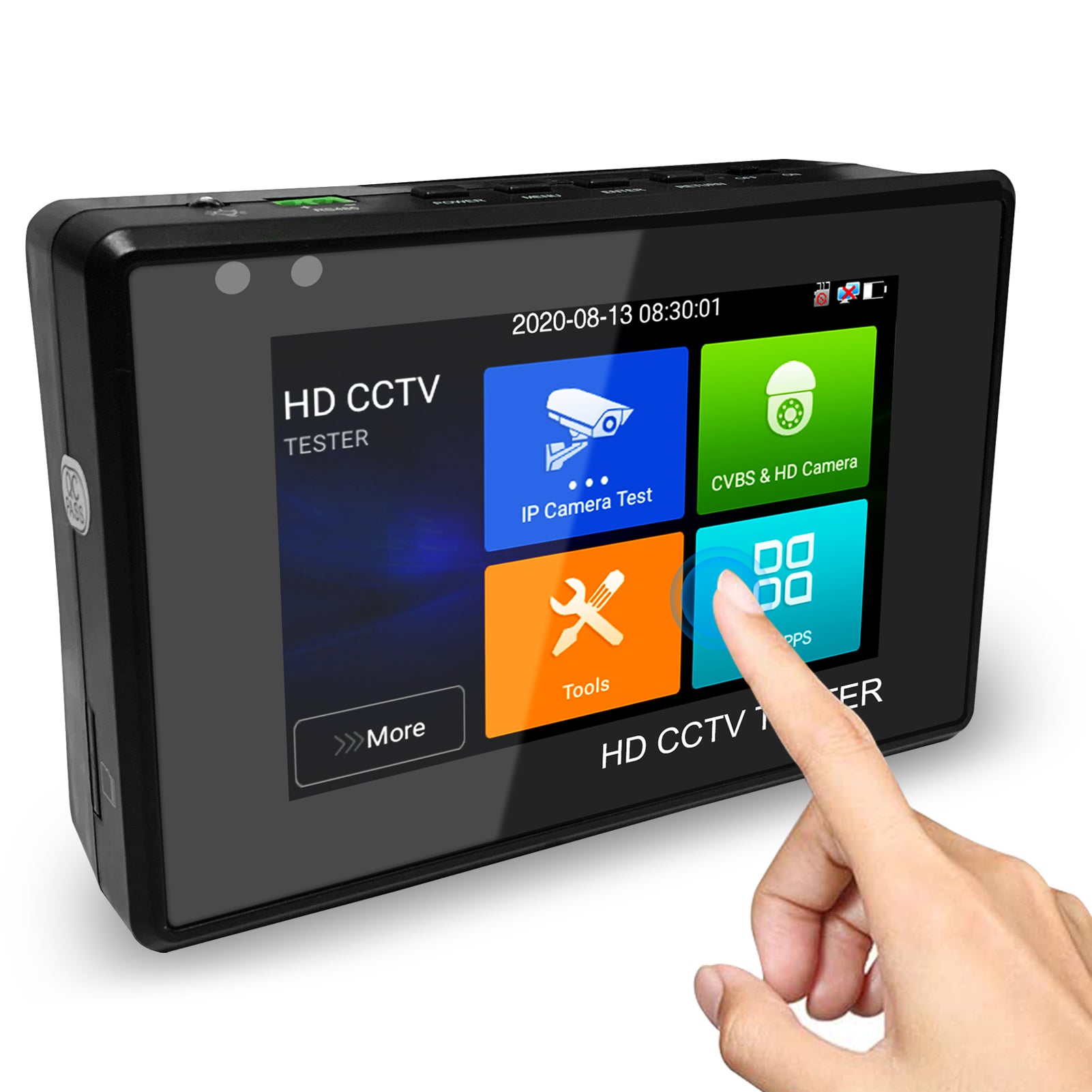

IPC-1800ADH Plus uses 4 inch 800x480P high-definition touch screen, so the operation becomes simple and fast. Support max 12MP IP camera and max 4K 8MP coaxial HD camera test. Support POE, WIFI, RJ45TDR, DC 12V/3A power output etc. Use it to make your installation process simple and efficient. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
SUPPORT CAMERA TYPE
IP camera test:
Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.
Coaxial HD camera test:
Max 4K 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu.
CVBS camera test:
1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc.
Parameters
|
Brand |
Rsrteng |
|
Model |
IPC-1800ADH Plus |
|
Display |
4inch IPS touch screen, 800x480 resolution |
|
Network port |
1x RJ45 interface, 10/100/1000M auto adjust |
|
WIFI |
Built in WIFI,speeds150M,display wireless camera image |
|
Main stream test |
New hardware decoding, 4K 12MP 4000x3000p, 4K 8MP 3840x2160p camera image display by mainstream testing |
|
IP discovery |
Auto-scan the whole network segment camera IP |
|
Rapid ONVIF |
Search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
|
Hik test tool |
Activate Hikvision camera, display image from the camera, modify IP, user name and password parameters etc |
|
DH test tool |
Activate Dahua camera, modify IP, user name and password parameters etc |
|
IP camera type |
For ONVIF,Non-ONVIF, Dahua, Hikvision, Samsung, Tiandy, Kodak, Honeywell, RTSP Viewer |
|
CVI video signal test |
CVI camera testing, resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2560x1440p 25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160p 12.5/15fps, UTC control and call OSD menu |
|
TVI video signal test |
TVI camera testing, resolution support 720p 25/30/50/60fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2688x1520p 15fps, 2592x1944p 12.5/20fps, 4K 3840x2160 12.5/15fps, UTC control and call OSD menu |
|
AHD video signal test |
AHD camera testing,resolution support 720p 25/30fps, 1920x1080p 25/30fps, 2048x1536p 18/25/30fps, 2560x1440p 15/25/30fps, 2592x1944p 12.5/20fps, 4K 3840x2160 15fps, UTC control and call OSD menu |
|
CVBS Analog video test |
1 channel BNC Input , NTSC/PAL (Auto adapt) |
|
Snapshot, Video record and playback |
Capture current images and record live video as JPG file. Media player will view photos and playback video |
|
Tester Play |
Tester, mobile phone and PC display at the same time |
|
12V/3A power output |
Output DC12V/3A power to camera |
|
PoE power output |
48V PoE power output, IEEE802.3af/at, max power 25.5W |
|
Theme |
Self-define icons, desktop and application interface background, modify interface sliding effect |
|
Drop-down menu |
Includes PoE power switch ,IP setting, CVBS,etc |
|
Audio test |
1 channel audio signal input |
|
RJ45 TDR cable test |
RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter. |
|
UTP Cable tester |
Test UTP cable connection status and display on the screen. Read the number on the screen |
|
Cable tracer*(Optional) |
NOTE: This is an Optional function. You need to purchase the WT255 cable tracer hardware separately and add the "cable tracer" APP before can be used. |
|
PTZ control |
Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
Network test |
IP address scan, link scan, and Ping test. Quickly search the for IP camera’s IP address on your network |
|
External power supply |
DC 12V/1A |
|
Battery |
Built-in 7.4V Lithium polymer battery ,2400mAh, 17.76Wh |
|
Rechargeable |
After charging 4~5 hours, normal working time 8 hours |
|
Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc |
|
Auto off |
1 to 30 (mins) |
|
Working Temperature |
-10℃ to +50℃ / 14℉ to 122℉ |
|
Working Humidity |
30% to 90% |
|
Dimension/ Weight |
126x83x33mm, 0.32kg / (4.96x3.27x1.3inch, 0.7lbs) |
