This is Rsrteng IPC-1900C Plus portable security camera tester.It adds the function of a cable tracer on the basis of IPC-1900 Plus, which is used for cable search.Other functions are exactly the same as IPC-1900 Plus. It is an essential tool for field technicians in the field of security cameras.Used for the installation and maintenance of IP camera.
IPC-1900C Plus use 4 inch 960 x 640 HD IPS touch screen,can support the testing of max 8K 8160x3616P 32MP H.265 & 4K 4000x3000P/3840x2160P 12MP H.264 IP Camera test. Rapid ONVIF, create the test report and modify IP address.Professional test app,UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug.You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
|
Brand |
Rsrteng |
|
Model |
IPC-1900C Plus |
|
Display |
New 4 inch IPS touch screen, 960*640 resolution |
|
Operating system |
Android 9.1 |
|
CVBS camera test |
N/A |
|
IP camera test 8K 32MP H.265/H.264 |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
|
Rapid Video: Auto view the video, create testing report |
|
|
For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras. |
|
|
For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. |
|
|
For Onvif camera test: supports testing of other cameras using ONVIF protocol, display images, and other non-ONVIF protocol cameras. Built-in multiple test APP tool. |
|
|
HD 4K Coaxial camera test |
N/A |
|
Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |
|
12V/3A power |
Output DC12V/3A power out, supply temporarily power for the camera |
|
PoE power output |
48V PoE power output, max power 25.5W |
|
Cable test |

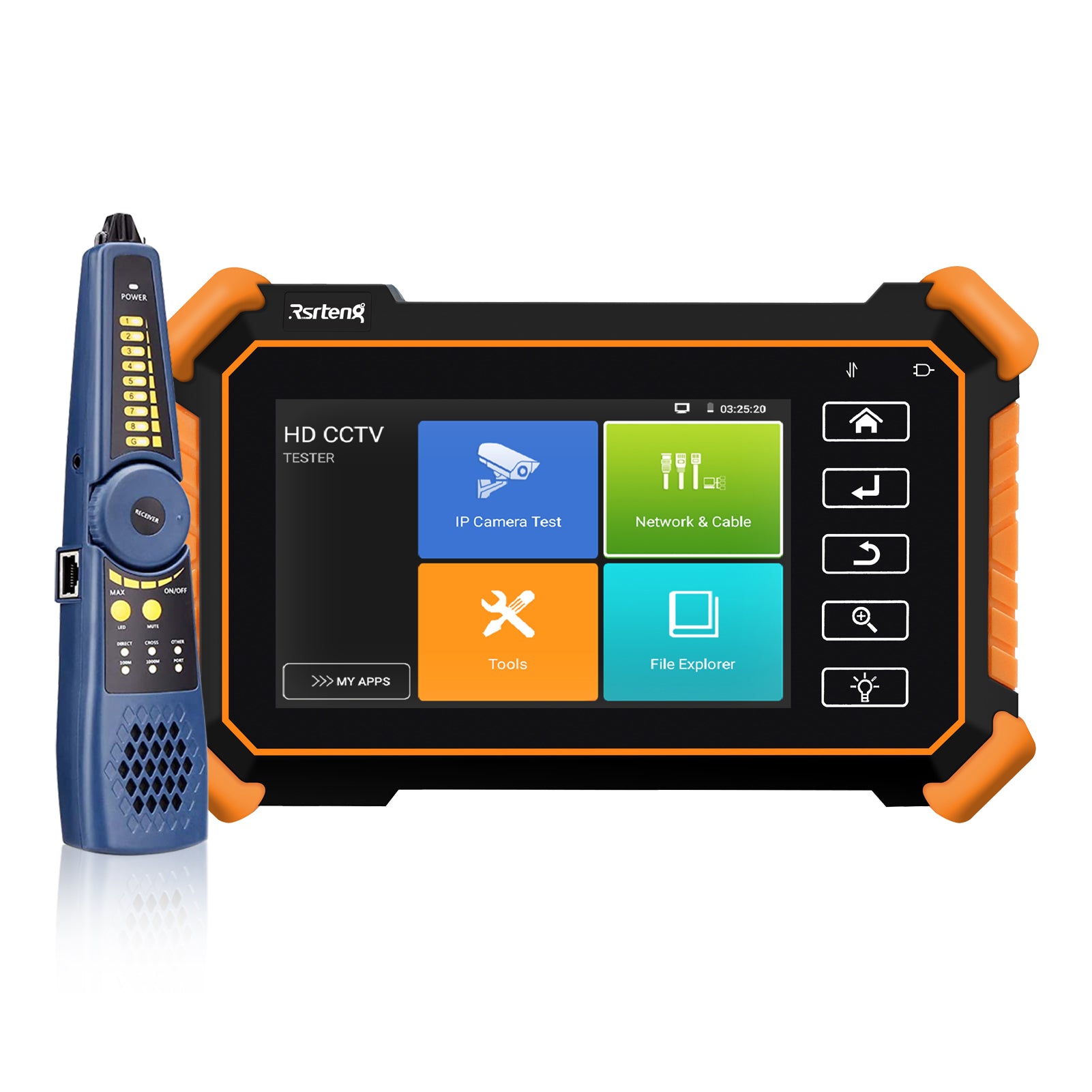

Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time |
|
UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. |
|
|
Tester Play |
Screen projection: Tester, mobile phone and PC display at the same time (Only for android version mobile phone) |
|
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
|
Wi-Fi |
Built in WIFI, speeds 150Mbps, display wireless camera image |
|
Audio test |
1 channel audio signal input, test whether sound normal. |
|
Power management |
Display DC 12V input & output voltage and power in real time |
|
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
|
Power supply |
DC 12V 1A |
|

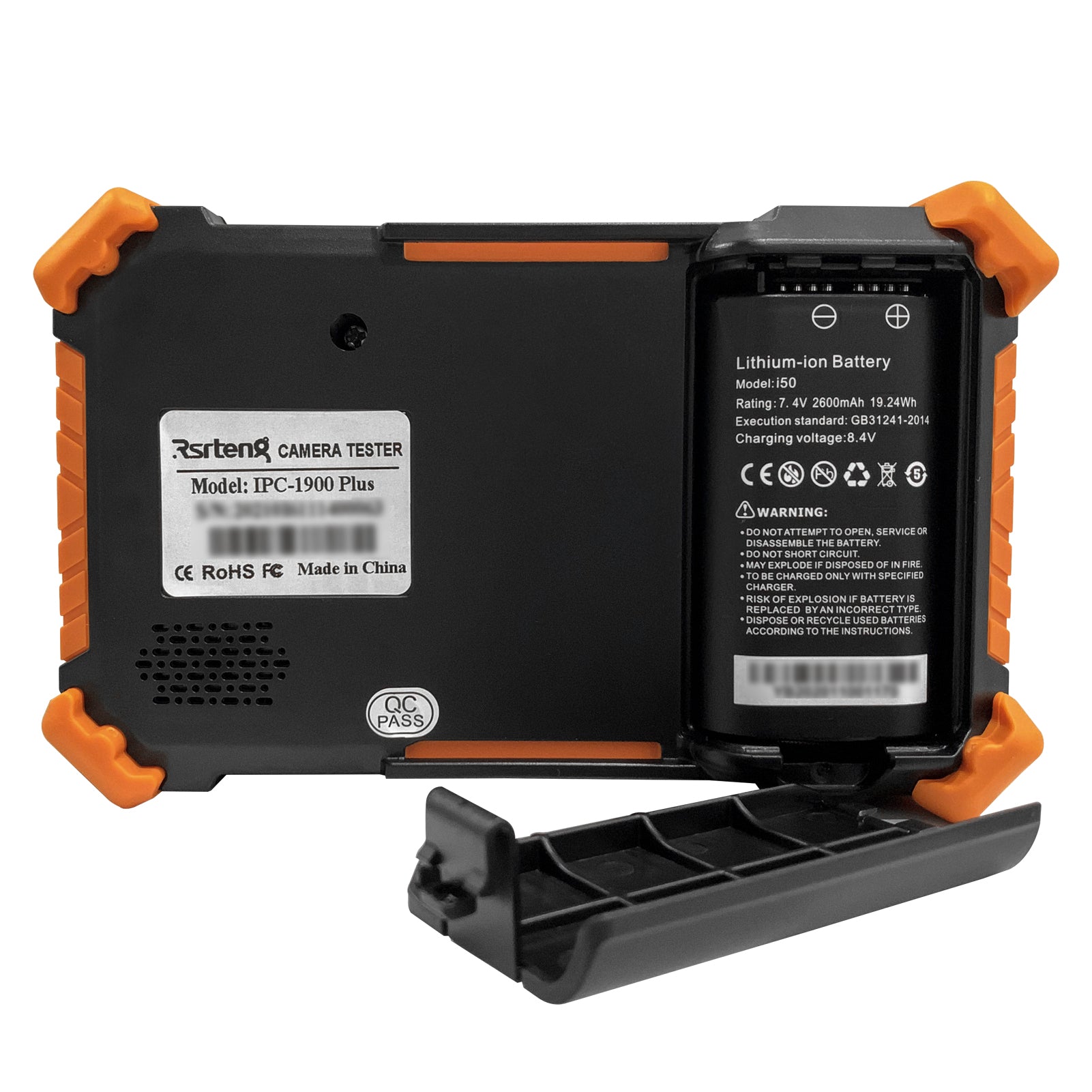

Battery |
Built-in Lithium ion battery 7.4 V / 2600mAh, 19.24Wh |
|
Rechargeable |
After charging 3-4 hours, normal working time 9 hours |
|
Operation setting |
OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc |
|
Auto off |
1 to 30 (mins) |
|
Working Temperature |
-10℃ to +50℃(14 to 122℉) |
|
Working Humidity |
30% to 90% |
|

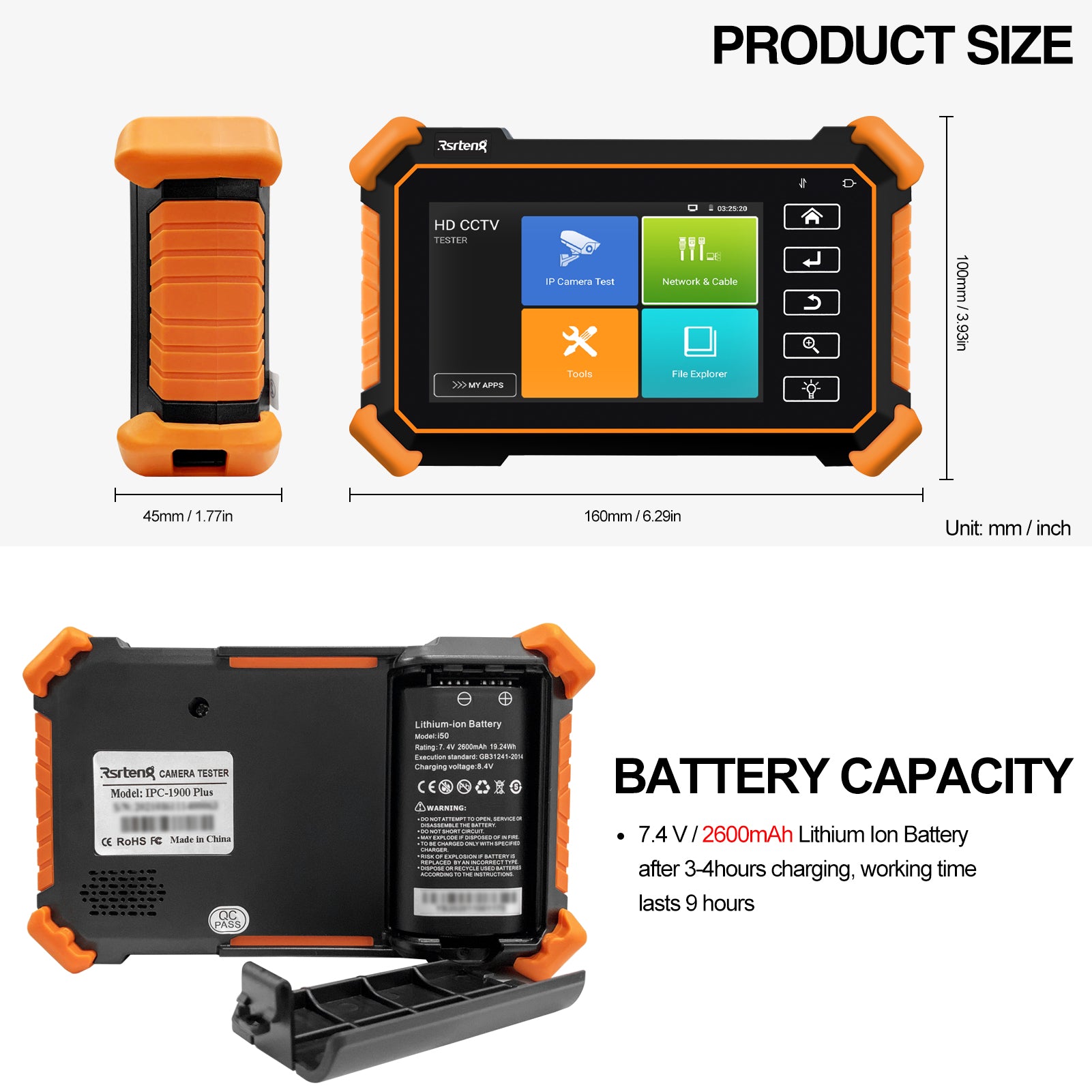

Dimension |
160x100x45mm(6.3x3.94x1.77inch) |
|
Weight |
0.36kg(0.79lb) |
