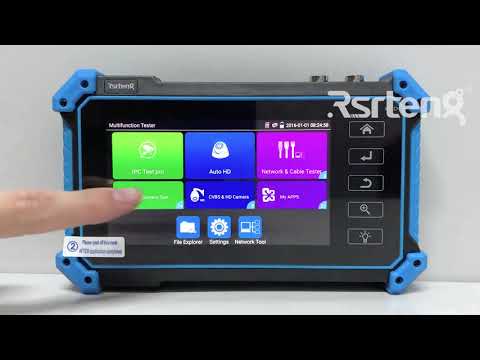

This is Rsrteng IPC-5200C Plus portable 4K security surveillance camera tester.It adds the function of a cable tracer on the basis of IPC-5200 Plus, which is used for cable search. Other functions are exactly the same as IPC-5200 Plus. Is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera.

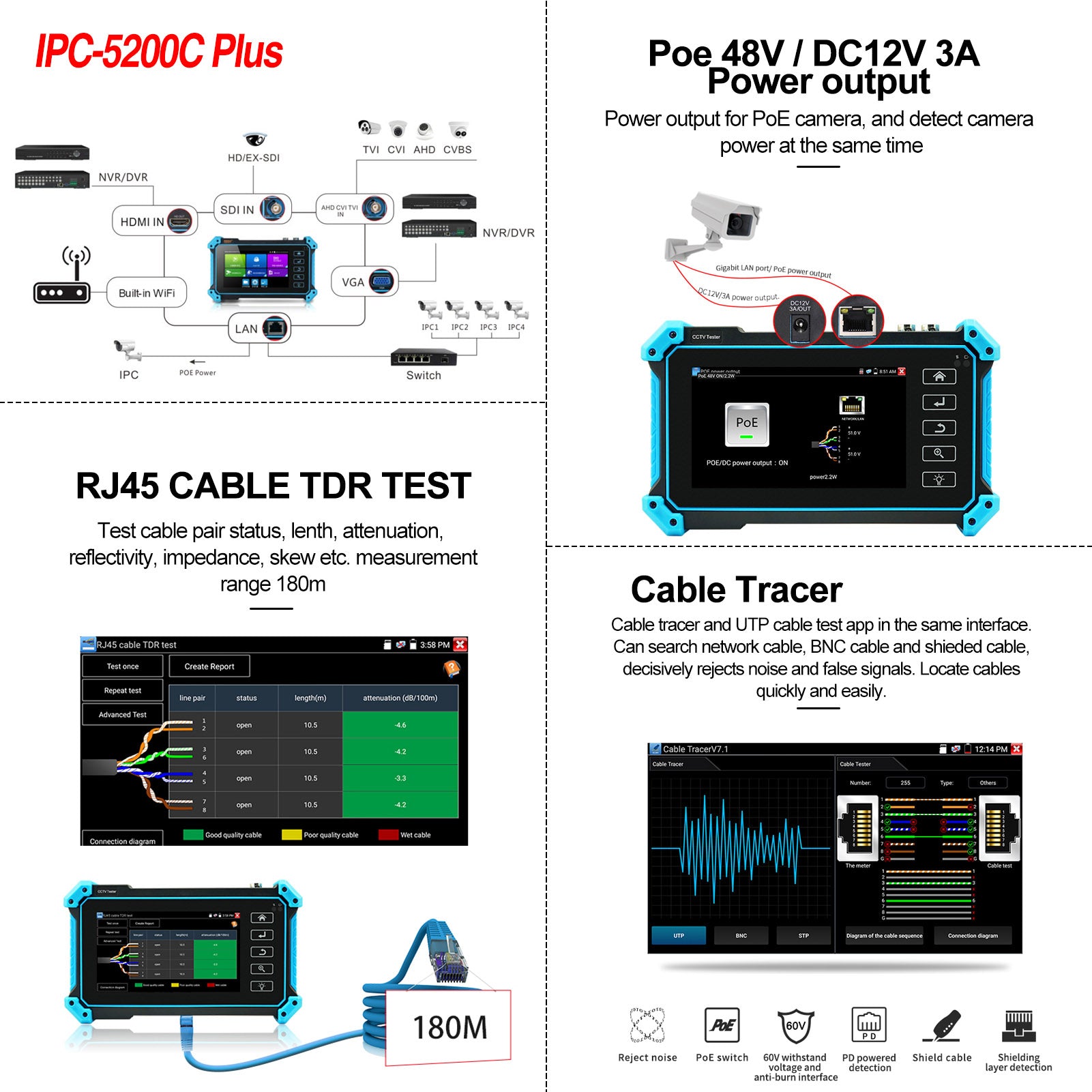

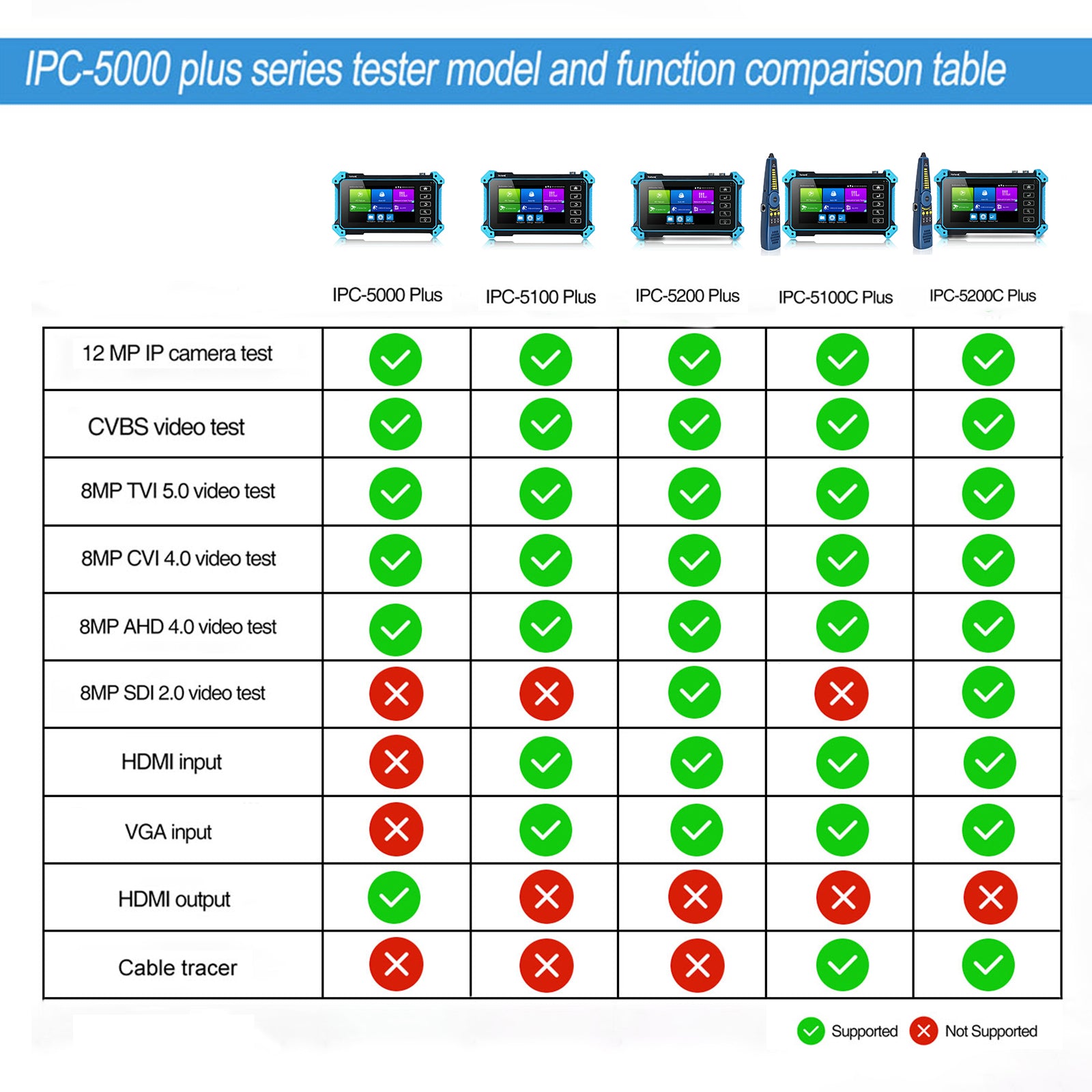

IPC-5200C Plus is the highest configuration tester of the IPC-5000 series, support up to 12MP IP camera testing, support up to 8MP AHD CVI TVI SDI camera and CVBS camera testing.The unique SDI camera test function is not available in other models. HDMI and VGA input function can use the tester as a display for NVR and DVR testing. Professional test app, POE, cable test, WiFi, power output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

SUPPORT CAMERA TYPE
IP camera test:

Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI/SDI camera test, 3840 x 2160P, support UTC control and call OSD menu.

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc.

Cable tracer:

Equipped with a digital cable tracer, support cable search function.

RSRTENG IPC-5200C PLUS CAMERA TESTER CCTV TESTER

Parameters

Brand

Rsrteng

Model

IPC-5200C Plus

Display

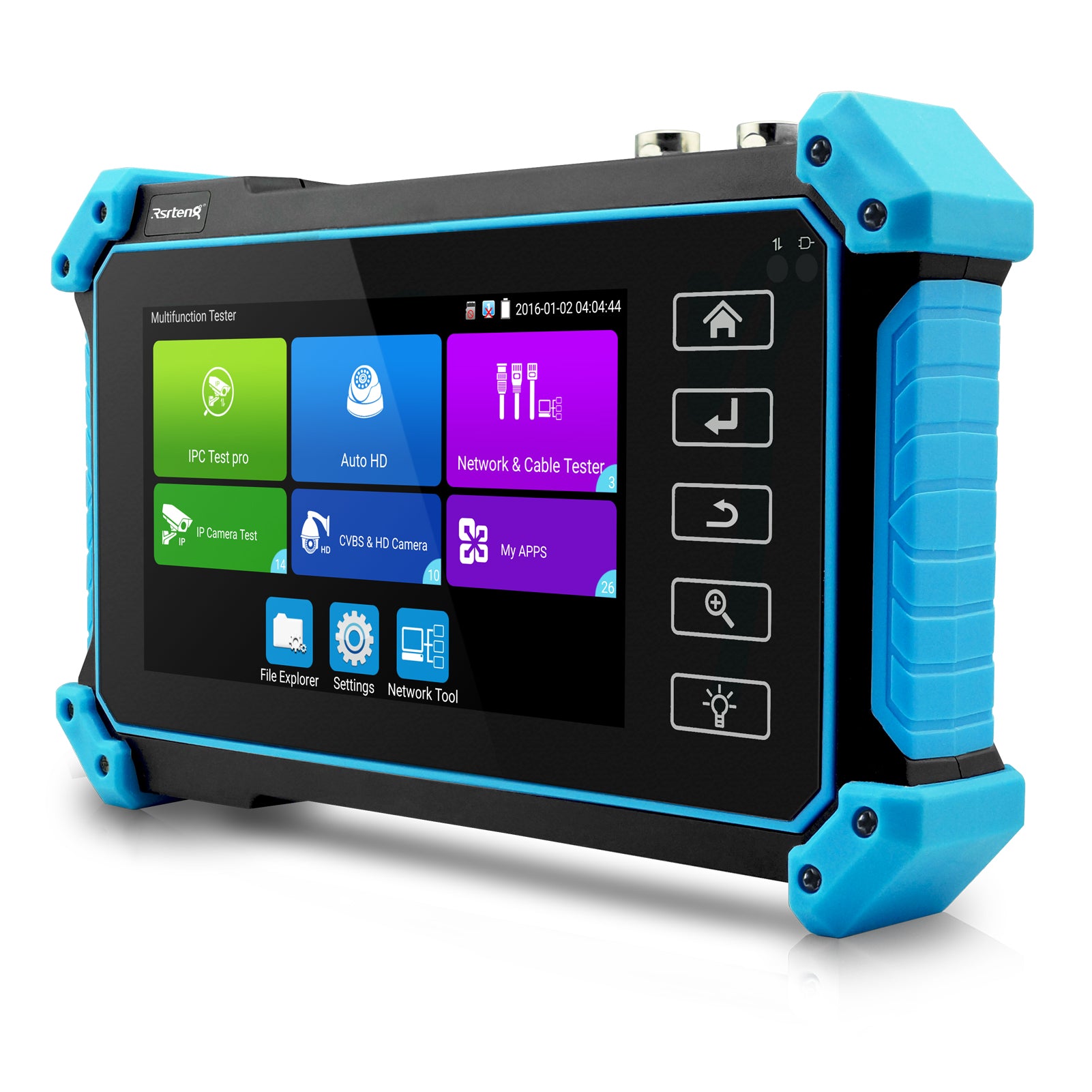

5 inch IPS touch screen, 1920x1080 resolution

12MP 4K

IP camera test


IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK

Rapid Video: Auto view the video, create testing report

For HIKVISION test tool:

support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name,open wide dynamic mode. Factory restore, etc.

For DAHUA test tool:

support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.

For Axis test tool amd others brand camera test:

After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool.

HD Coaxial test

8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI camera test: UTC control / call OSD menu

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

CVBS camera test

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

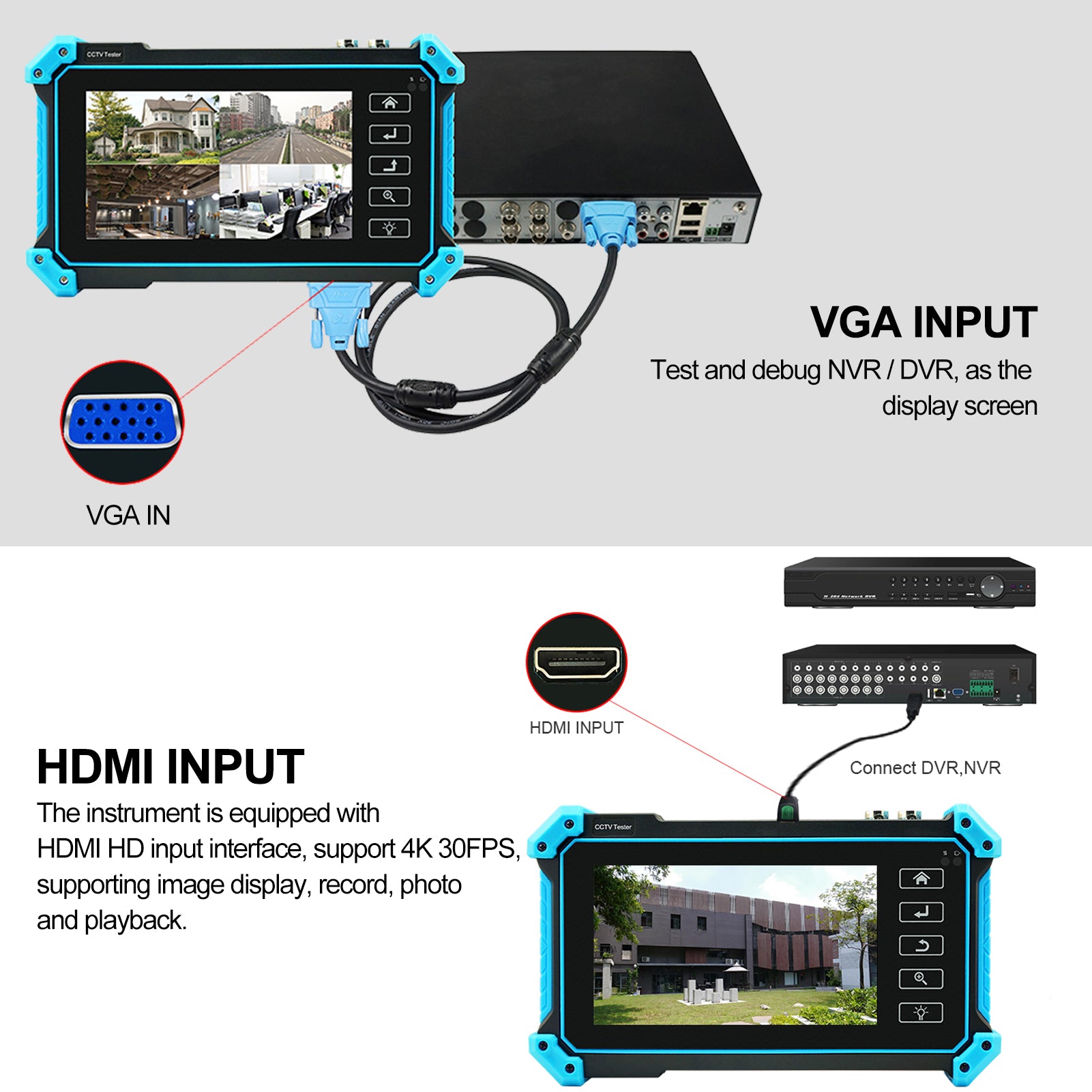

HDMI

HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/

1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc

HDMI output: N/A

VGA

1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

 Cable test

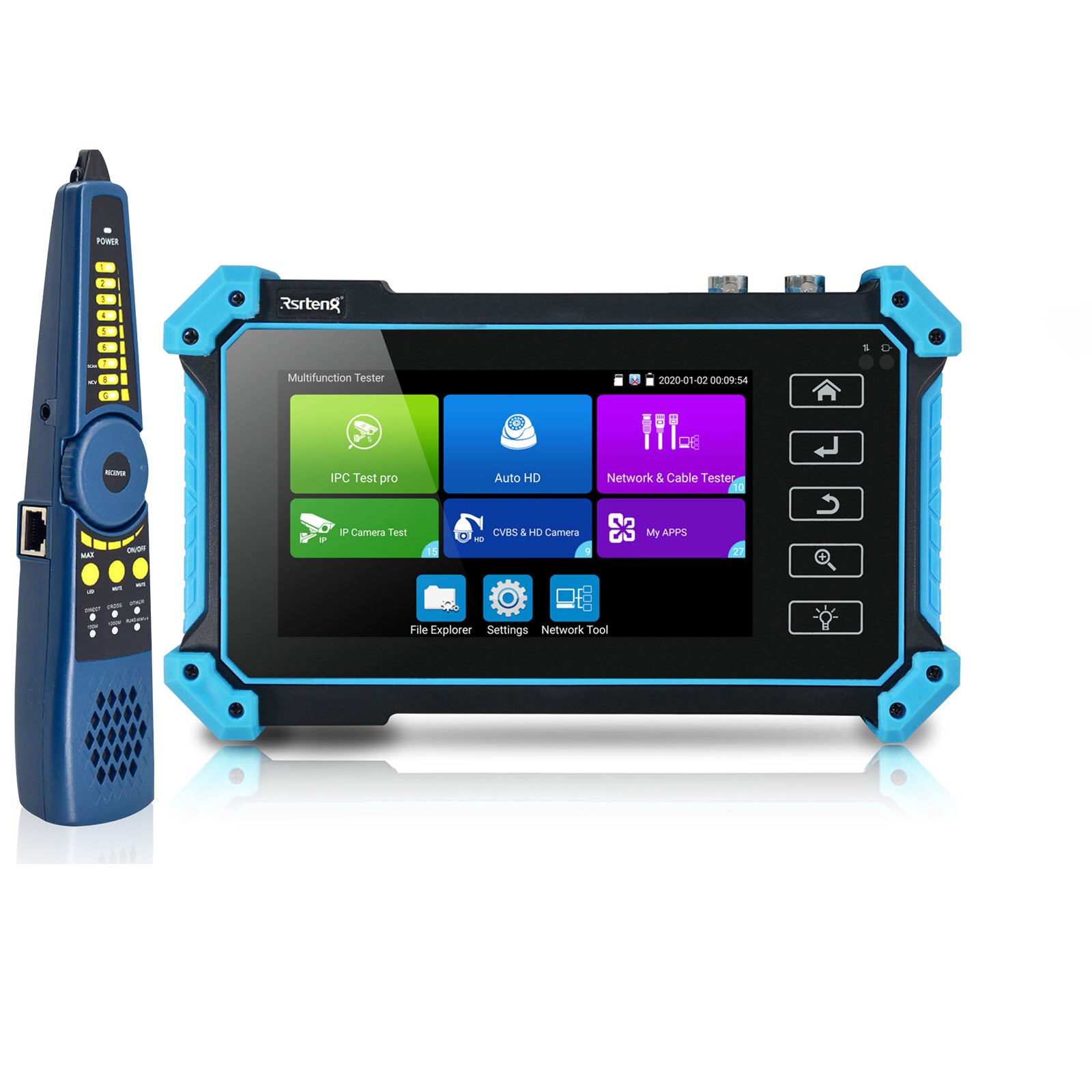

Digital Cable tracer:

Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time

UTP cable test:

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

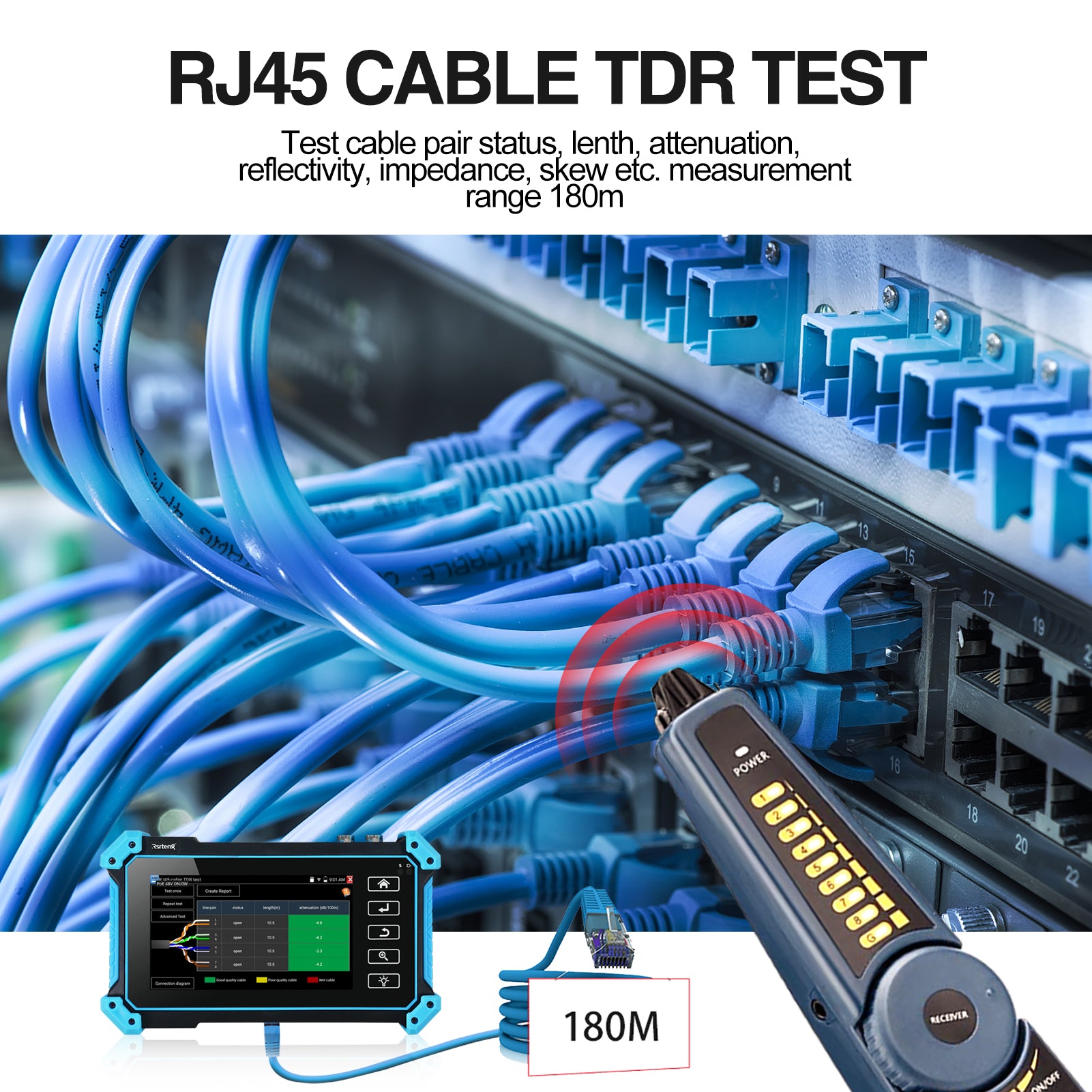

RJ45 TDR cable test:

Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.

Tester Play

screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.

Audio test

1 channel audio signal input, test whether sound normal.

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal.

Power

Input: DC 12V/1A input

DC output: DC12V/3A power output, supply temporarily power for the camera

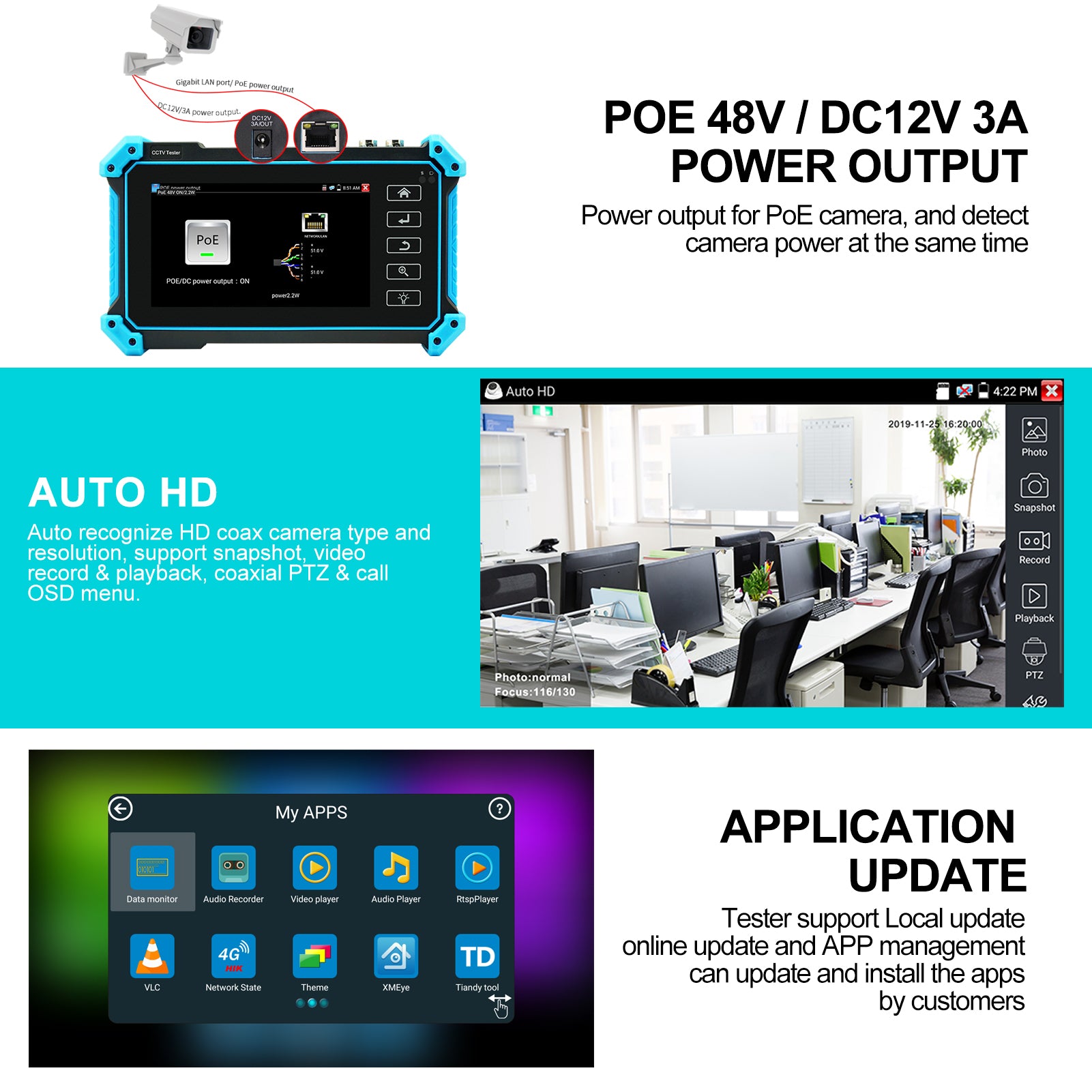

POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

Battery

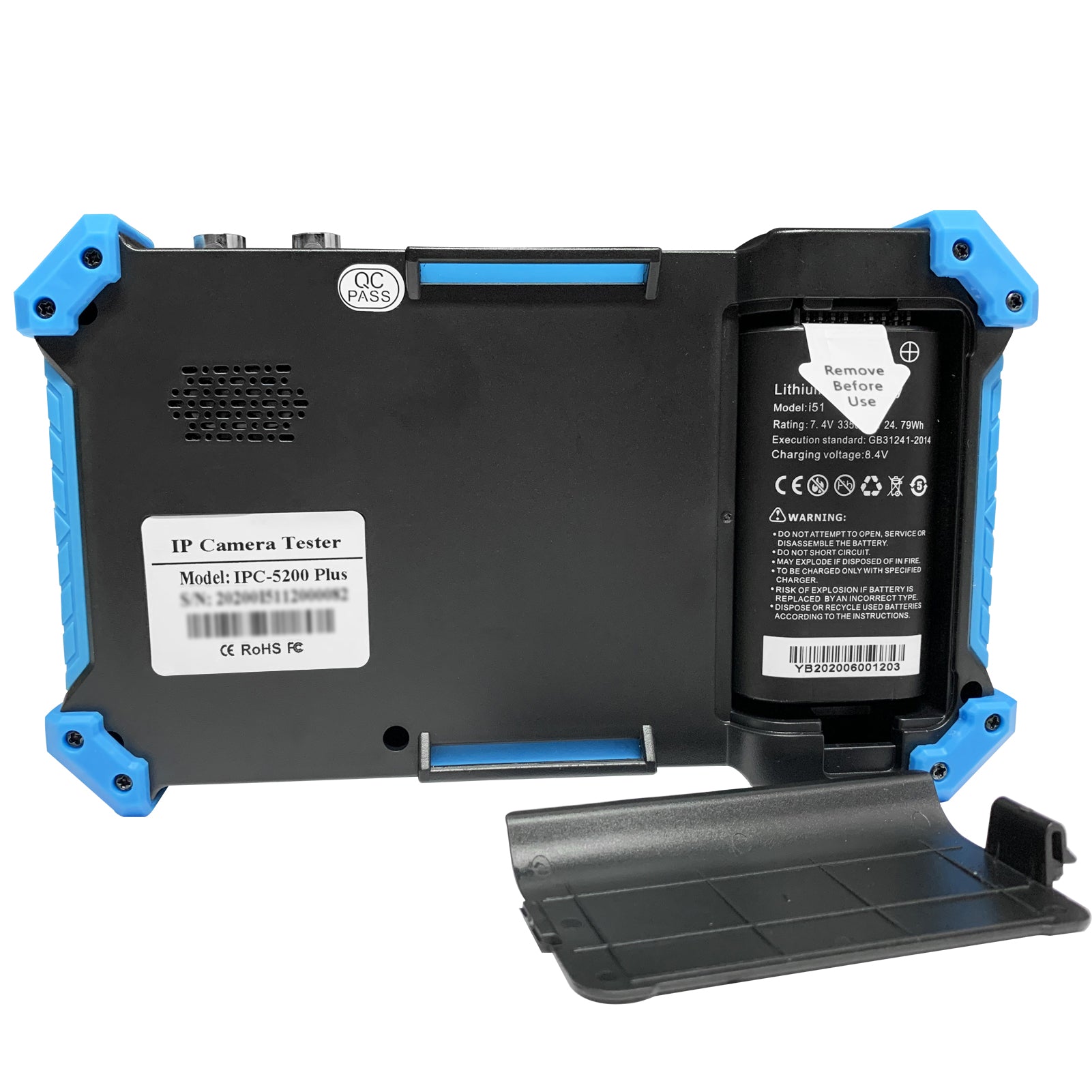

Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h

Rechargeable

After charging 3-4 hours, normal working time 5-8 hours

OS

Android, Free to add APP (requires version support)

CPU

4core, 1.2GHz

RAM(DDR)

1GB

Flash(eMMC)

8GB

TF card slot

Support up to 32GB, item not include TF card

Menu language

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1 to 30 (mins)

Work Temperature

-10℃ to +50℃ (14℉ to 122℉)

Work Humidity

30% to 90%

Package includes

1xTester; 1xPower adapter; 1xCable tracer; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband

Dimension

Package Dimension: 260x143x100mm(10.24x5.63x3.94inch)

Tester:183x110x36.5mm(7.2x4.33x1.44inch)

Weight

Package weight:1.15kg(2.54lbs)

Tester net weight: 0.4kg(0.88lb)
