Rsrteng IPC-9800CMADHS Pro 8K security camera tester

Vendor
Rsrteng
Regular price
$499.00
Sale price
$499.00
Regular price
$565.00
Sold out
Unit price
per
Shipping calculated at checkout.

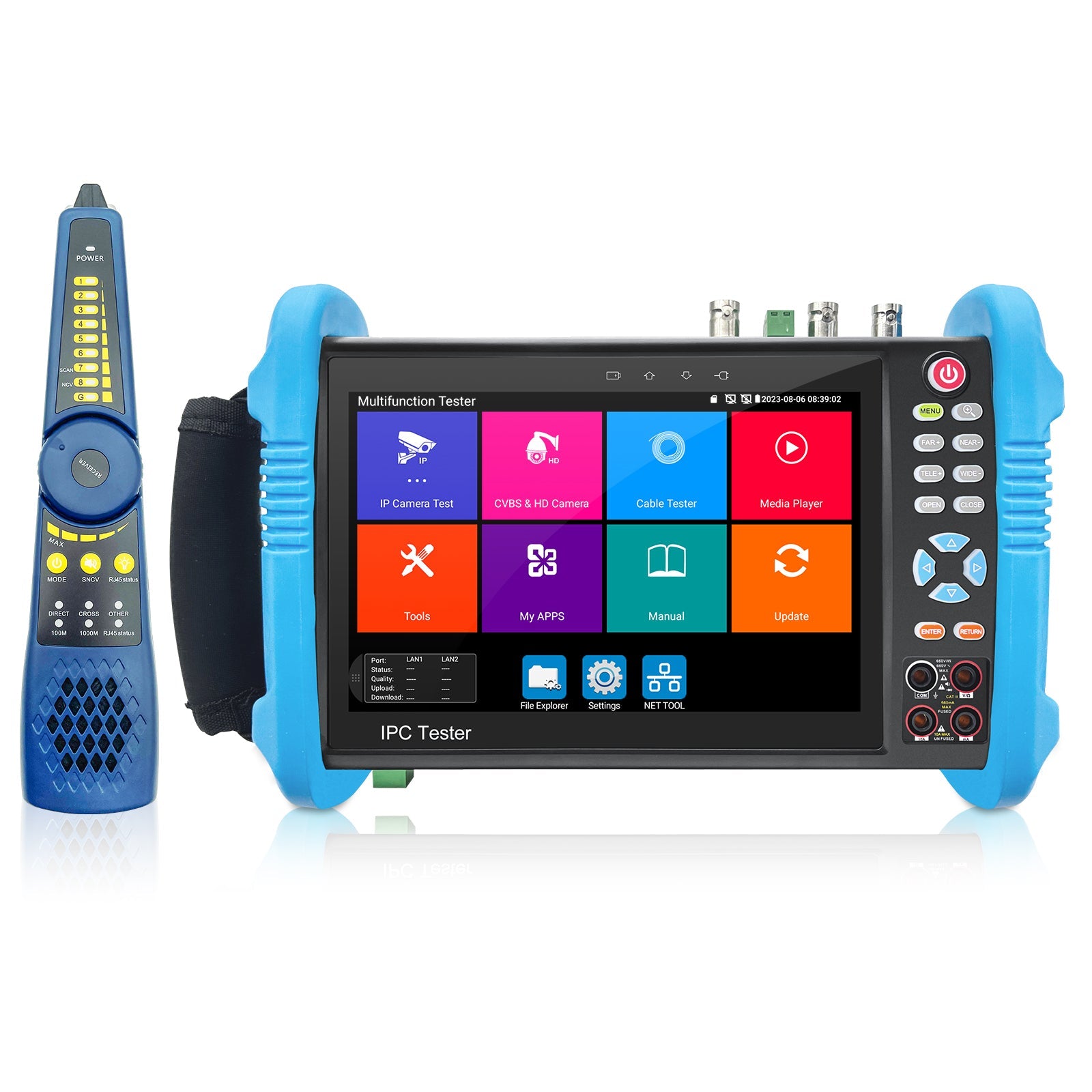

This is Rsrteng IPC-9800CMADHS Pro cost-effective 8K security surveillance camera tester. It has the latest Android 11.0 version.It is an essential tool for field technicians in the field of security cameras.Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.

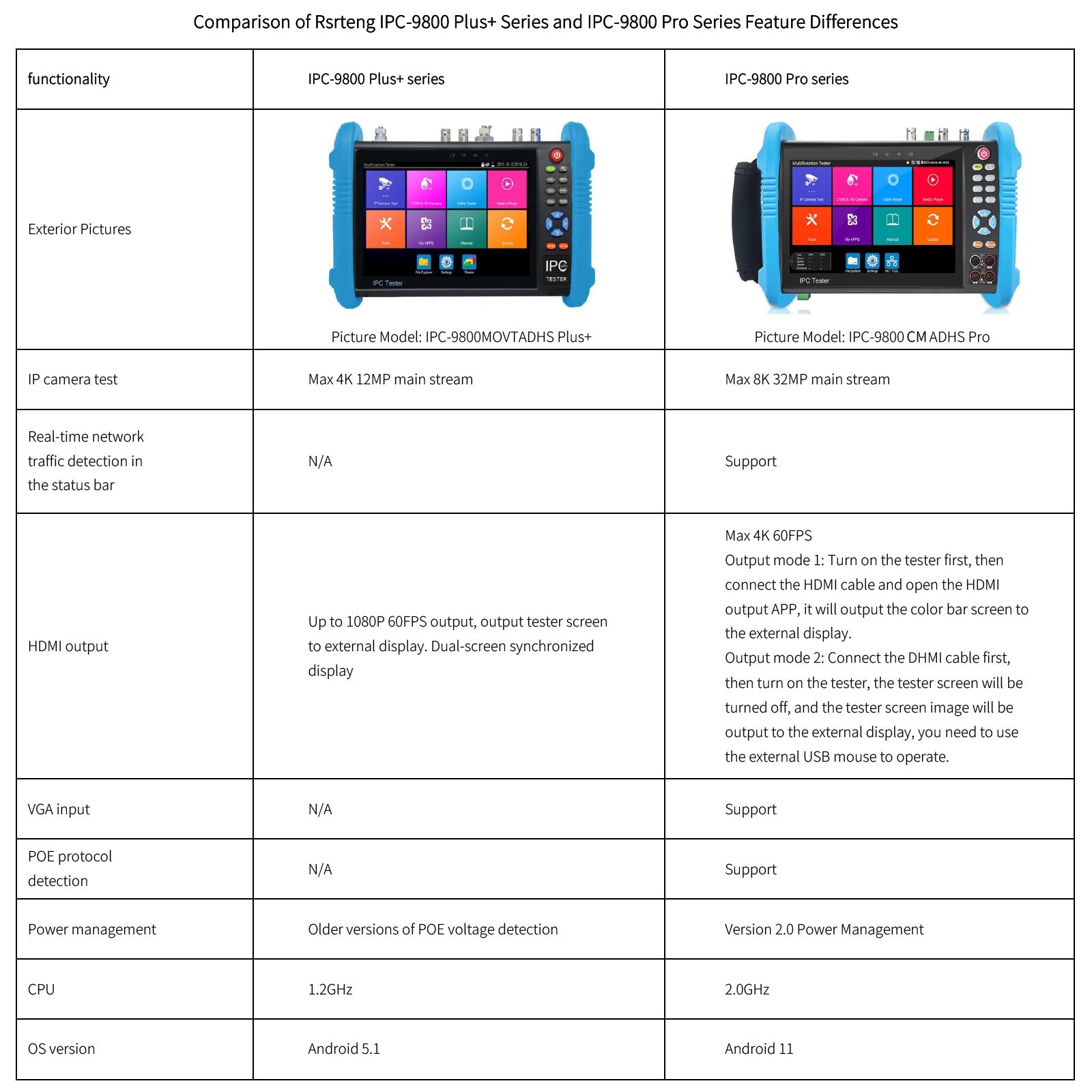

This is of the most people is to buy the model of the IPC-9800 Pro series, it can meet the needs of the vast majority of tests. It can support the testing of up to 32MP IP camera, max 8MP HD CVI TVI AHD SDI camera and CVBS cameras. Professional test app, POE, cable test, WiFi, power output, HDMI I/O, RS485,RJ45 TDR cable test, Digital Multimeter(DMM)are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

Parameters

Brand  Rsrteng
Model IPC-9800CMADHS Pro
CPU/RAM/ROM 4-core 2.0GHz/1GB(DDR)/8GB(EMMC)
Operating system Android 11.0
Display 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons
CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level  measurement
PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

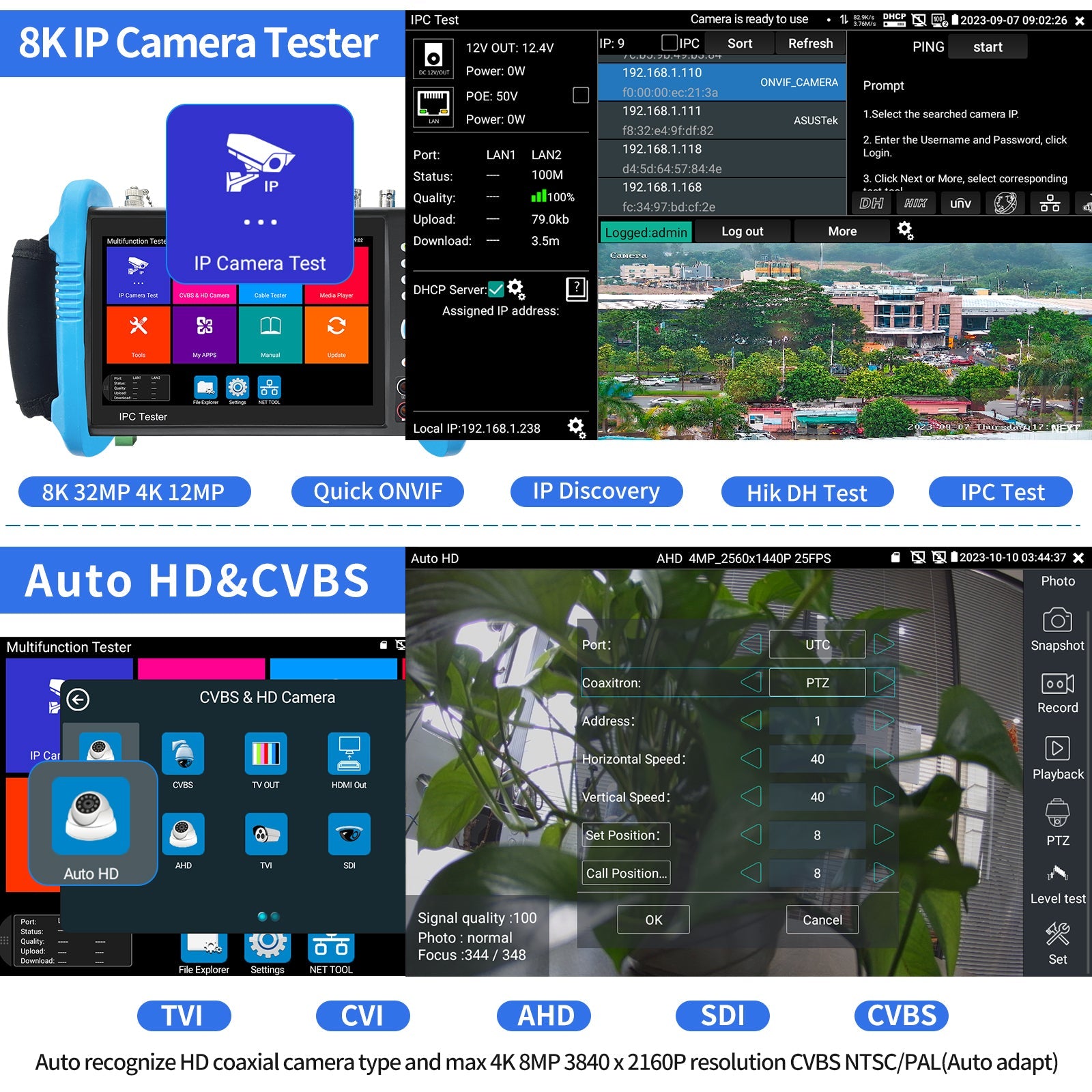

IP camera test
Max 8K 32MP

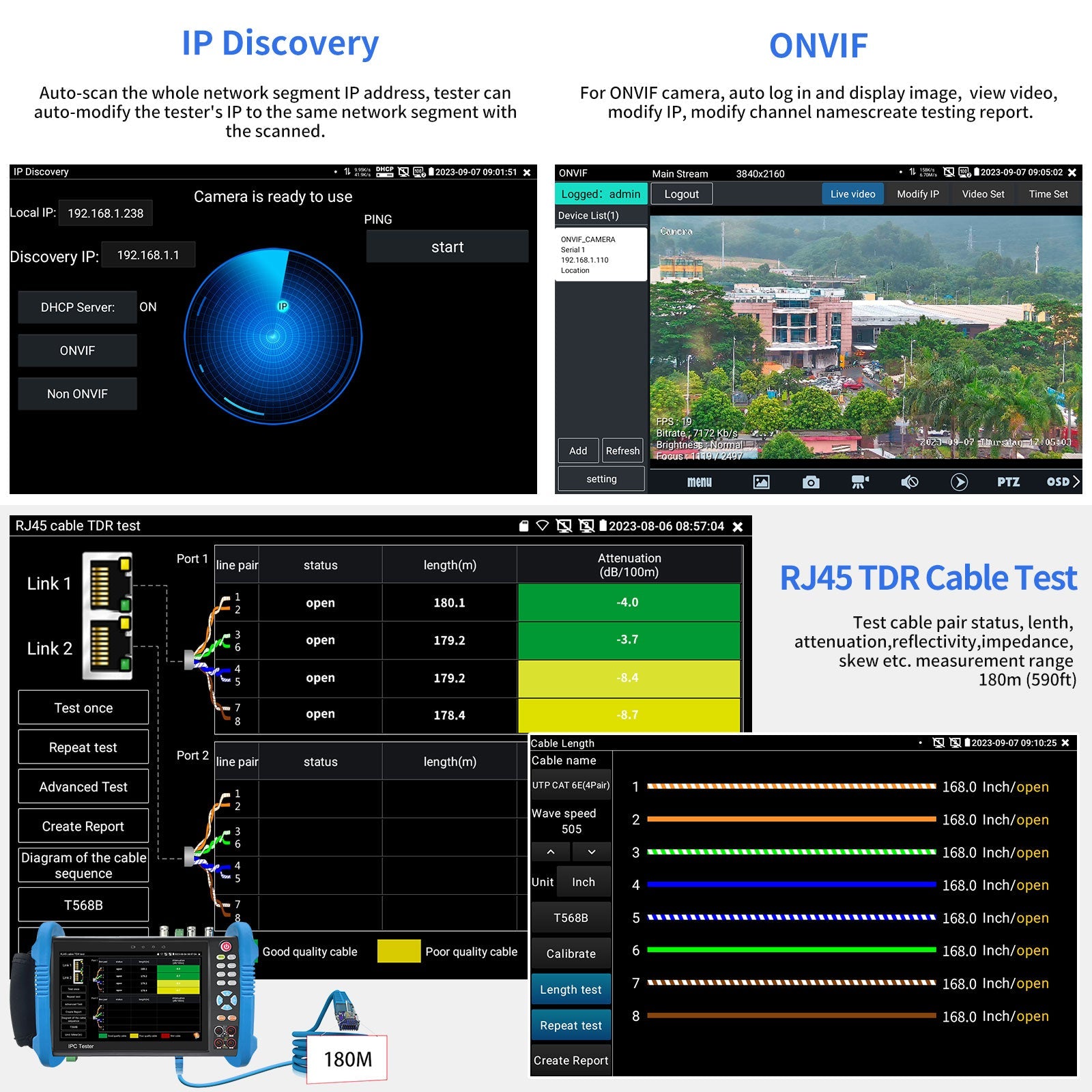

IP Discovery/ONVIF/IPC test /RTSP play /Client APK
Rapid Video, Auto view the video, create testing report
Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
IP& CVBS test IP& CVBS test at the same time, converter test  from analog to digital with dual test window

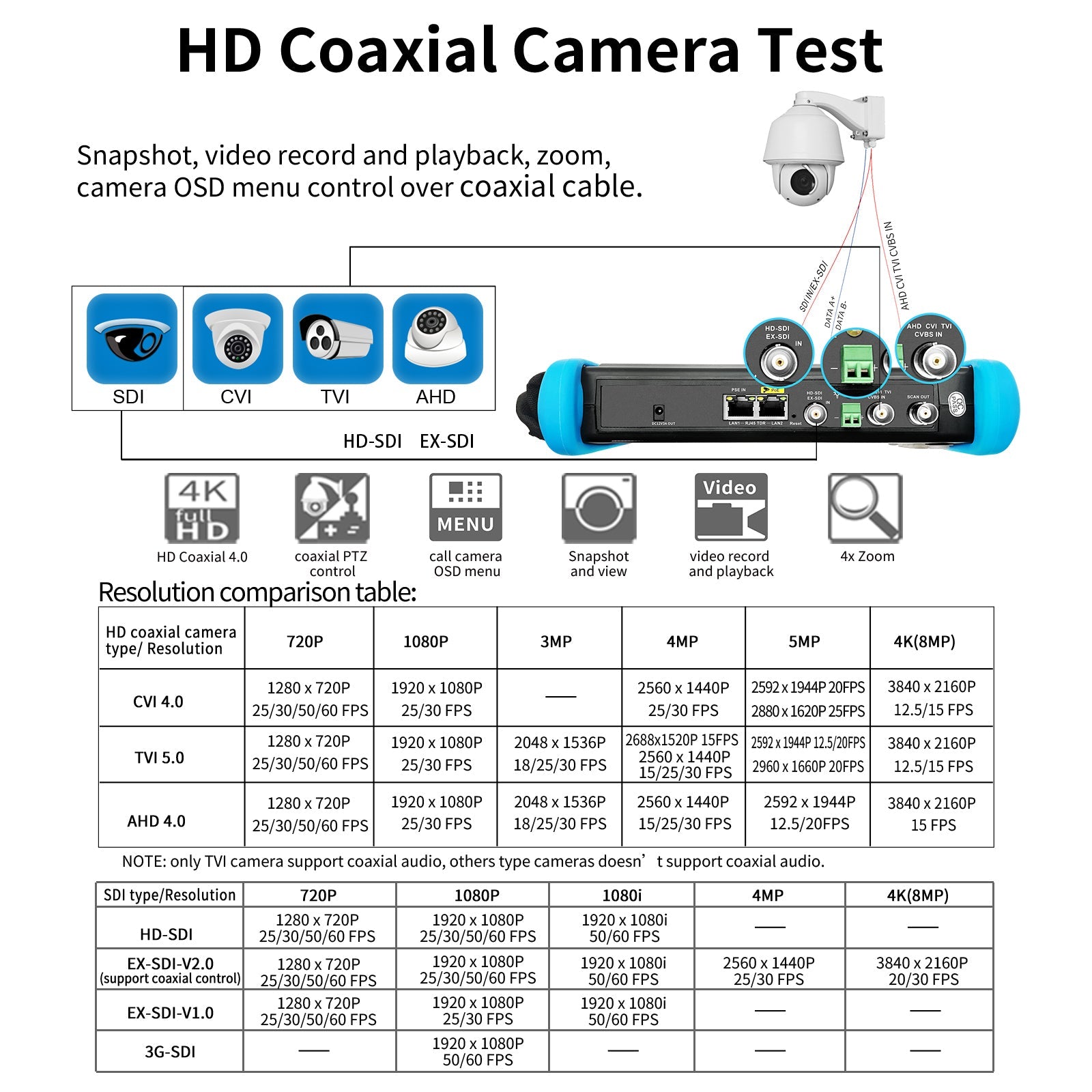

Coaxial HD test 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu

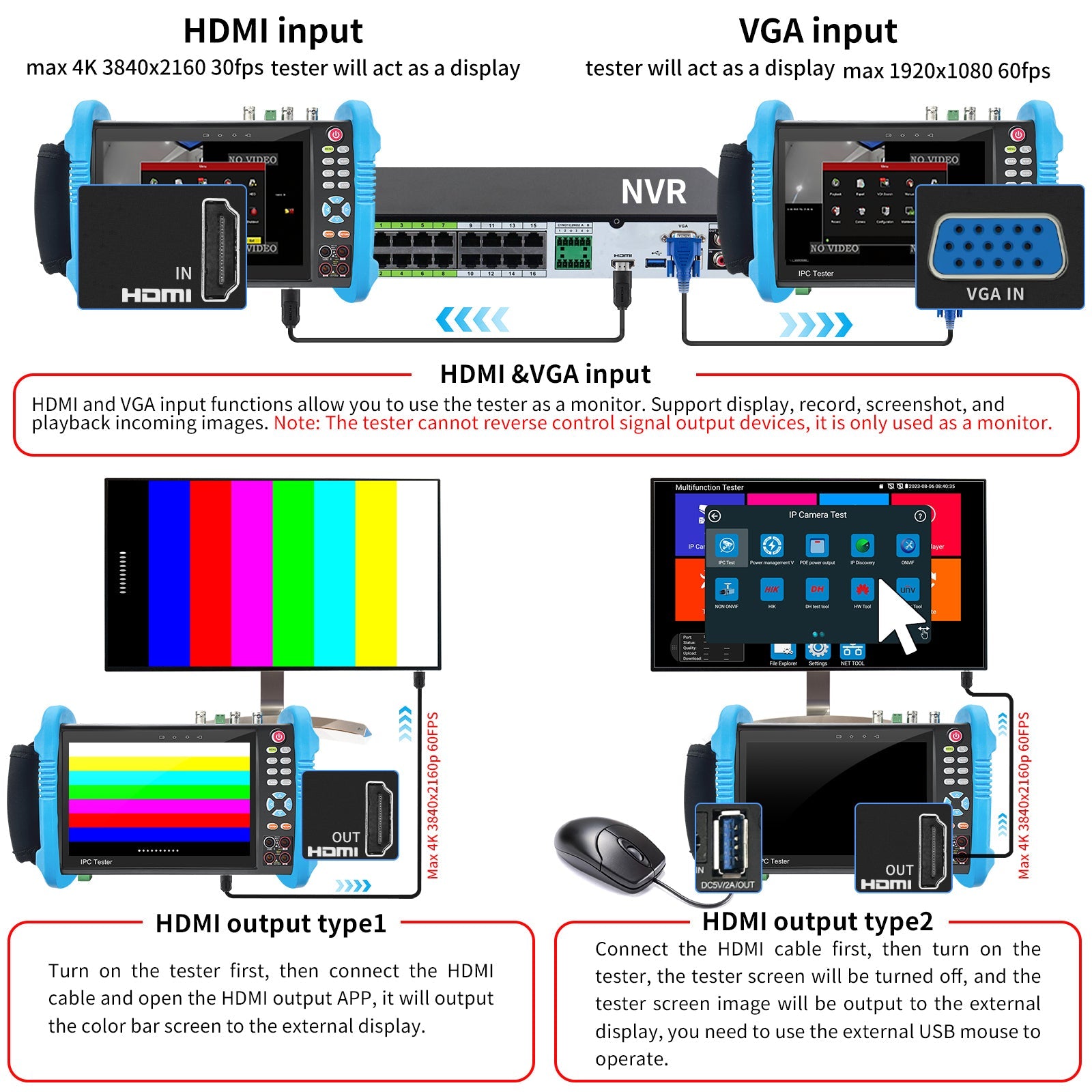

HDMI input 1 channel HDMI input, support 4K 3840x2160P 30fps
HDMI output 1 channel HDMI output, support 4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details)
VGA input 1 channel VGA input, support 1920x1080P 60fps
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Analog Video out   color bar generator:
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

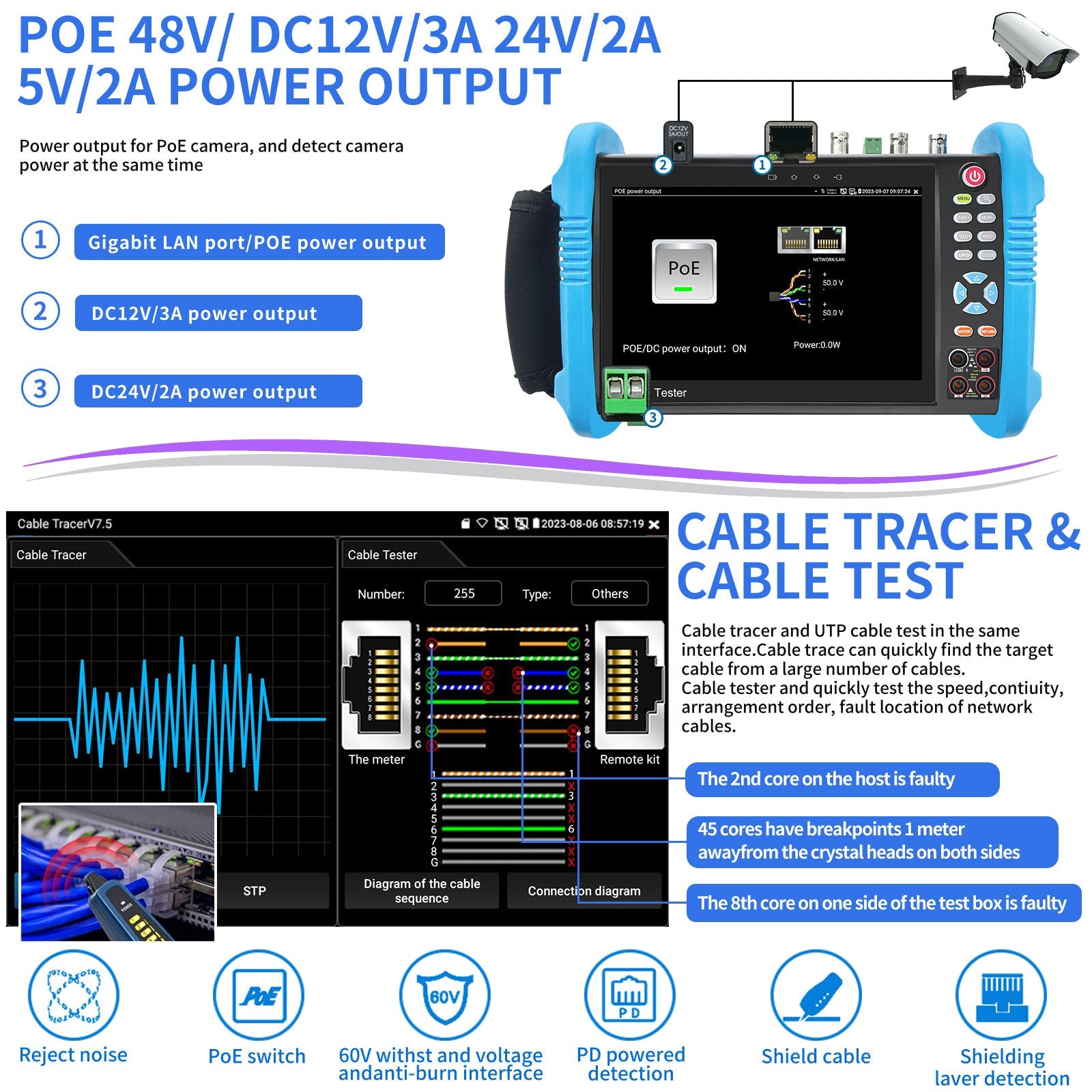

Power output USB DC5V/2A power output, as a power bank
DC12V/3A  power output ,supply temporarily power for the camera
DC24V/2A  power output ,supply temporarily power for the speed dome camera
Standard PoE power output, DC48V, max power 25.5W
 Cable test Cable tracer(Wire Finder):
Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE

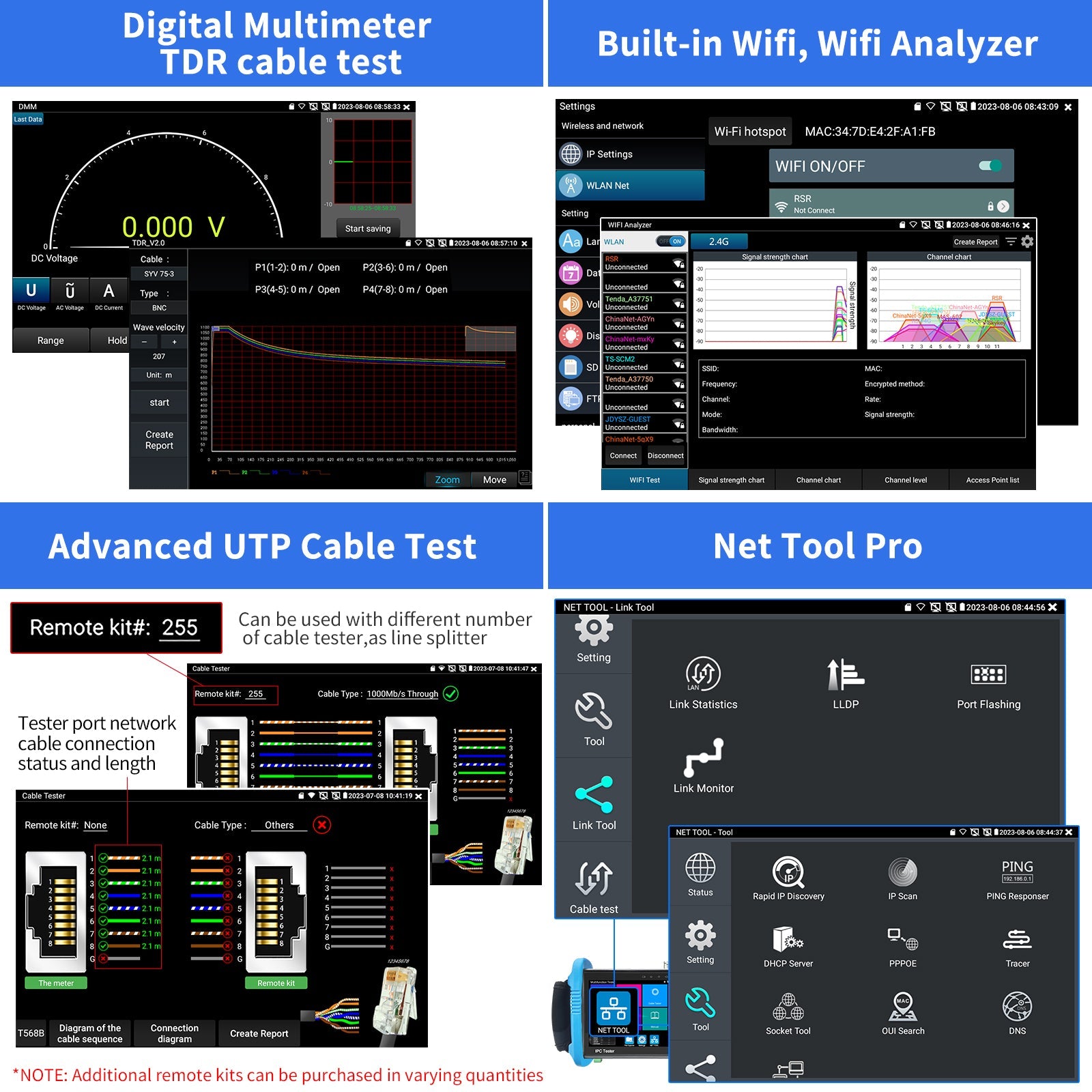

UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen
RJ45 TDR cable test:Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Digital Multimeter
(DMM)
DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0.
Optical power meter
(OPM)
N/A
Visual fault locator
(VFL)
N/A
TDR cable test (hardware support) N/A
Video level test N/A

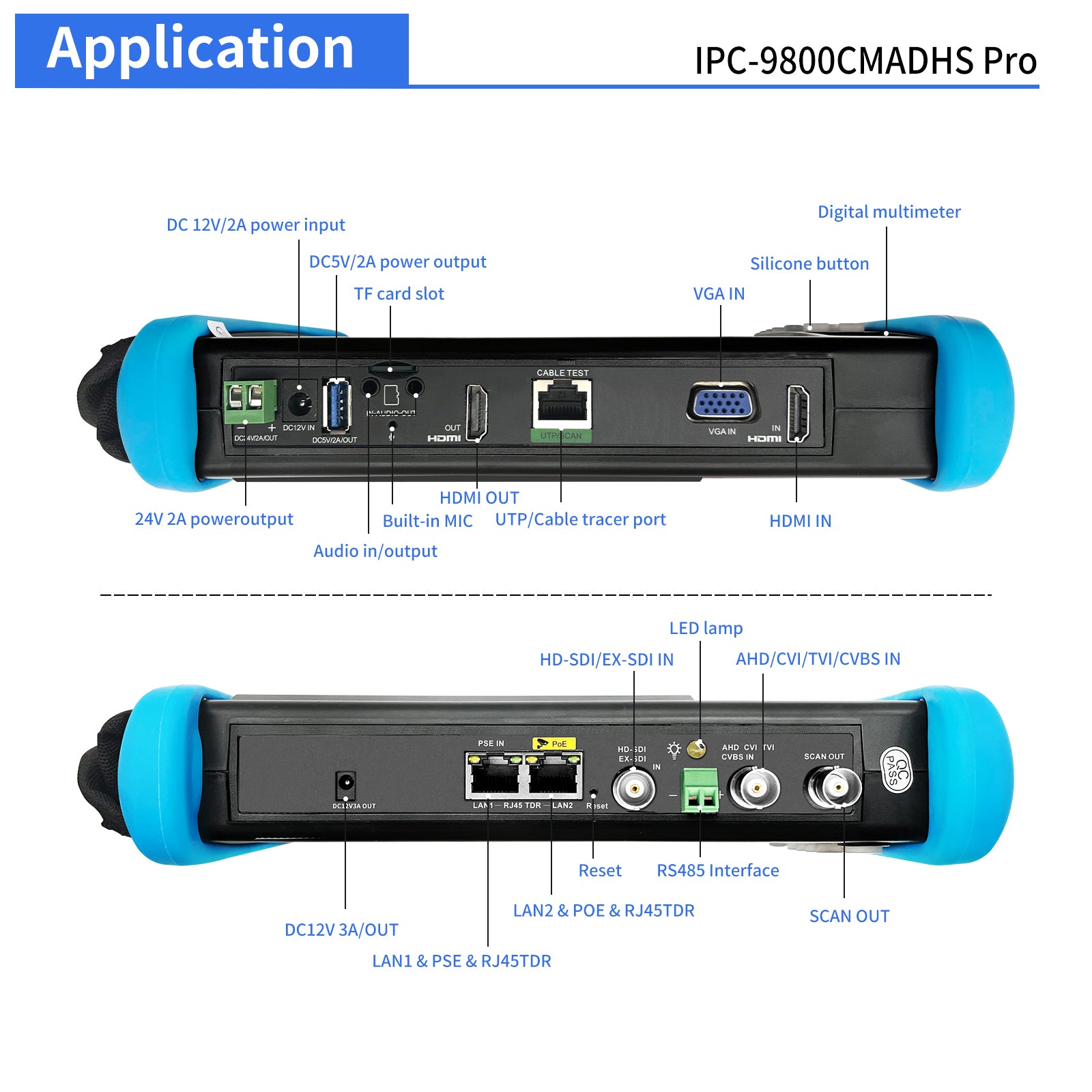

Network interface RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
Network test Trace route, Link monitor, DHCP server, port flashing, Ping test
Wi-Fi Built in WIFI, 2.4GHz, speeds150Mbps
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Power management View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input.
Drop-down menu You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

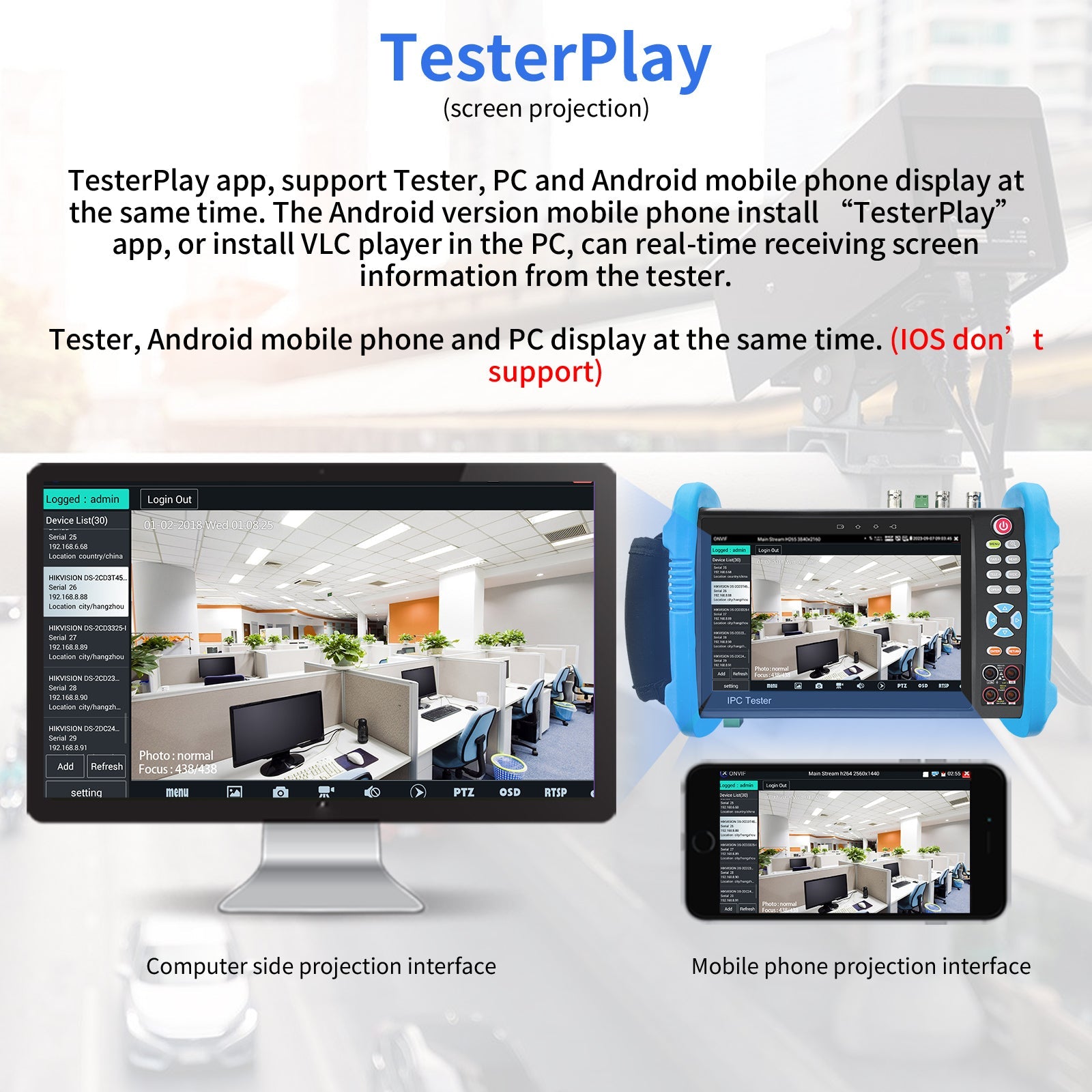

TesterPlay screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply DC12V/2A
Battery Built-in 7.6V Lithium  polymer battery,7800mAh, 59.28Wh
Rechargeable After charging 3 to 4hours, normal working time 15 hours
Operation setting OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Auto off 1 to 30(mins)
Working Temperature -10 to +50 (14 to 122)
Working Humidity 30% to 90%
Dimension/Weight Tester: 240x135x35mm(9.4x5.3x1.4inch) / 1020g(2.25lbs)
Package: 320x290x100mm(12.6x11.4x3.94) / 2330g(5.14lbs)
