Brand

Rsrteng

Model

IPCXS-ACHITU

operating system

Android 6.0

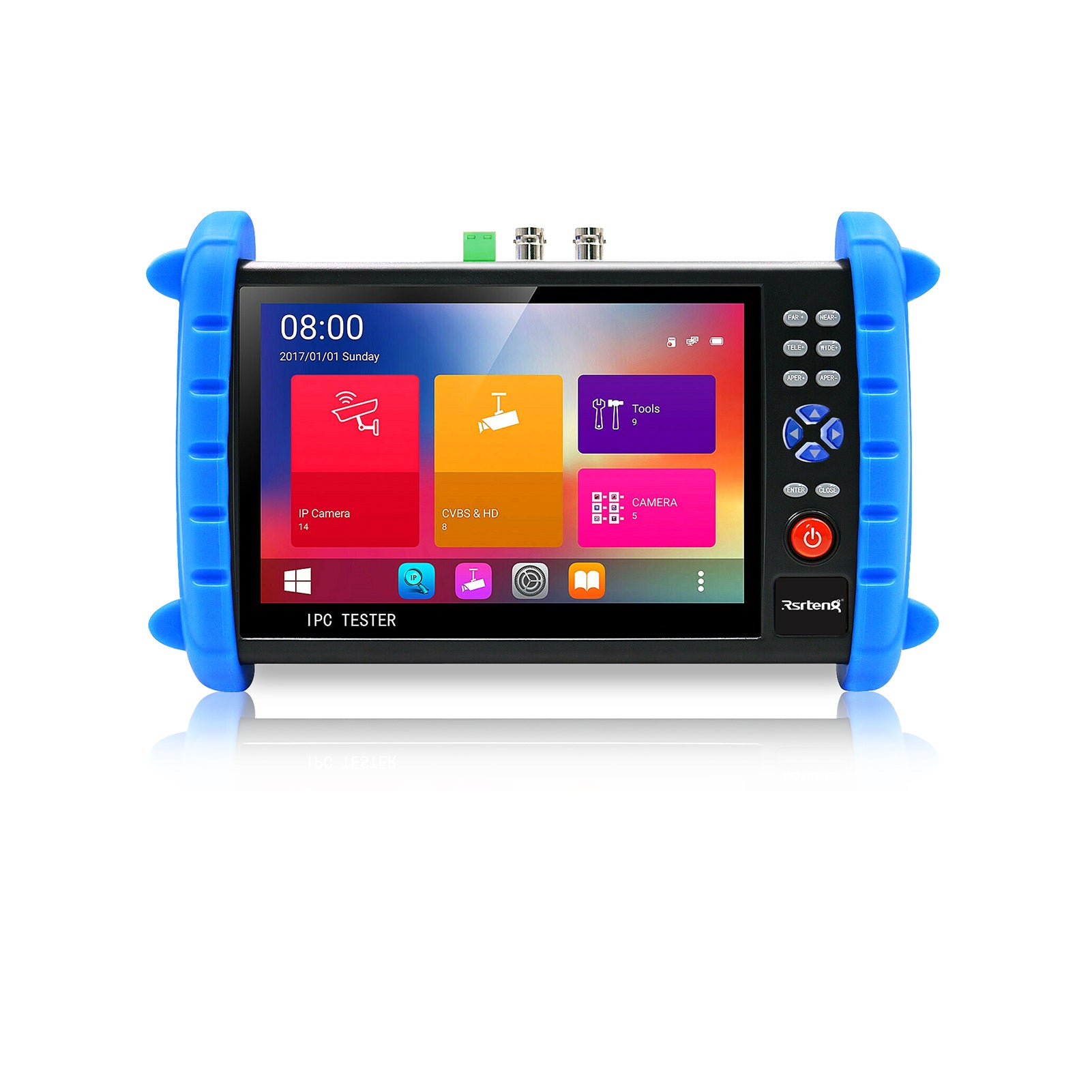

Display

7 inch IPS touch screen, 1920*1200 resolution

CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc

Video output & Color bar test

N/A

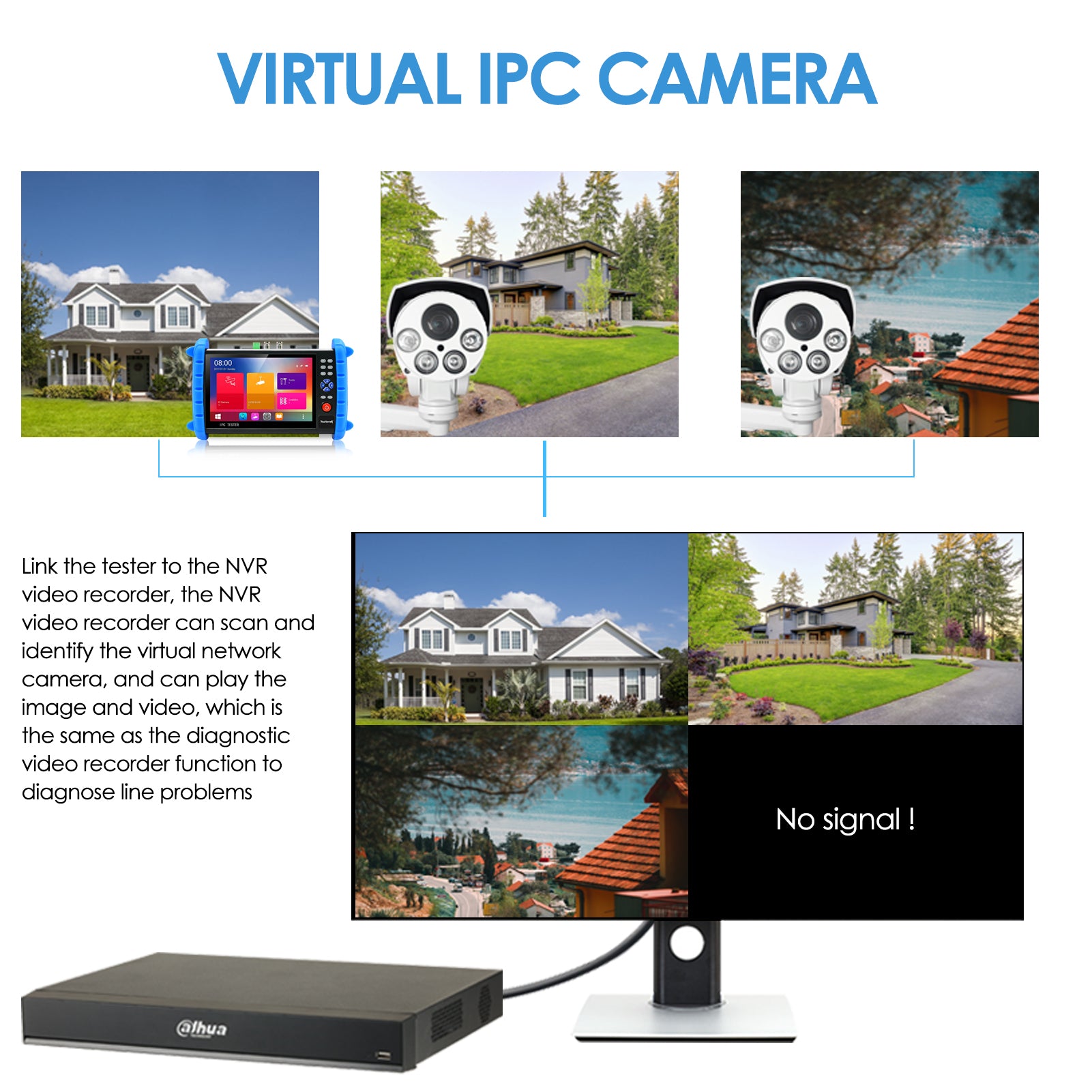

IP camera test

Smart IPC/IP Discovery/Rapid ONVIF/One-click video/RTSP play /Client APK

Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool, Dahua camera test, modify the user name, password and IP parameters

Built-in multiple test APPs for other brands of cameras, such as for AXIS, Samsung, TP-LINK, EZVIZ etc.

Coaxial HD test

max 8MP TVI camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu

max 8MP CVI camera test, 3840x2160p 12.5/15fps,coaxial PTZ & call OSD menu

max 8MP AHD camera test, 3840x2160p 15fps, coaxial PTZ & call OSD menu

max 8MP SDI camera test,3840x2160p 25/30fps, coaxial PTZ & call OSD menu

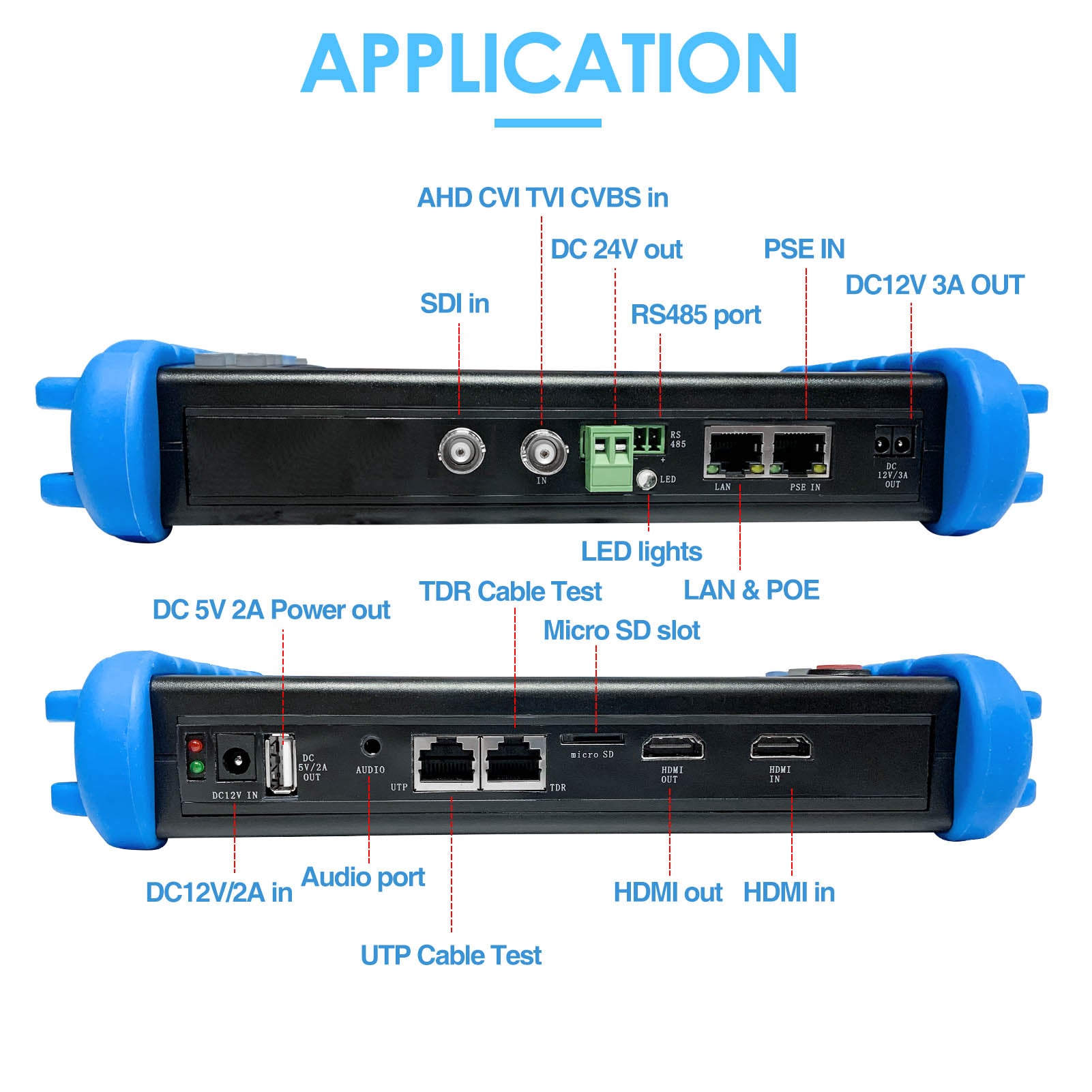

HDMI

1 channel HDMI input
Support 4K 3840×2160P 30fps, 1920×1080P 25/30/60fps, 1920×1080i 60fps, 1280×720P 30/60fps, 720×480P 60fps, 720×576P 60fps, 1024×768P 60fps, 1280×1024P 60fps, 1600×1200P 60fps, 1440×900P 60fps, 800×600P 60fps

1 channel HDMI output
Support 1920x1080P 60fps

Power output

DC5V/2A: USB DC5V/2A power output, as a power bank

DC12V/3A: DC12V/3A power output ,supply temporarily power for the camera

DC24V/1A: DC24V/1A power output ,supply temporarily power for the speed dome camera

PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W

 Cable test

Cable tracer*(Optional function): N/A
(This feature requires additional purchase of a cable tracer.)

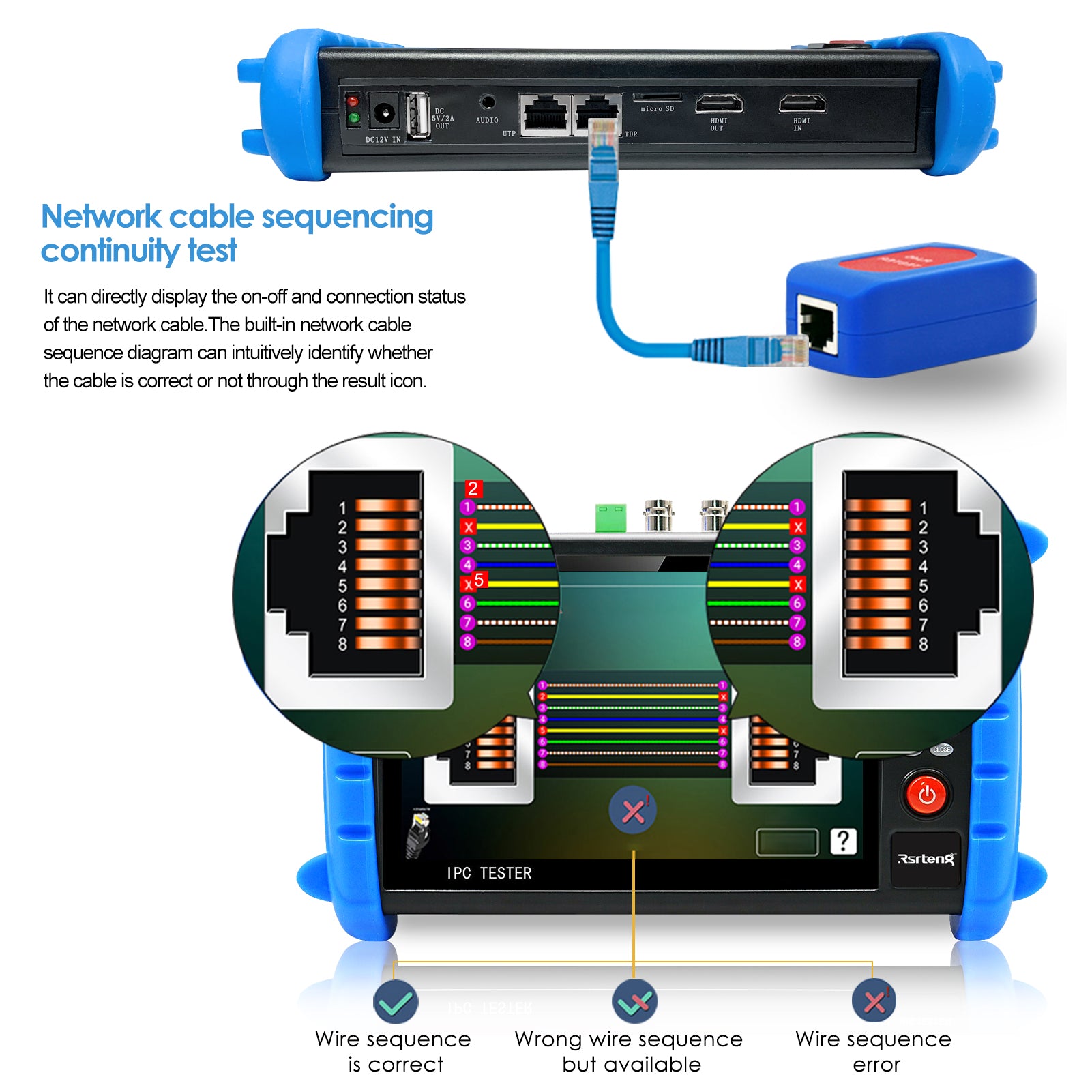

UTP cable test:

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 TDR cable test:

Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.

Digital Multimeter
(DMM)

N/A

Optical power meter
(OPM)

N/A

Visual fault locator
(VFL)

N/A

TDR cable test (hardware support)

N/A

Network interface

RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test, Scan, IP tools, Network loop, Bandwidth test, Search vendor, WiFi analysis

IP tools

Graphical display of used and unused IP addresses within the LAN

Wi-Fi

Built in WIFI, 2.4GHz, speeds150Mbps

Audio test

1 channel audio signal input, test whether sound normal

RS485 serial tool

Can accept, send and analyzes the RS485 command data from controlling device, also can send hex data

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select User manual, CVBS floating window, APP store, File Explorer, Screenshot, LED light switch, Memory card, Brightness adjustment, Volume adjustment, quick access to custom APP etc in any interface

Dual test window

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Projection

Tester, mobile phone and PC display at the same time (only for android mobile phone)

Power supply

DC12V/2A

Battery

Built-in 7.4V Lithium polymer battery,7800mAh, 57.72Wh

Rechargeable

After charging 4 to 6 hours, normal working time 6 to 10 hours

Operation setting

OSD menu 13 language optional: Chinese(simplified), Chinese(traditional), English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese etc.

Auto off

1 to 30(mins)

Working Temperature

-10℃ to +50℃ (14℉ to 122℉)

Working Humidity

30% to 90%

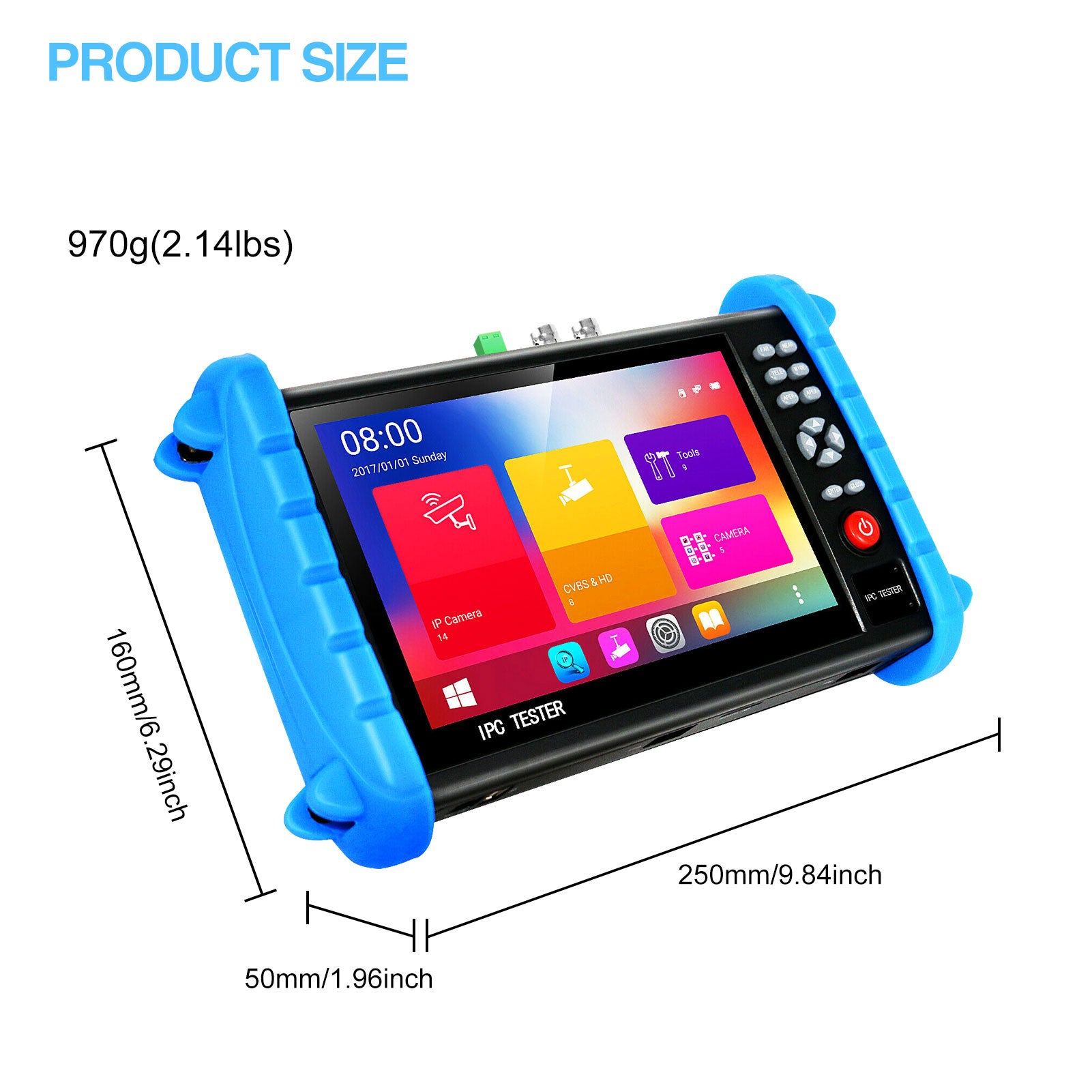

Dimension/

Weight

250x160x50mm / 970g (9.84x6.3x1.97inch / 2.14lbs)
