This model is the highest configuration model in the K15 series, using Android 9.0 system, 7-inch large screen, and high-definition imaging system. Support CVBS, coaxial HD, HDMI, VGA, OPM, PSE/POE testing.

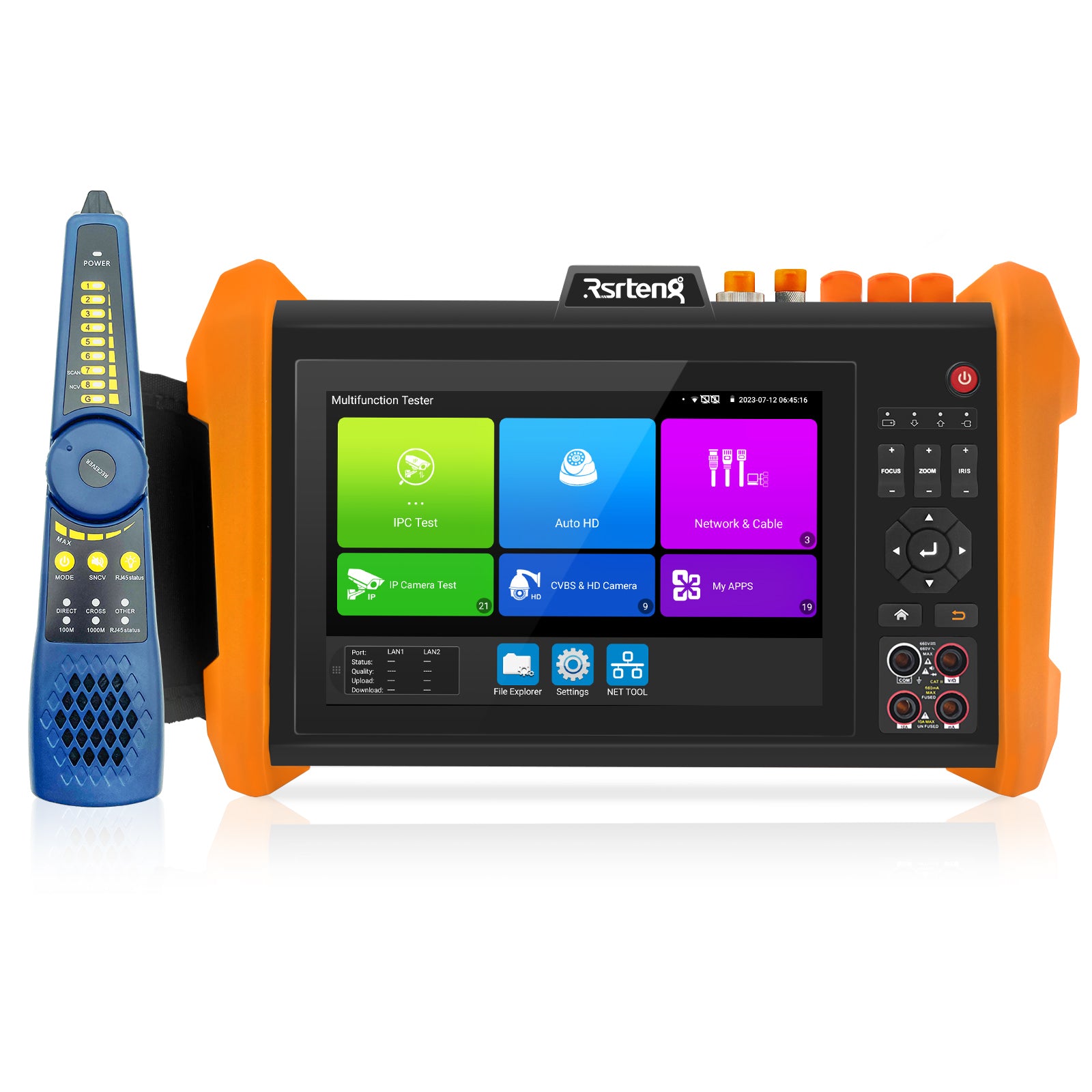

The Rsrteng 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of new analog, HD coaxial cameras as well as other security equipment, 8K 32MP video display via mainstream.The unit supports many ONVIF PTZ and analog PTZ control.Additionally, it with other functions TDR cable test, Optical power meter, Visual fault locator, UTP cable test and cable tracer etc.

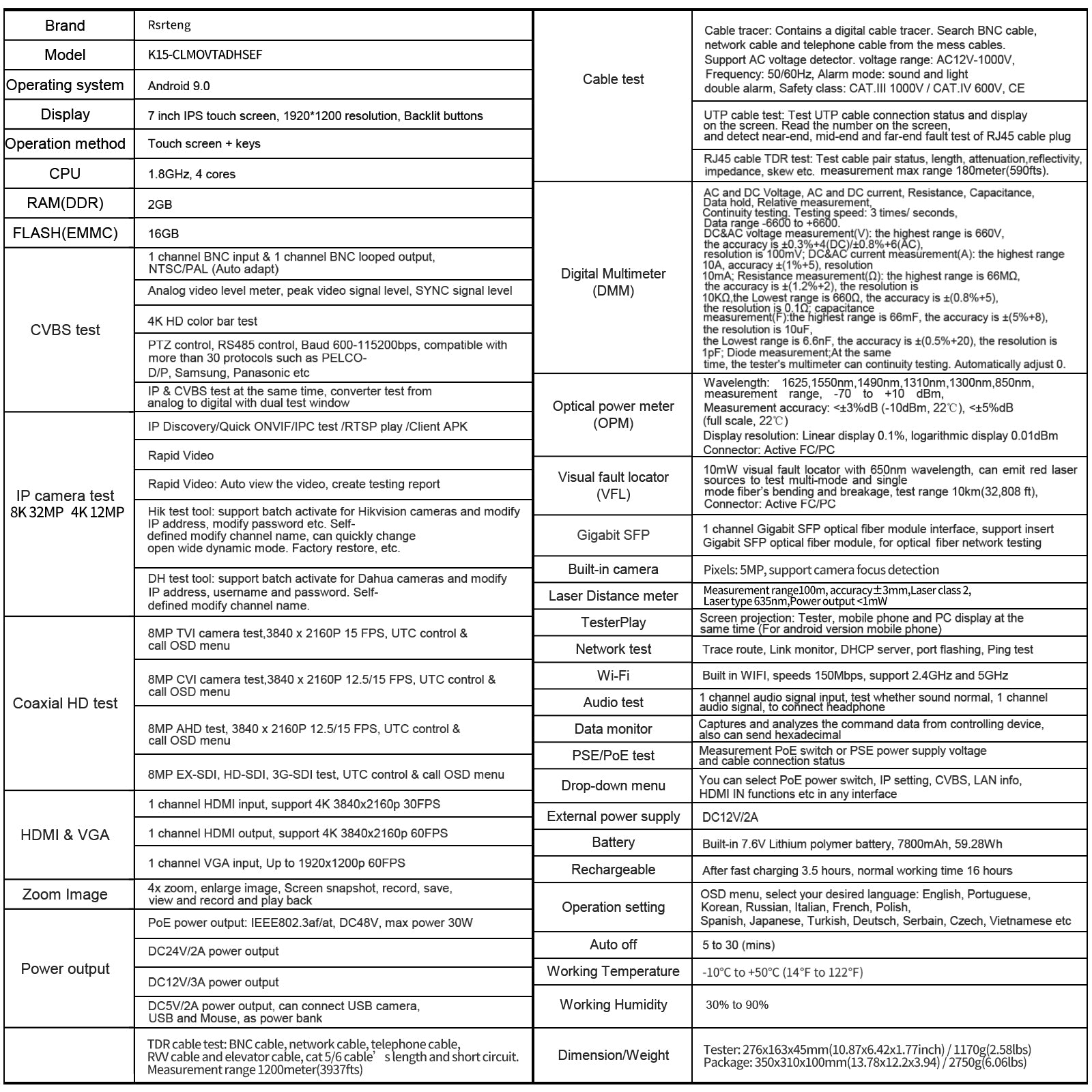

| Brand | Rsrteng |
| Model | K15-CLMOVTADHSEFG |
| Operating system | Android 9.0 |

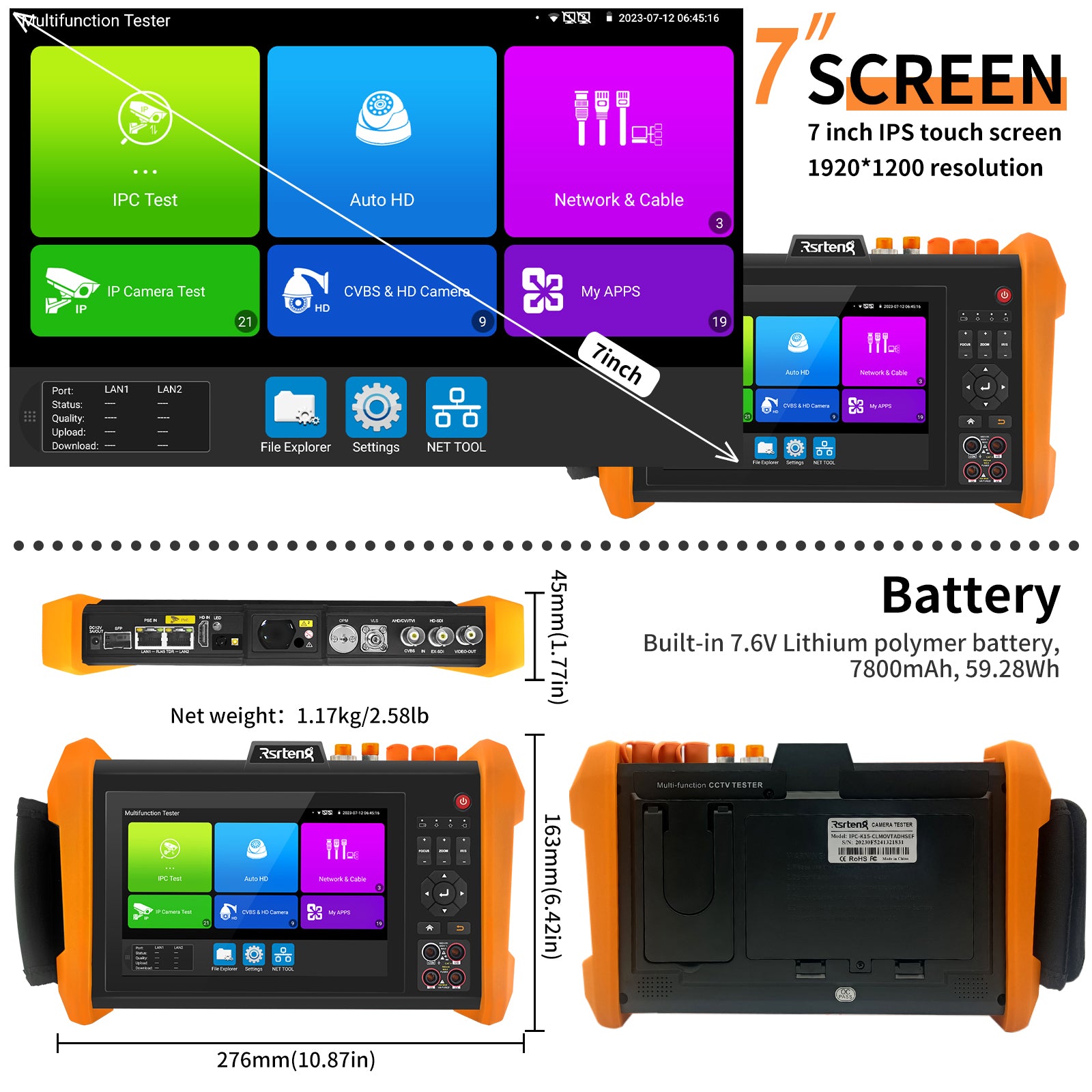

| Display | 7 inch IPS touch screen, 1920*1200 resolution, Backlit buttons |
| Operation method | Touch screen + keys |
| CPU | 1.8GHz, 4 cores |
| RAM(DDR) | 2GB |
| FLASH(EMMC) | 16GB |
| CVBS test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Analog video level meter, peak video signal level, SYNC signal level | |

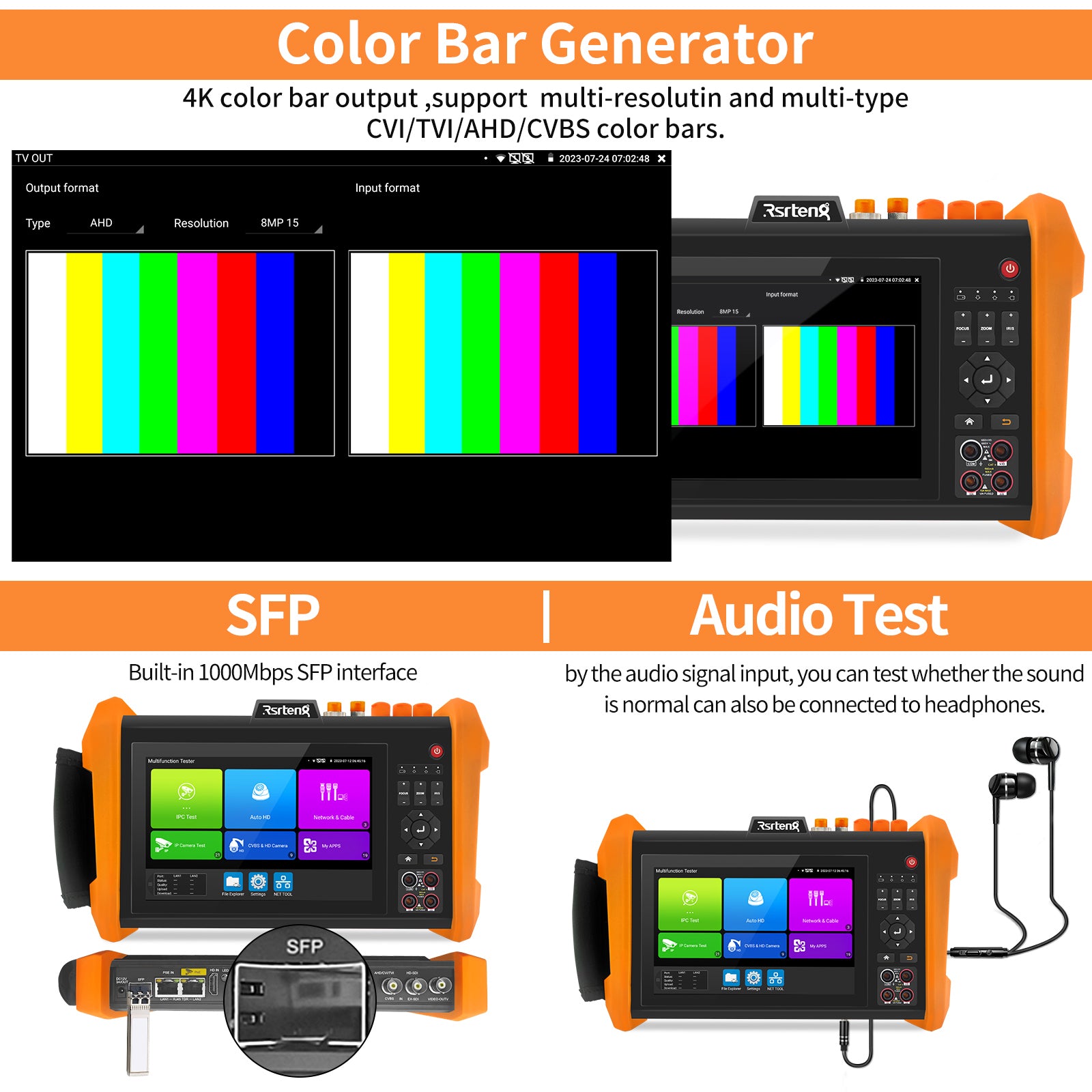

| 4K HD color bar test | |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |
| IP & CVBS test at the same time, converter test from analog to digital with dual test window | |

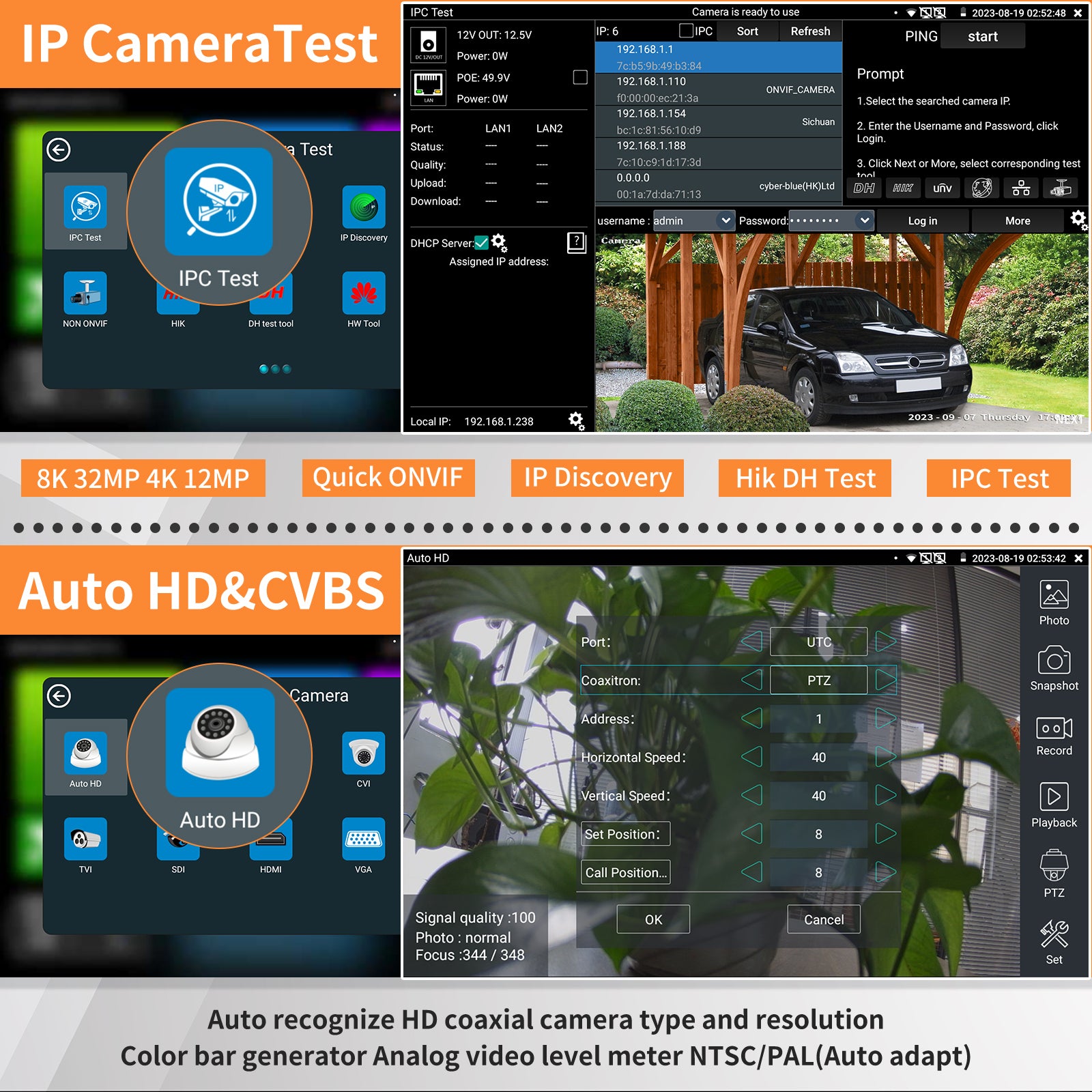

| IP camera test max 8K 32MP |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video | |
| Rapid Video: Auto view the video, create testing report | |
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video type, open wide dynamic mode. Factory restore, etc. | |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. | |

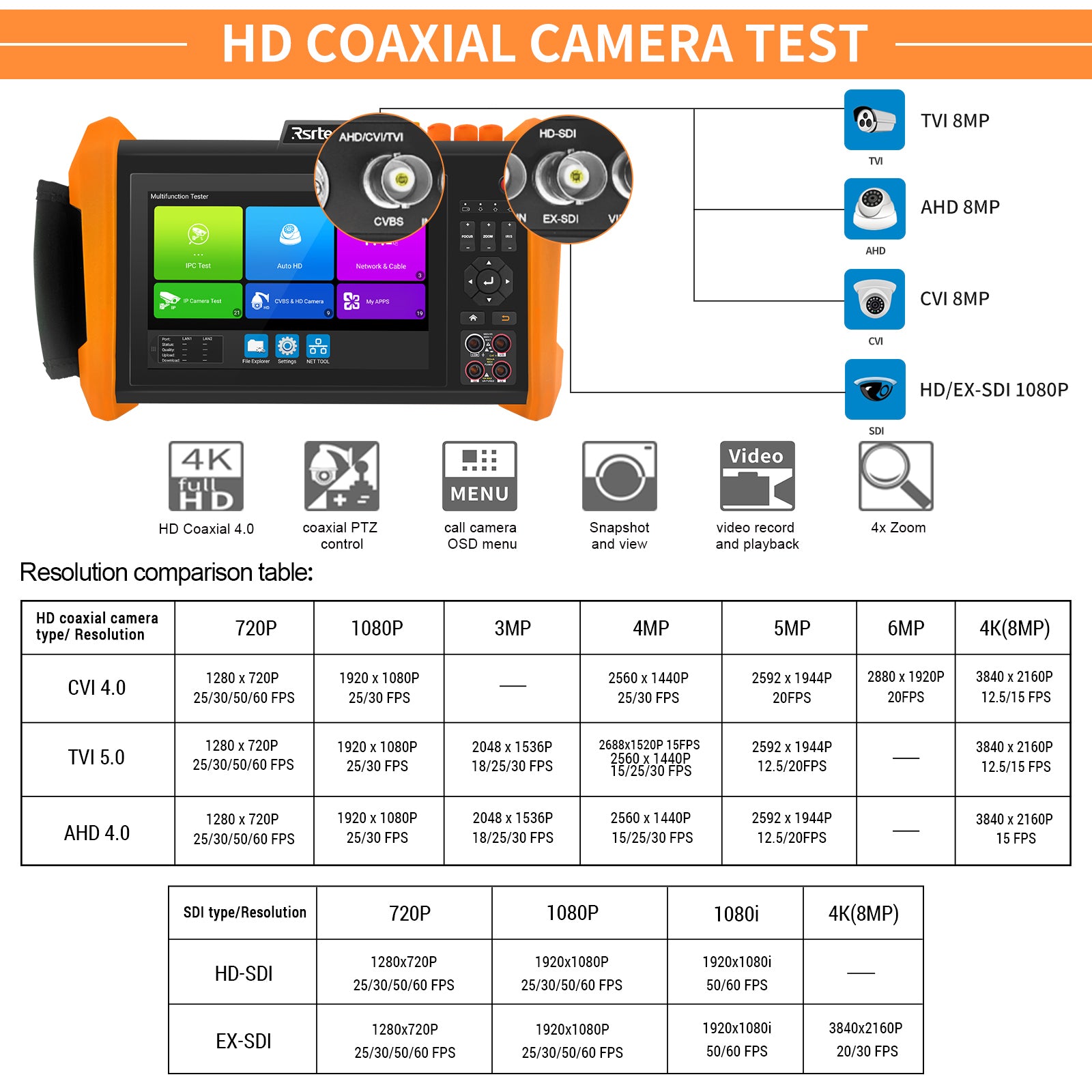

| Coaxial HD test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu |
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |
| 8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |
| 8MP EX-SDI, HD-SDI, 3G-SDI test, UTC control & call OSD menu | |

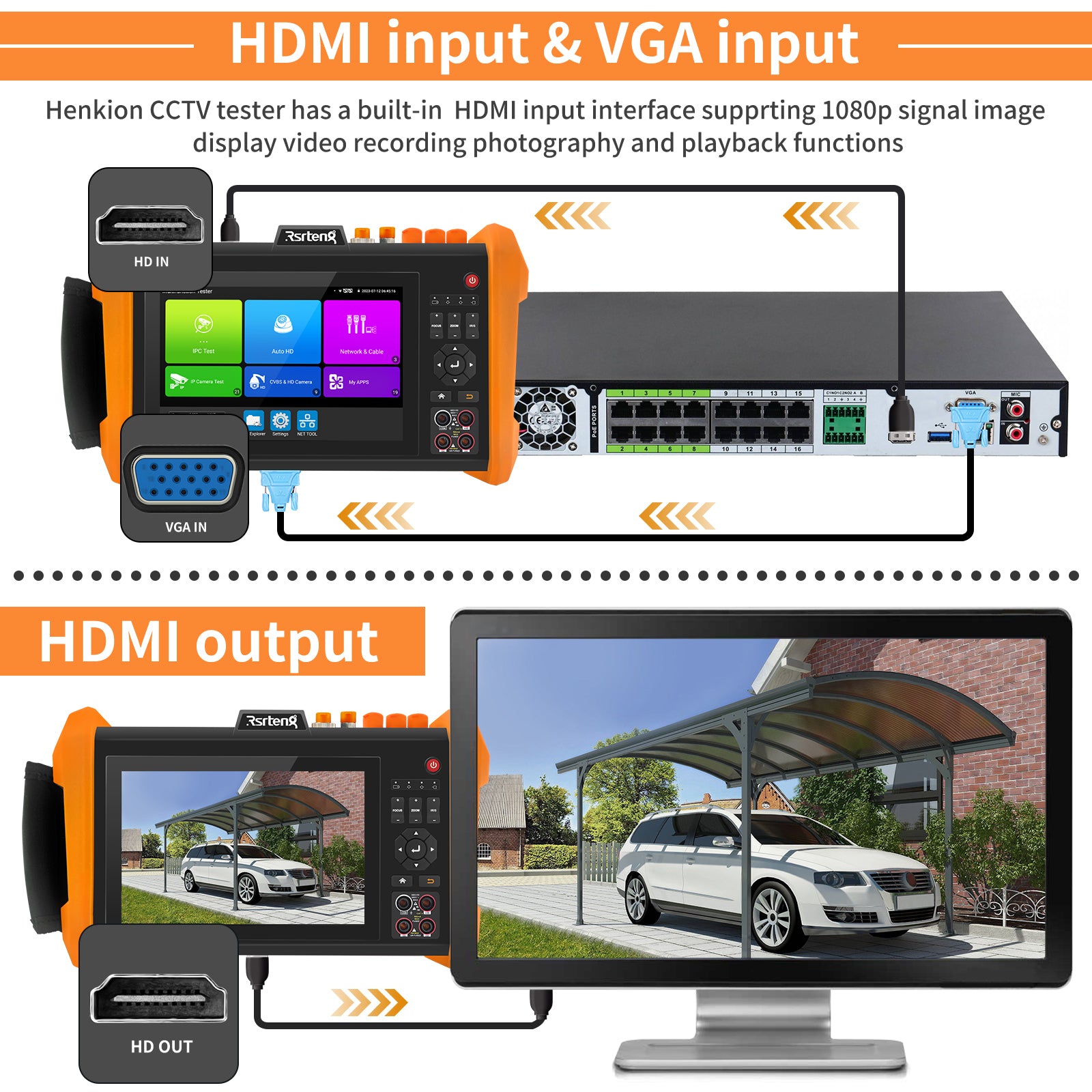

| HDMI & VGA | 1 channel HDMI input, support 4K 3840x2160p 30FPS |
| 1 channel HDMI output, support 4K 3840x2160p 60FPS | |
| 1 channel VGA input, Up to 1920x1200p 60FPS | |
| Zoom Image | 4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |

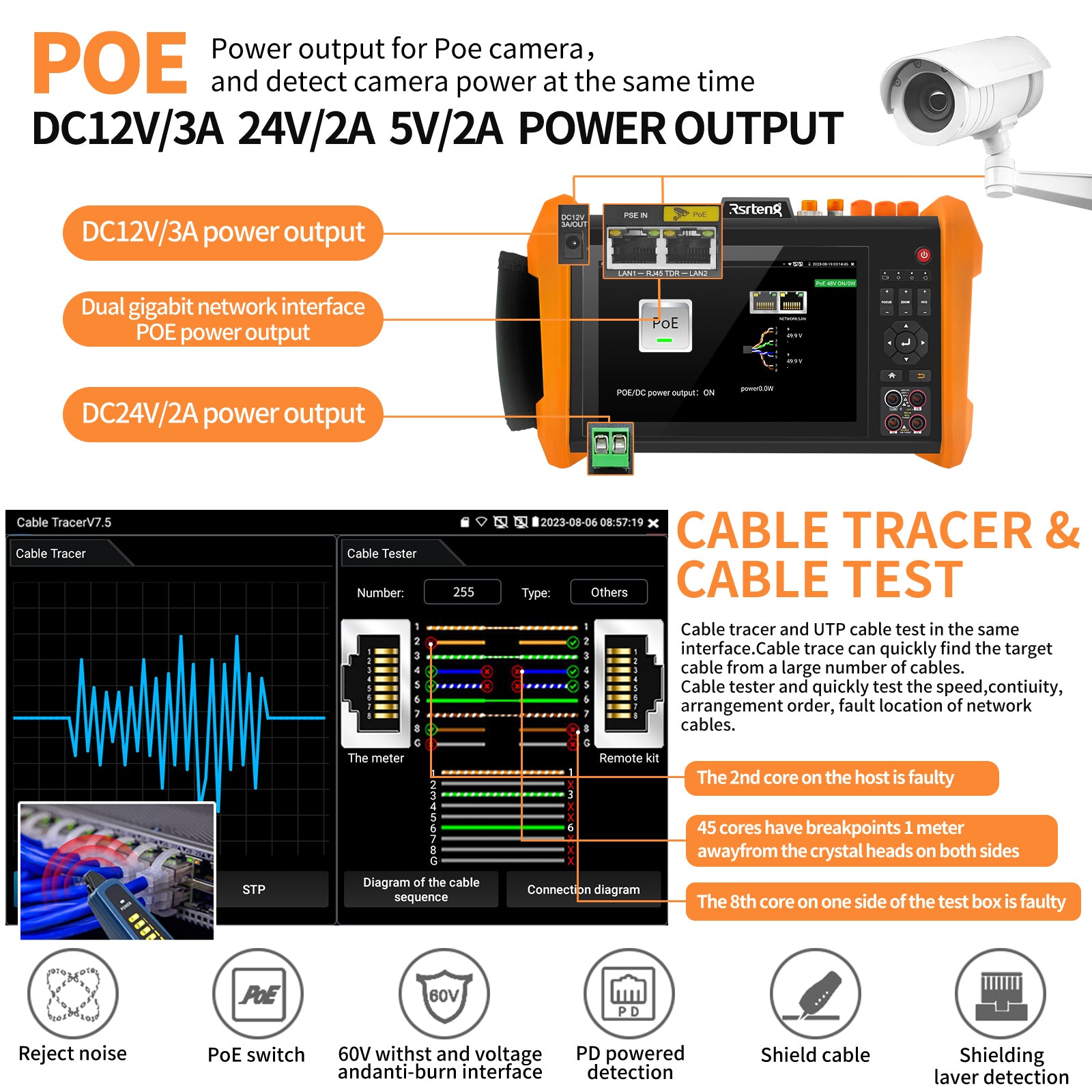

| Power output | PoE power output: IEEE802.3af/at, DC48V, max power 30W |
| DC24V/2A power output | |
| DC12V/3A power output | |
| DC5V/2A power output, can connect USB camera, USB and Mouse, as power bank | |
| Cable test | TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. Measurement range 1200meter(3937fts) |
| Cable tracer: Contains a digital cable tracer. Search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector. voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE |
|

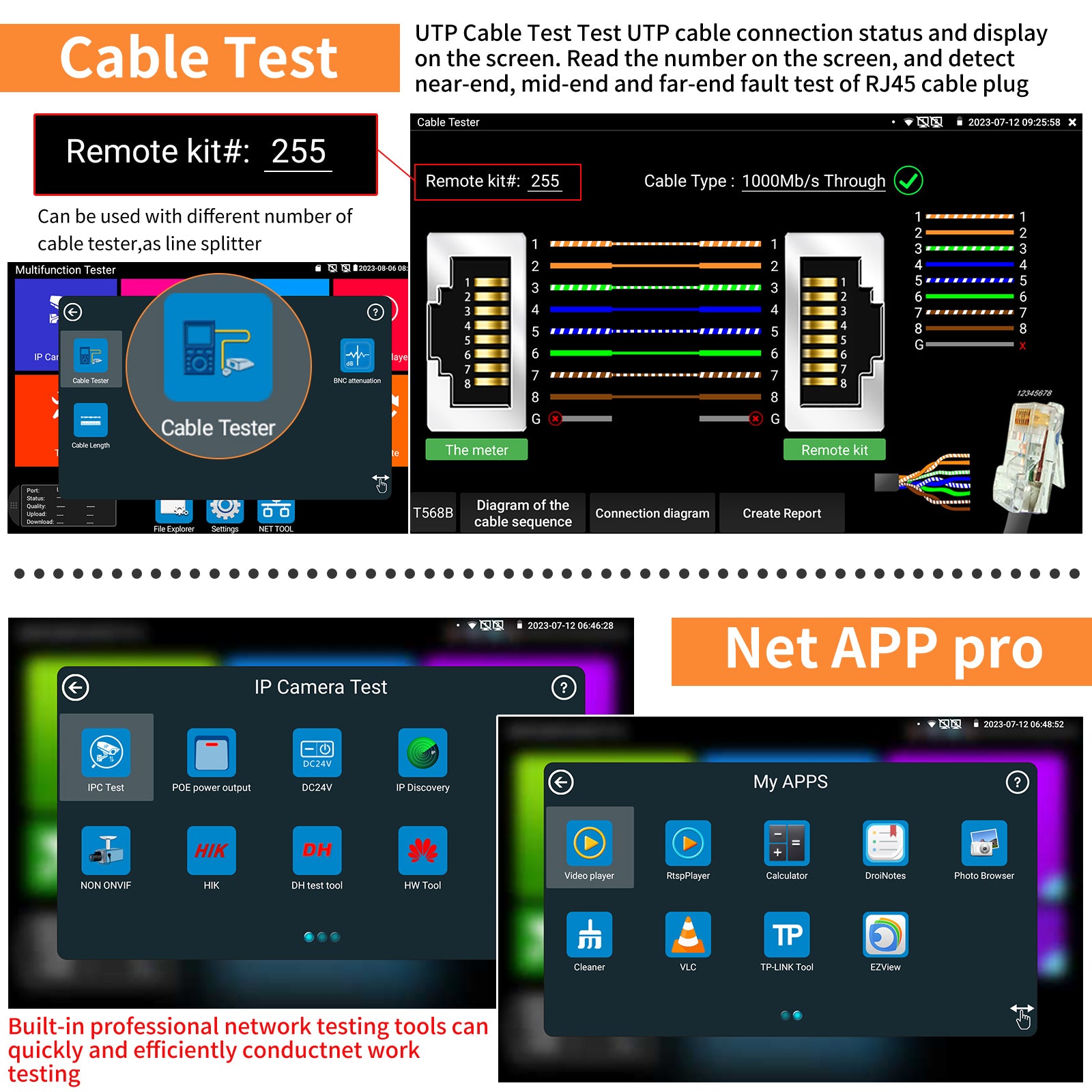

| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug | |
| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). | |

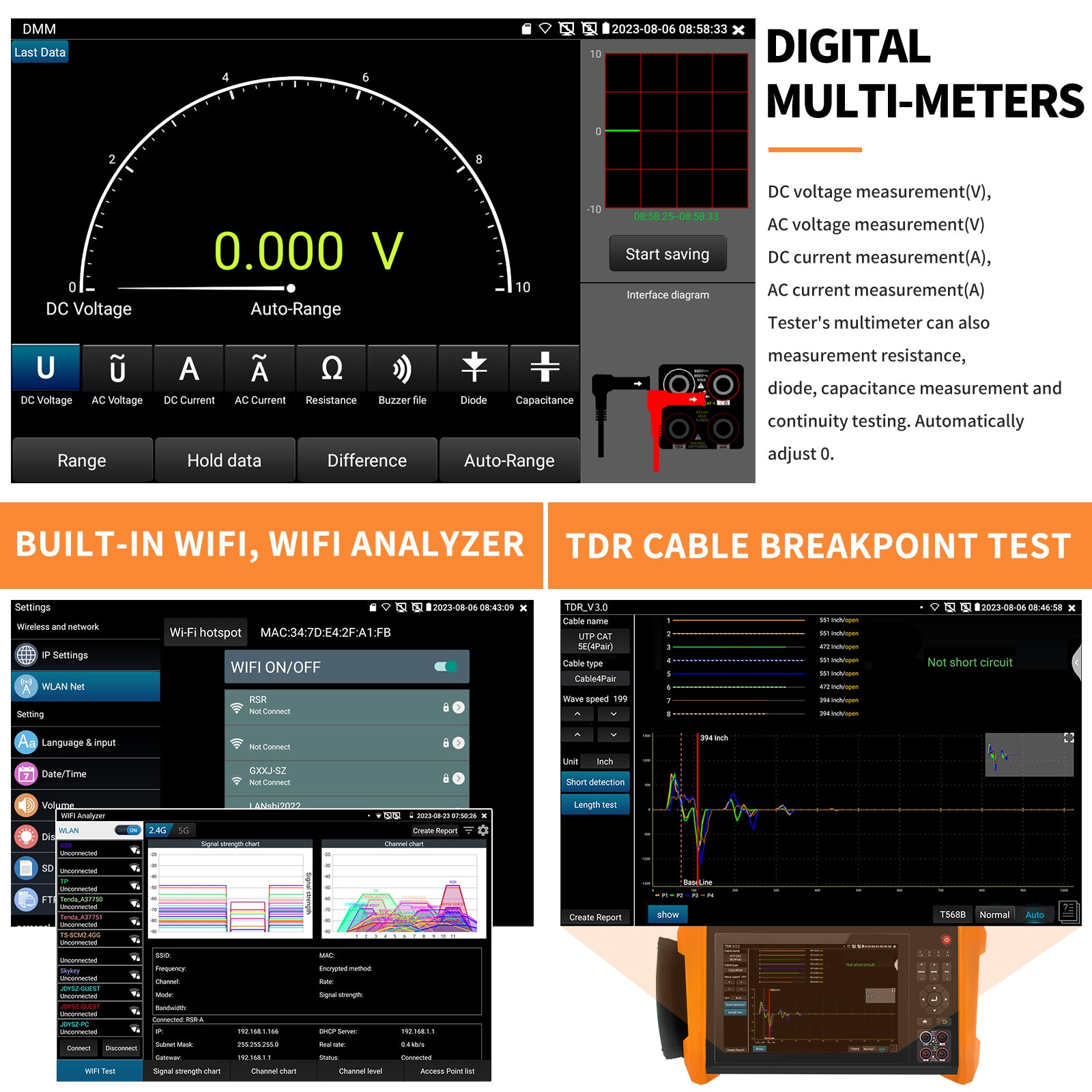

| Digital Multimeter (DMM) |
AC and DC Voltage, AC and DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/ seconds, Data range -6600 to +6600. DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF, the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0. |
| Optical power meter (OPM) |

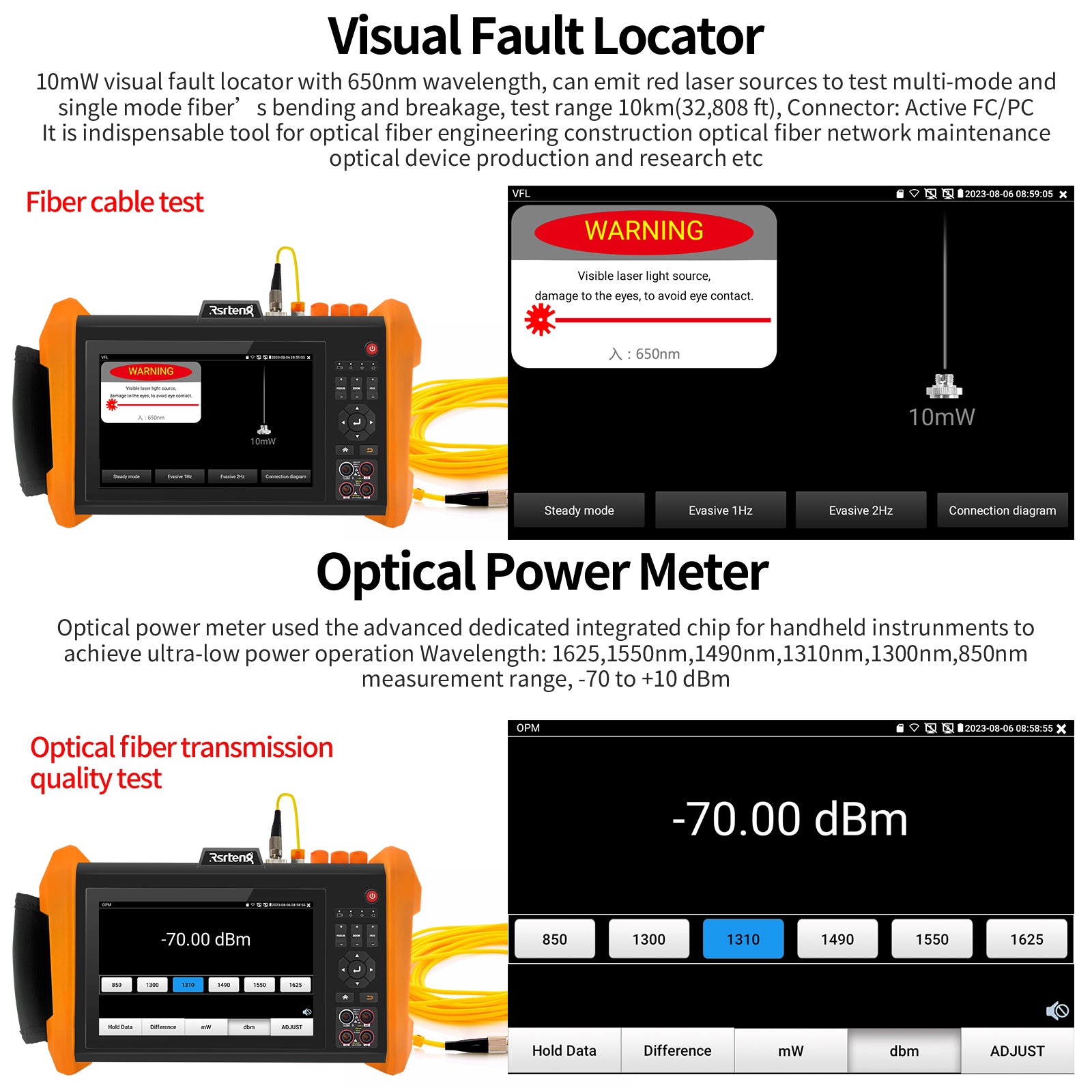

Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃) Display resolution: Linear display 0.1%, logarithmic display 0.01dBm Connector: Active FC/PC |
| Visual fault locator (VFL) |
10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC |

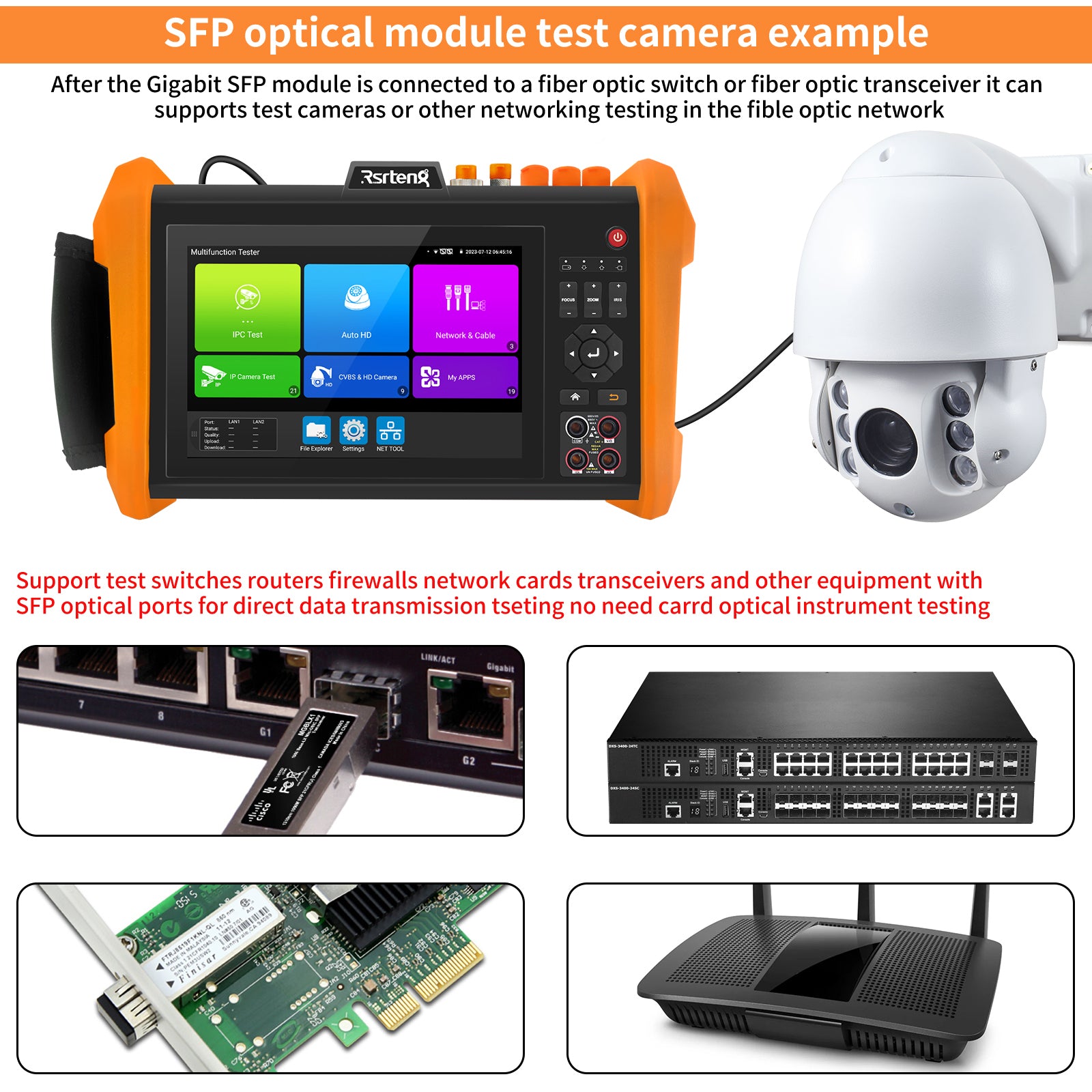

| Gigabit SFP | 1 channel Gigabit SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| Built-in camera | Pixels: 5MP, support camera focus detection |
| Laser Distance meter | Measurement range100m, accuracy±3mm,Laser class 2,Laser type 635nm,Power output <1mW |
| TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) |
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in WIFI, speeds 150Mbps, support 2.4GHz and 5GHz |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| PSE/PoE test | Measurement PoE switch or PSE power supply voltage and cable connection status |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface |
| External power supply | DC12V/2A |
| Battery | Built-in 7.6V Lithium polymer battery, 7800mAh, 59.28Wh |
| Rechargeable | After fast charging 3.5 hours, normal working time 16 hours |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Auto off | 5 to 30 (mins) |
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity | 30% to 90% |
| Dimension/Weight | Tester: 276x163x45mm(10.87x6.42x1.77inch) / 1170g(2.58lbs) Package: 350x310x100mm(13.78x12.2x3.94) / 2750g(6.06lbs) |
