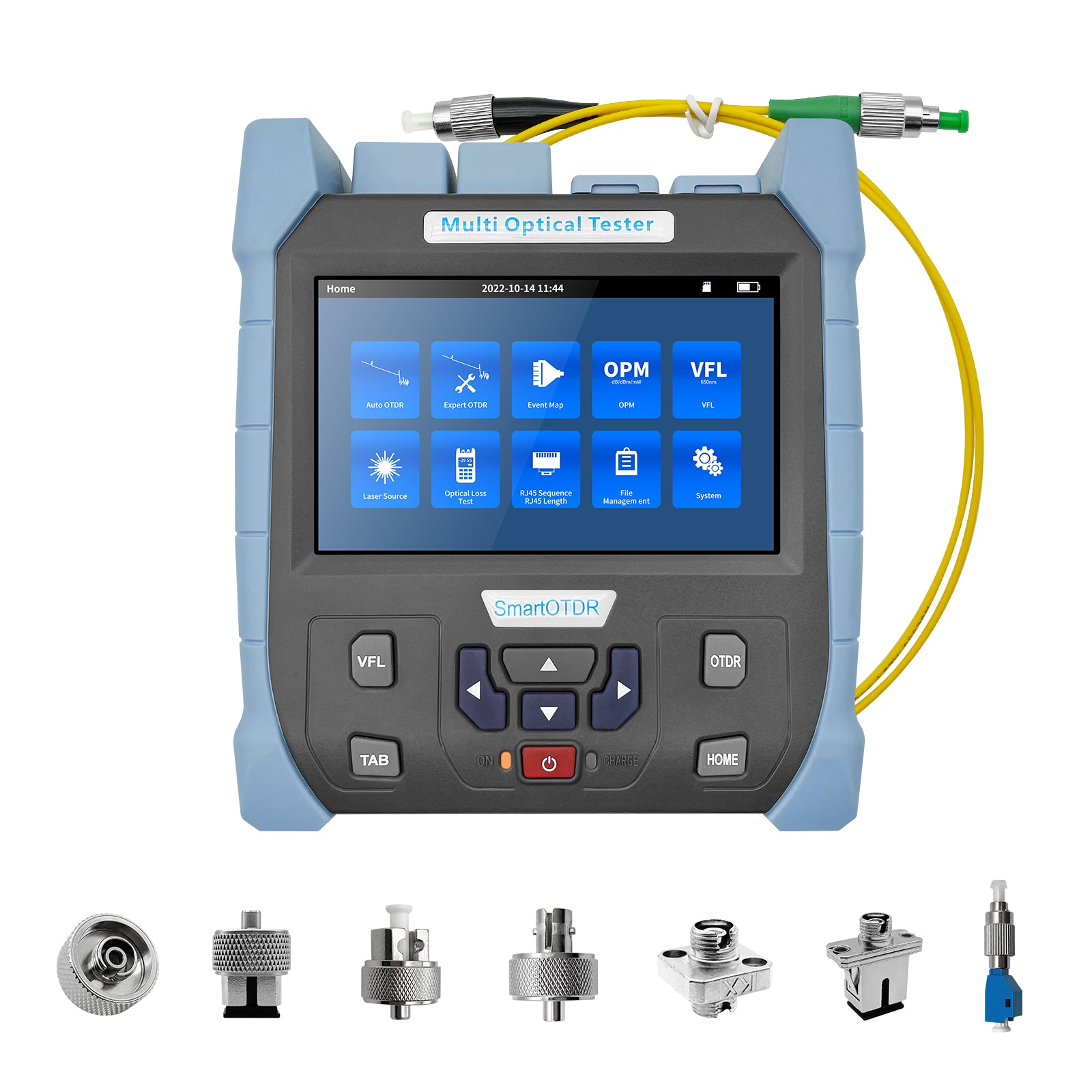

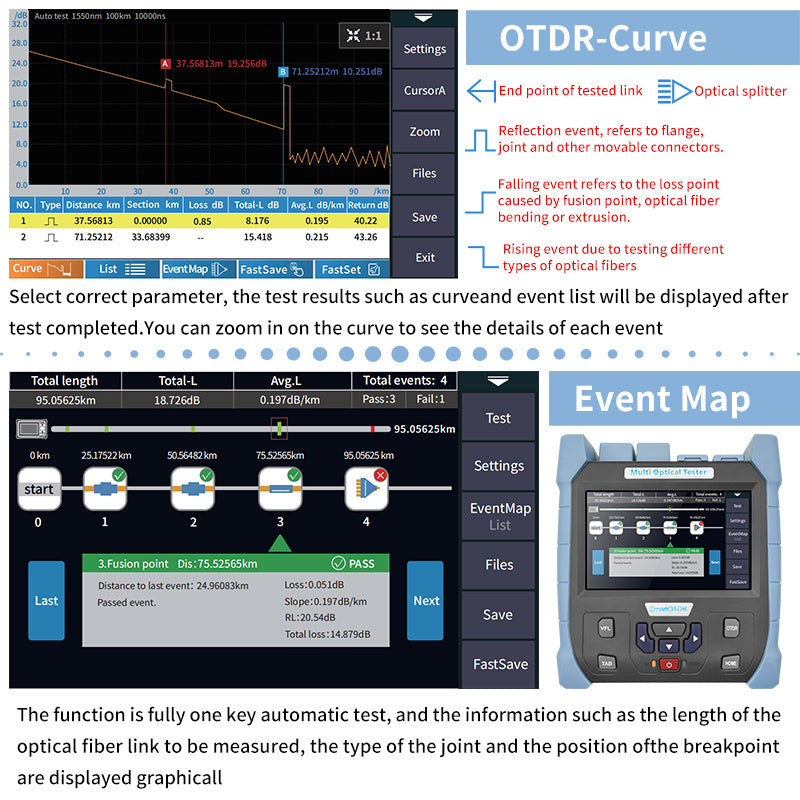

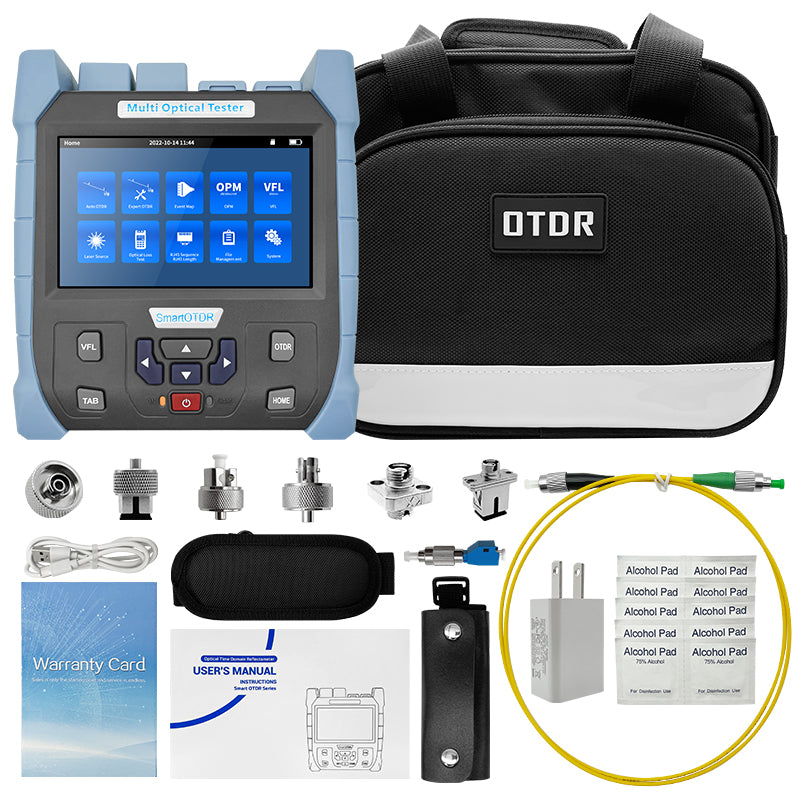

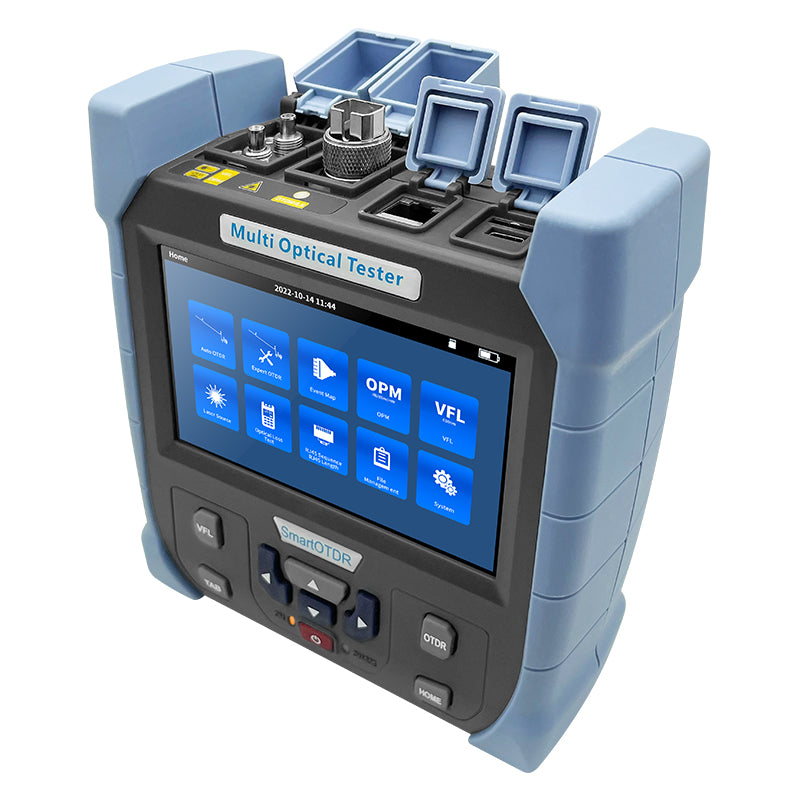

RSO-5100 mini OTDR adopts 5-inch 800x480 high-definition touch screen, so the operation of measuring various parameters of the optical fiber becomes simple and fast. Internal integration of OTDR, event map, light work, red light, flashlight and other functions in one, to meet various test needs in different occasions. The whole machine has 1.5m event dead zone, 6m attenuation dead zone, and a maximum measurement range of 100km, which can be used to measure the length, loss, connection quality and other parameters of the optical fiber, and can easily test the break-point, bend, and loss point of the optical fiber link, which is suitable for line maintenance and emergency repair test by installation and maintenance personnel. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
|
Model |
RSO-5100 |
|
Fiber type |
G.652 Single-mode fiber |
|
Wavelength |
1310nm±20nm 1550nm±20nm |
|
Maximum dynamic range |
28/26dB |
|
Event dead zone |
1.5m |
|
Attenuation dead zone |
6m |
|
Test range |
500m/1km/2km/ 4km/8km/16km/32km/64km/100km |
|
Test pulse width |
5ns/10ns/20ns/30ns/50ns/80ns/ 160ns/320ns/500ns/800ns/ 1μs/2μs/3μs/5μs/8μs/10μs/20μs |
|
Ranging accuracy |
± (0.75m + sampling interval + 0.005%× test distance) |
|
Linearity |
±0.05dB/dB |
|
Maximum number of sampling points |
≥16000 |
|
Maximum sampling resolution |
≤0.03m |
|
Loss resolution |
0.01dB |
|
Loss threshold |
0.20dB |
|
Distance resolution |
0.01m |
|
refractive index |
1.00000~2.00000 |
|
Reflection accuracy |
±3dB |
|

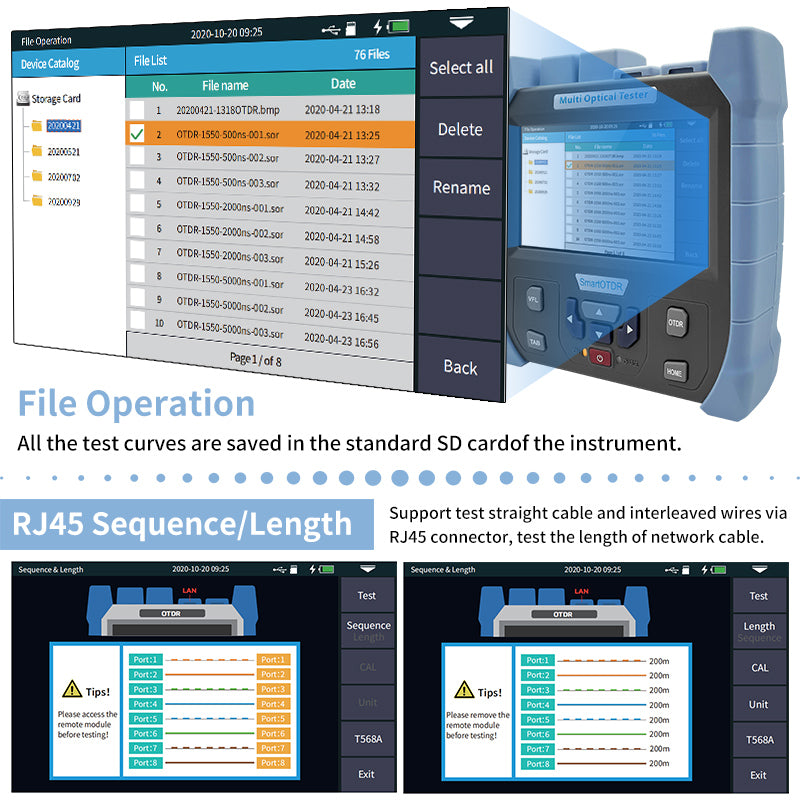

file format |
SOR standard file format |
|
Loss measurement mode |
4-point method /5-point method |
|
Laser safety rating |
Level Class II |
|
Optical connectors |
FC/SC is interchangeable, universal interface |
|
Optical power meter |
|
|
Wavelength range |
800nm~1700nm |
|
Calibrate the wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Measuring range |
-70~+6dBm (optional) /-50~+26dBm (standard) |
|
Identification frequency |
CW/270Hz/330Hz/1kHz/2kHz |
|
resolution |
0.01dB |
|
Uncertainty |
±5% |
|
Optical connectors |
Universal connector FC/SC/ST |
|

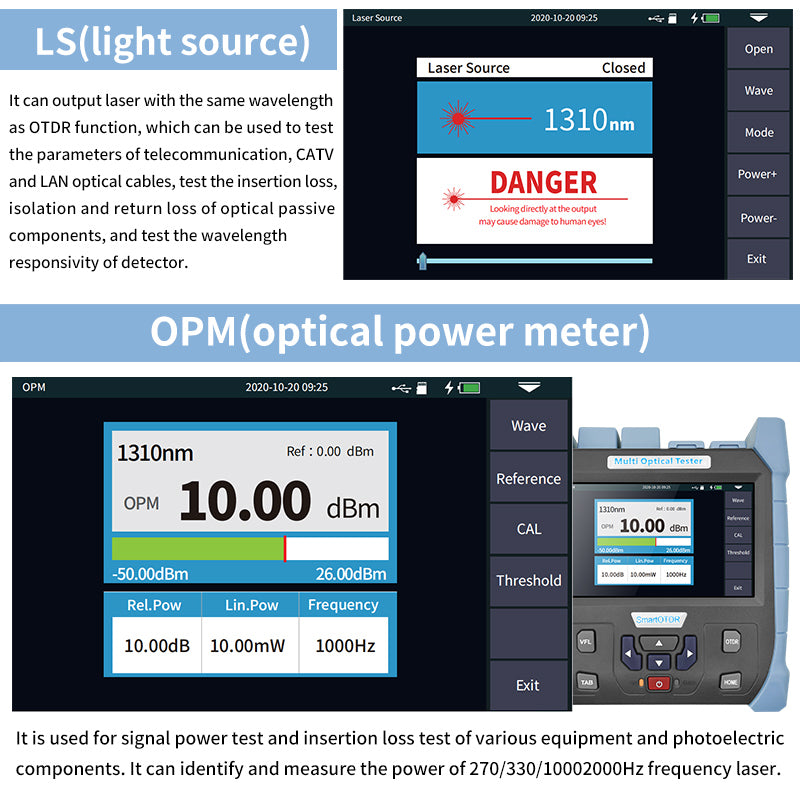

Stabilize the light source |
|
|
Output wavelength |
Consistent with OTDR output wavelength |
|
Laser type |
FP - LD |
|
Output power |
≥-5dBm |
|
Stability |
CW, ±0.5dB/15min (tested after 15min warm-up) |
|
Optical connectors |
SC/PC |
|
Output mode |
CW/270Hz/330Hz/1kHz/2kHz |
