Note: Microscope function is not available for this model! If this feature is required, please purchase additional probes.
It does not support Link speed, RJ45 Find, RJ45 Order, RJ45 length functions

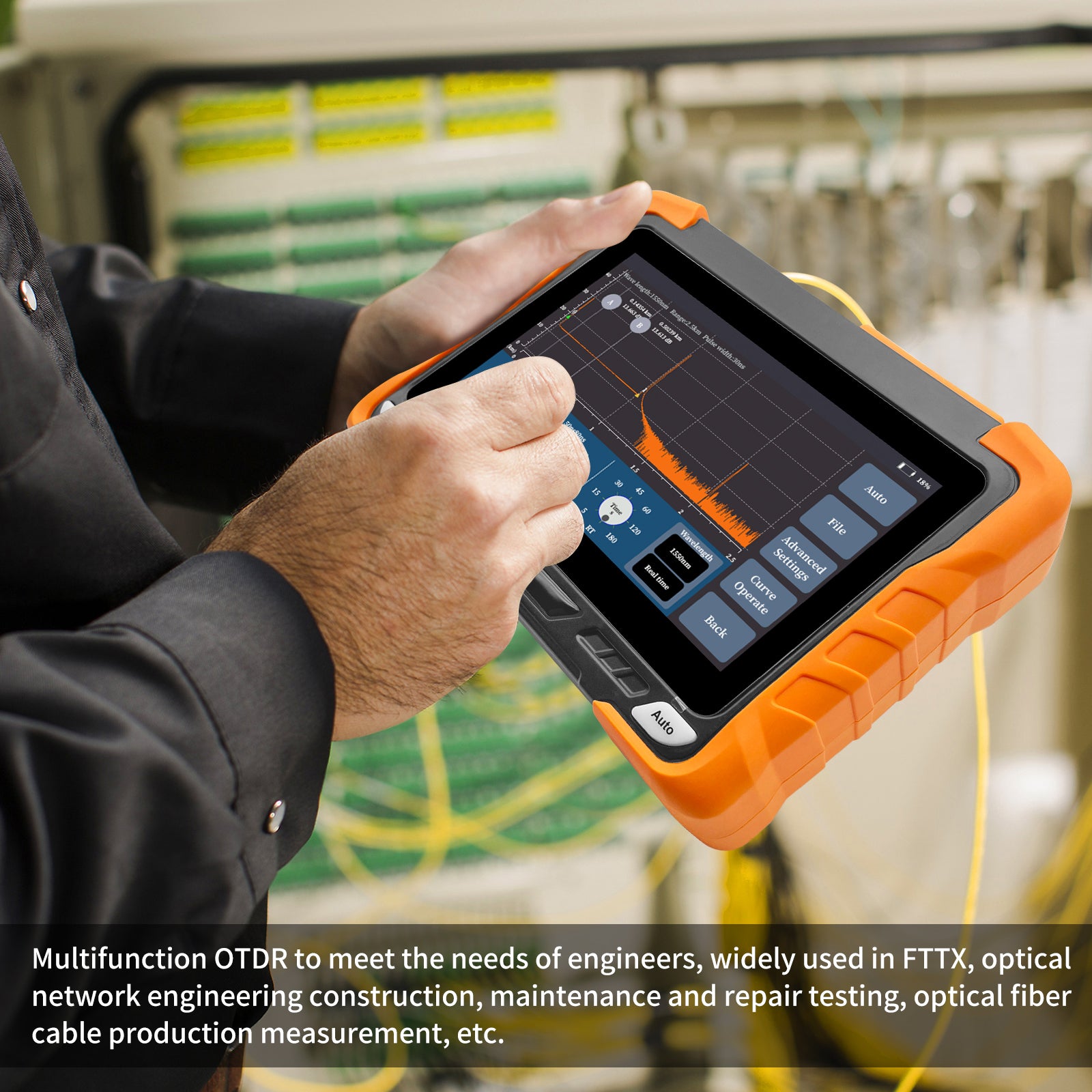

Rsrteng RSO-6200-S0 high-performance OTDR. It is an essential tool for technicians in the field of measuring fiber parameters. Widely used in FTTX, optical network engineering construction, maintenance and repair testing, optical fiber cable production measurement,etc.

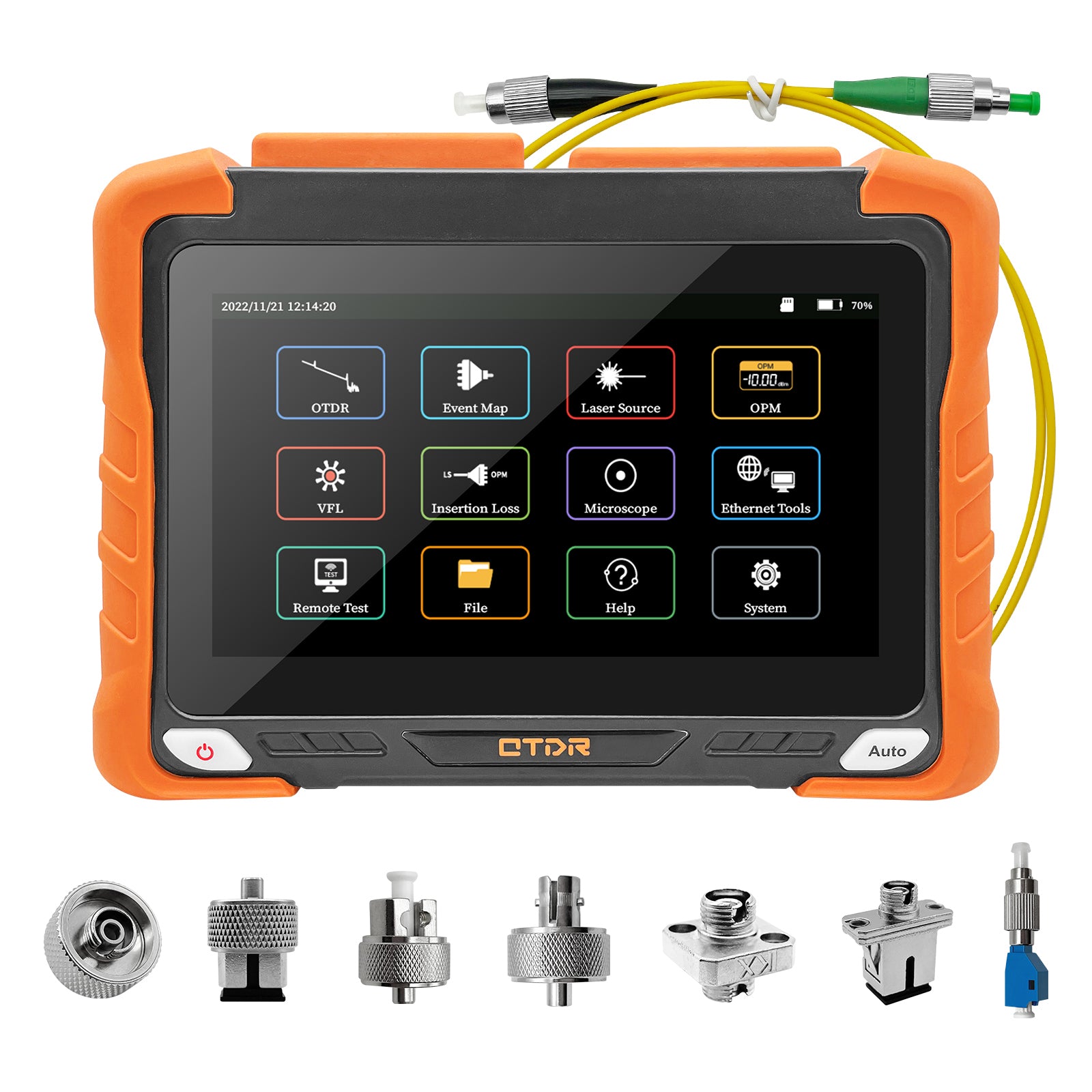

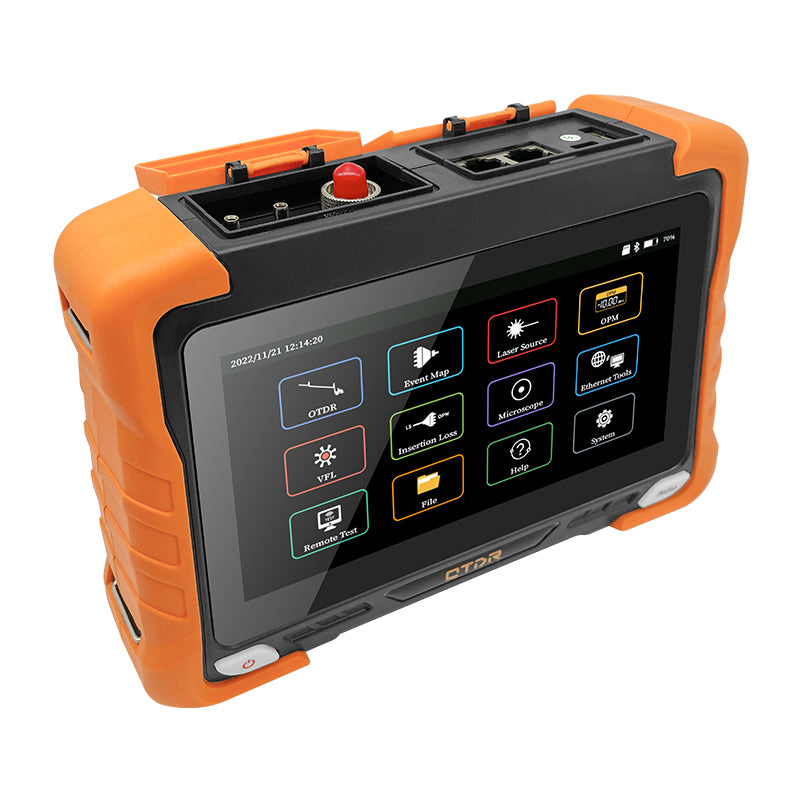

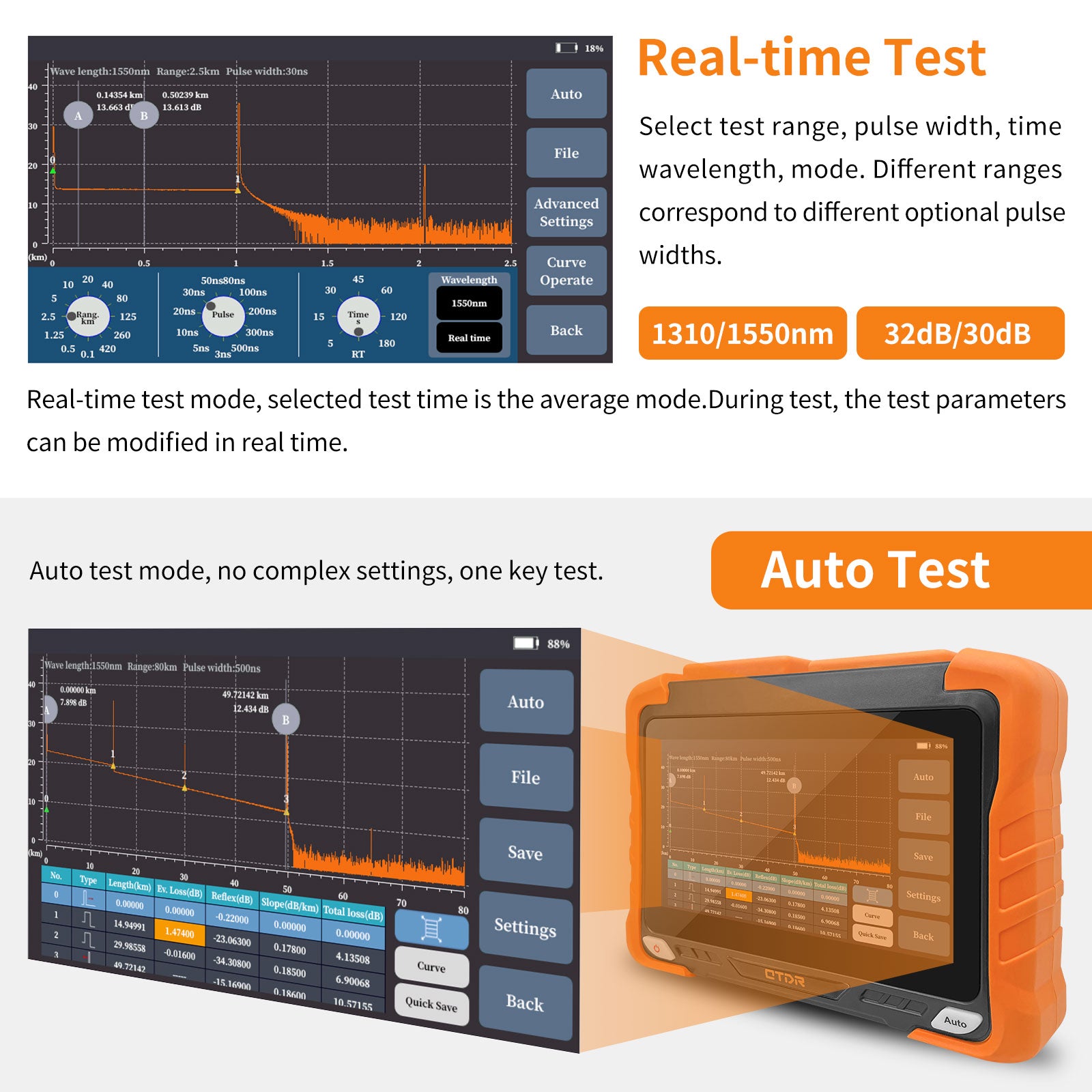

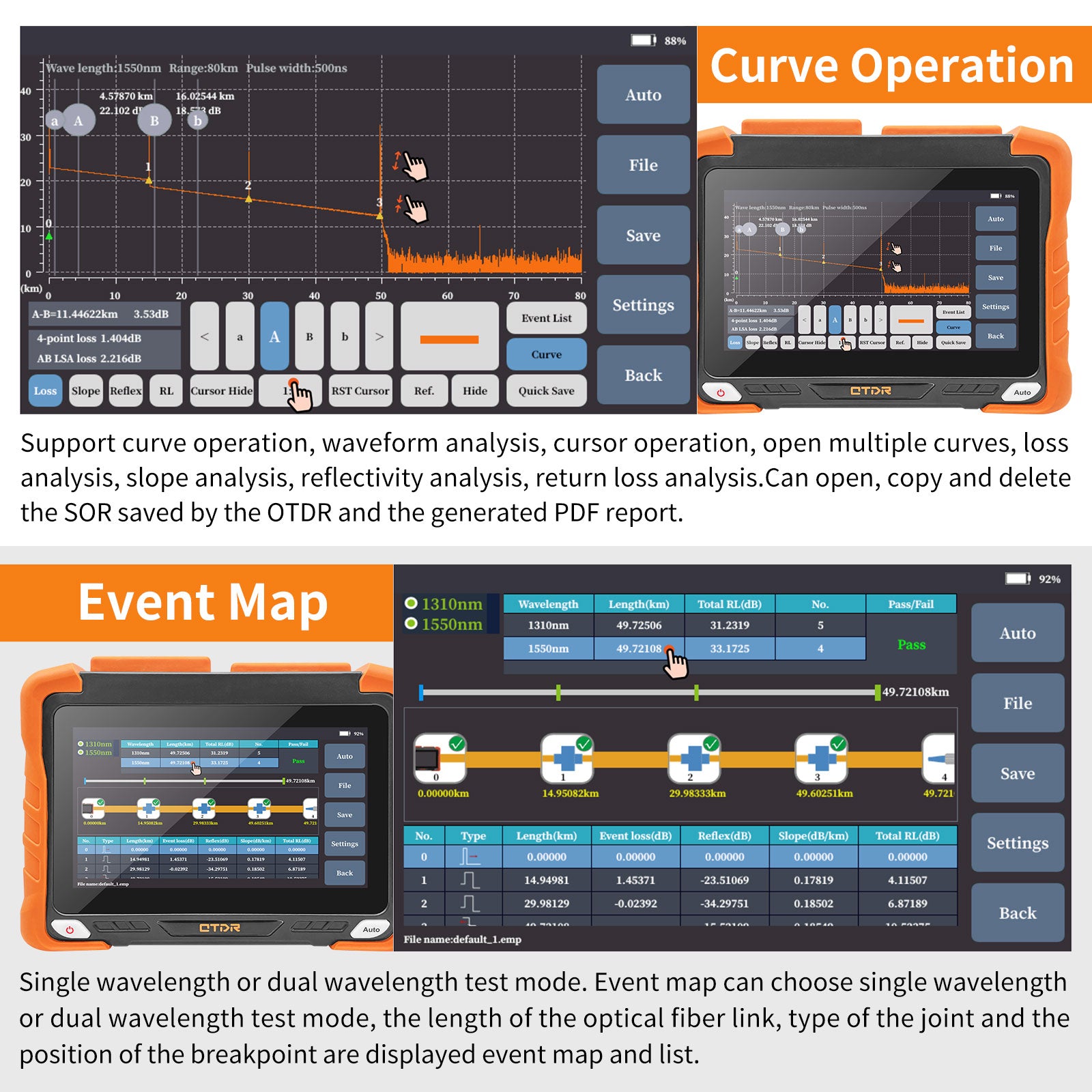

RSO-6200-S0 OTDR adopt 7 inch capacitive touch screen, which integrates 9 modules. So the operation of measuring various parameters of the optical fiber becomes simple and fast. With excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is higher. Support Event Map, LS OPM VFL OLS, Ethernet Tools, Remote Test and Analysis software functions to meet various test needs in different occasions. It is equipped with 3.7V/10400mAh/38.48Wh large capacity lithium battery, intelligent power saving management, measuring time of more than 12 hours, and supporting power supply and charging of the power bank. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
| Overview | |||||
| Brand | Rsrteng | ||||
| Model | RSO-6200-S0 | ||||
| operating system | Embedded OS | ||||

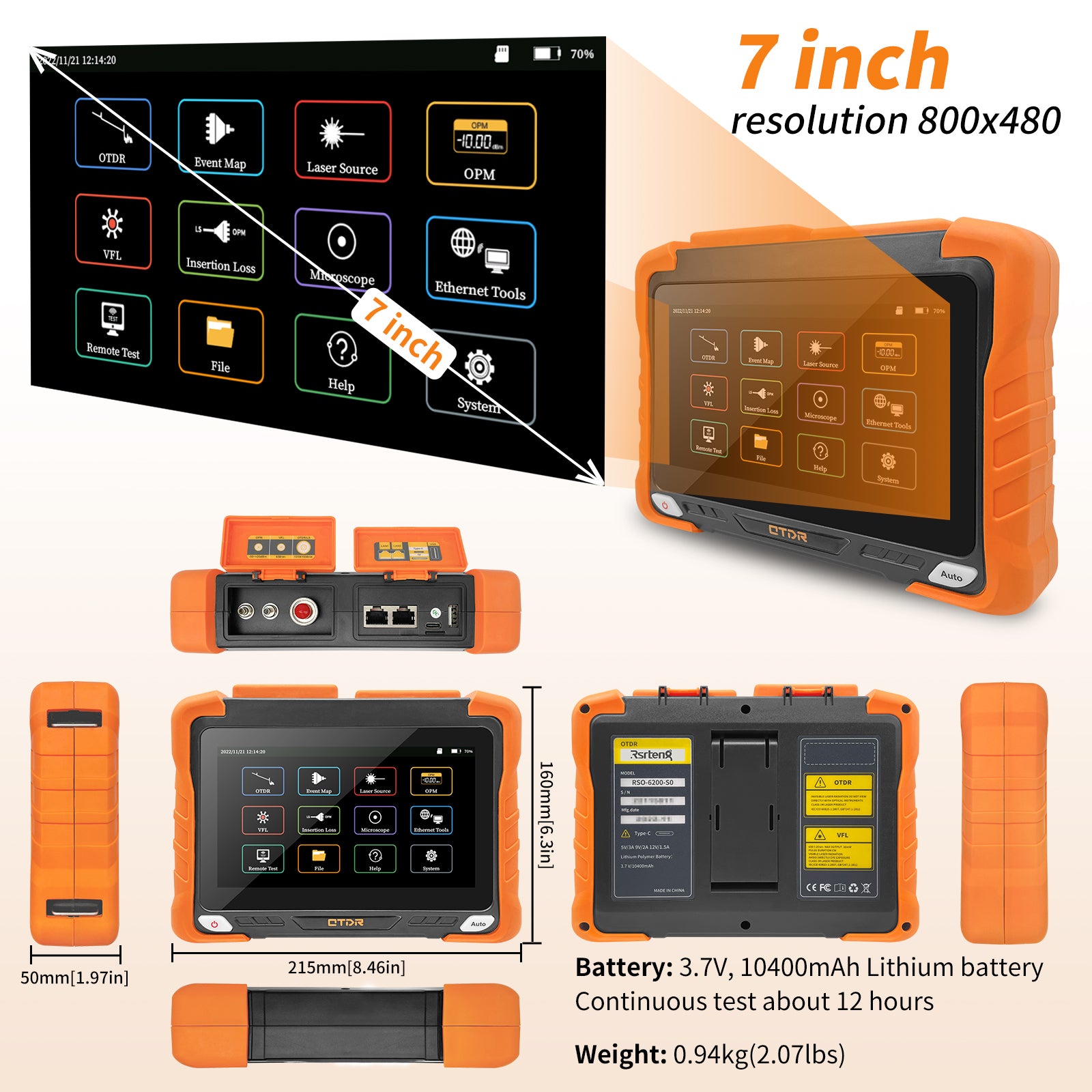

| Display | 7 inch 800x480 LCD capacitance touch screen | ||||
| OTDR | |||||
| Type | Single Mode G.652 | ||||
| Wavelength | 1310/1550nm | ||||
| Dynamic Range | 32dB/30dB | ||||
| Live Test | N/A | ||||
| Event Blind Zone | 0.8m | ||||
| ATT Blind Zone | 4m | ||||
| Test Range | 100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km | ||||
| Test Unit | km, kft, mi | ||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/100ns/200ns/300ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs/20μs | ||||
| Ranging Accuracy | ±（0.75m+Sample interval+0.0025％×Test distance） | ||||
| Linearity | ±0.03dB/dB | ||||
| Sample Points | ≥256k | ||||
| Sample Resolution | 0.015m~16m | ||||
| Loss Resolution | ±0.001dB | ||||
| Loss Threshold | 0.01dB | ||||
| Range Resolution | 0.001m | ||||
| Reflection Accuracy | ±2dB | ||||
| File Format | SOR Standard File Format | ||||
| Loss Analysis | 4-point method /5-point method | ||||
| Laser Safety Level | Class Ⅱ | ||||

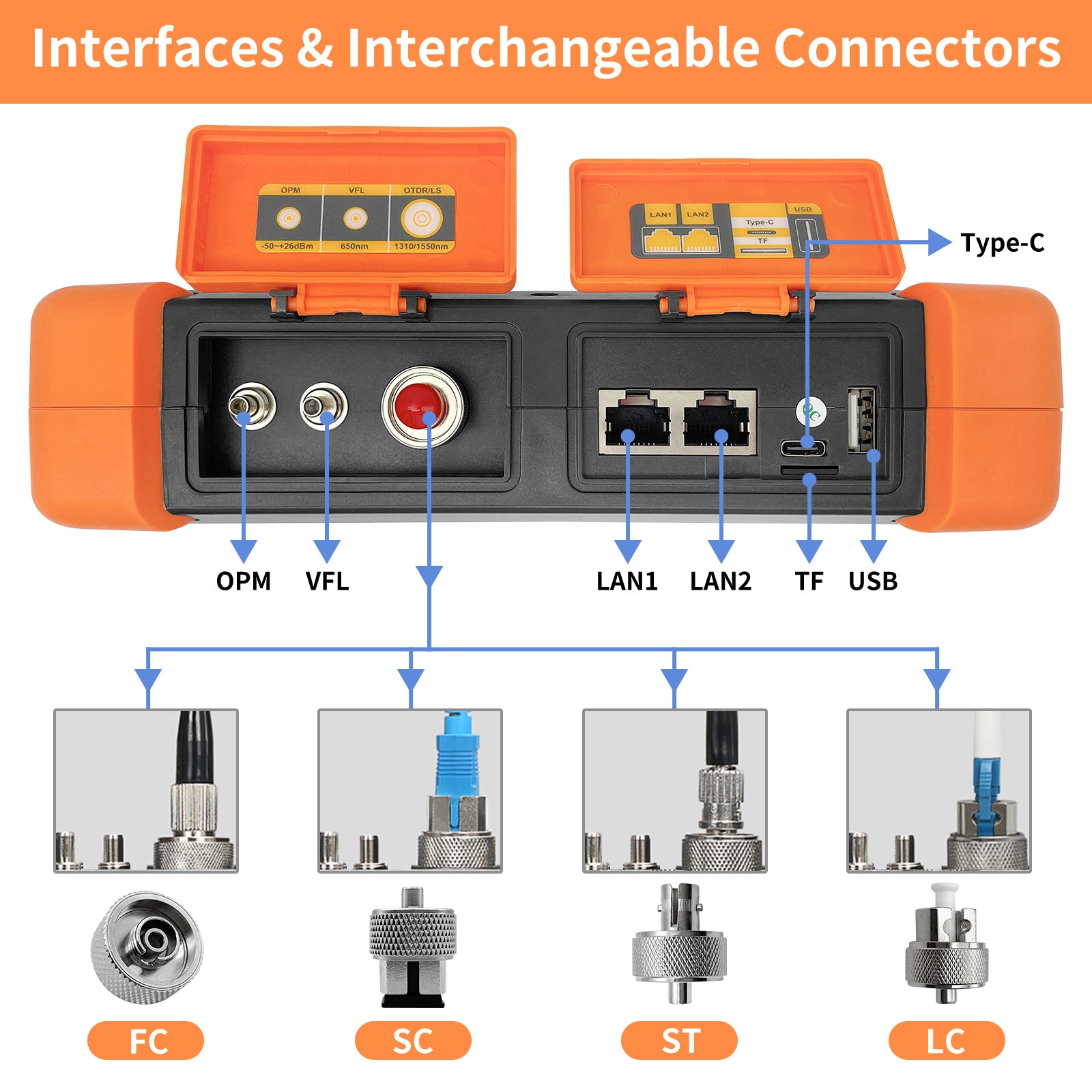

| Connector | FC/UPC(Interchangeable SC/ST) | ||||
| Refresh Rate | 4Hz(Typ.) | ||||
| OPM | |||||
| Wave Range | 800~1700nm | ||||
| Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm | ||||
| Test Range | -50~+26dBm | ||||
| Resolution | 0.01dB | ||||
| Uncertainty | ±5% | ||||
| Connector | Universal FC/SC/ST | ||||
| VFL | |||||
| Wavelength | 650nm±20nm | ||||
| Output Power | ≥10mW | ||||
| Mode | CW/1Hz/2Hz | ||||
| Connector | FC/UPC(Interchangeable SC/ST) | ||||

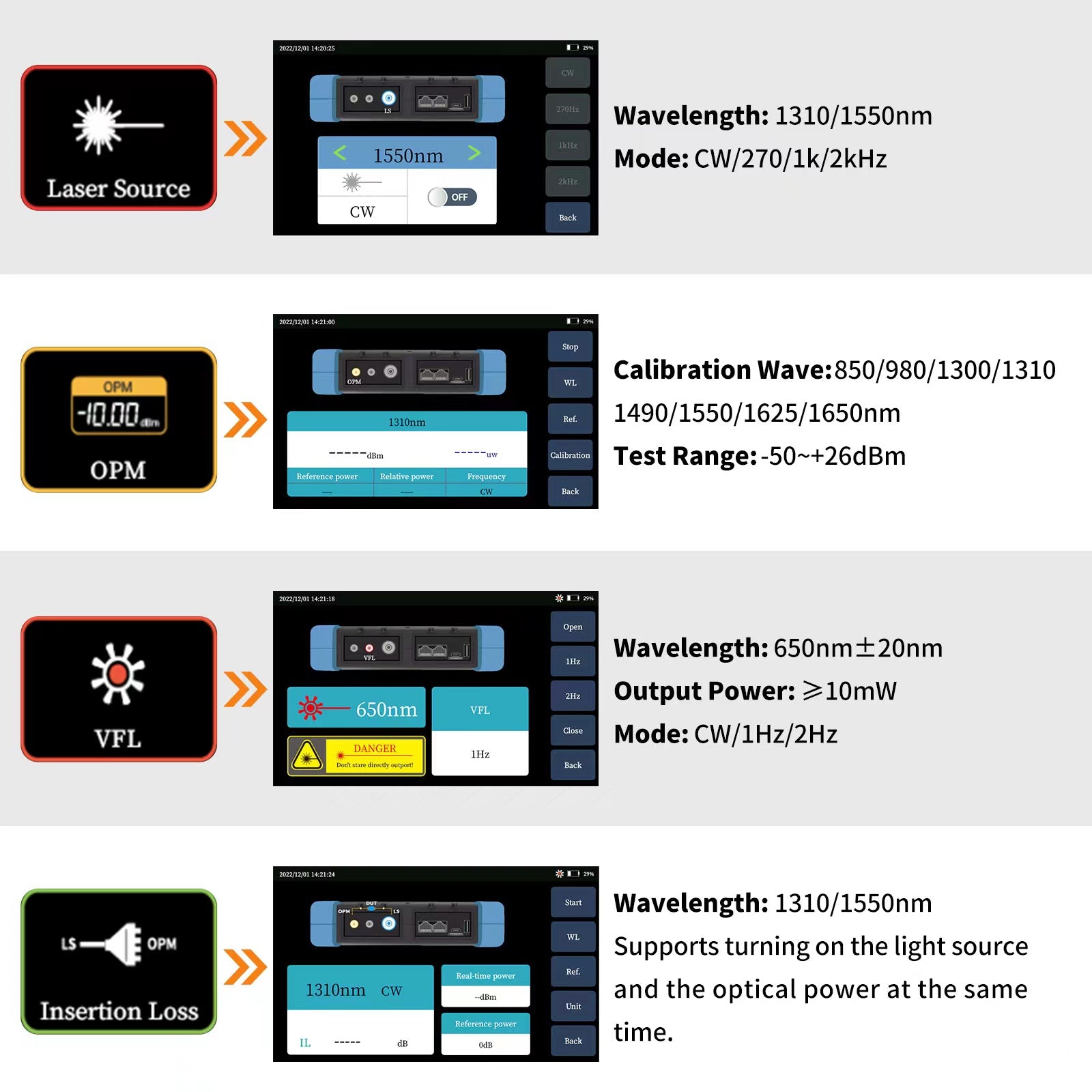

| LS | |||||
| Wavelength | Consistent with OTDR output | ||||
| Laser Type | FP-LD | ||||
| Power | ≥-5dBm(SM flber) | ||||
| Stability | CW, ±0.5dB/15min(after 15min of preheating) | ||||
| Connector | FC/UPC(Interchangeable SC/ST) | ||||
| Mode | CW/270/1k/2kHz | ||||
| Optical Loss Test | |||||
| Wavelength | Consistent with LS | ||||
| Others | |||||
| Power supply | AC/DC adapter. Input:AC100V~240V, 50/60Hz; Output:DC5V, 2A | ||||
| Battery | Lithium battery. 3.7V, 10400mAh, 38.48Wh | ||||
| Battery Working | Continuous test >12h | ||||
| Data Storage | Internal storage: 2GB, 200,000curves; External: support max 64GB TF card | ||||

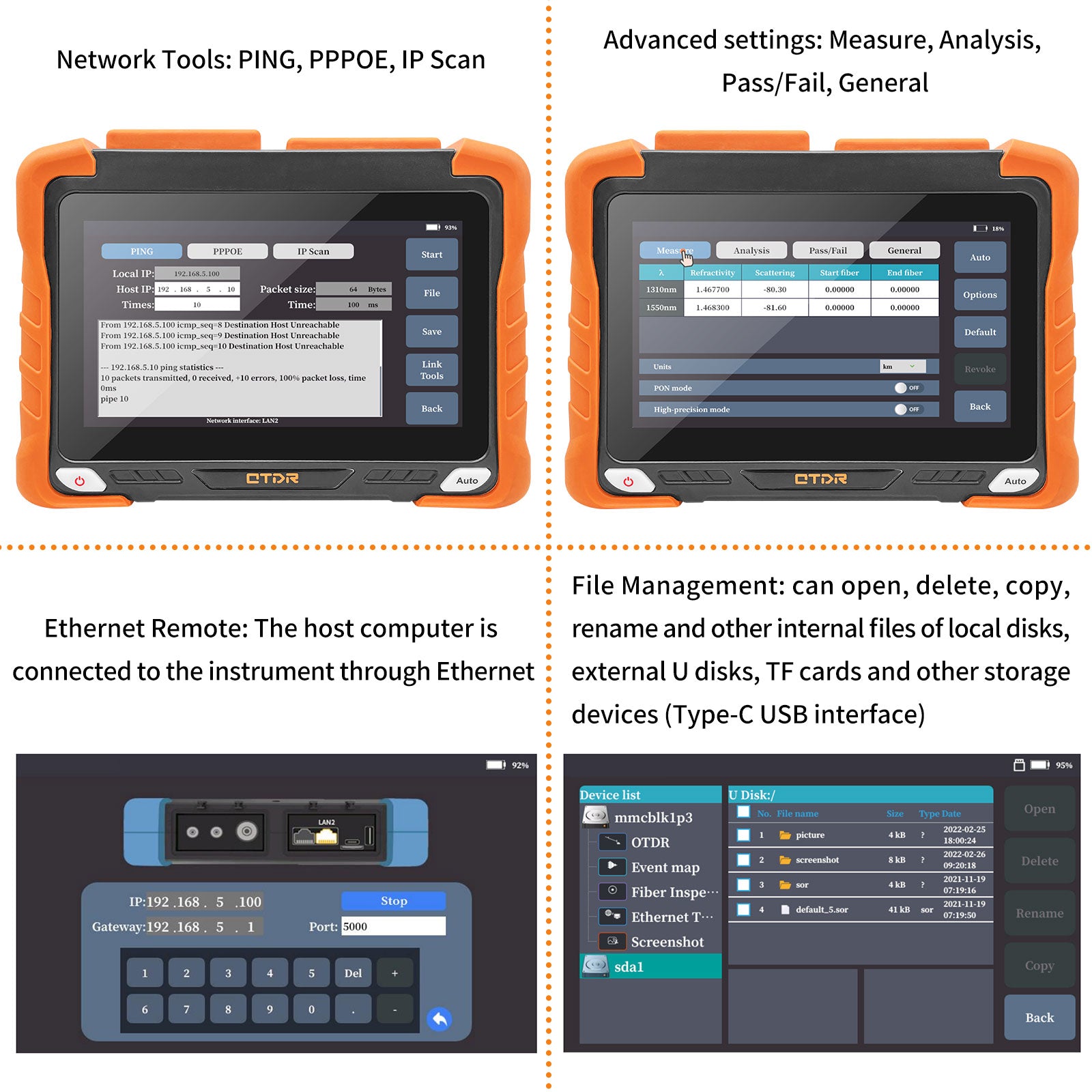

| Network test | Support PING, PPPOE, IP Scan | ||||

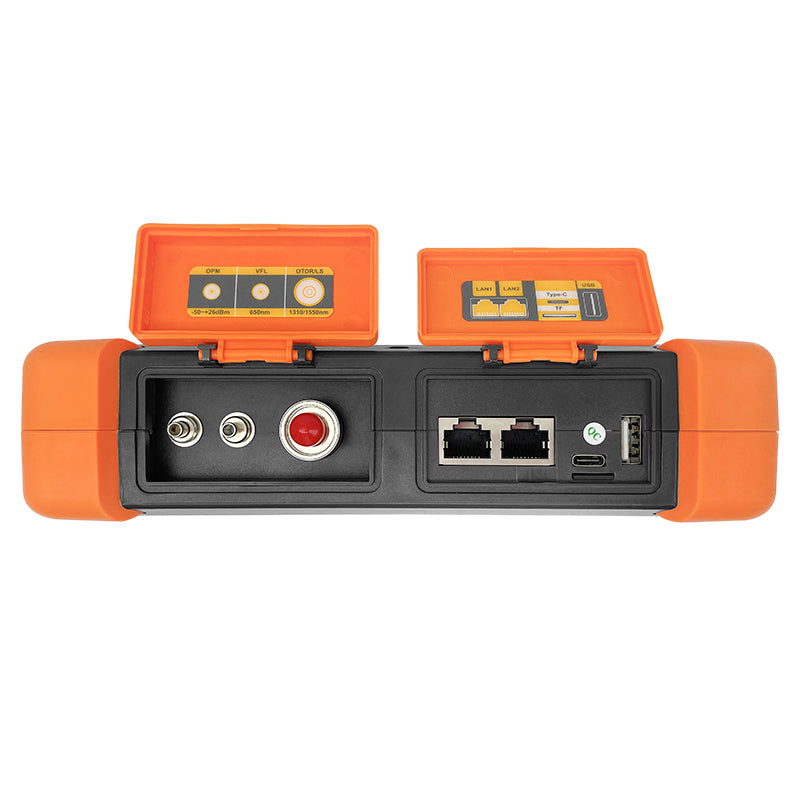

| Data Interface | USB-A, USB type C, RJ45 LAN 10/100Mbit/s | ||||
| Operation language | English | ||||
| Working/Storage Temperature | -10 to +50℃(14~122℉)/-40 to +70℃(-40 to 158℉) | ||||
| Working Humidity | 0 to 95% Non condensing | ||||
| Item Weight | 0.94kg(2.07lbs) | ||||
| Item Dimension | 215x160x50mm(8.46x6.3x1.97inch) | ||||
| Package Weight | 2kg(4.4lbs) | ||||
| Package Dimension | 290x190x220mm(11.42x7.48x8.66inch) | ||||
