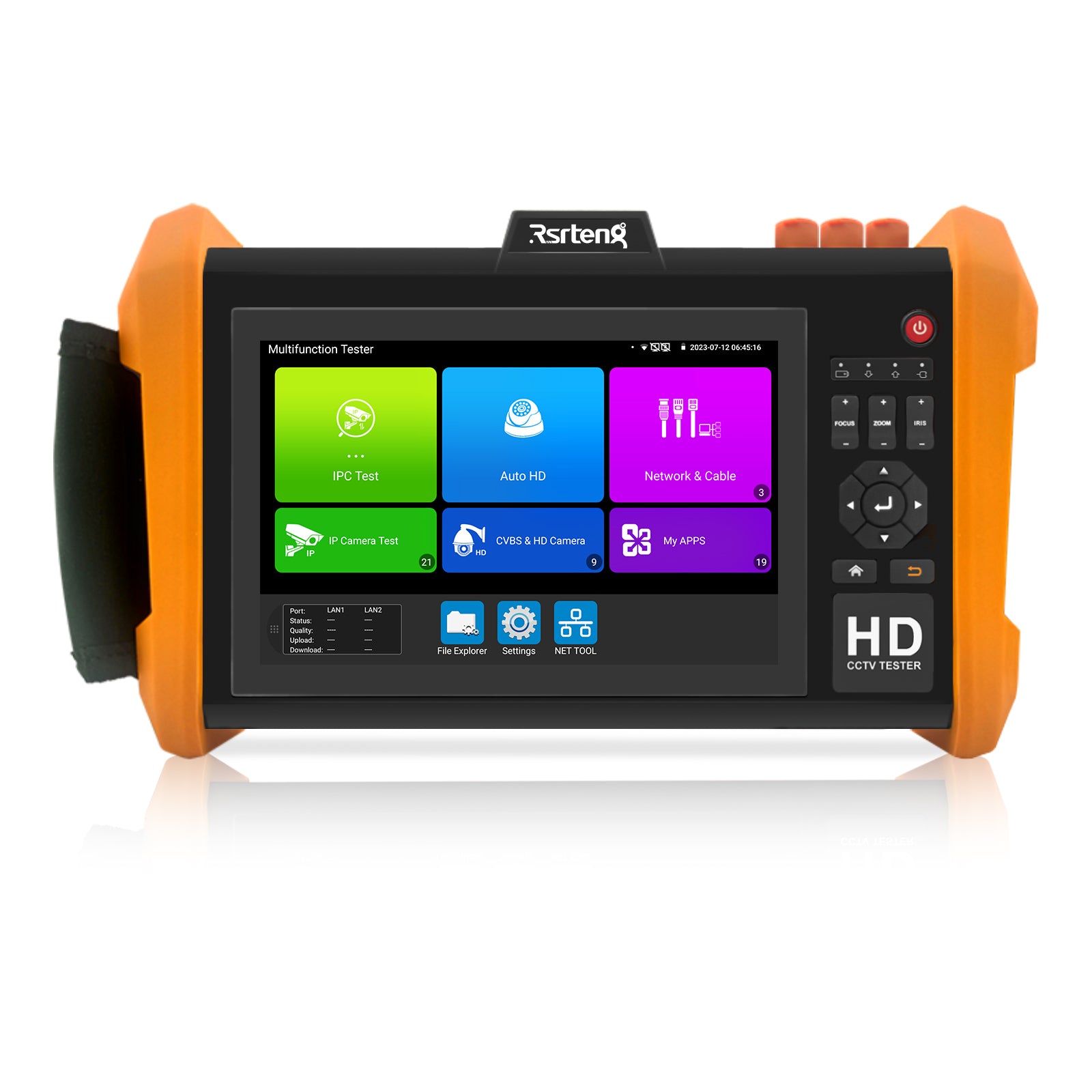

This is the basic model of our K15 series, with Android 9.0 system, 7-inch large screen, and high-definition imaging system.supporting testing of CVBS, coaxial HD, HDMI, VGA, etc.

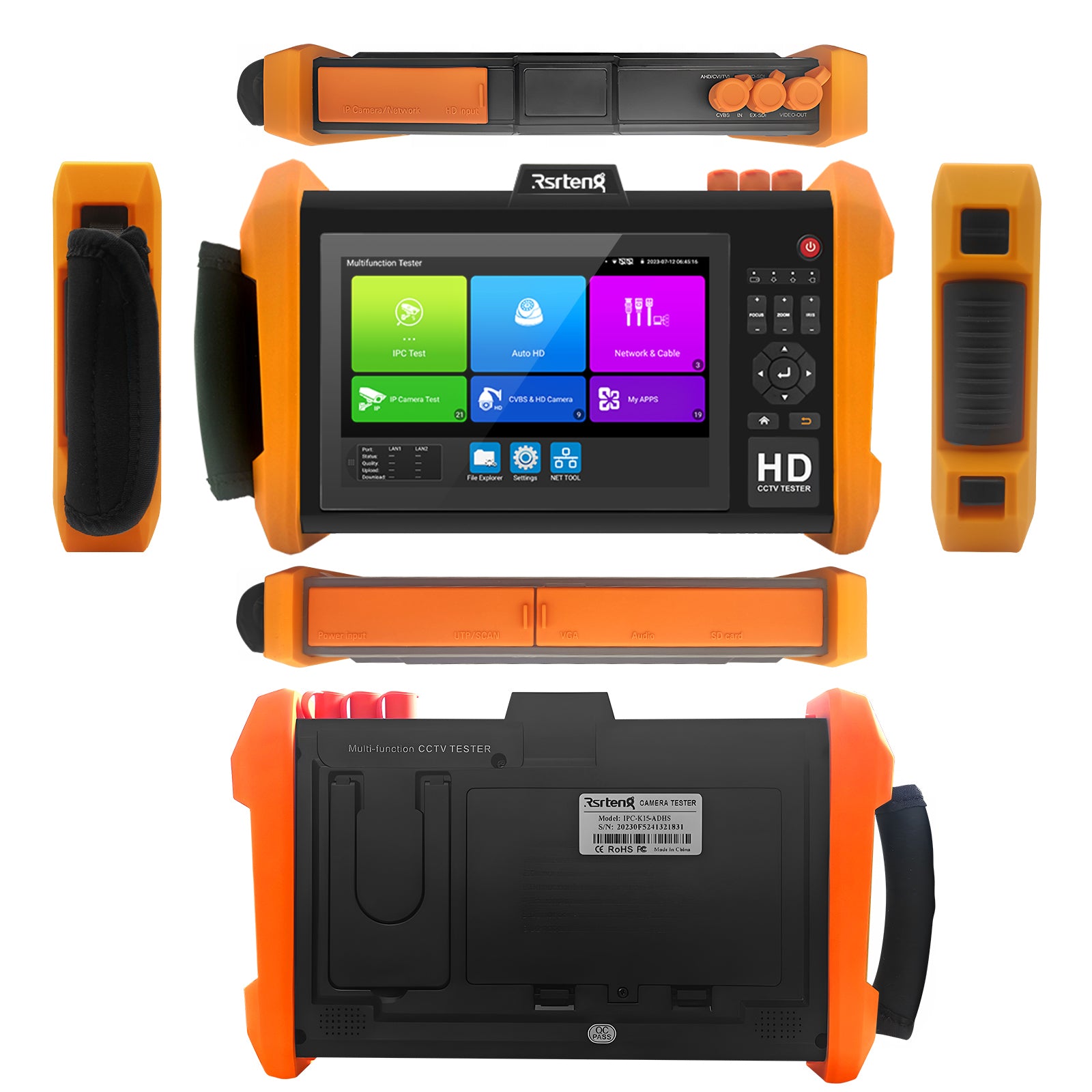

The Rsrteng 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of new analog, HD coaxial cameras as well as other security equipment, 8K 32MP video display via mainstream.The unit supports many ONVIF PTZ and analog PTZ control.Additionally, it with other functions Optical power meter, Visual fault locator, UTP cable test and cable tracer etc.
| Brand | Rsrteng |
| Model | K15-ADHS |
| Operating system | Android 9.0 |

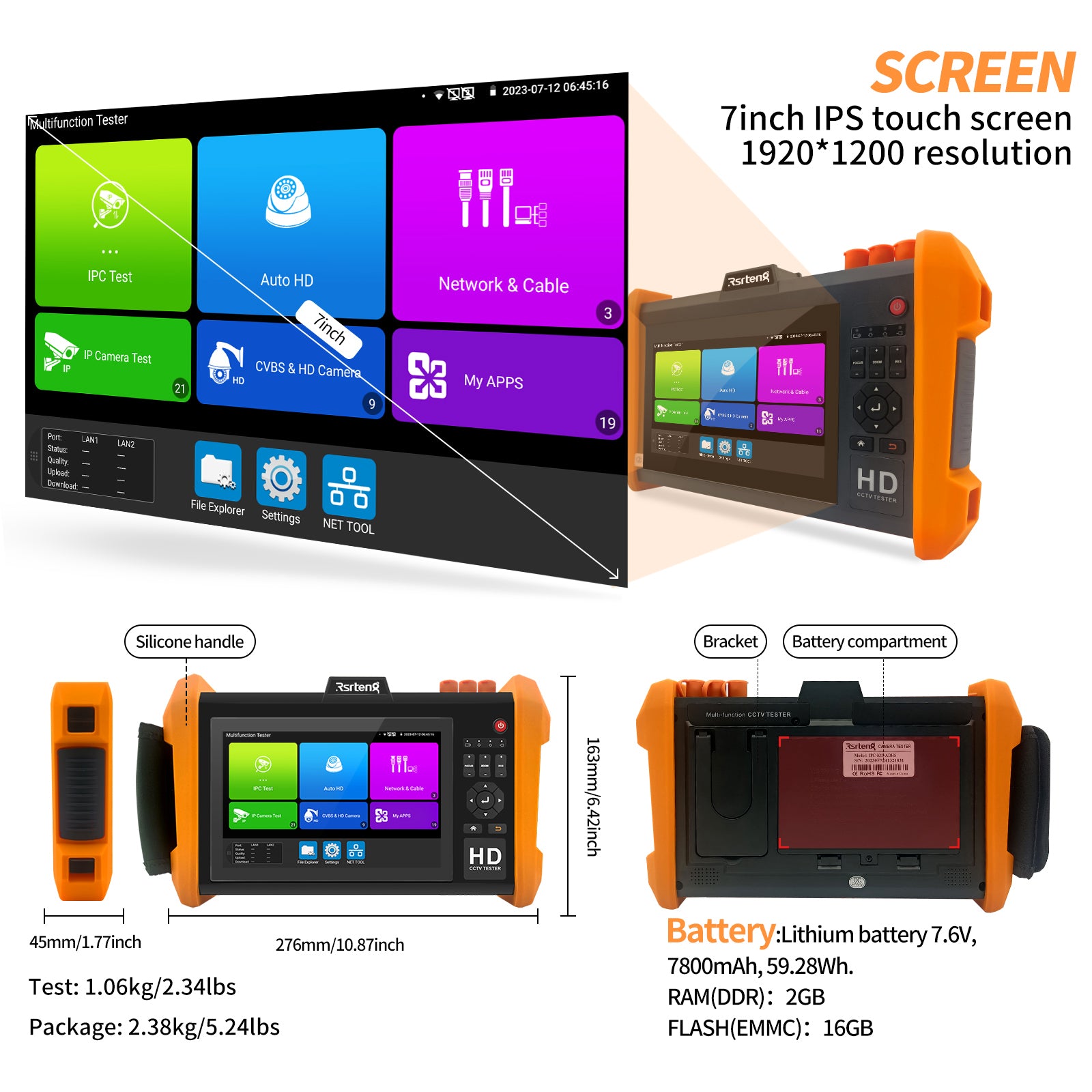

| Display | 7 inch IPS touch screen, 1920*1200 resolution, Backlit buttons |
| Operation method | Touch screen + keys |
| CPU | 1.8GHz, 4 cores |
| RAM(DDR) | 2GB |
| FLASH(EMMC) | 16GB |
| CVBS test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| 4K HD color bar test | |
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |
| IP & CVBS test at the same time, converter test from analog to digital with dual test window | |
| IP camera test max 8K 32MP |

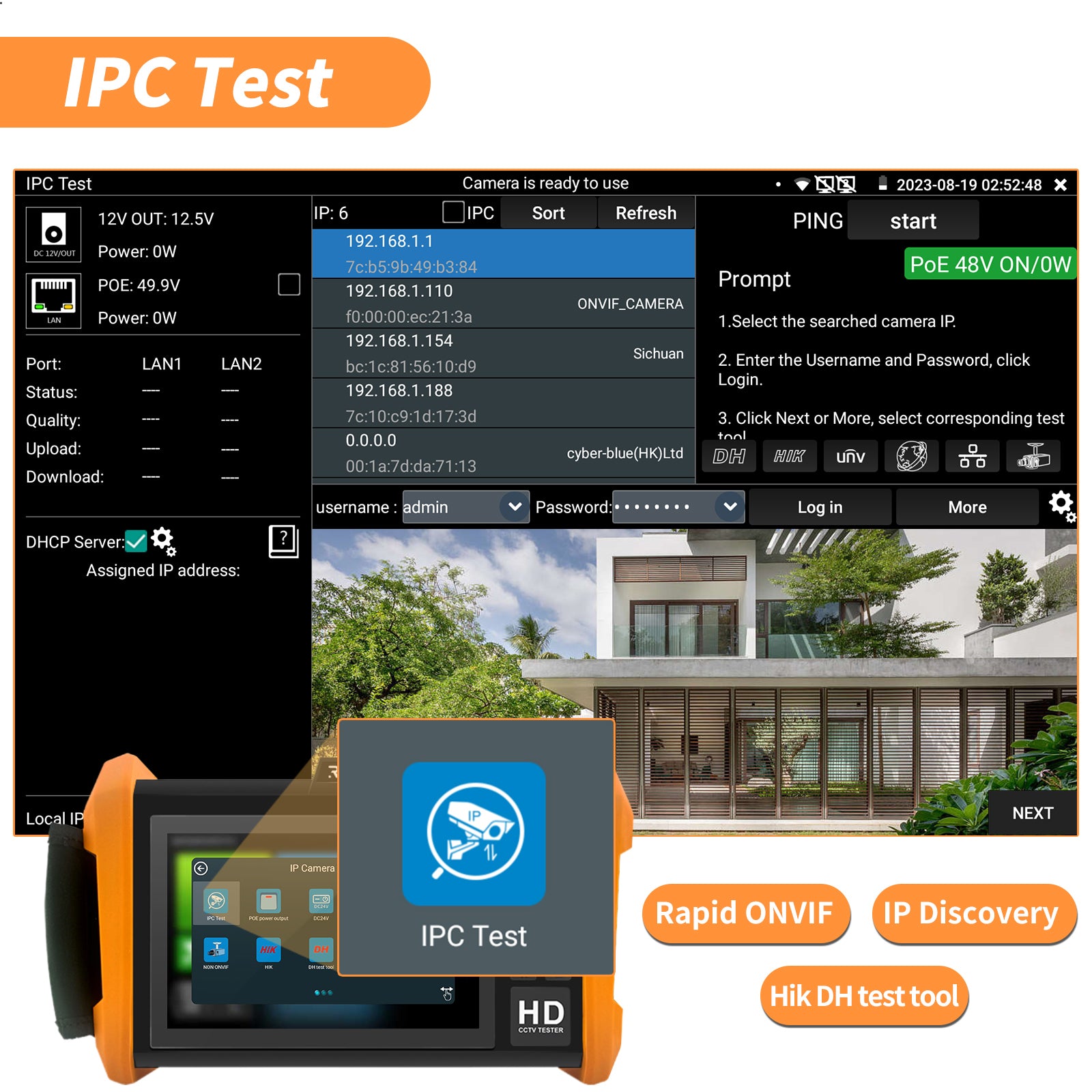

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
| Rapid Video | |
| Rapid Video: Auto view the video, create testing report | |
| Hik test tool: support batch activate for Hikvision cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change video type, open wide dynamic mode. Factory restore, etc. | |
| DH test tool: support batch activate for Dahua cameras and modify IP address, username and password. Self-defined modify channel name. | |

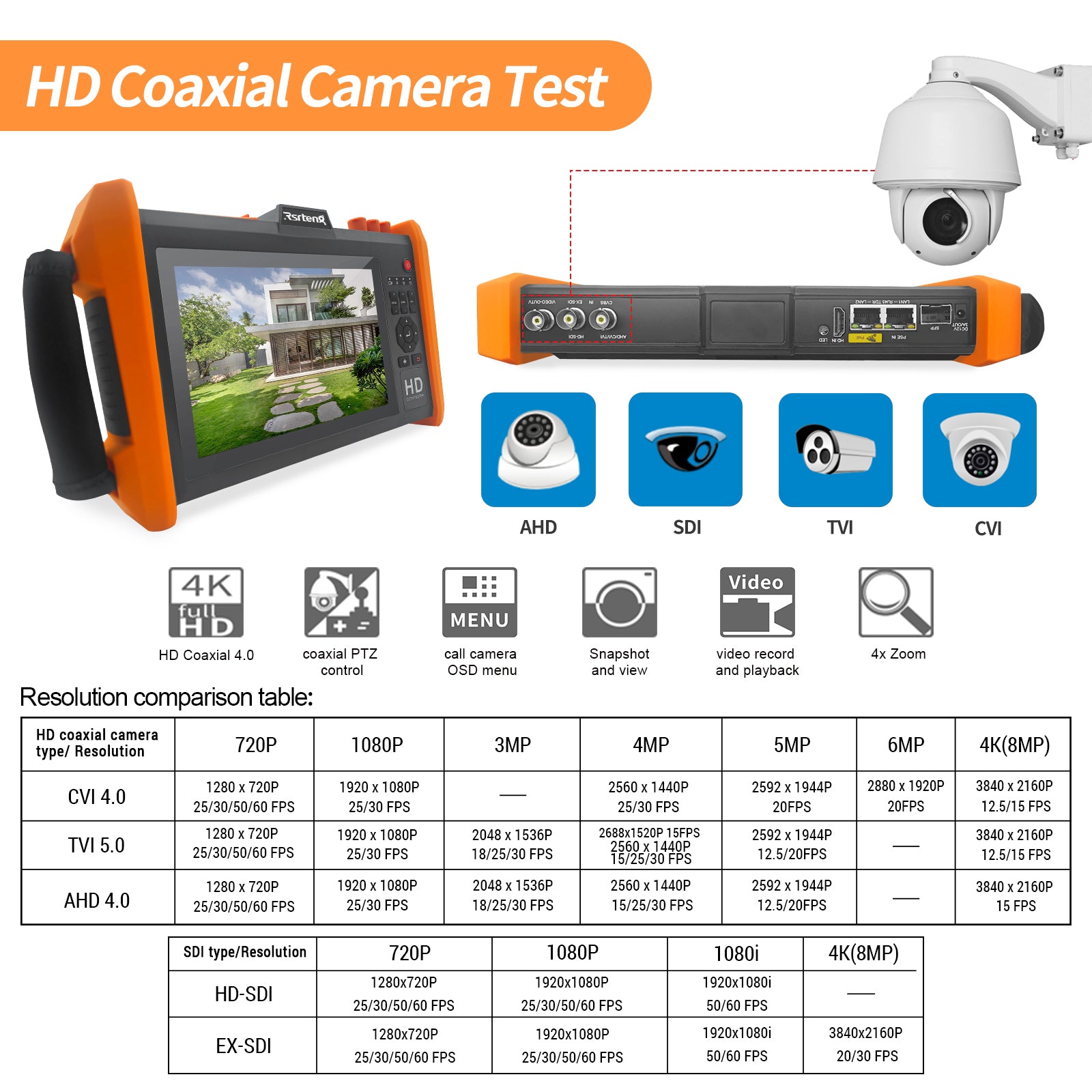

| Coaxial HD test | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu |
| 8MP CVI camera test,3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |
| 8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |
| 8MP EX-SDI, HD-SDI, 3G-SDI test, UTC control & call OSD menu | |

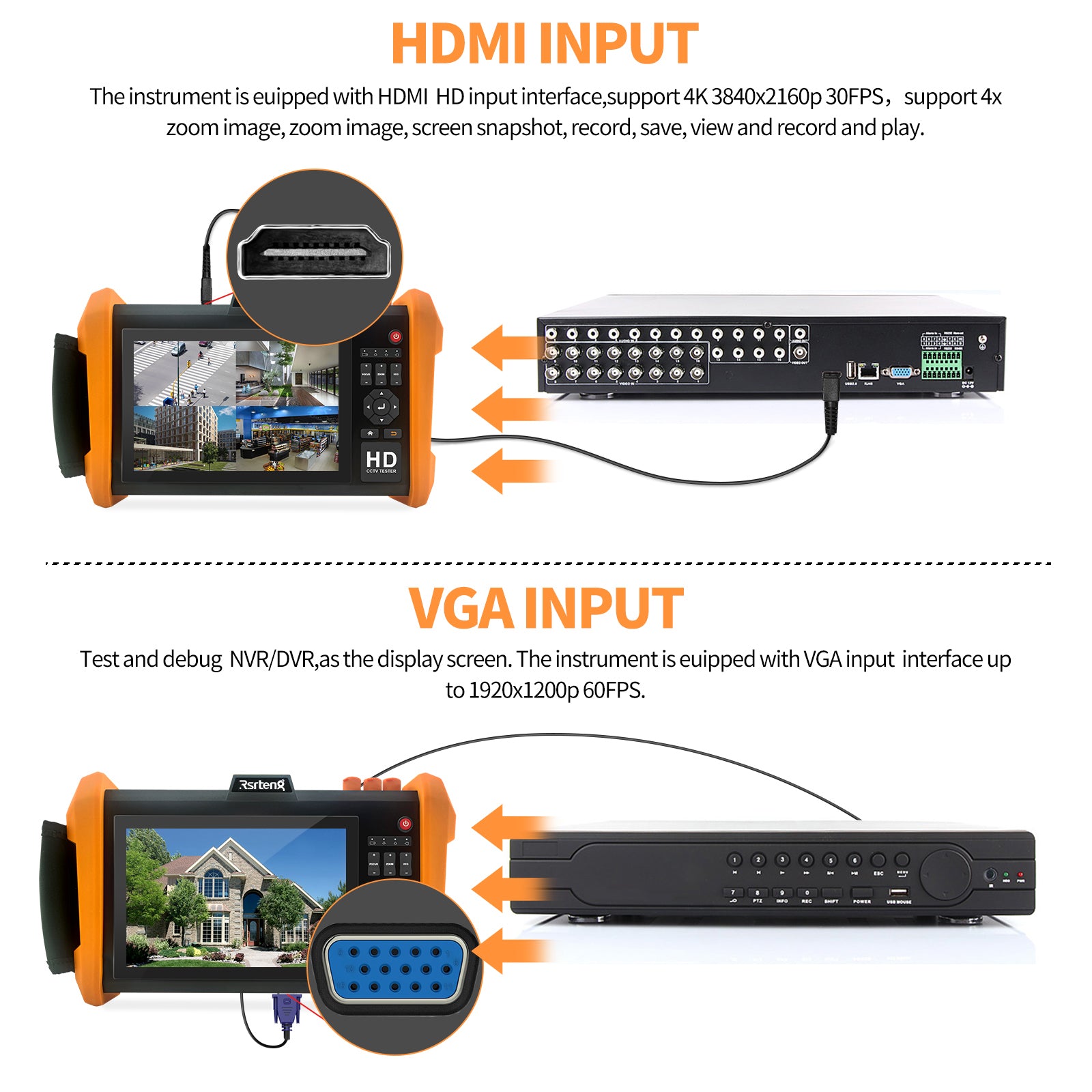

| HDMI & VGA | 1 channel HDMI input, support 4K 3840x2160p 30FPS |
| 1 channel HDMI output, support 4K 3840x2160p 60FPS | |
| 1 channel VGA input, Up to 1920x1200p 60FPS | |
| Zoom Image | 4x zoom, enlarge image, Screen snapshot, record, save, view and record and play back |

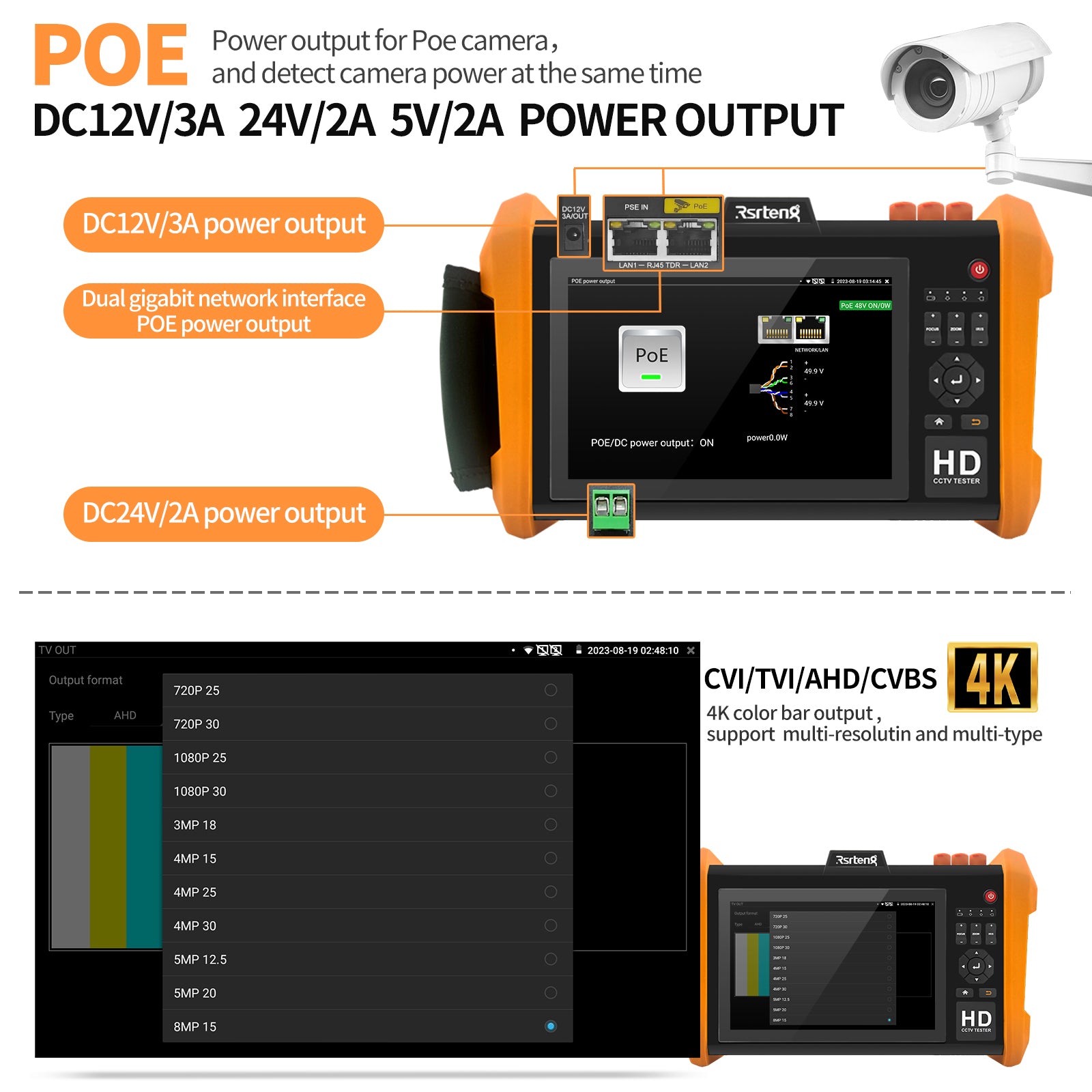

| Power output | PoE power output: IEEE802.3af/at, DC48V, max power 30W |
| DC24V/2A power output | |
| DC12V/3A power output | |
| DC5V/2A power output, can connect USB camera, USB and Mouse, as power bank | |
| Cable test | TDR cable test: N/A |
| Cable tracer: Not include | |

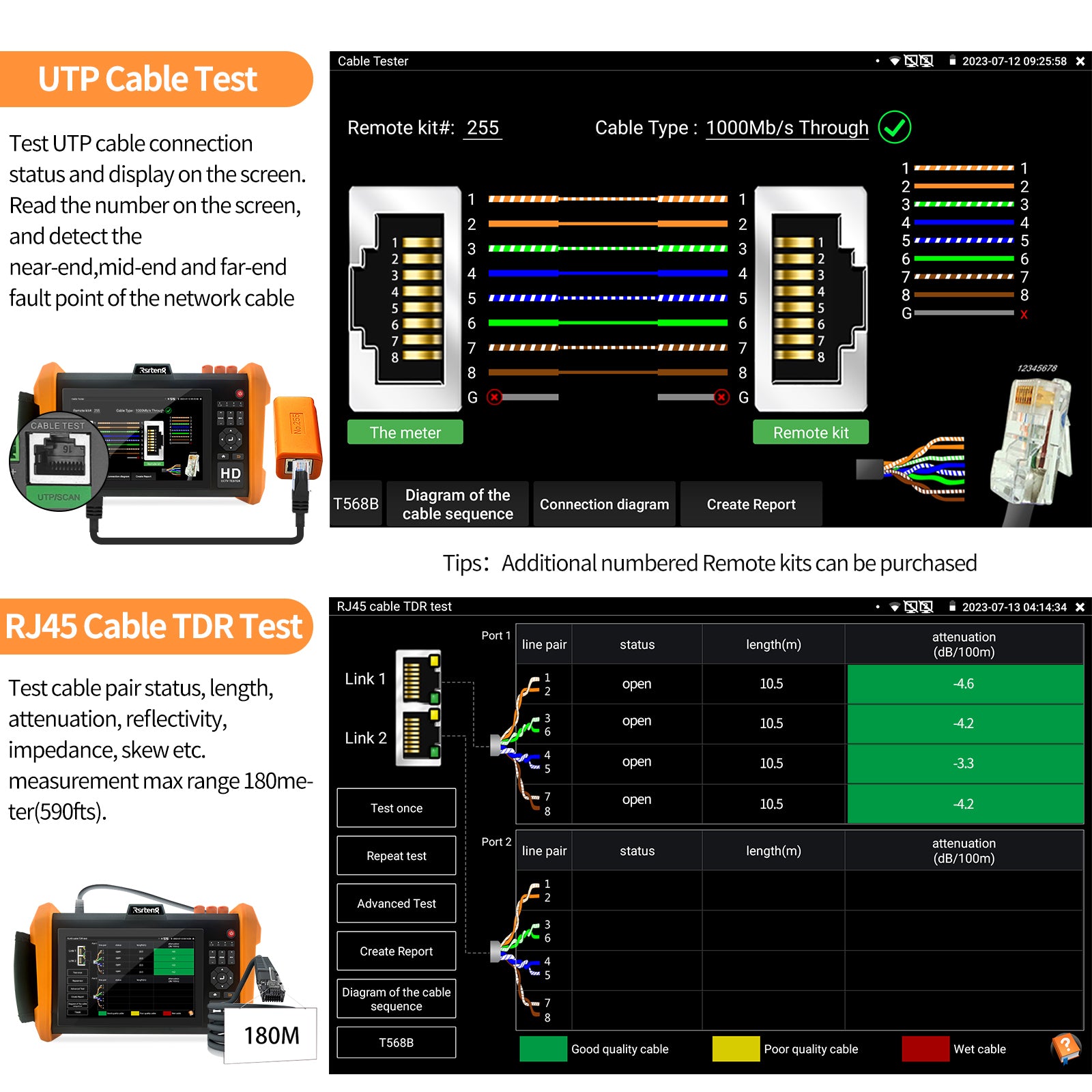

| UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen, and detect near-end, mid-end and far-end fault test of RJ45 cable plug | |
| RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement max range 180meter(590fts). | |
| Digital Multimeter (DMM) |
N/A |
| Optical power meter (OPM) |
N/A |
| Visual fault locator (VFL) |
N/A |

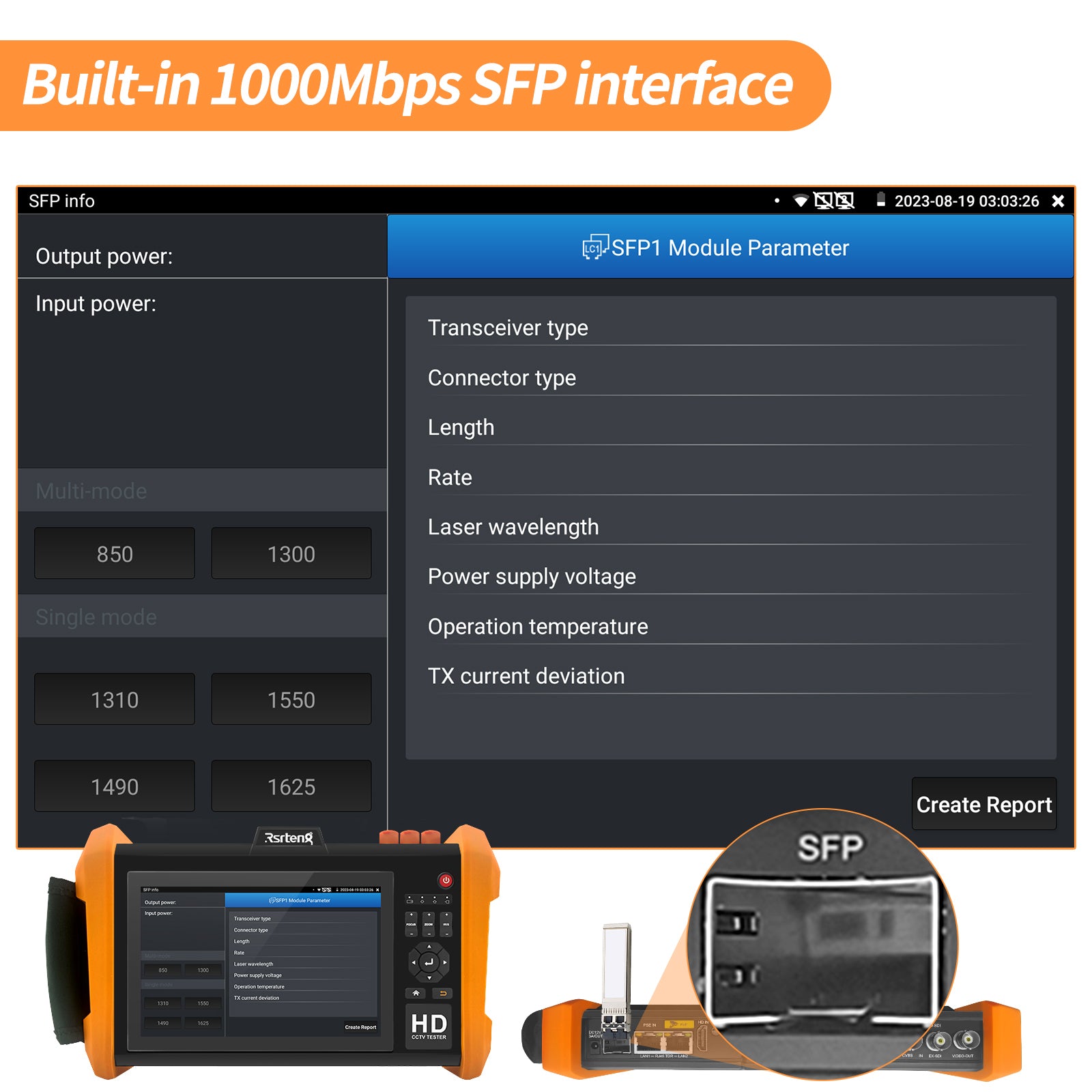

| Gigabit SFP | 1 channel Gigabit SFP optical fiber module interface, support insert Gigabit SFP optical fiber module, for optical fiber network testing |
| Built-in camera | N/A |
| Laser Distance meter | N/A |
| TesterPlay | Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) |

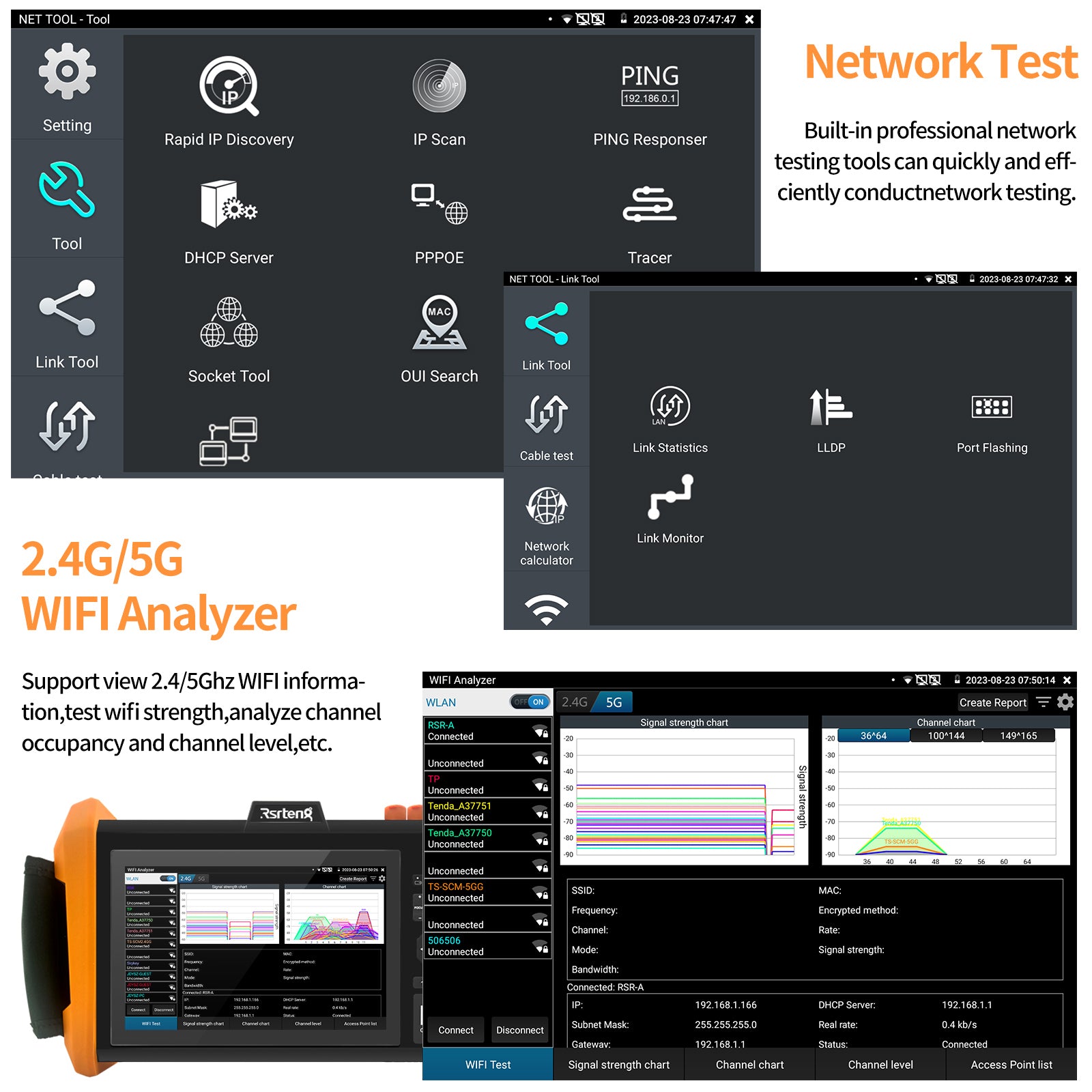

| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test |
| Wi-Fi | Built in WIFI, speeds 150Mbps, support 2.4GHz and 5GHz |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| PSE/PoE test | Measurement PoE switch or PSE power supply voltage and cable connection status |
| Drop-down menu | You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface |
| External power supply | DC12V/2A |
| Battery | Built-in 7.6V Lithium polymer battery, 7800mAh, 59.28Wh |
| Rechargeable | After fast charging 3.5 hours, normal working time 16 hours |
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbain, Czech, Vietnamese etc |
| Auto off | 5 to 30 (mins) |
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) |
| Working Humidity | 30% to 90% |
| Tester dimension/Weight | 276x163x45mm(10.87x6.42x1.77inch) / 1060g(2.34lbs) Package:350x310x100mm(13.78x12.2x3.94) / 2400g(5.29lbs) |
