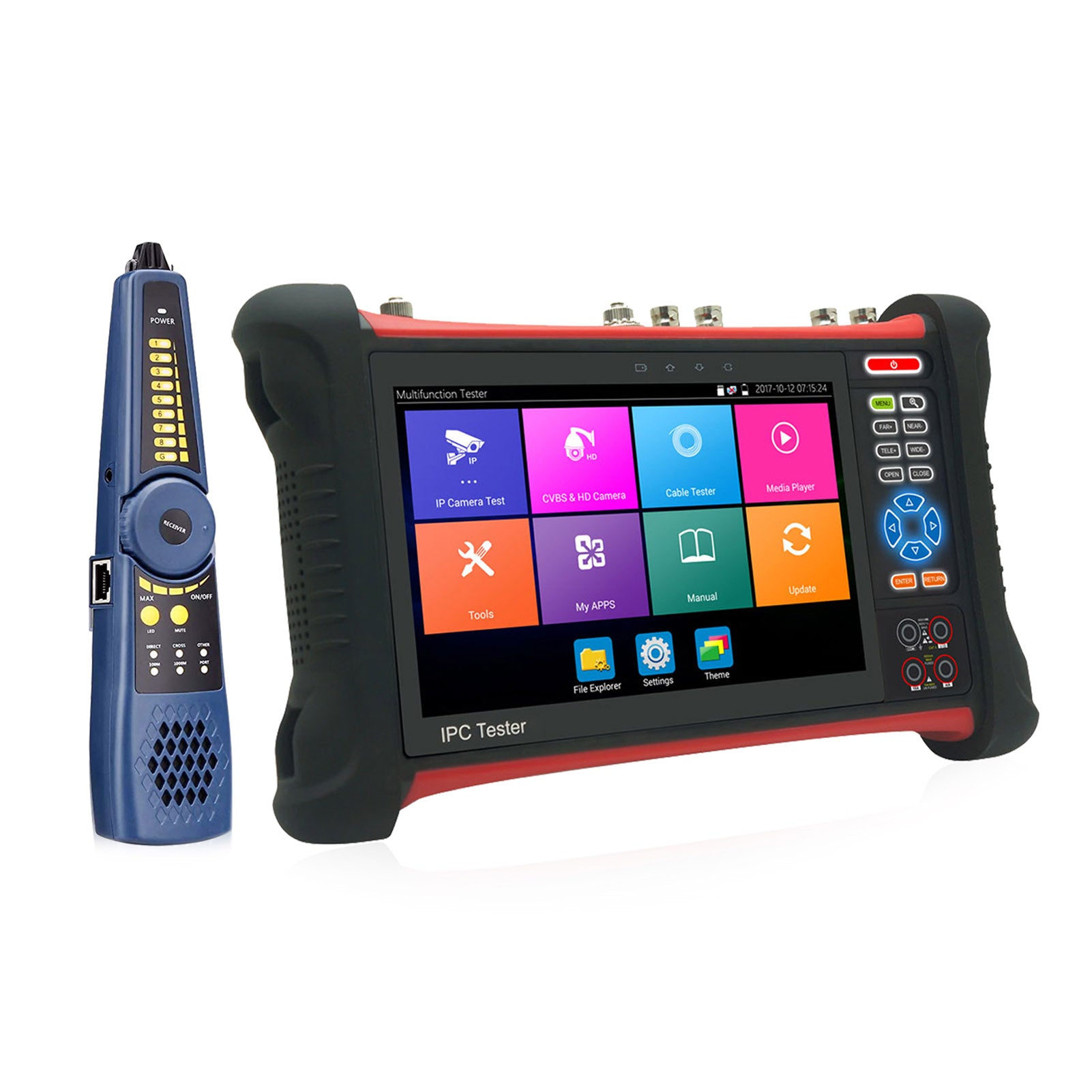

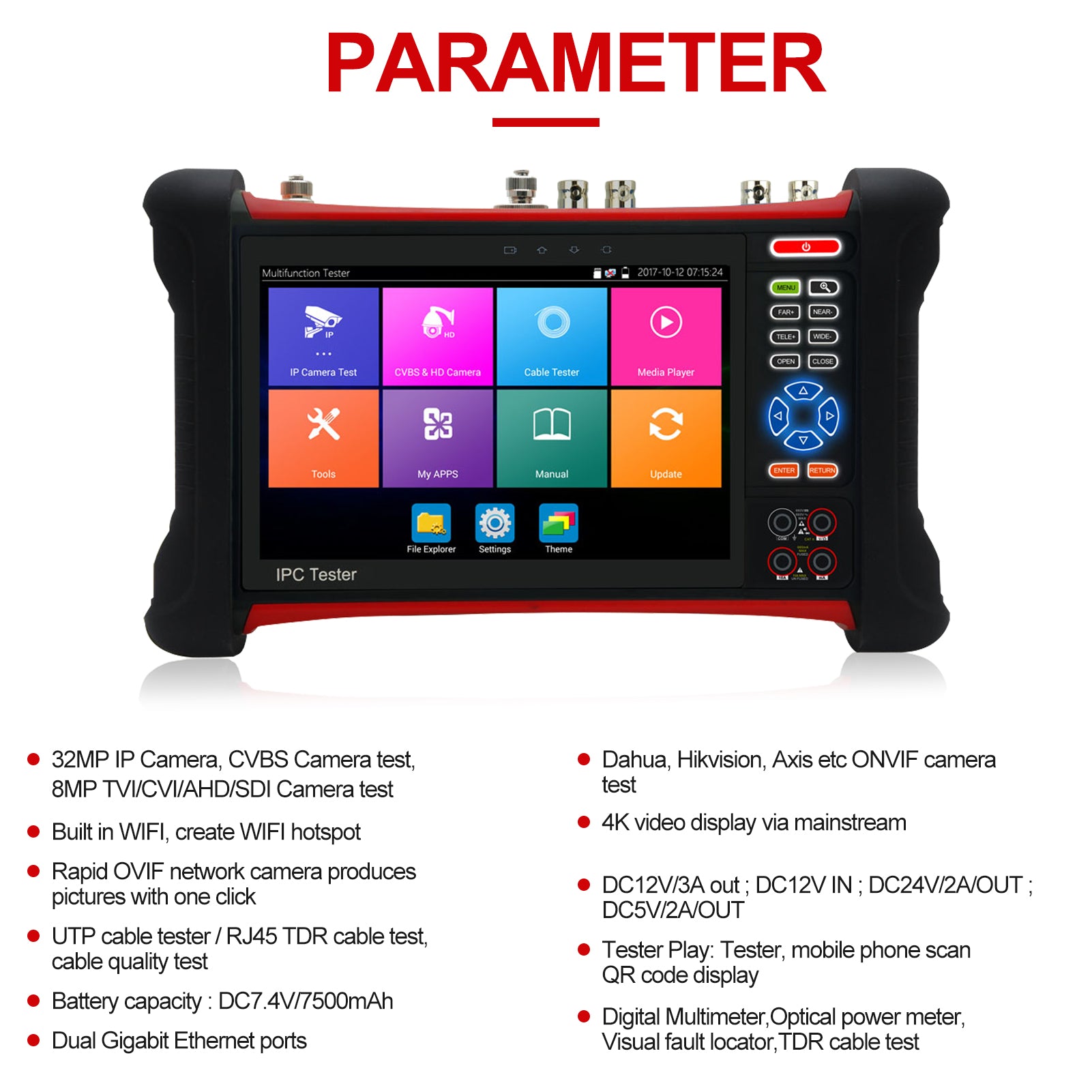

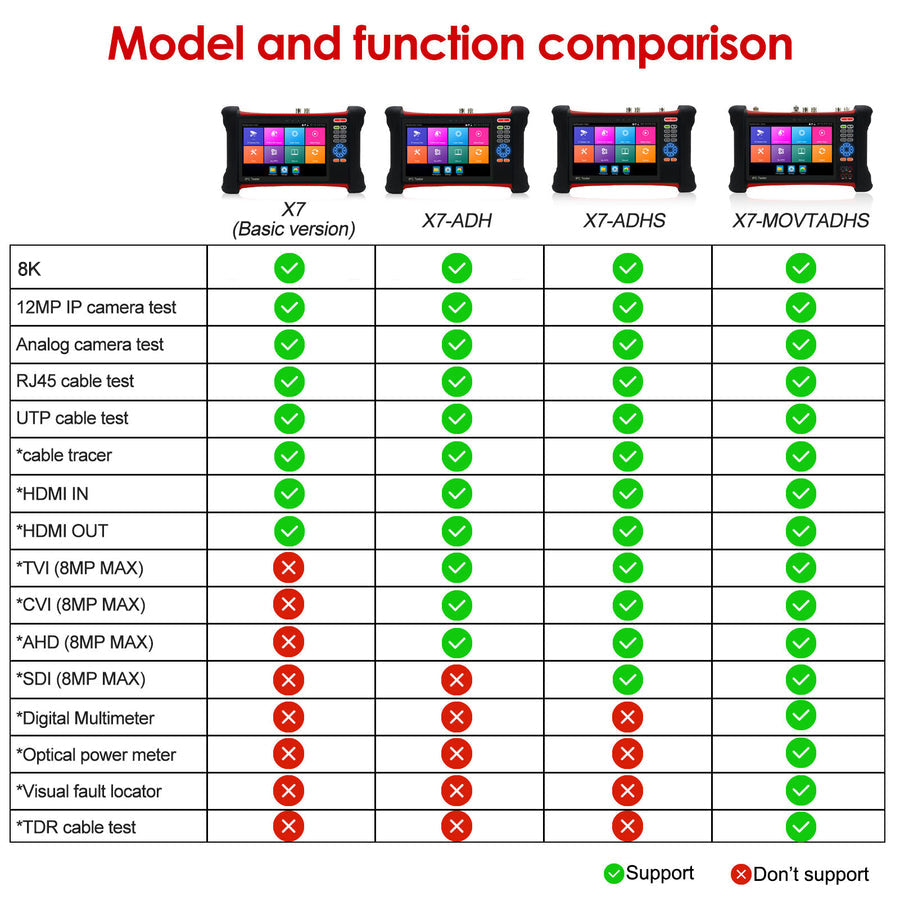

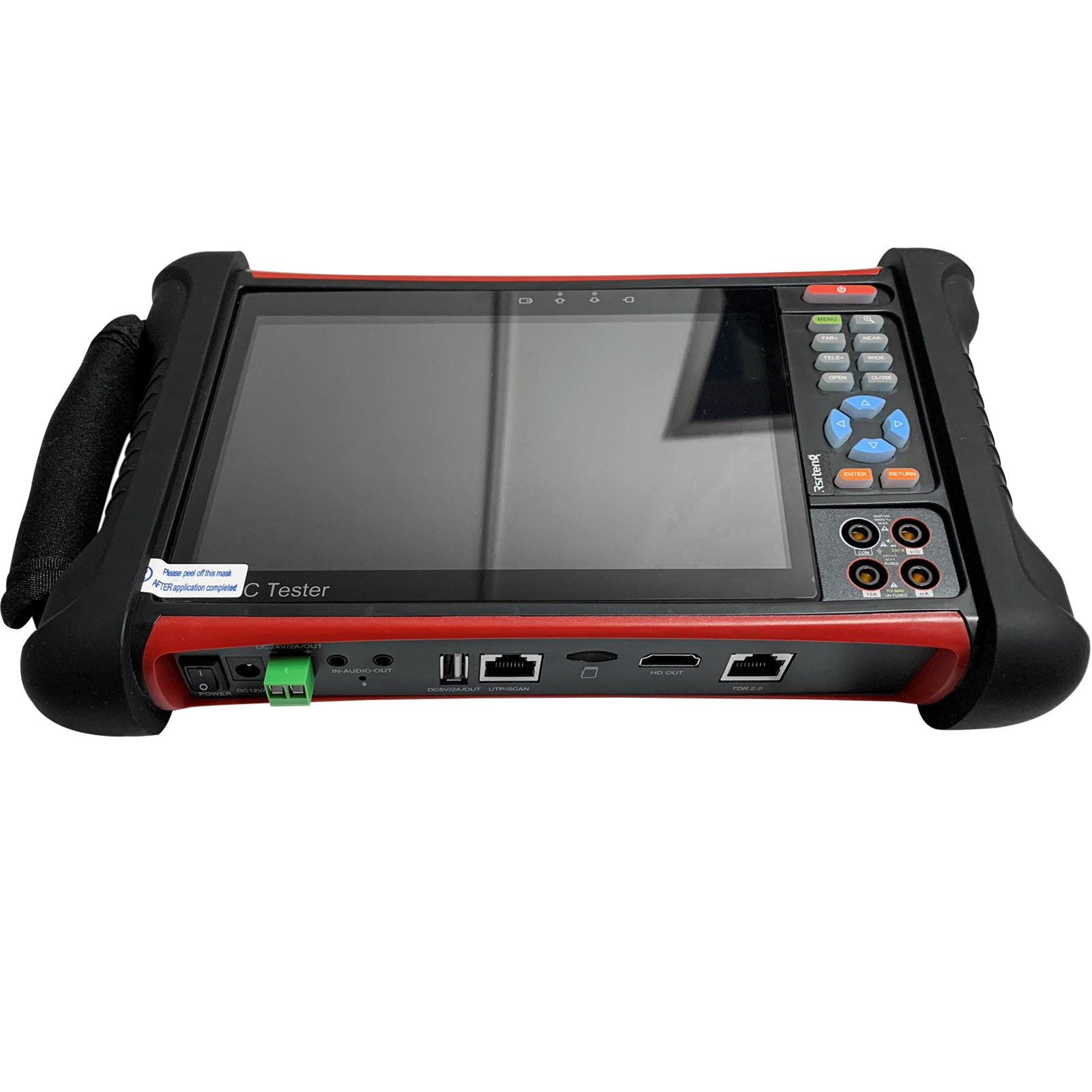

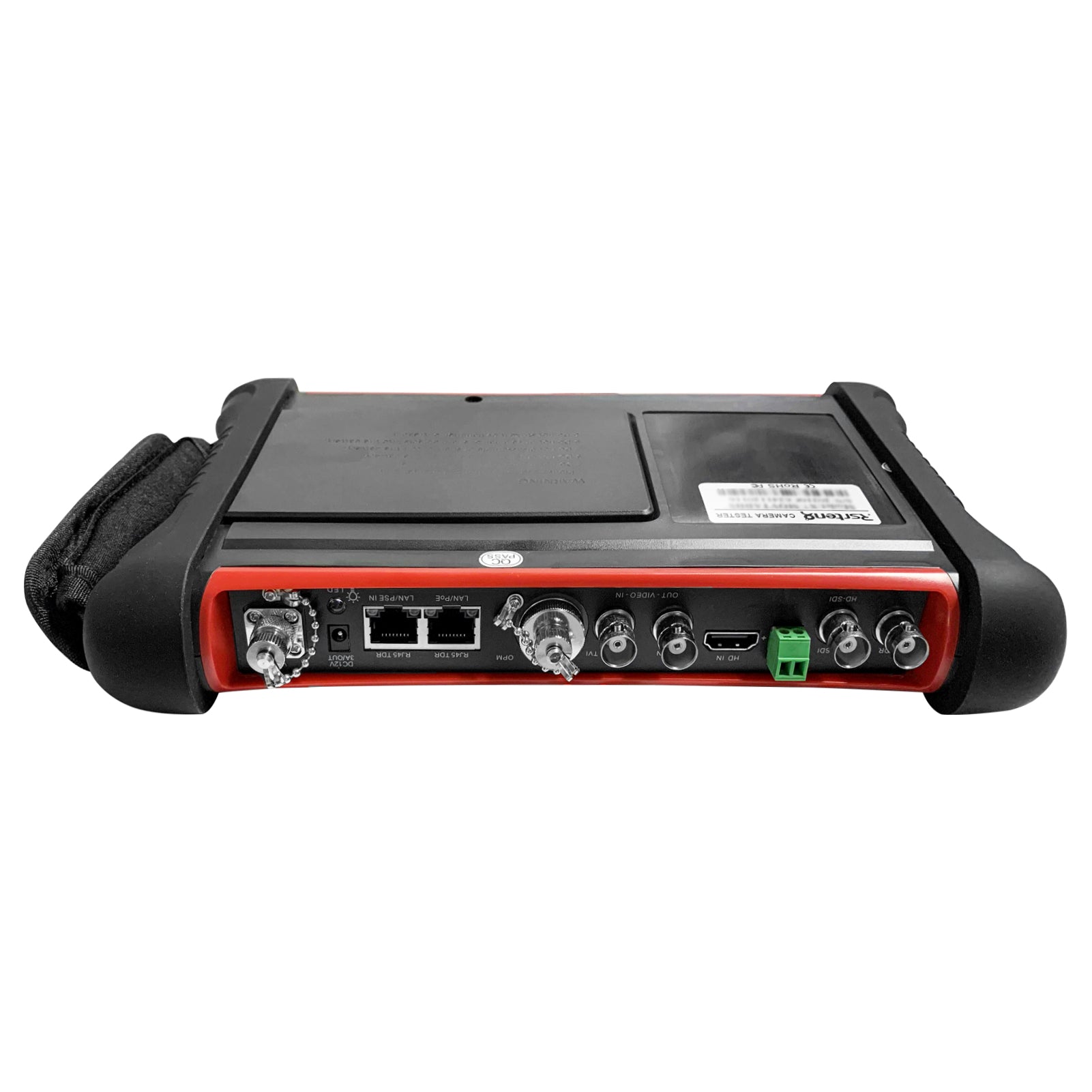

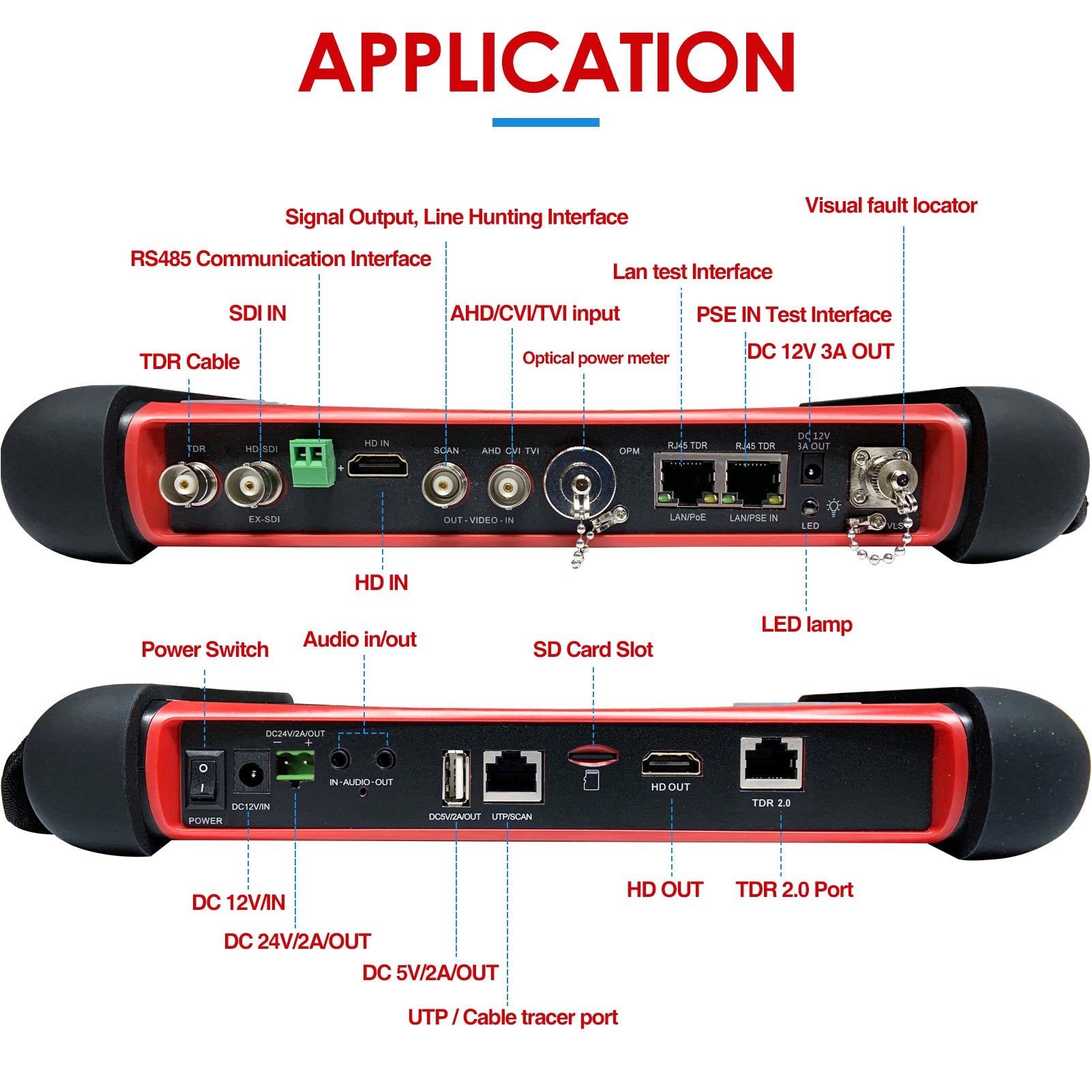

This is Rsrteng X7-MOVTADHS professional IP and HD coaxial security surveillance camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.
It is highest level tester of the X7 series,it can support the testing of up to 32MP IP camera, max 8MP HD CVI TVI AHD SDI camera and CVBS cameras. At the same time, it integrates digital multimeter, TDR, optical power meter, red laser source and other functions to deal with more difficult problems in work. Built-in Professional test app, Dual Gigabit Ethernet ports, POE, cable test, dual-band WiFi, power output, 4K HDMI input&output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
Brand |
Rsrteng |
Model |
X7-MOVTADHS |
Display |

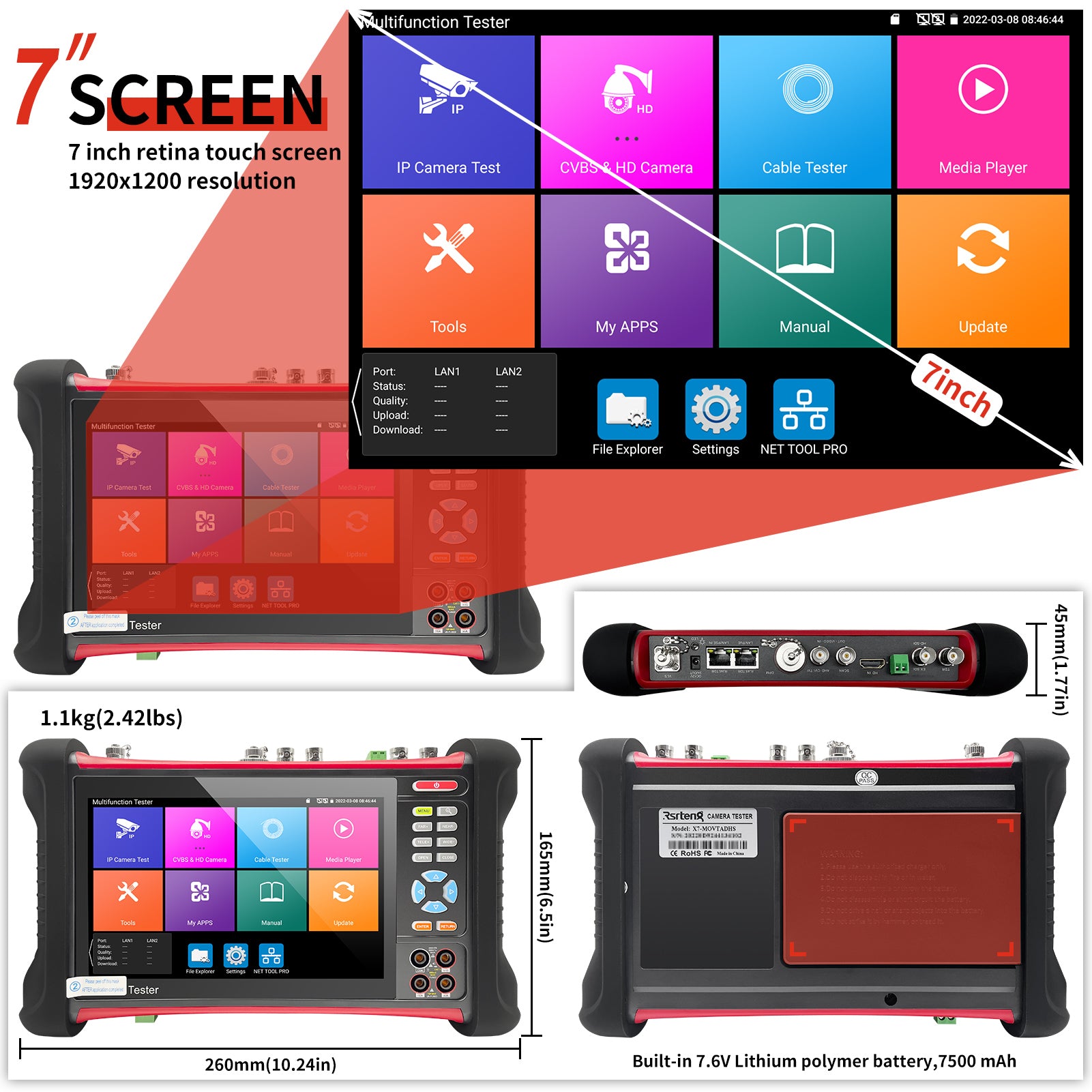

7 inch IPS touch screen, 1920x1200 resolution |
CVBS camera test |
1 ch BNC input and 1 ch BNC looped output, NTSC/PAL auto adapt |
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement |
|
PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
|
CVBS loop test, the tester send and receive color bar generator signal, check BNC cable |
|
32MP 8K IP camera test |

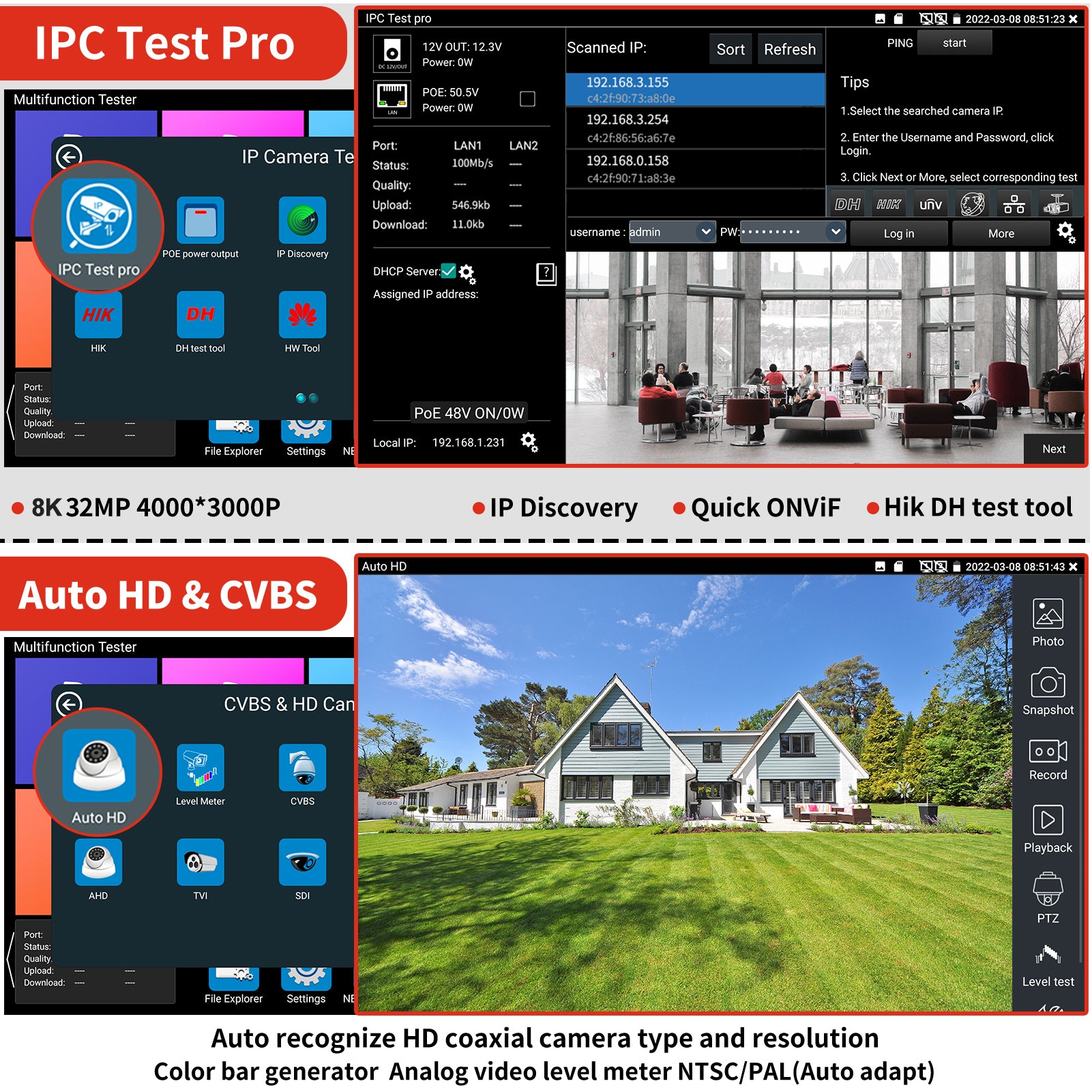

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
Rapid Video: Auto view the video, create testing report |
|
For Hikvision test tool: Pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
|
For Dahua test tool: Dahua camera test, modify the user name, password and IP parameters. Support activate and modify IP in batches |
|
For Axis test tool: After the tester is connected to the network, install the special test tool APP "AXS Test Tool" through online update for Axis camera test. Note: When using other apps to test the Axis camera, maybe a prompt that the password is incorrect, even if you enter the correct password. |
|
For others Brands camera test: You can use the "Test pro" or "Onvif" APP to test most IP cameras. Or you can update and install the test APP of the corresponding brand online after the tester connects to the Internet. |
|
Coaxial HD test |
Use the "Auto HD" APP to test the coaxial HD camera, which can automatically identify the type of the camera, without manually selecting AHD, CVI, TVI, SDI, CVBS. |

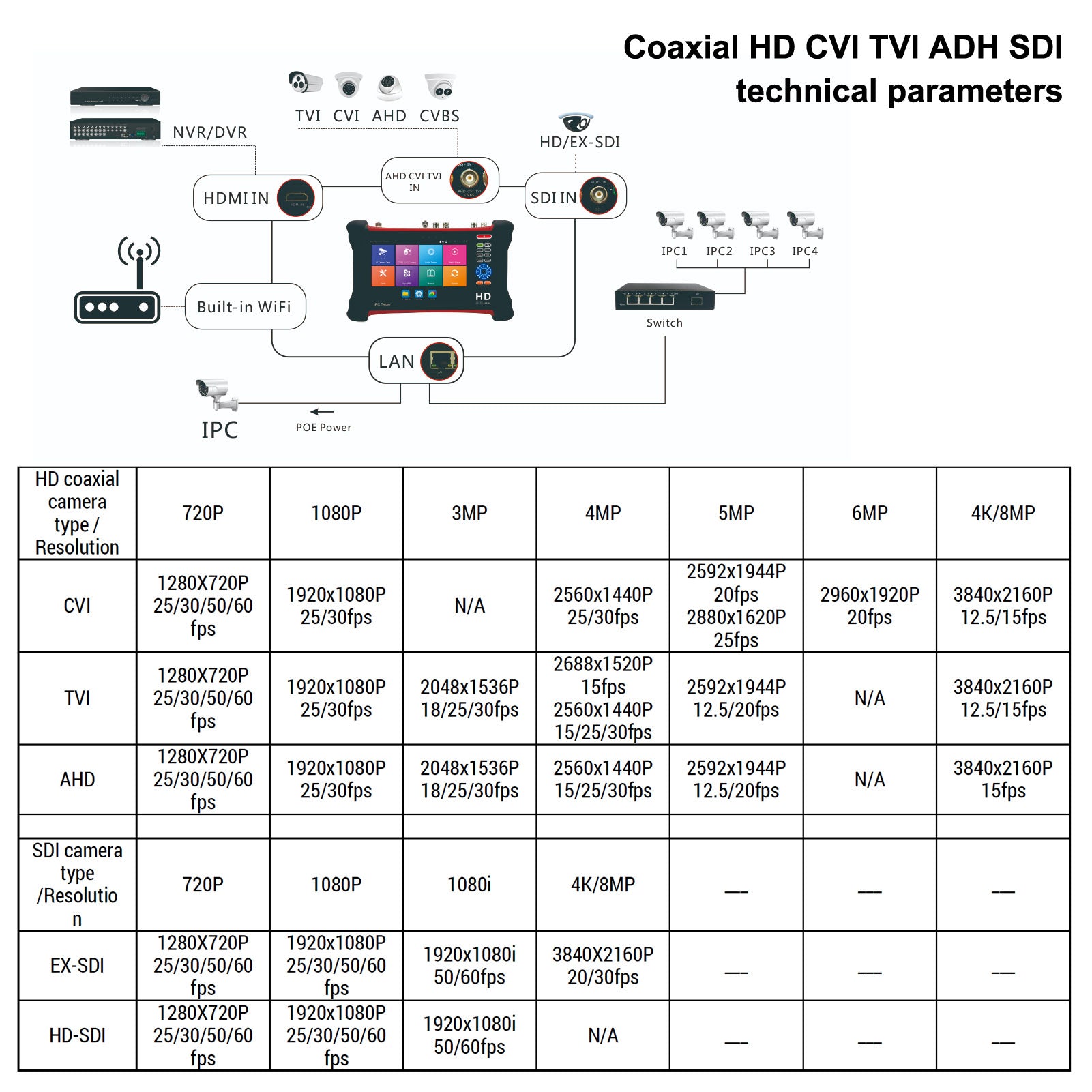

HD TVI5.0: 8MP TVI camera test, 3840x2160P 15fps, support coaxial audio test, UTC control/call OSD menu |
|
HD CVI4.0: 8MP CVI camera test, 3840x2160P 12.5/15fps,UTC control/call OSD menu (3MP CVI camera don't support) |
|
HD AHD4.0: 8MP AHD camera test, 3840x2160P 15fps, UTC control/call OSD menu |
|
HD SDI2.0: 8MP EX-SDI 3840x2160P 12.5/15fps, HD-SDI 1920x1080P 25/30/50/60fps, 1920x1080i 50/60fps, UTC control & call OSD menu |
|
IP& CVBS test |
IP& CVBS test at the same time, converter test from analog to digital with dual test window |
Zoom Image |
4x zoom, to enlarge image, Screen snapshot ,record, save, view and record and play back |

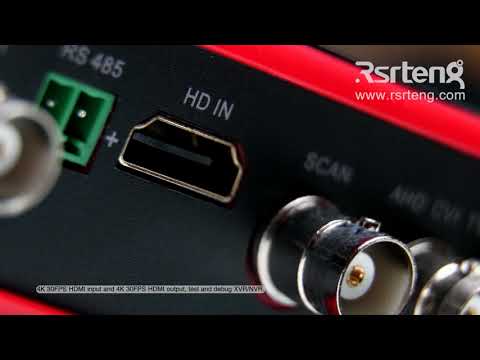

HDMI |
HDMI input: 1 ch, support max 4K 3840x2160p/30fps HDMI output: 1 ch, support max 4K 3840x2160p/30fps |
Power output |
DC5V/2A power output, supply some home camera, as a power bank for mobile phone |
DC12V/3A power Output, supply temporarily power for the camera |
|
DC24V/2A power Output, supply temporarily power for the speed dome camera |
|
POE output, Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W |
|

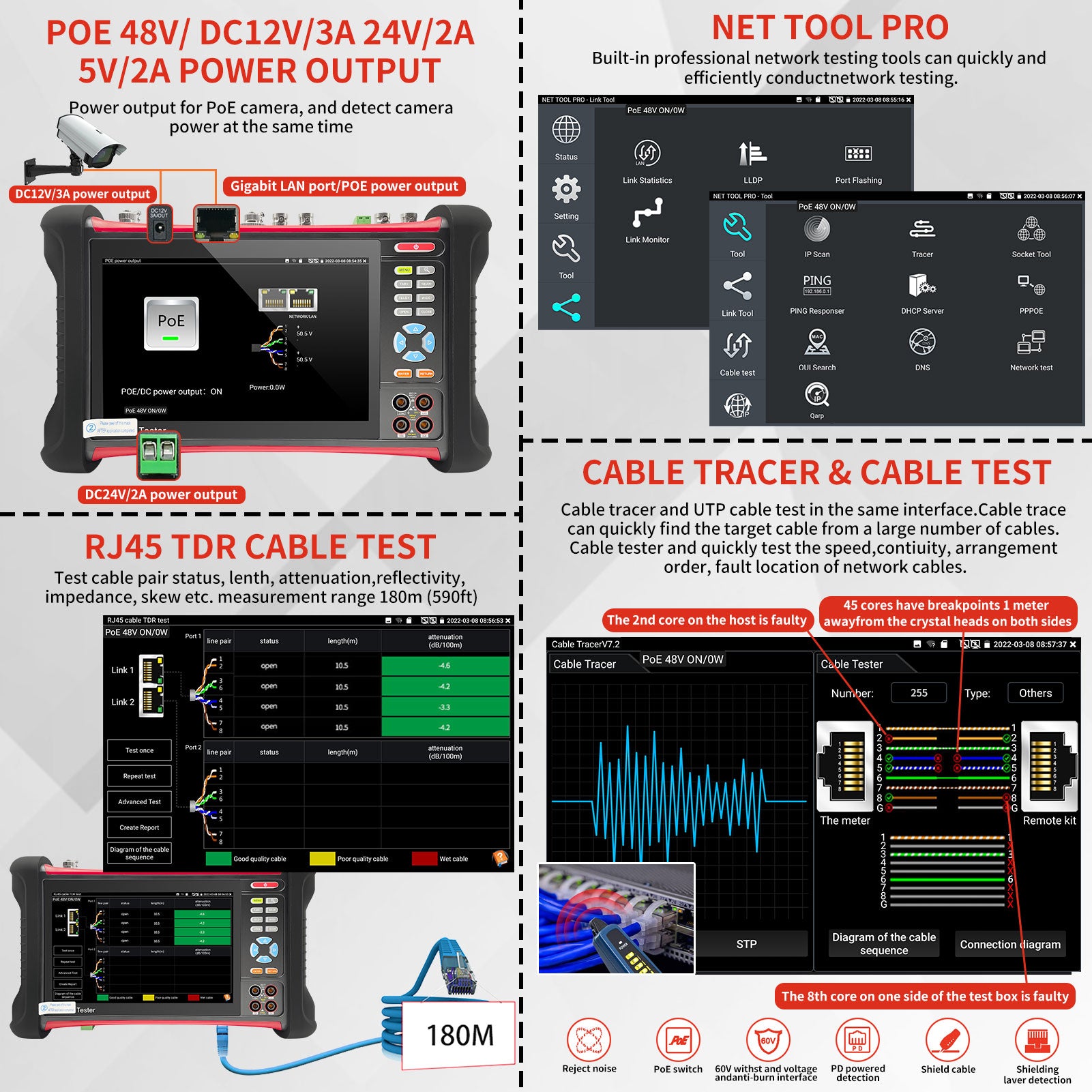

Cable test |

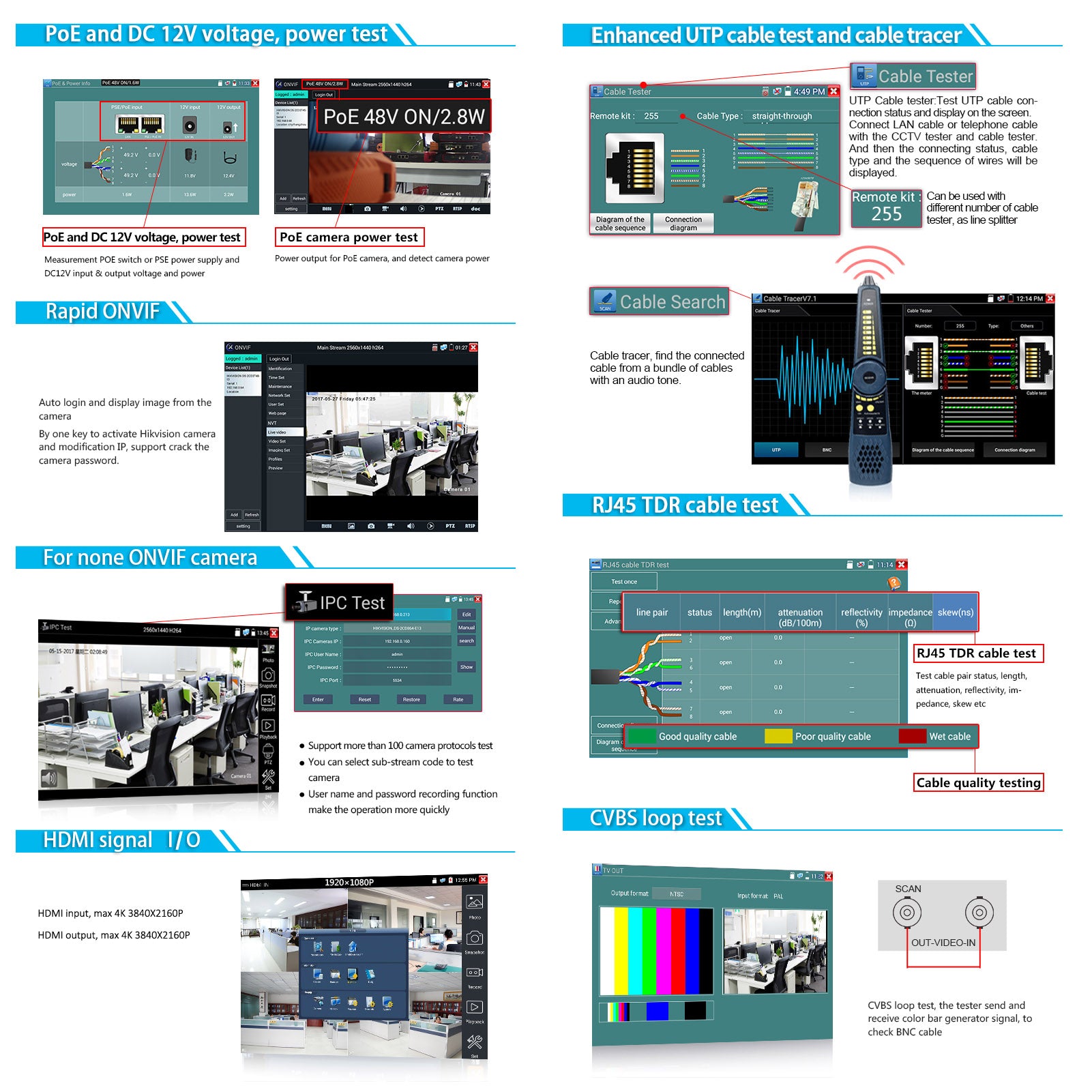

Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables |
UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen |
|
RJ45 cable TDR test(software support): Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180m(590 ft). |
|
Digital Multimeter |

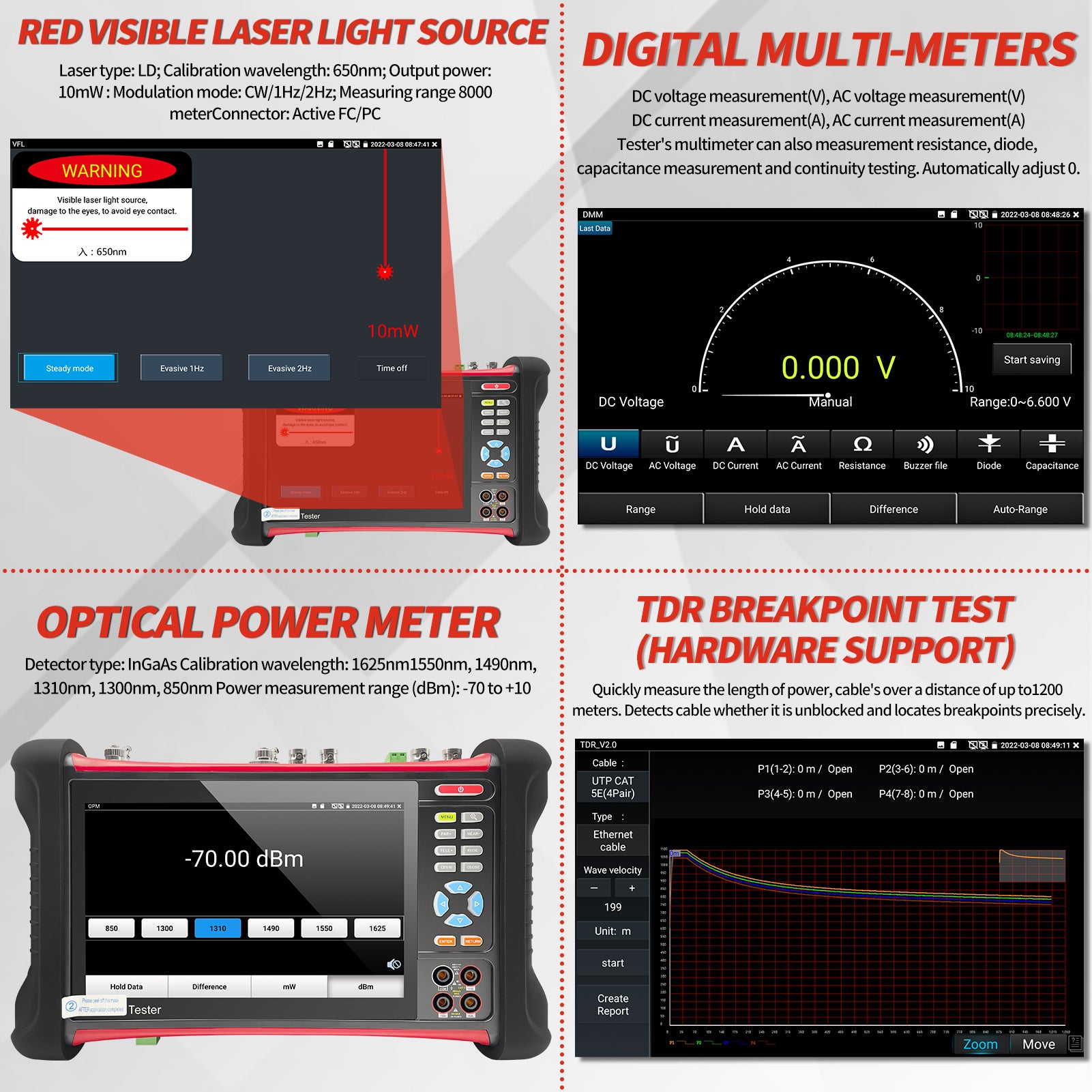

DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement;DC voltage measurement(-V): Highest range is 660V, the accuracy is ±(0.3%+4), the resolution is 100mV;AC voltage measurement(~V): Highest range is 660V, the accuracy is ±(0.8%+6), the resolution is 100mV;DC current measurement(-A): Highest range 10A, accuracy ±(1%+5), resolution 10mA;AC current measurement(~A): Highest range is 10A, accuracy is ±(1%+5), resolution is 10mA;Resistance measurement(Ω): Highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω;capacitance measurement(F): Highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF;Diode measurement:The range: 2.0V,Resolution: 1mV,Forward voltage reference value: Schottky diode: 0.15 to 0.25V; Rectifier diode: 0.6 to 1.0V; PN junction of triode 0.5 to 0.8V; The tester's multimeter can continuity testing. Automatically adjust 0. |
Optical power meter |
Detector type: InGaAs;Calibration wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm;Power measurement range (dBm): -70 to +10;Measurement accuracy: <±3%dB (-10dBm, 22℃/71.6℉), <±5%dB (full scale, 22℃/71.6℉); Display resolution: Linear display 0.1%, logarithmic display 0.01dBm;Connector: Active FC/PC;Working temperature: -10℃---+50℃ (+14℉---+122℉); Storage temperature: -20℃---+70℃ (-4℉---+158℉); |
Visual fault locator |
Laser type: LD;Calibration wavelength: 650nm; Output power: 10mW;Modulation mode: CW/1Hz/2Hz;Measuring range: 8,000m(26,247ft);Connector: Active FC/PC;Working temperature: -10℃---+50℃ (+14℉---+122℉);Storage temperature: -20℃---+70℃ (-4℉---+158℉) |
TDR cable test (hardware support) |
Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft) |
Screen projection |
Support tester and mobile phone and PC display at the same time (Only for android version mobile phone) |
Network test |
Trace route, Link monitor, DHCP server, port flashing, Ping test |
Network port |
Dual Gigabit Ethernet Ports, 10/100/1000Mbps adaptive |
Wi-Fi |

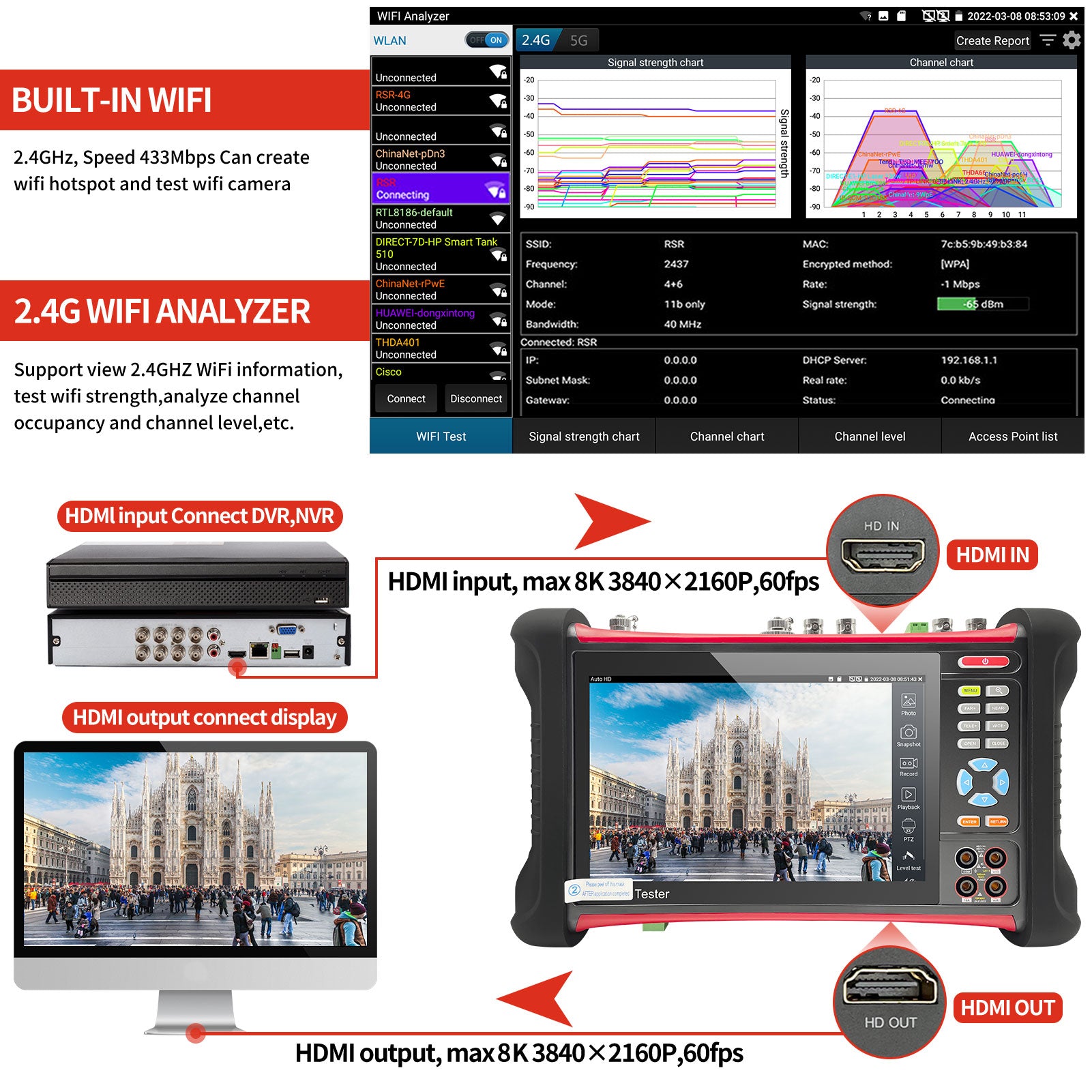

Built in WiFi, support 2.4GHz and 5GHz dual-band WiFi. Display wireless camera image, create WIFI hotspot, support WiFi analysis function |
Audio test |
1 ch audio signal input, test whether sound normal 1 ch audio signal output, to connect headphone |
RS485 |
1ch, you can easily use it to control cameras and other devices with RS485 interface |
Data monitor |
Captures and analyzes the command data from controlling device, also can send hexadecimal |
PoE test |
1 POE port and 1 PSE port. Measurement POE switch or PSE power supply voltage and cable connection status |
Drop-down menu |
You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface |
External power supply |
DC 12V/2A |
Battery |
Built-in 7.6V Lithium polymer battery,7800mAh, 59.28Wh |
Rechargeable |
After charging 4-6 hours, normal working time 16 hours |
OS |
Android, Free to add APP (requires version support) |
CPU |
4core, 1.8GHz |
RAM(DDR) |
2GB |
Flash(EMMC) |
16GB |
TF card slot |
Suport up to 32GB, Pre-installed 8GB TF card |
OSD menu language |
English, Chinese, Polish, Korean, Russian, Italian, French, Polish, Spanish, Japanese, German, Portuguese, Serbian, Vietnamese, Czech. etc |
Auto off |
1 to 30 mins |
Working Temperature |
-10℃ to +50℃ (+14℉ to +122℉) |
Working Humidity |
30% to 90% |
Package includes |

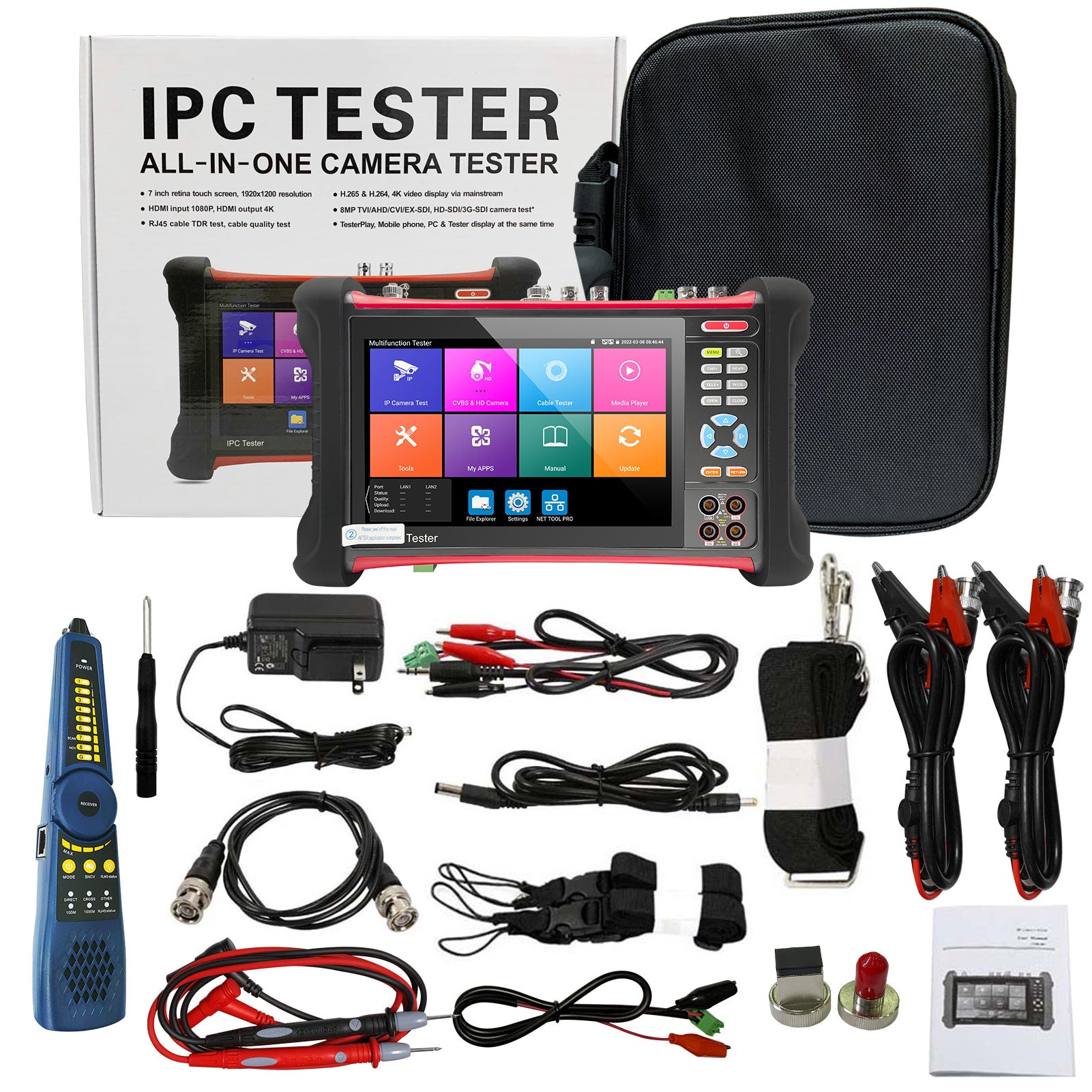

1xTester; 1xPower adapter; 1xCable tracer; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTDR cable; 2*Multimeter Test cable; 2*Fiber Optic Test Adapters; 1xUser manual; 3xShoulder Strap; 1xTool bag; |
Weight |
Package weight: 2.5kg(5.51lbs) Tester net weight: 1.05kg(2.31lb) |
Dimension |
Package Dimension: 340x300x100mm(13.4x11.8x3.94inch) Tester:260x165x45mm(10.24x6.5x1.77inch) |
