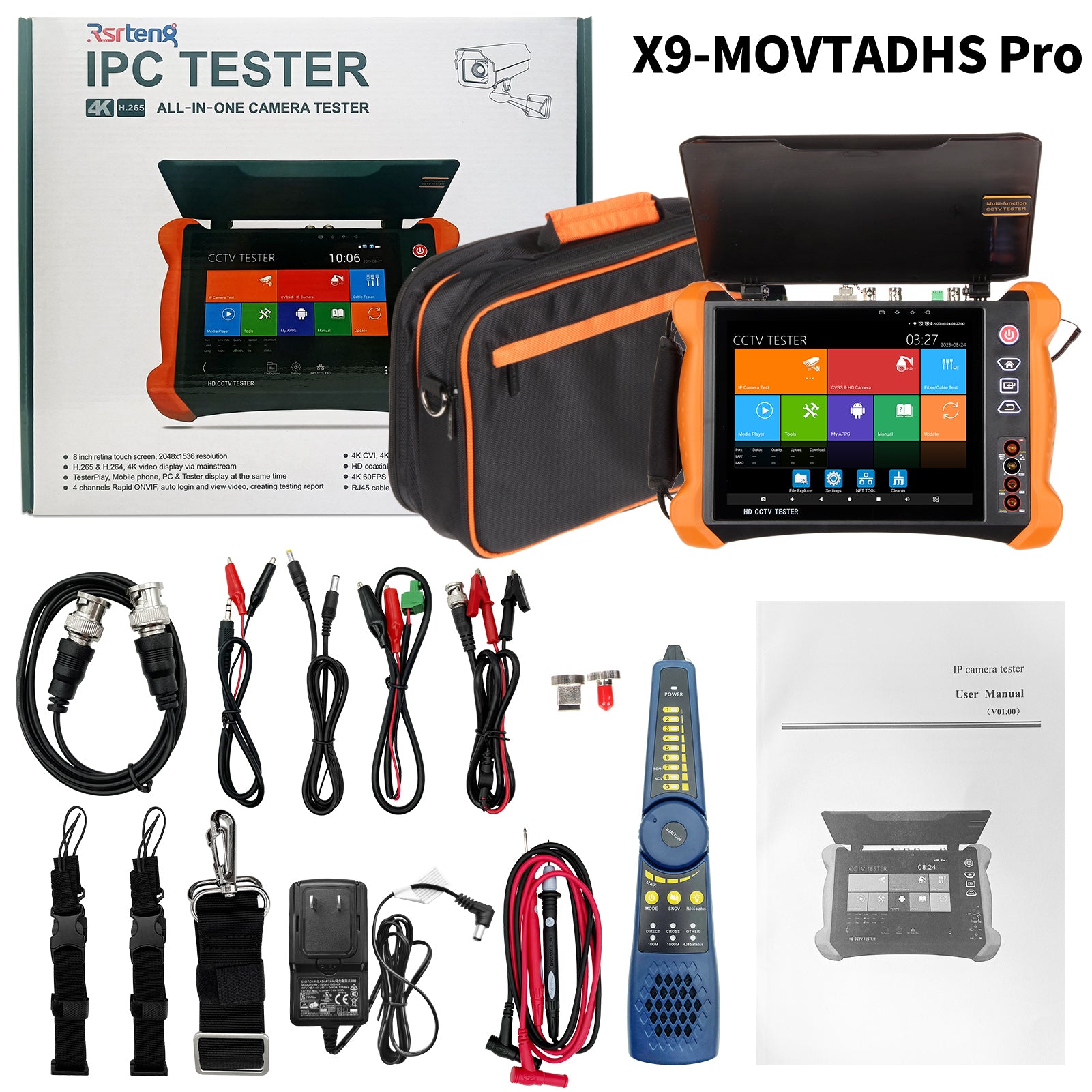

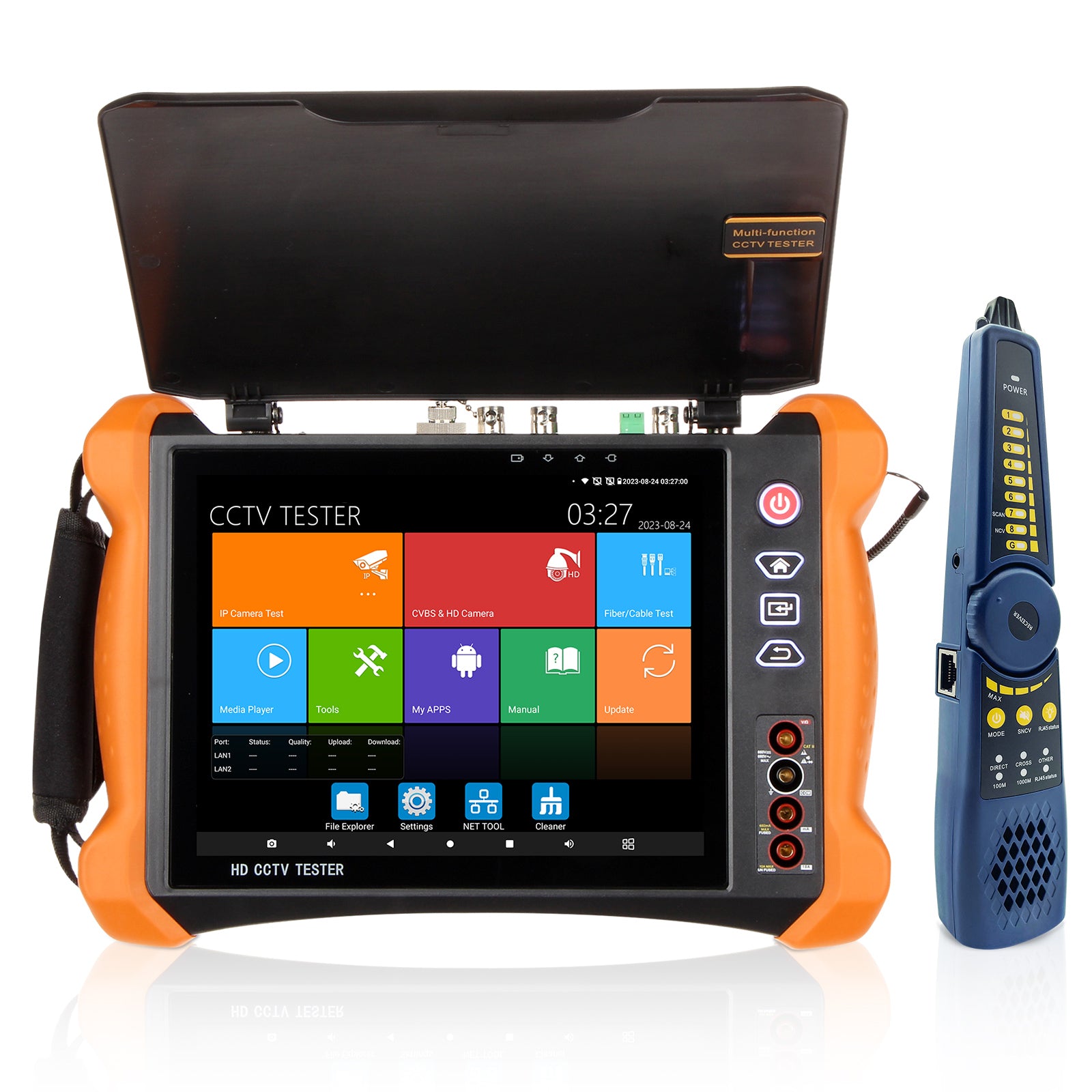

This is Rsrteng X9-MOVTADHS Pro professional IP and HD coaxial security surveillance camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.

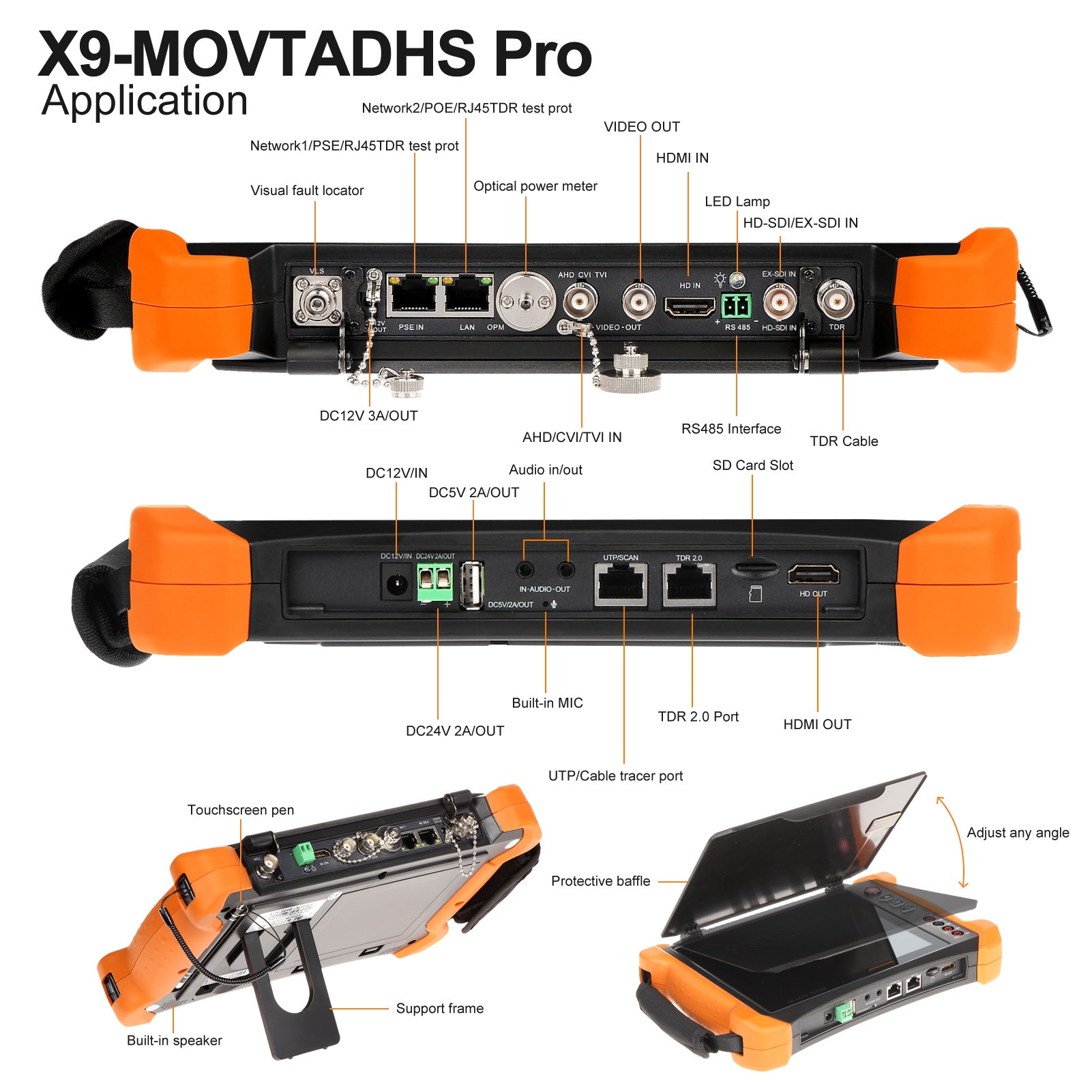

It is highest level tester of the X9 series,it can support the testing of up to 8K 32MP IP camera and max 4K 8MP HD CVI TVI AHD SDI camera and CVBS cameras. 4 channels Rapid ONVIF test function is unique to the X9 series. At the same time, it integrates digital multimeter, TDR, optical power meter, red laser source and other functions to deal with more difficult problems in work. Built-in Professional test app, Dual Gigabit Ethernet ports, POE, cable test, dual-band WiFi, power output, 4K HDMI input&output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet.

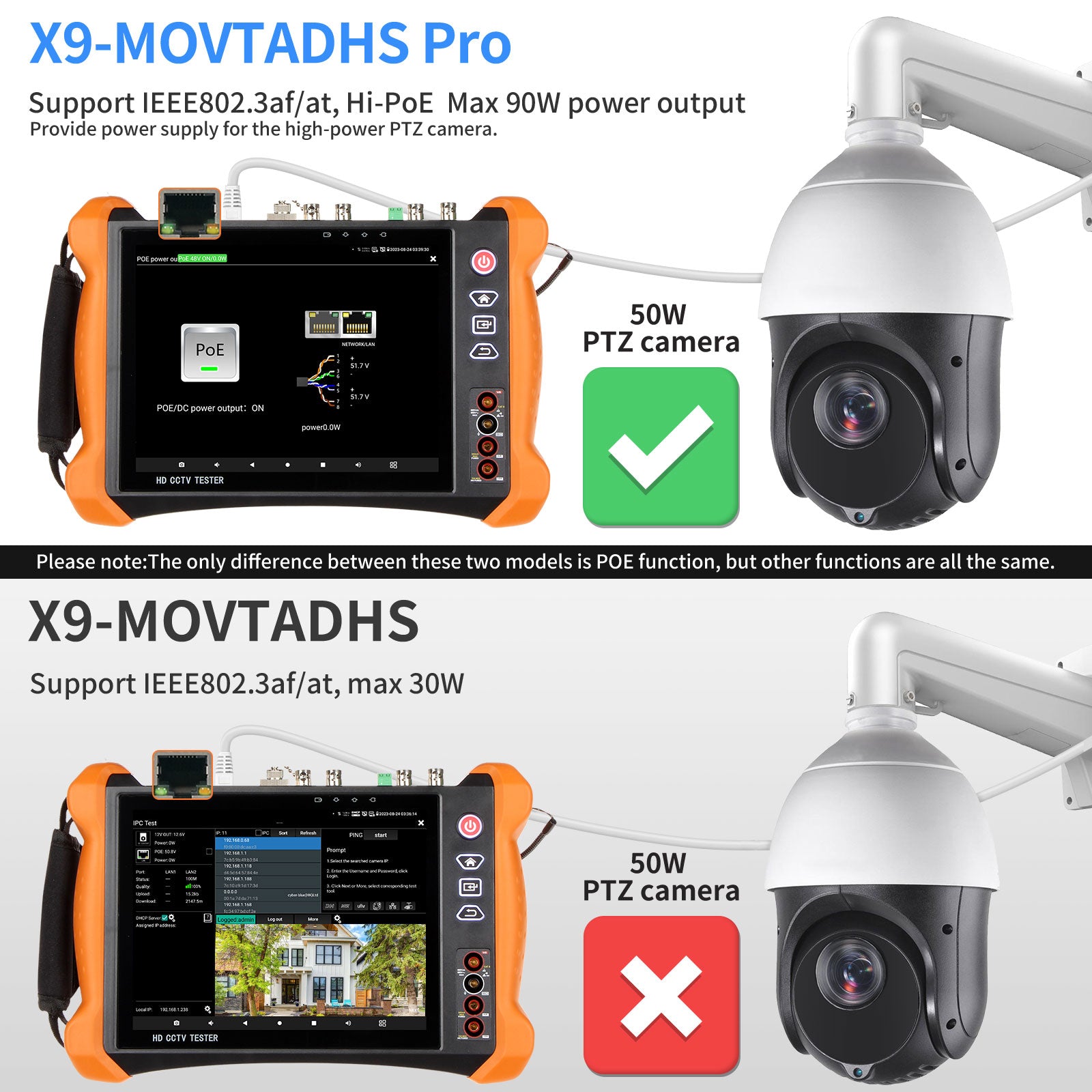

This model X9-MOVTADHS Pro is based on the X9-MOVTADHS to upgrade the POE function, so supports the standard POE,POE+ DC48V, 25.5W while also supporting the Hi-POE(POE++) output, the maximum output reaches DC55V, 90W, which is used to support the test of high-speed dome camera.
You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM
Parameters
| Brand | Rsrteng | ||
| Model | X9-MOVTADHS Pro | ||
| CPU/RAM/ROM | 4-core 2.0GHz/2GB(LPDDR4)/16GB(EMMC) | ||
| Operating system | Android 11.0 | ||

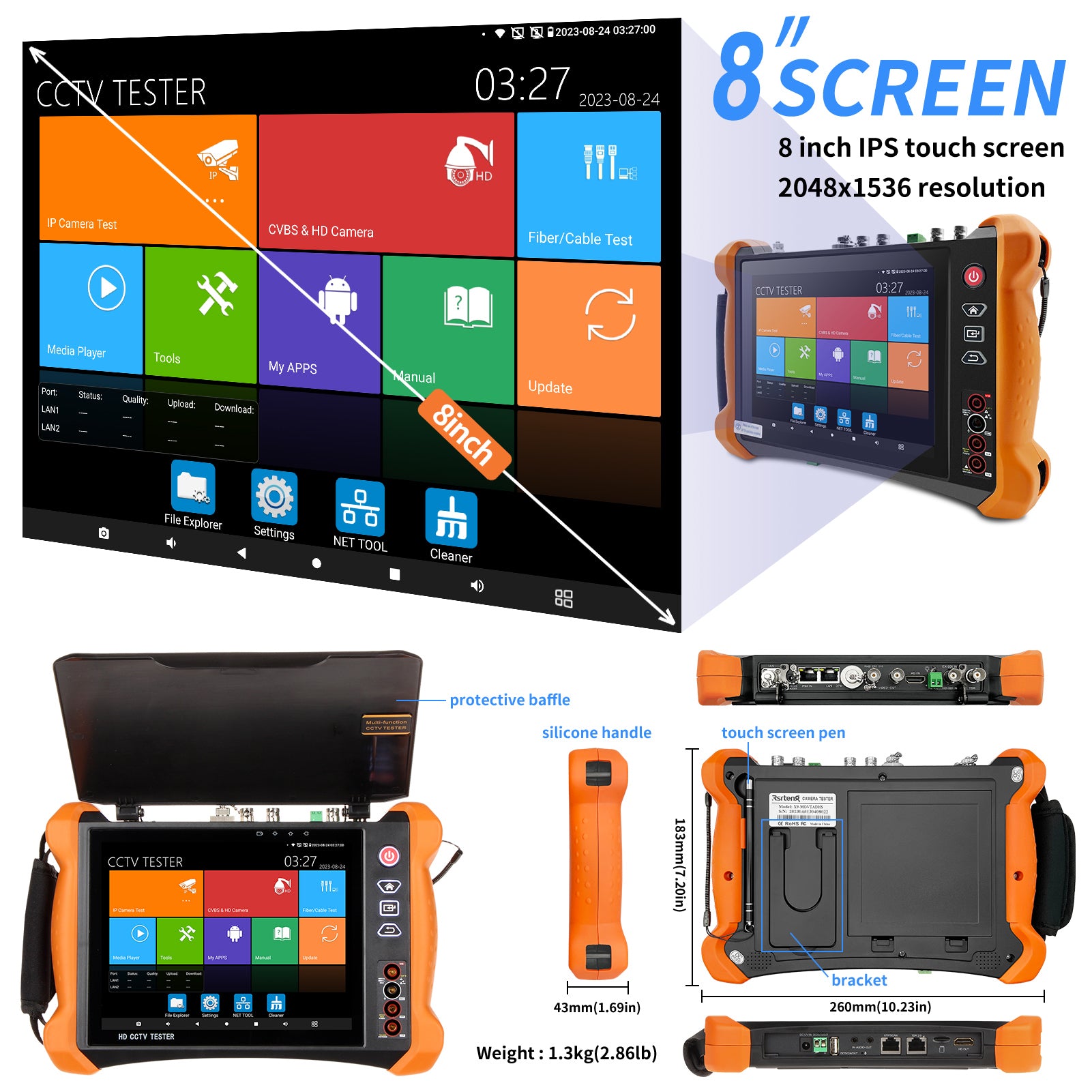

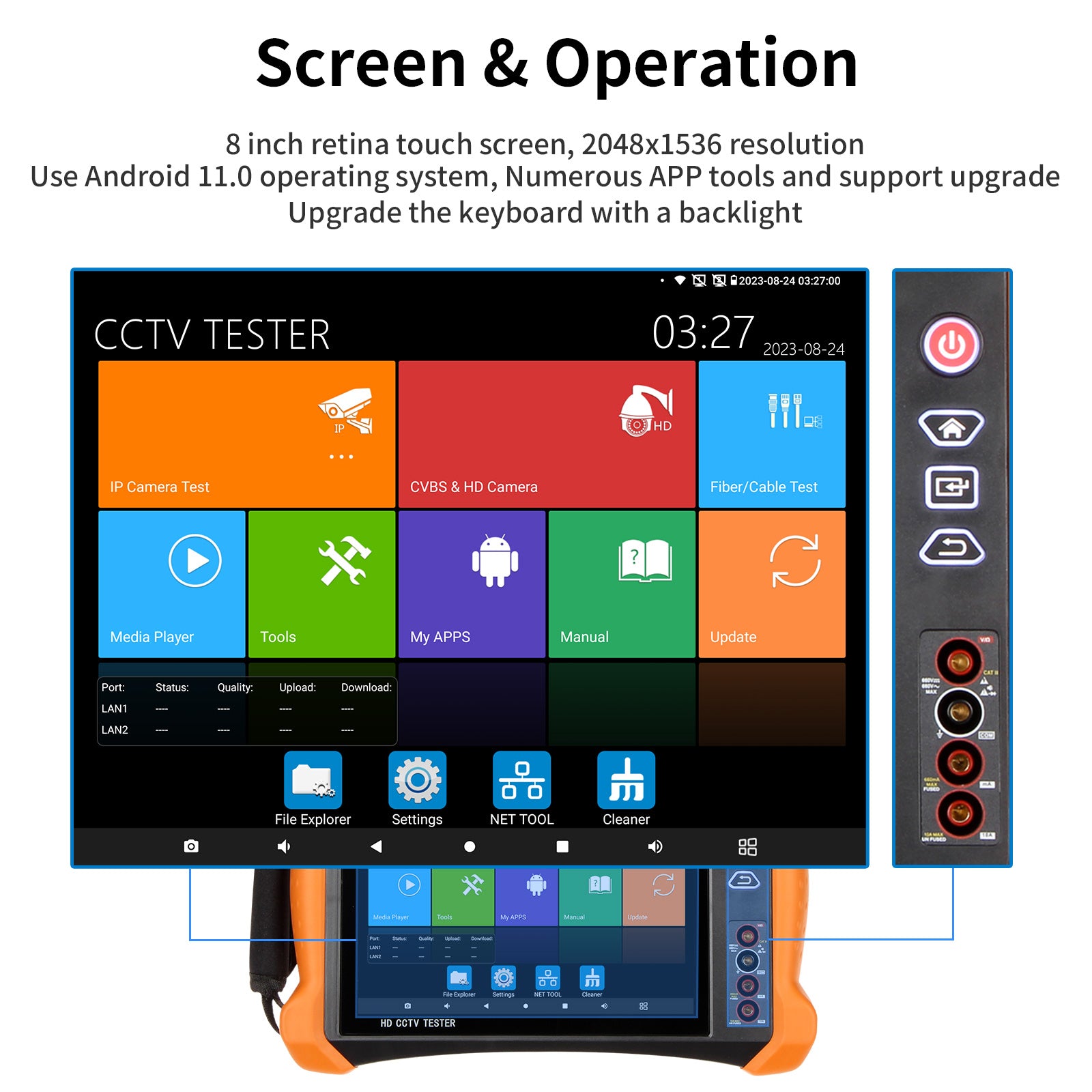

| Display | 8 inch IPS touch screen, 2048*1536 resolution, Backlit buttons | ||
| CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | ||
| PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
| CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable | |||

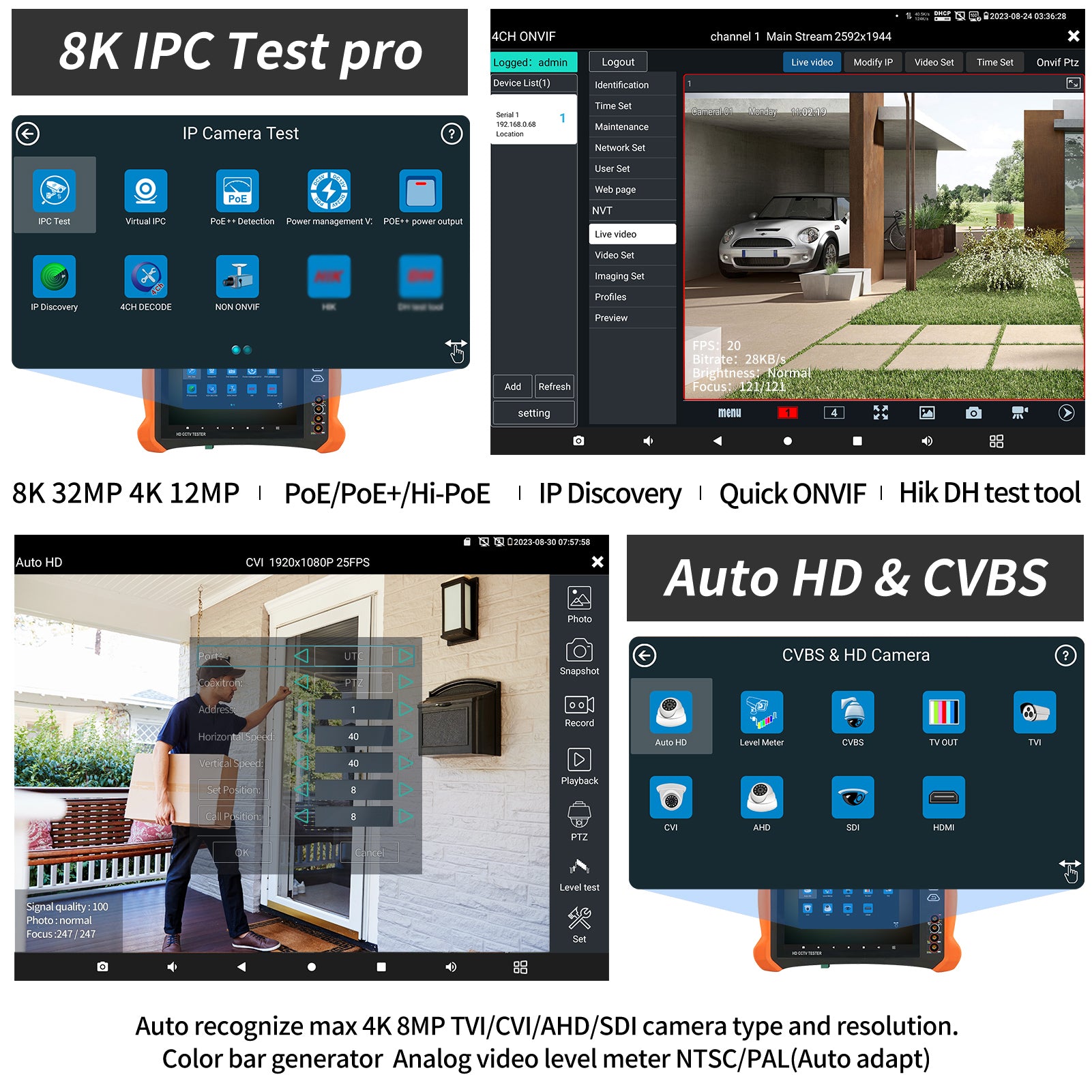

| IP camera test Max 8K 32MP |
IP Discovery/ONVIF/IPC test /RTSP play /Client APK | ||
| Rapid Video, Auto view the video, create testing report | |||
| Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | |||
| Dahua test tool, Dahua camera test, modify the user name, password and IP parameters | |||
| IP& CVBS test | IP& CVBS test at the same time, converter test from analog to digital with dual test window | ||
| Coaxial HD test | 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio | ||
| 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu | |||
| 8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu | |||
| 8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu | |||

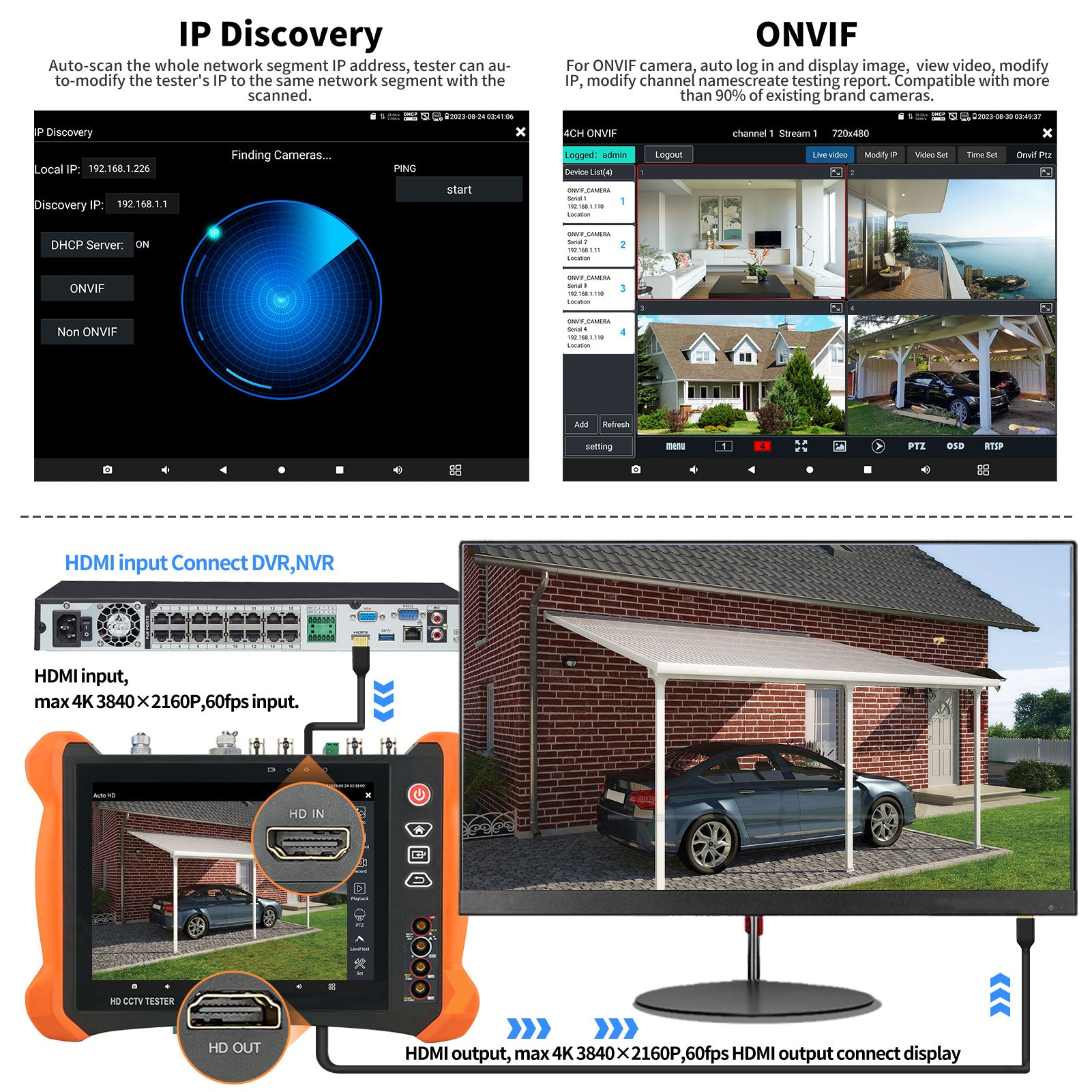

| HDMI input | 1 channel HDMI input, support 4K 3840x2160P 60fps | ||
| HDMI output | 1 channel HDMI output, support 4K 3840x2160P 60fps | ||
| VGA input | N/A | ||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||
| Analog Video out | color bar generator:Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | ||
| Power output | DC5V/2A:USB DC5V/2A power output, as a power bank | ||
| DC12V/3A:DC12V/3A power output ,supply temporarily power for the camera | |||
| DC24V/2A:DC24V/2A power output ,supply temporarily power for the speed dome camera | |||

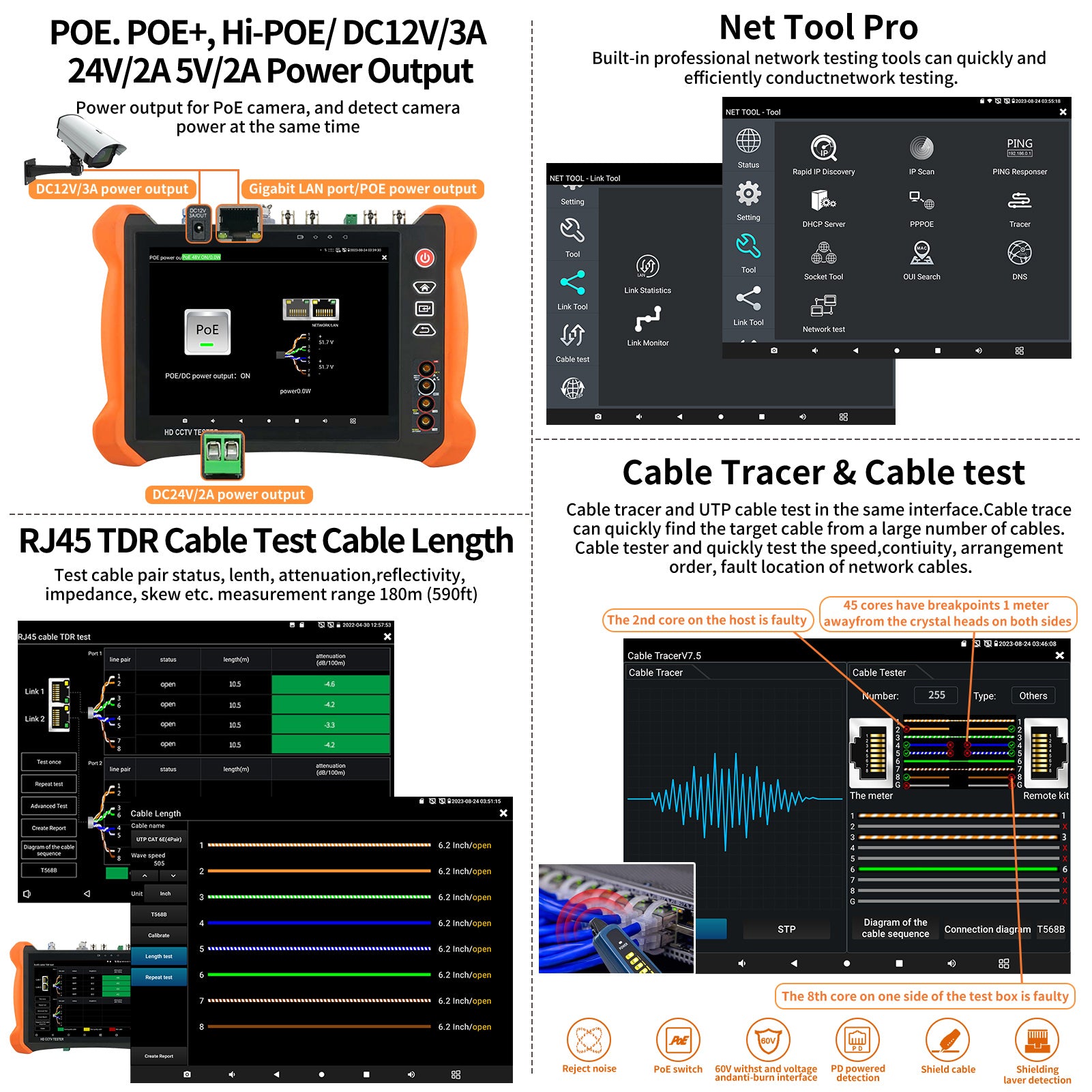

| PoE:Standard PoE, POE+, Hi-POE(POE++) power output, max power 90W. Can drivehigh-speed dome camera via POE interface | |||
| Cable test | Cable tracer(Wire Finder):Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables. Support AC voltage detector(NVC). voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE |
||
| UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen | |||
| RJ45 TDR cable test:Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. | |||
| Color bar test:Support CVI TVI AHD color bar test, max 4K 8MP 15fps. Support CVBS color bar test, NTSC and PAL switchable. | |||
| Digital Multimeter (DMM) |

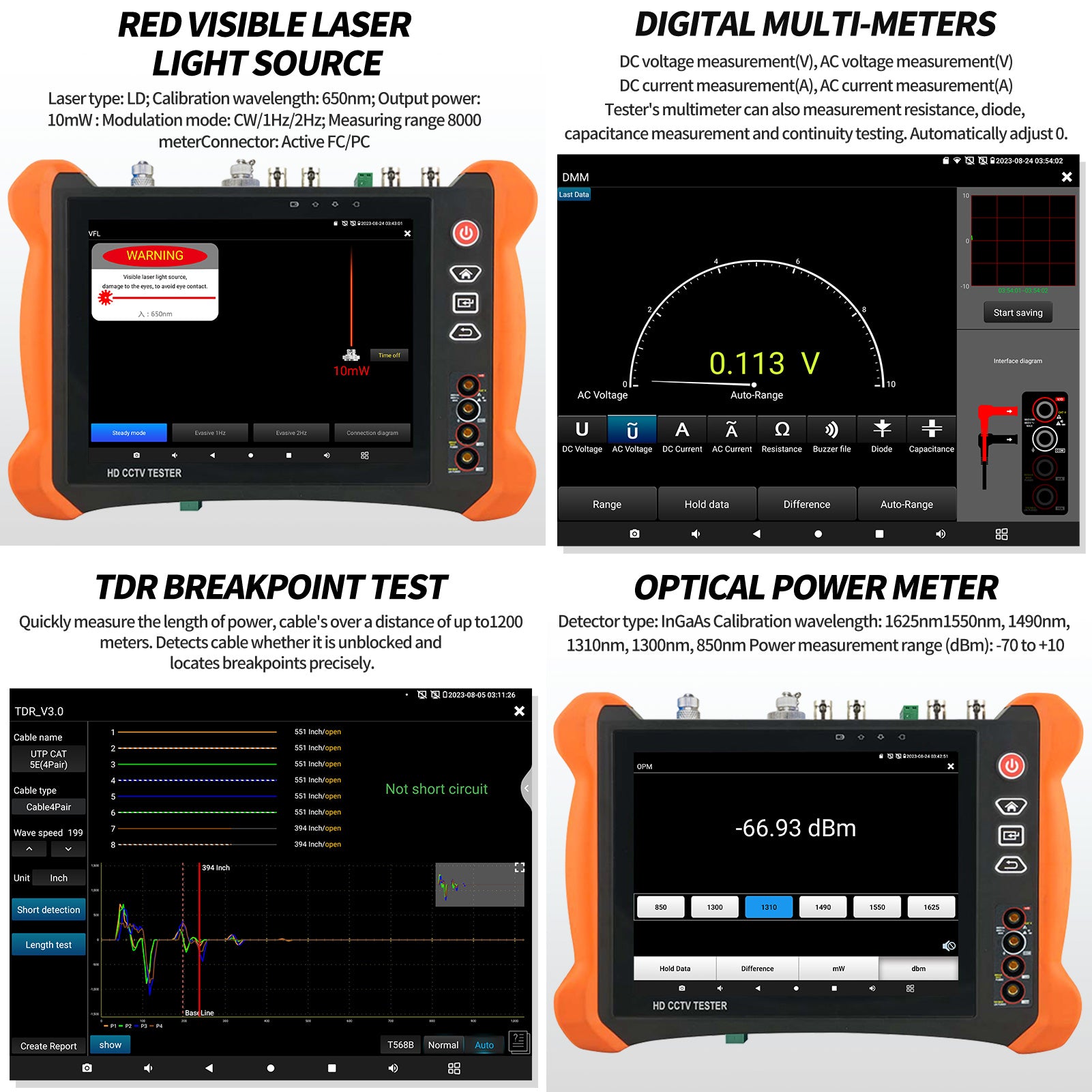

DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF, the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0. |
||
| Optical power meter (OPM) |
Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃) Display resolution: Linear display 0.1%, logarithmic display 0.01dBm Connector: Active FC/PC |
||
| Visual fault locator (VFL) |
10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC | ||
| TDR cable test (hardware support) | Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft) | ||
| Video level test | Analog video level meter, peak video signal level, SYNC signal level | ||

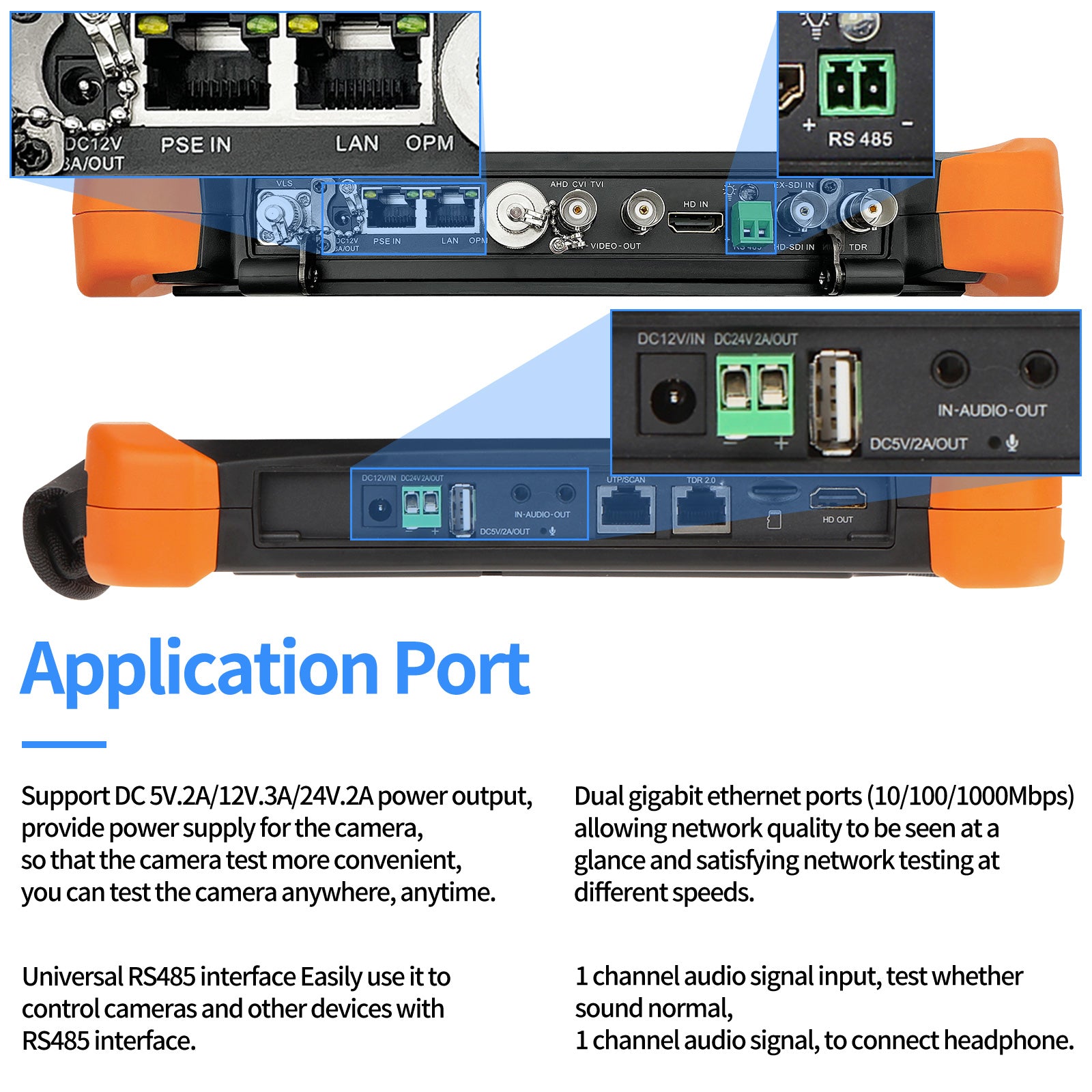

| Network interface | RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive | ||
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||
| Wi-Fi | Built in WIFI, 2.4GHz and 5GHz, speeds:433Mbps | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||

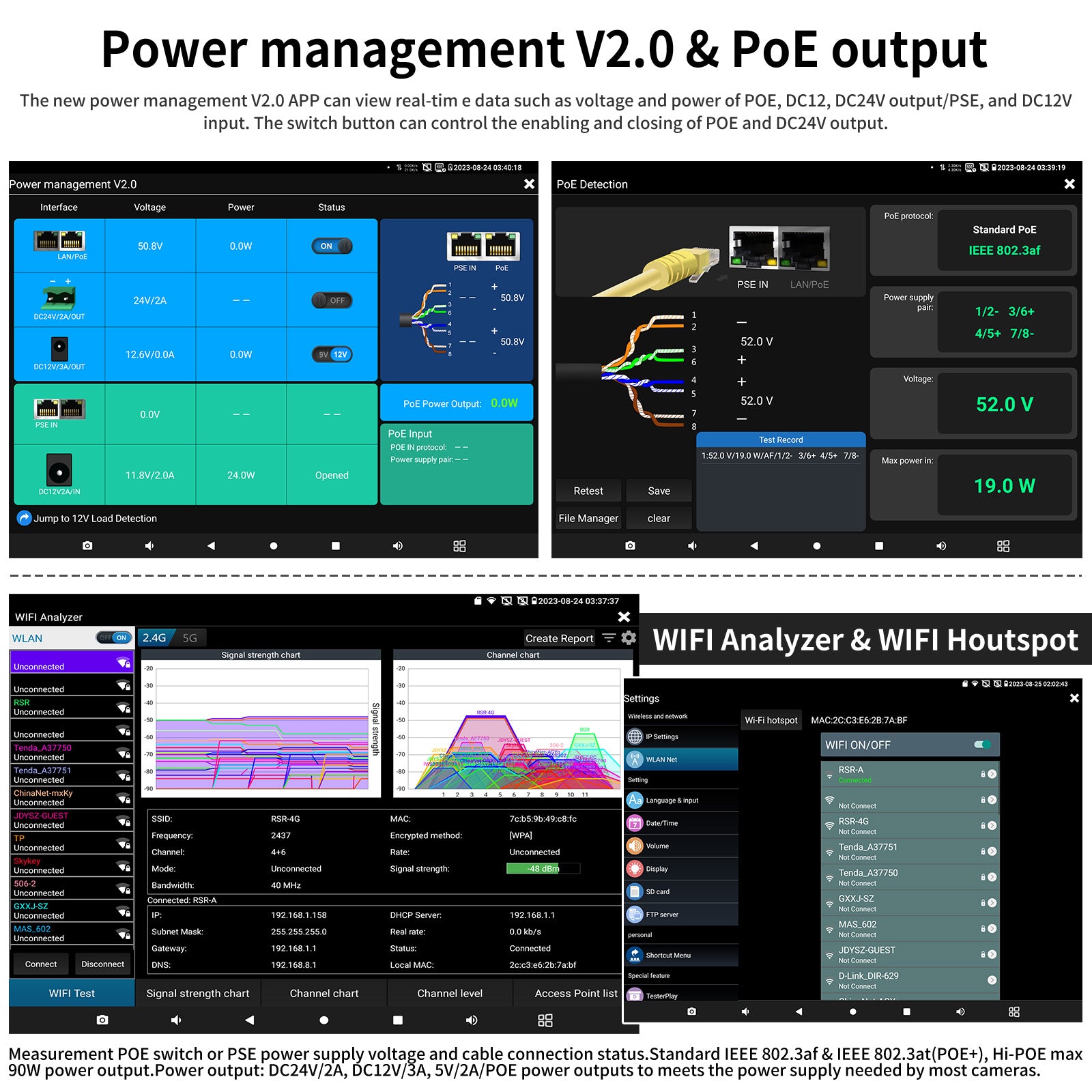

| Power management V2.0 | View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. | ||
| Drop-down menu | You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface | ||
| TesterPlay | screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) | ||
| Power supply | DC15V/2.4A | ||
| Battery | Built-in 11.1V Lithium polymer battery,3350mAh, 37.19Wh | ||
| Rechargeable | After charging 2.5 hours, normal working time 8 hours | ||
| Operation setting | OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc. | ||
| Auto off | 1 to 30(mins) | ||
| Working Temperature | -10℃ to +50℃ (14℉ to 122℉) | ||
| Working Humidity | 30% to 90% | ||
| Dimension/Weight | Tester: 260x183x43mm(10.23x7.2x1.69inch) / 1200g(2.65lbs) Package: 350x300x100mm(13.78x11.81x3.94) / 2740g(6.04lbs) |
