Vendor
Rsrteng
Regular price
$327.00
Sale price
$327.00
Regular price
$399.00
Sold out
Unit price
per
Shipping calculated at checkout.

This is Rsrteng IPC-9800 Plus+ cost-effective 4K security surveillance camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and CVBS camera.

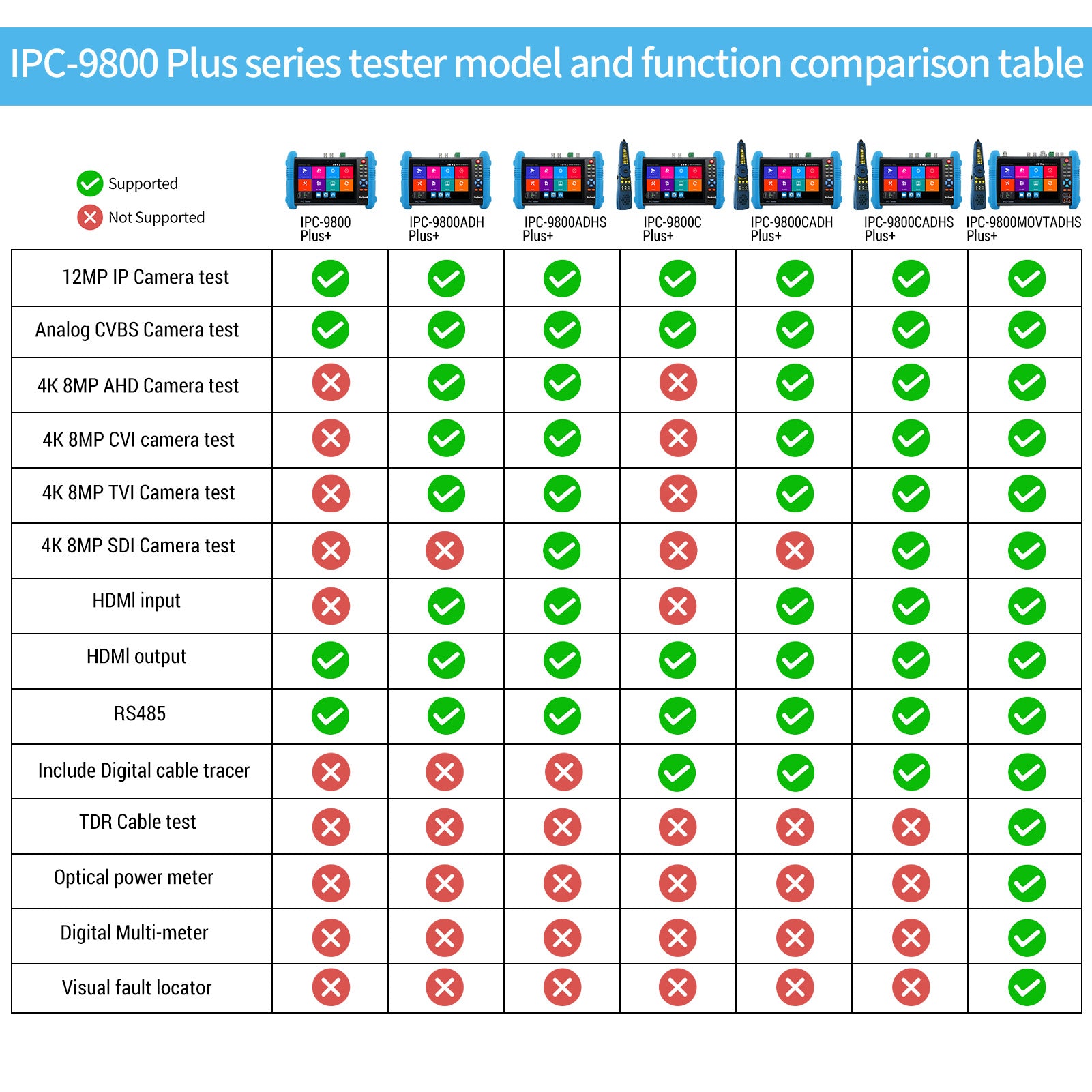

Although it is an entry-level tester of the IPC-9800 Plus+ series, but In the context of the increasing popularity of IP camera, it came into being. It can support the testing of 12MP IP camera and CVBS cameras. It is the best choice when you only need to test the network camera. Professional test app, POE, cable test, WiFi, power output, HDMI output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. But if you need to test HD CVI TVI AHD CVBS cameras, please purchase other Higher level tester, it does not support testing these types of cameras.You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

Parameters

Brand

Rsrteng

Model

IPC-9800 Plus+

operating system

Android5.1

Display

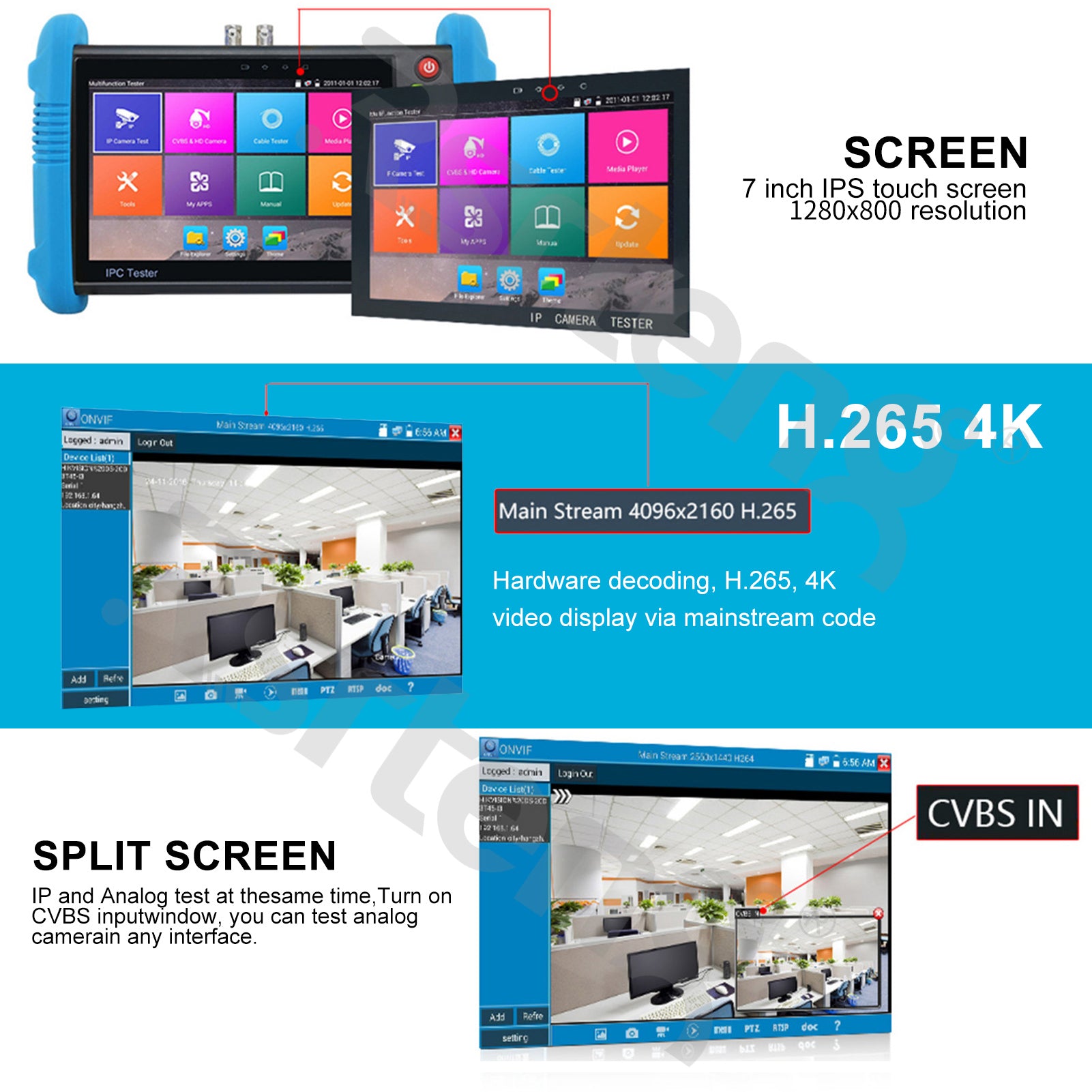

7 inch IPS touch screen, 1920*1200 resolution, Backlit buttons

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

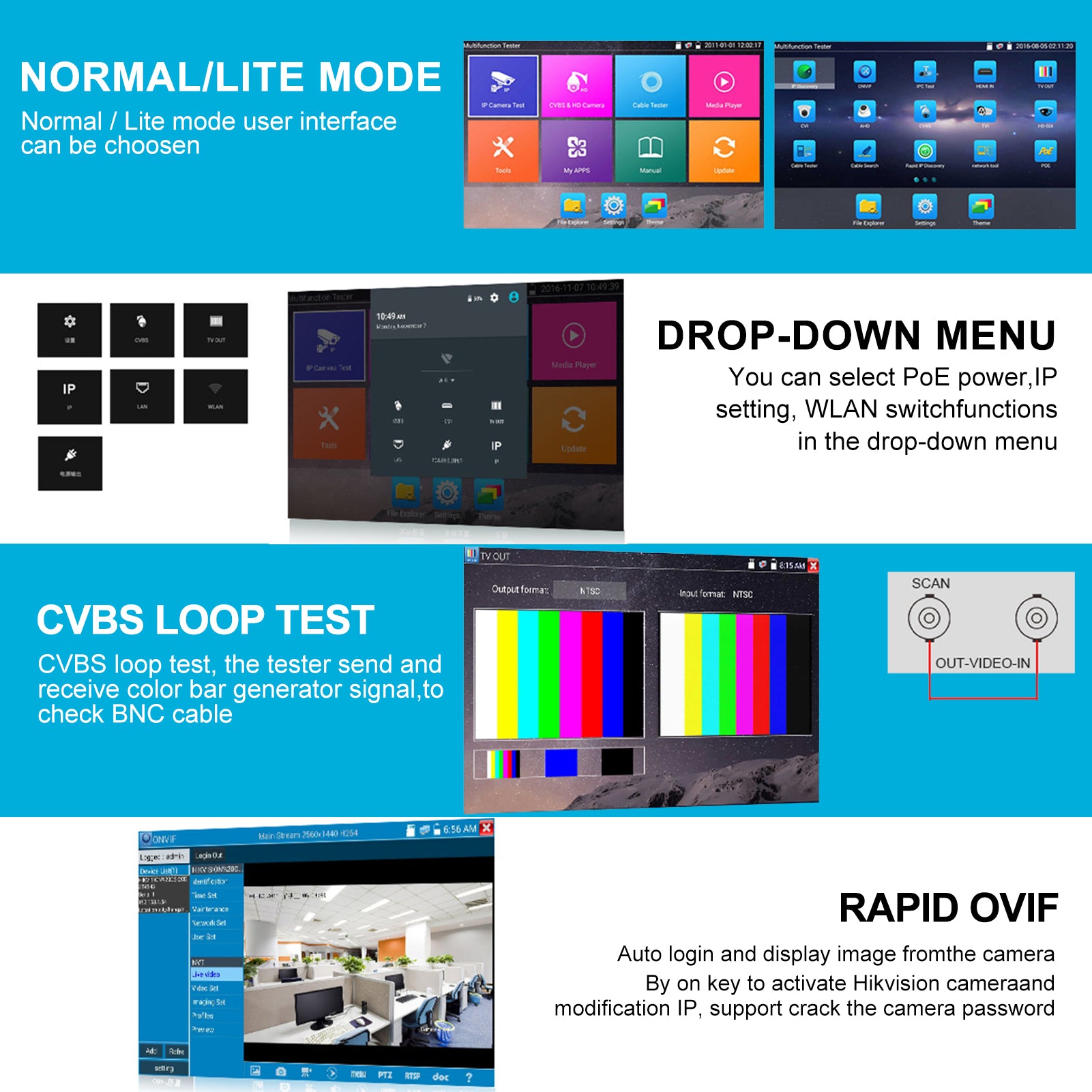

CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

IP camera test
4K/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video, Auto view the video, create testing report

Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool, Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Coaxial HD test

Don't support CVI camera test

Don't support TVI camera test

Don't support AHD camera test

Don't support SDI camera test

HDMI input

N/A

HDMI output

1 channel HDMI output, support 1920x1080P 60fps

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator:Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

Power output

DC5V/2A: USB DC5V/2A power output, as a power bank

DC12V/3A: DC12V/3A  power output ,supply temporarily power for the camera

DC24V/2A: DC24V/2A  power output ,supply temporarily power for the speed dome camera

PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W

Cable test

Cable tracer*(Optional function):N/A
(This feature requires additional purchase of a cable tracer WT255.)

UTP cable test:

Test UTP cable connection status and display on the screen. Read the number on the screen

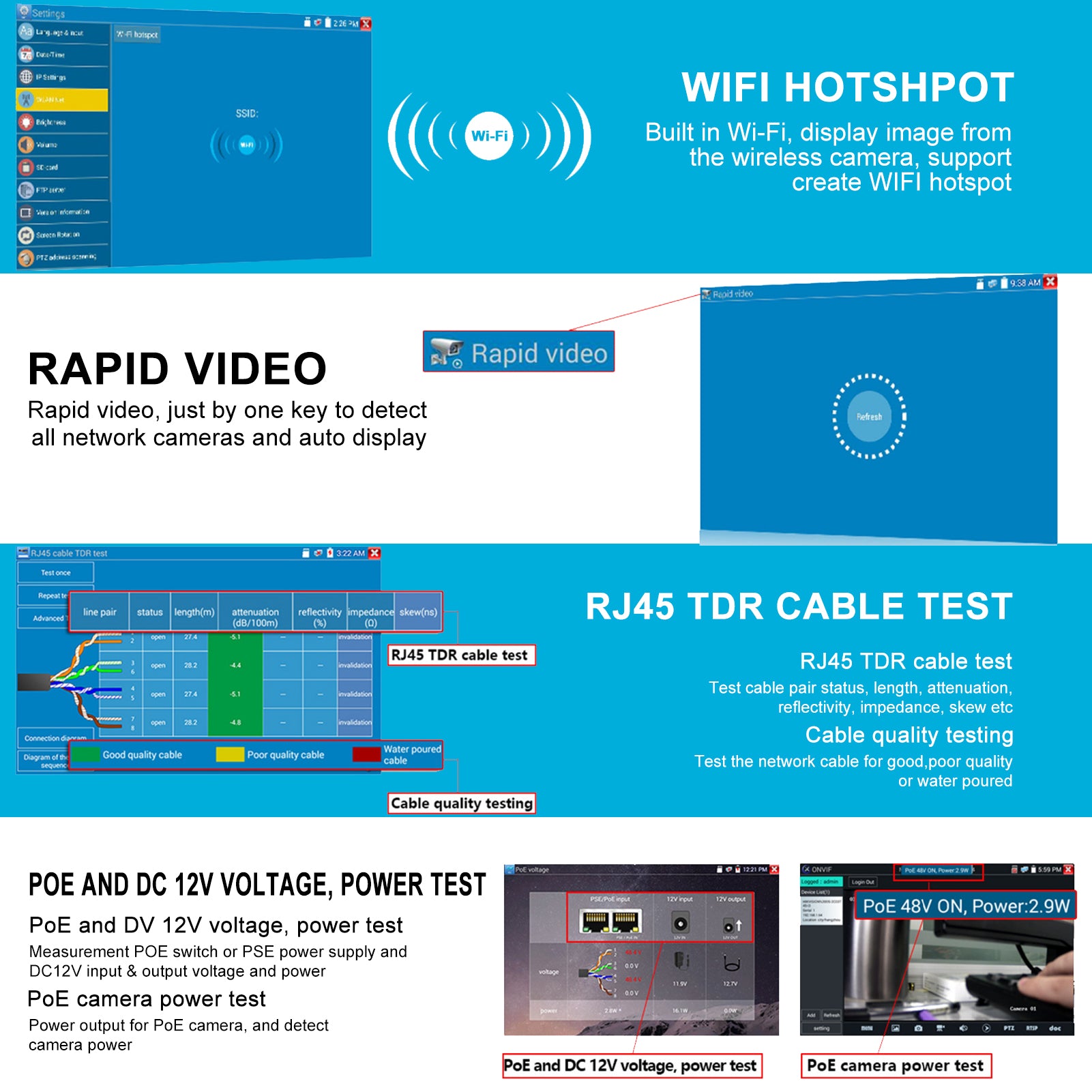

RJ45TDR cable test:

Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.

Digital Multimeter
(DMM)

N/A

Optical power meter
(OPM)

N/A

Visual fault locator
(VFL)

N/A

TDR cable test (hardware support)

N/A

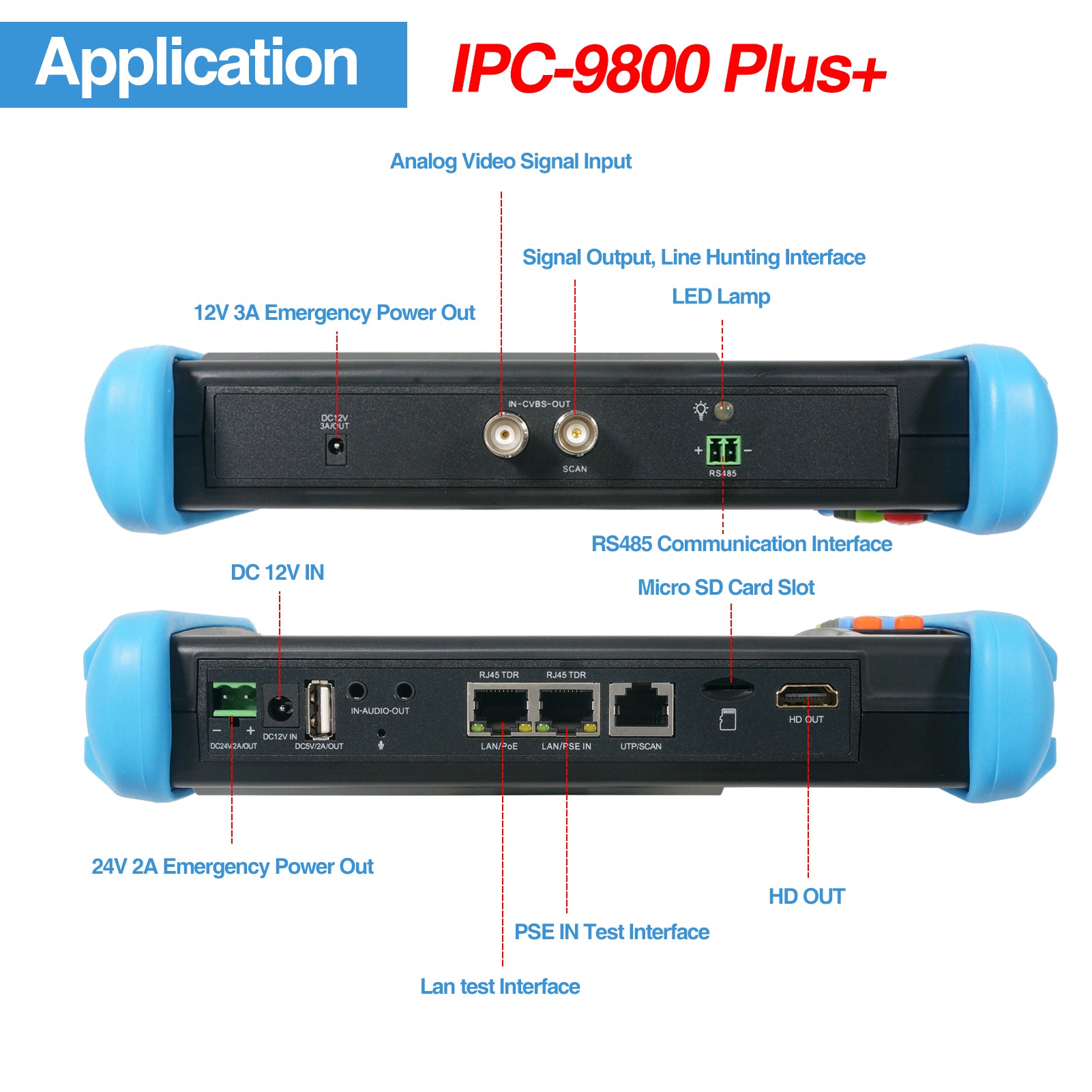

Network interface

RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, 2.4GHz, speeds150Mbps

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply   voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

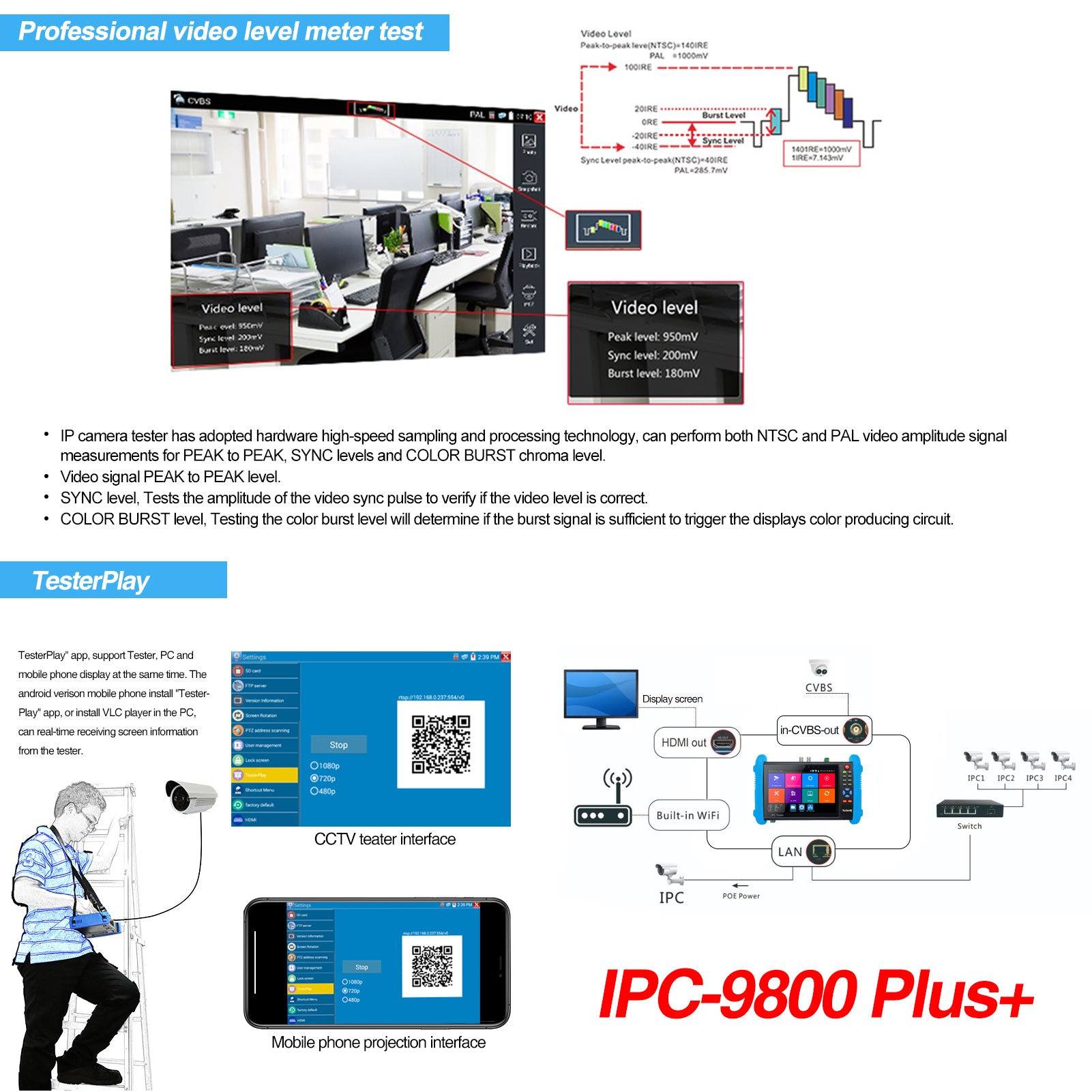

TesterPlay

screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)

Power supply

DC12V/2A

Battery

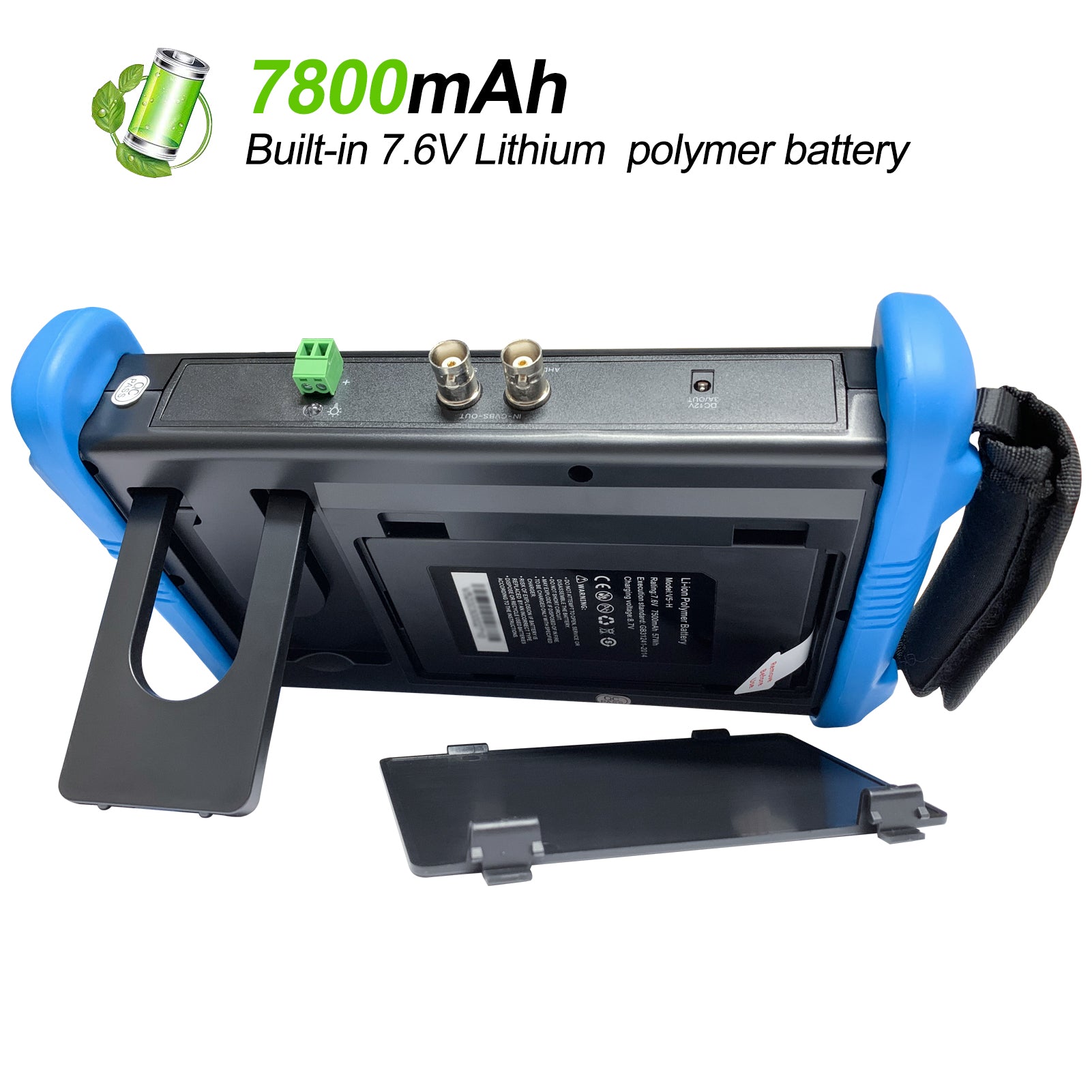

Built-in 7.6V Lithium  polymer battery,7800mAh, 59.28Wh

Rechargeable

After charging 3~4hours, normal working time 15 hours

Operation setting

OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.

Auto off

1-30(mins)

Working Temperature

-10℃--- +50℃ (14℉---122℉)

Working Humidity

30%-90%

Dimension/

Weight

240x135x35mm(9.4x5.3x1.4inch) / 920g(2.03lbs)
