Rsrteng IPC-9800CADHS Plus+ 4K security camera tester

Vendor
Rsrteng
Regular price
$385.00
Sale price
$385.00
Regular price
$539.00
Sold out
Unit price
per
Shipping calculated at checkout.

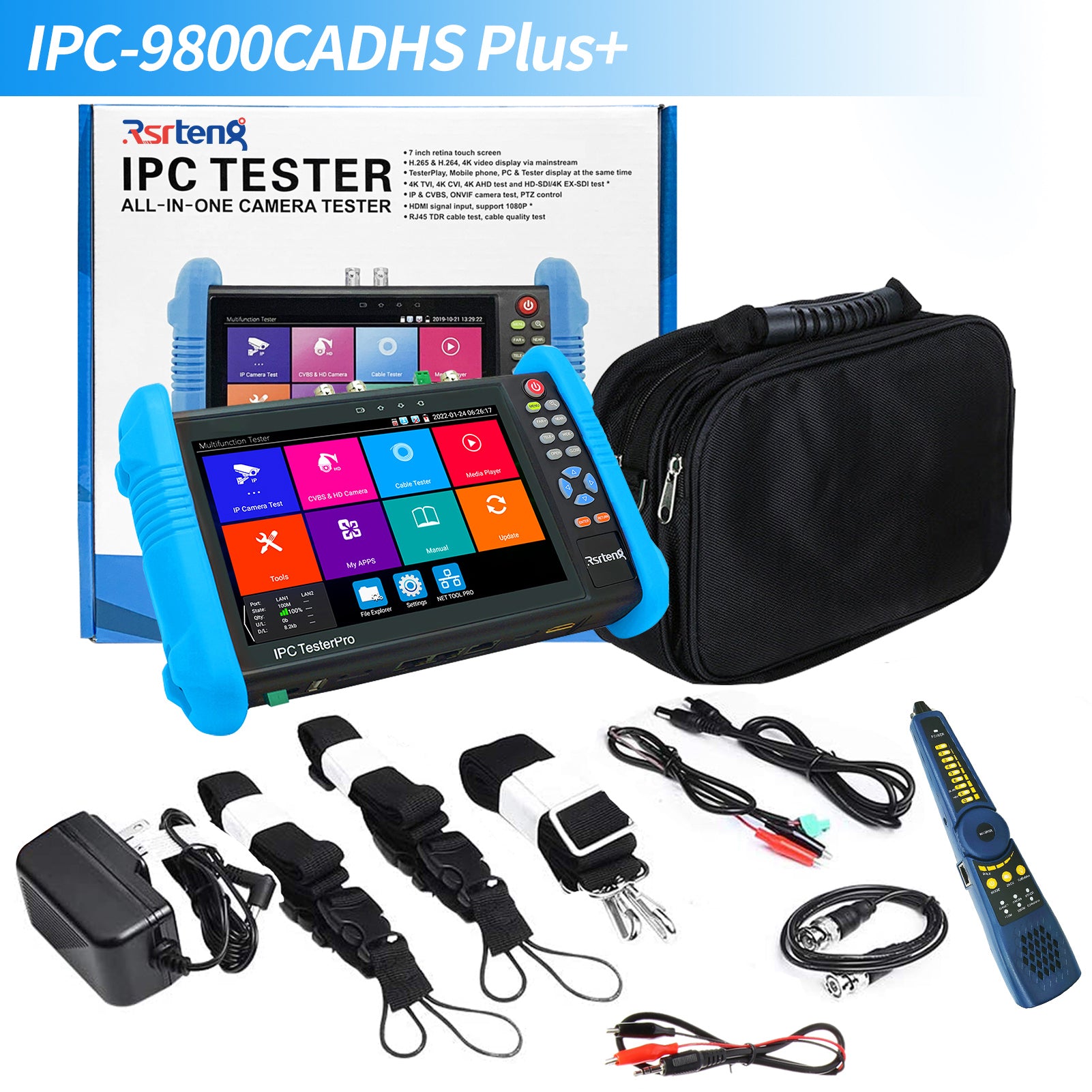

This is Rsrteng IPC-9800CADHS Plus+ cost-effective 4K security surveillance camera tester. It adds the function of a cable tracer on the basis of  IPC-9800ADHS,which is used for cable search. Other functions are exactly the same as  IPC-9800ADHS.It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.

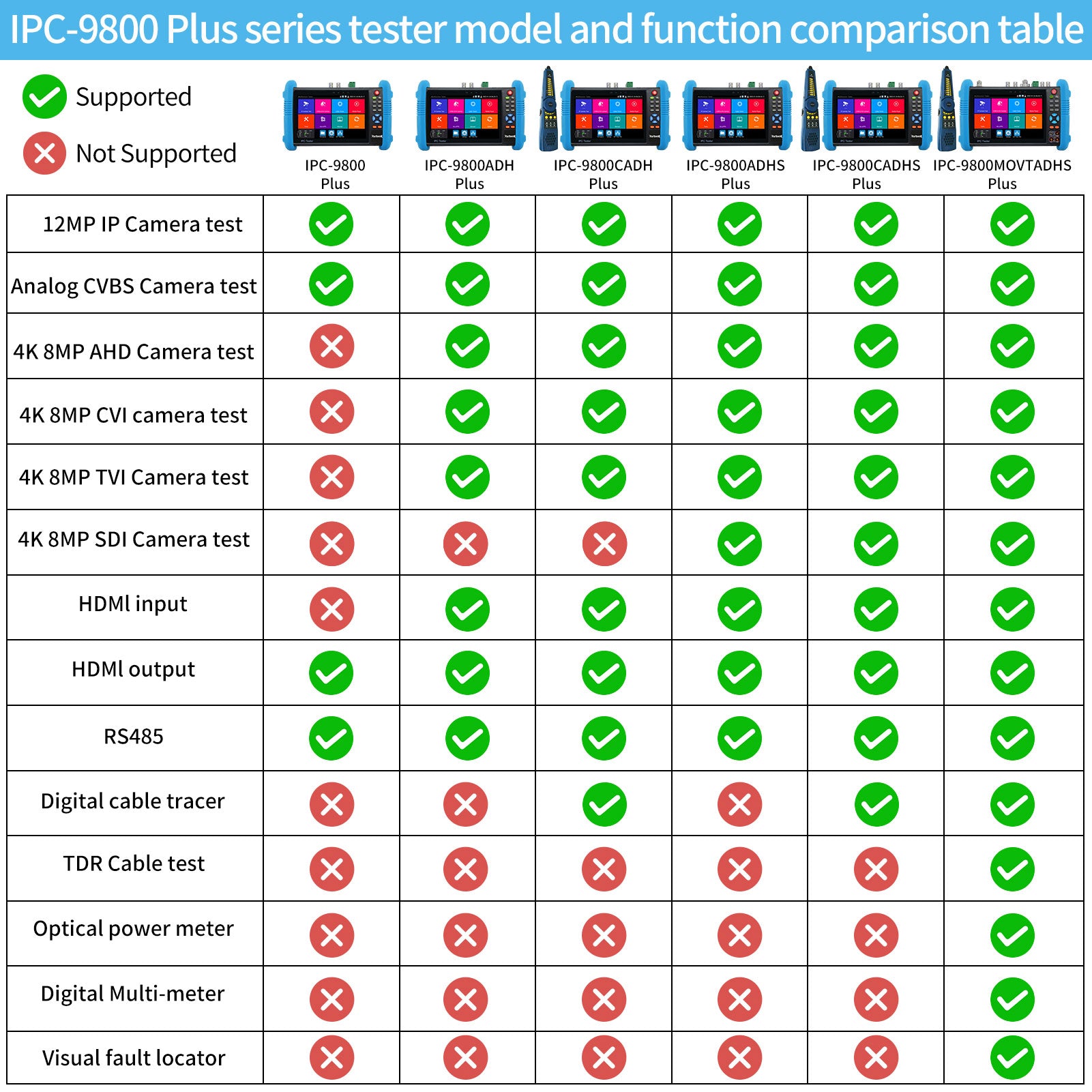

This is of the most people is to buy the model of the IPC-9800 Plus+ series, it can meet the needs of the vast majority of tests. It can support the testing of up to 12MP IP camera, max 8MP HD CVI TVI AHD SDI camera and CVBS cameras. Professional test app, POE, cable test, WiFi, power output, HDMI I/O, RS485,RJ45 TDR cable testare all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM


Parameters

Brand

Rsrteng

Model

IPC-9800CADHS Plus+

operating system

Android5.1

Display

7 inch IPS touch screen, 1280*800 resolution, Backlit buttons

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

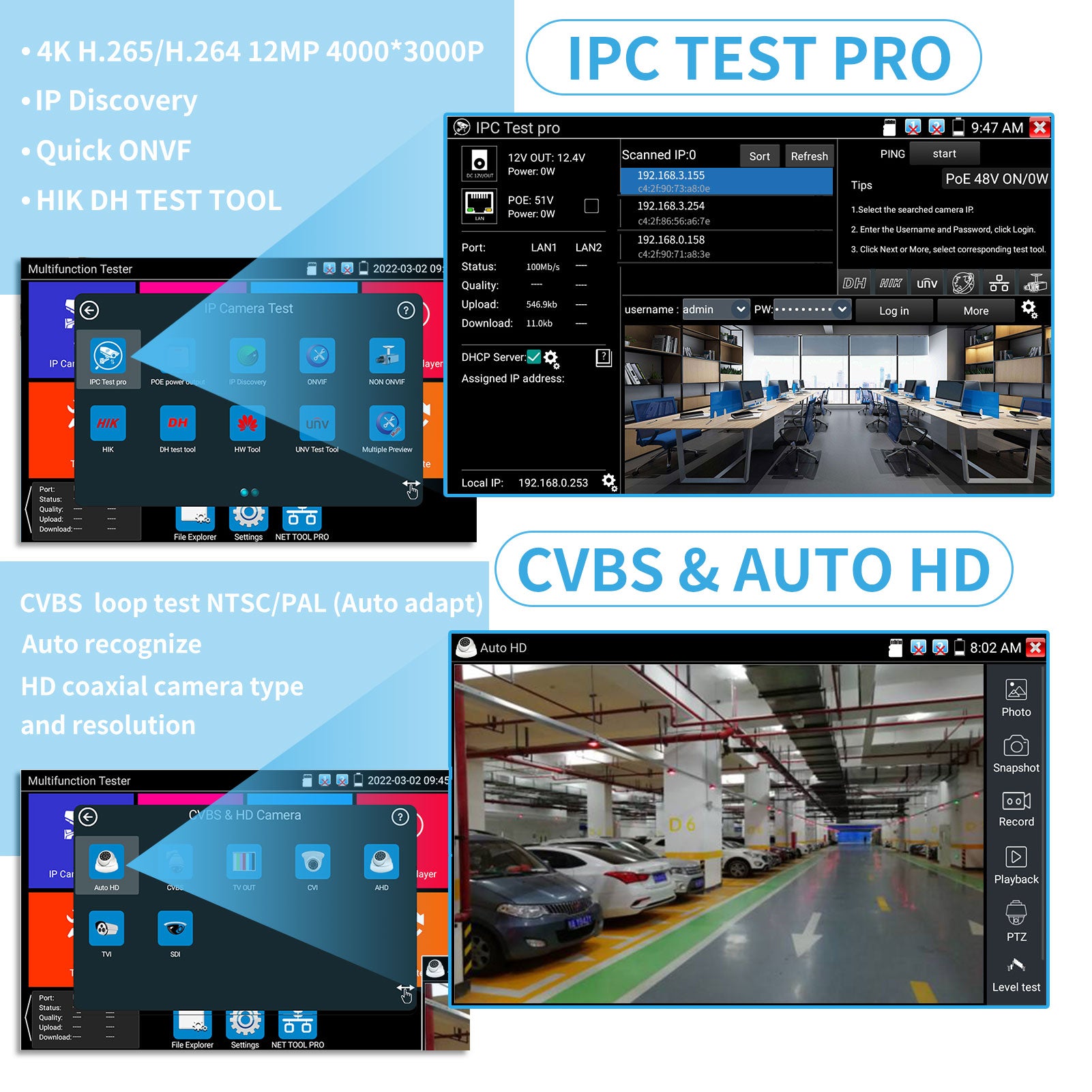

IP camera test
4K/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video, Auto view the video, create testing report

Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool, Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio

8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu

8MP AHD camera test, 2560x1944P 15FPS, UTC control/call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu

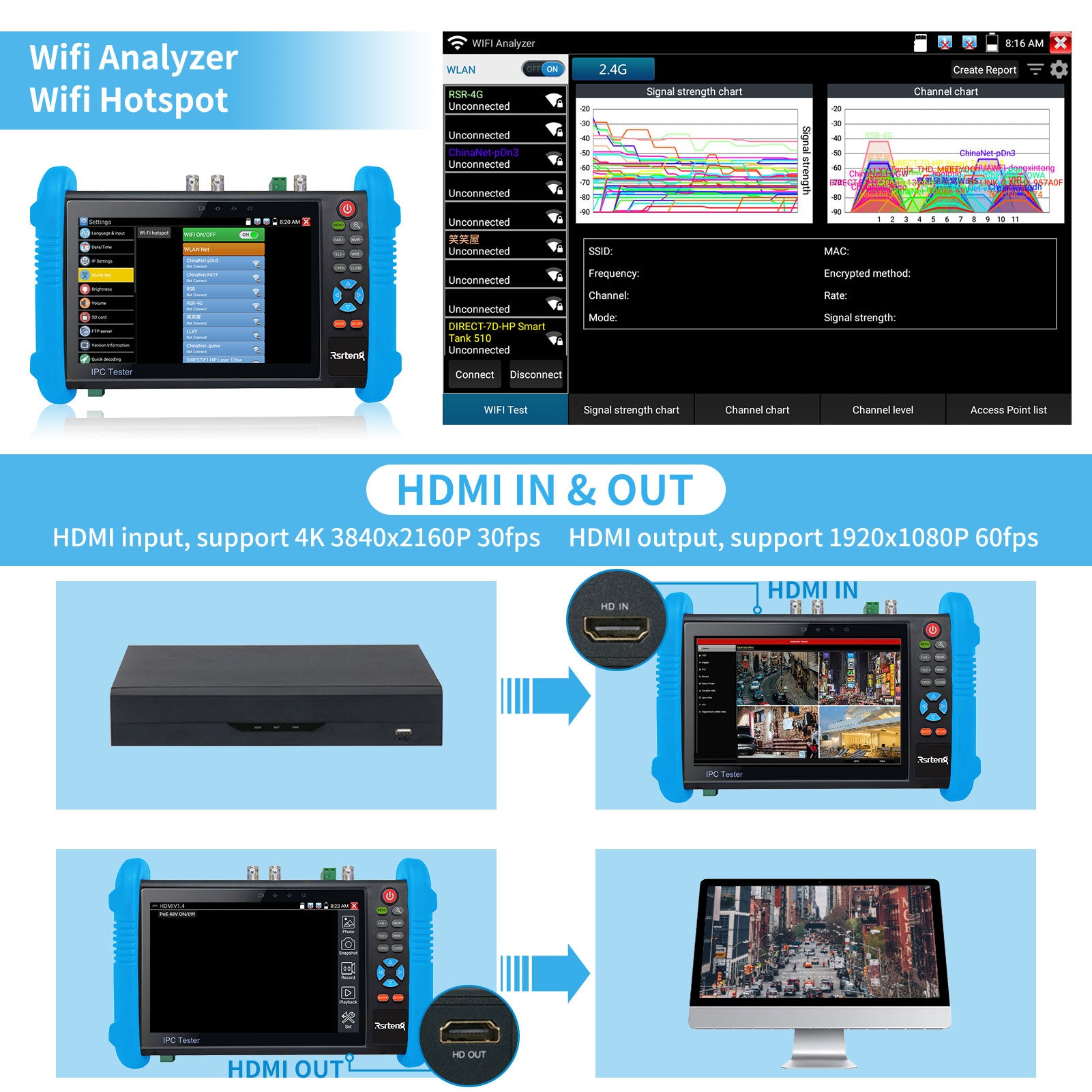

HDMI input

1 channel HDMI input, support 4K 3840x2160P 30fps

HDMI output

1 channel HDMI output, support 1920x1080P 60fps

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

Power output

DC5V/2A: USB DC5V/2A power output, as a power bank

DC12V/3A: DC12V/3A  power output ,supply temporarily power for the camera

DC24V/2A: DC24V/2A  power output ,supply temporarily power for the speed dome camera

PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W

 Cable test

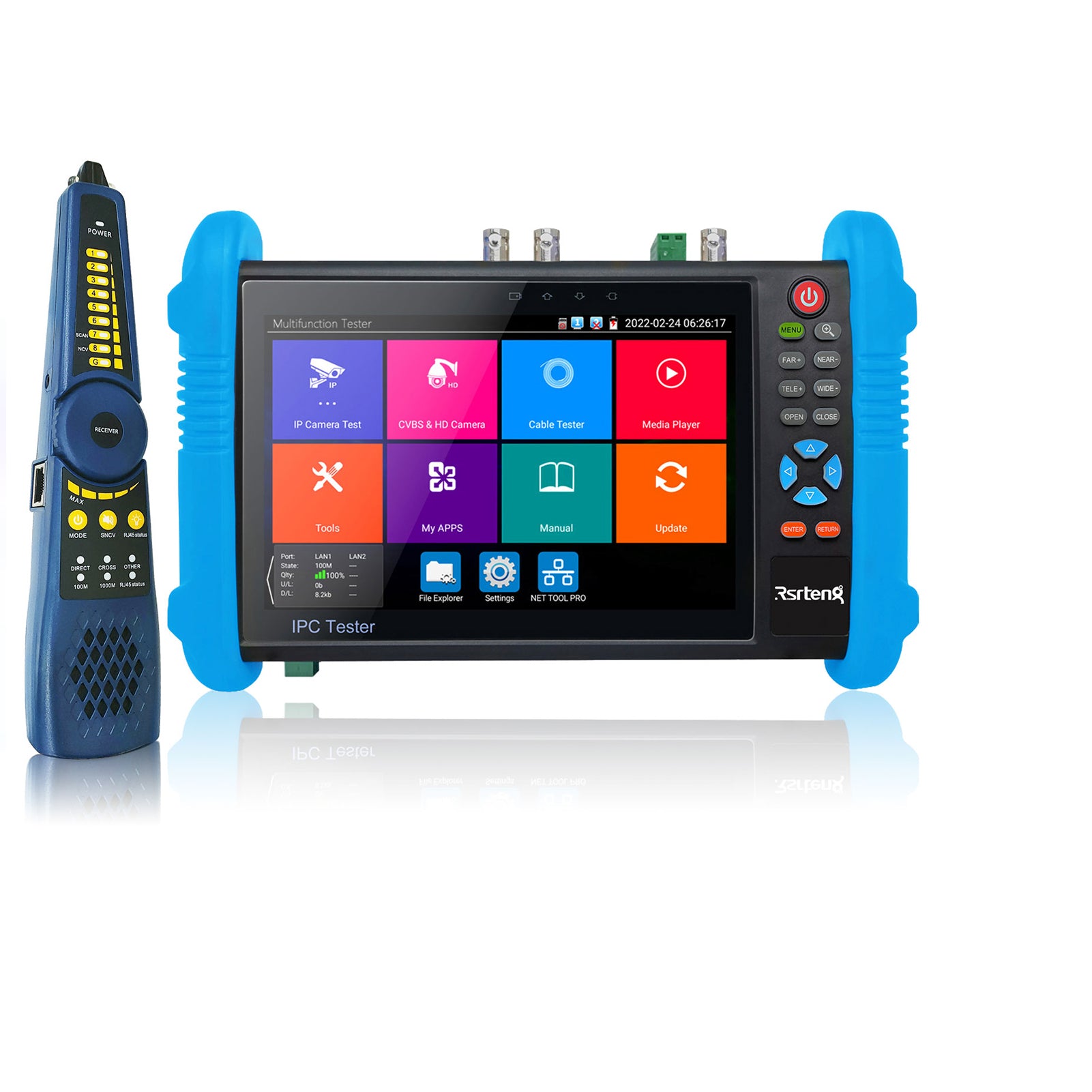

Cable tracer(Wire Finder): Include.
Search BNC cable, network cable and telephone cable from the mess cables

UTP cable test:

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 TDR cable test:

Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.

Digital Multimeter
(DMM)

N/A

Optical power meter
(OPM)

N/A

Visual fault locator
(VFL)

N/A

TDR cable test (hardware support)

N/A

Network interface

RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, 2.4GHz, speeds150Mbps

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply   voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

TesterPlay

screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)

Power supply

DC12V/2A

Battery

Built-in 7.6V Lithium  polymer battery,7800mAh, 59.28Wh

Rechargeable

After charging 3~4hours, normal working time 15 hours

Operation setting

OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.

Auto off

1-30(mins)

Working Temperature

-10℃--- +50℃ (14℉---122℉)

Working Humidity

30%-90%

Dimension/

Weight

240x135x35mm(9.4x5.3x1.4inch) / 980g(2.16lbs)
