Rsrteng IPC-9800MOVTADHS Plus+ 4K security camera tester

Brand

Rsrteng

Model

IPC-9800MOVTADHS Plus+

operating system

Android5.1

Display

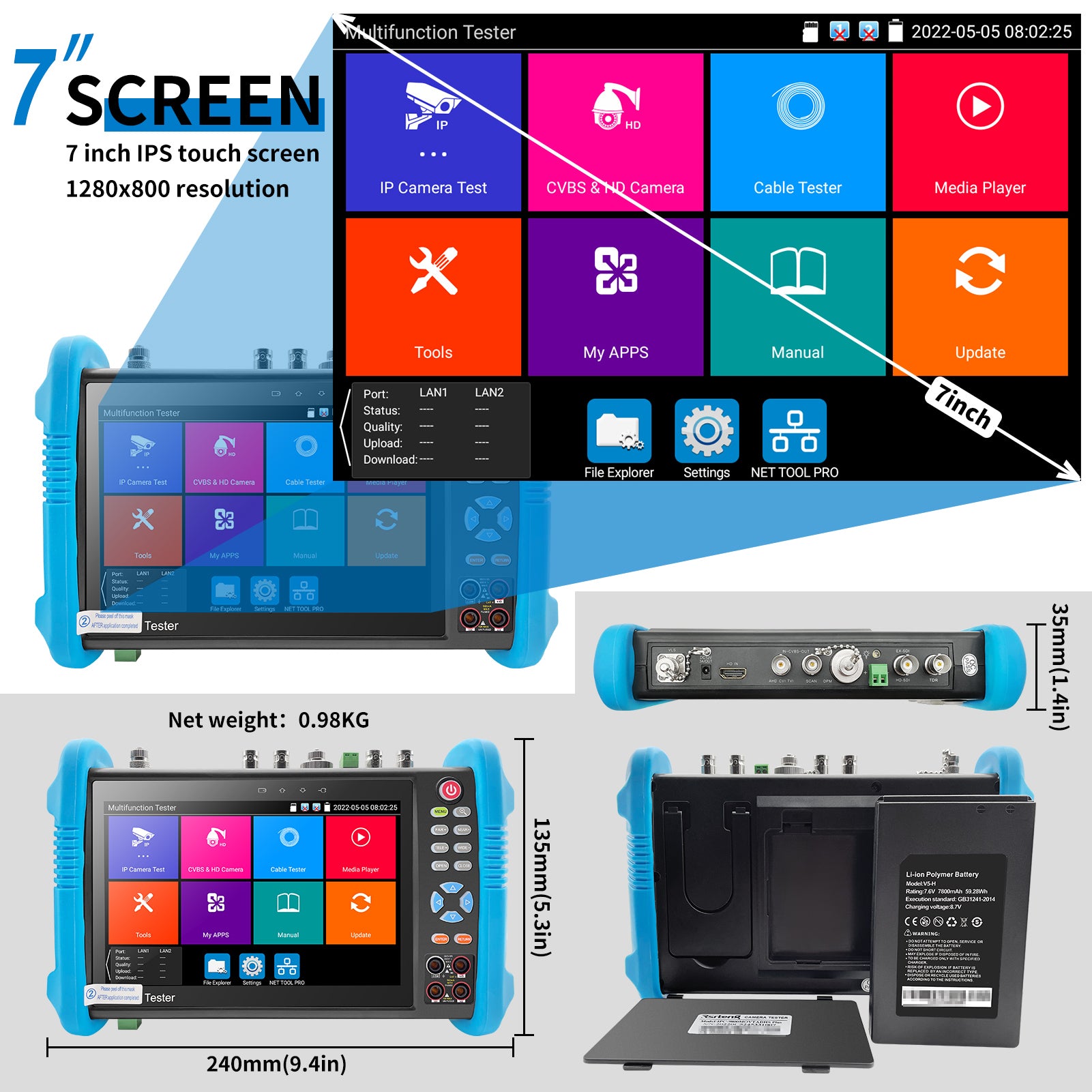

7 inch IPS touch screen, 1280*800 resolution, Backlit buttons

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, CVBS color bar chroma level  measurement

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable

IP camera test

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video, Auto view the video, create testing report

Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool, Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio

8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu

8MP AHD camera test, 2560x1944P 15FPS, UTC control/call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu

HDMI input

1 channel HDMI input, support 4K 3840x2160P 30fps

HDMI output

1 channel HDMI output, support 1920x1080P 60fps

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

Power output

DC5V/2A: USB DC5V/2A power output, as a power bank

DC12V/3A: DC12V/3A  power output ,supply temporarily power for the camera

DC24V/2A: DC24V/2A  power output ,supply temporarily power for the speed dome camera

PoE: IEEE802.3af/at 48V PoE power output, max power 25.5W

Cable test

Cable tracer(Wire Finder): Include.
Search BNC cable, network cable and telephone cable from the mess cables

UTP cable test:

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 TDR cable test:

Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.

Digital Multimeter
(DMM)

DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
DC&AC voltage measurement(V): the highest range is 660V, the accuracy is ±0.3%+4(DC)/±0.8%+6(AC), resolution is 100mV; DC&AC current measurement(A): the highest range 10A, accuracy ±(1%+5), resolution 10mA; Resistance measurement(Ω): the highest range is 66MΩ, the accuracy is ±(1.2%+2), the resolution is 10KΩ,the Lowest range is 660Ω, the accuracy is ±(0.8%+5), the resolution is 0.1Ω; capacitance measurement(F):the highest range is 66mF, the accuracy is ±(5%+8), the resolution is 10uF,
the Lowest range is 6.6nF, the accuracy is ±(0.5%+20), the resolution is 1pF; Diode measurement;At the same time, the tester's multimeter can continuity testing. Automatically adjust 0.

Optical power meter
(OPM)

Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range, -70 to +10 dBm, Measurement accuracy: <±3%dB (-10dBm, 22℃), <±5%dB (full scale, 22℃)
Display resolution: Linear display 0.1%, logarithmic display 0.01dBm
Connector: Active FC/PC

Visual fault locator
(VFL)

10mW visual fault locator with 650nm wavelength, can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10km(32,808 ft), Connector: Active FC/PC

TDR cable test (hardware support)

Measurable cable type: metal cable, include BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1,200m(3,937 ft)

Network interface

RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, 2.4GHz, speeds150Mbps

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply   voltage and cable connection status

Drop-down menu

You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface

TesterPlay

screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)

Power supply

DC12V/2A

Battery

Built-in 7.6V Lithium  polymer battery,7800mAh, 59.28Wh

Rechargeable

After charging 3~4hours, normal working time 15 hours

Operation setting

OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.

Auto off

1 to 30(mins)

Working Temperature

-10℃ to +50℃ (14℉ to 122℉)

Working Humidity

30% to 90%

Dimension/

Weight

240x135x35mm(9.4x5.3x1.4inch) / 1050g(2.31lbs)
