Rsrteng X9-ADHS 8K security camera tester

Vendor
Rsrteng
Regular price
$565.00
Sale price
$565.00
Regular price
$609.00
Sold out
Unit price
per
Shipping calculated at checkout.

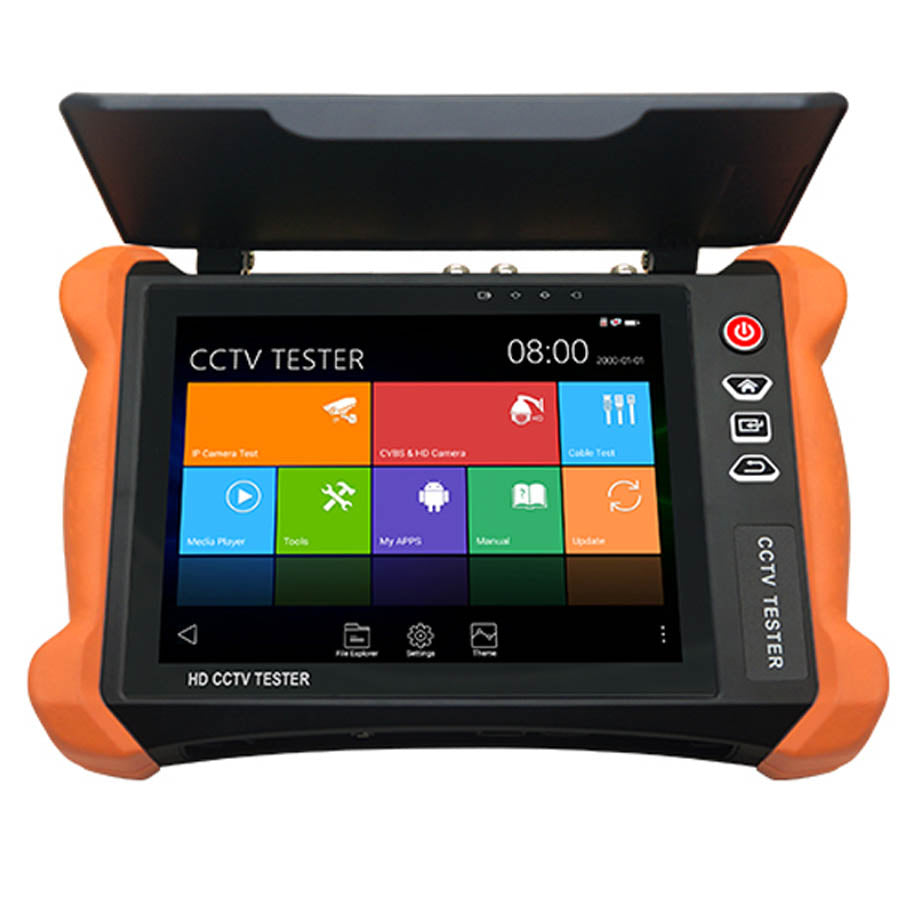

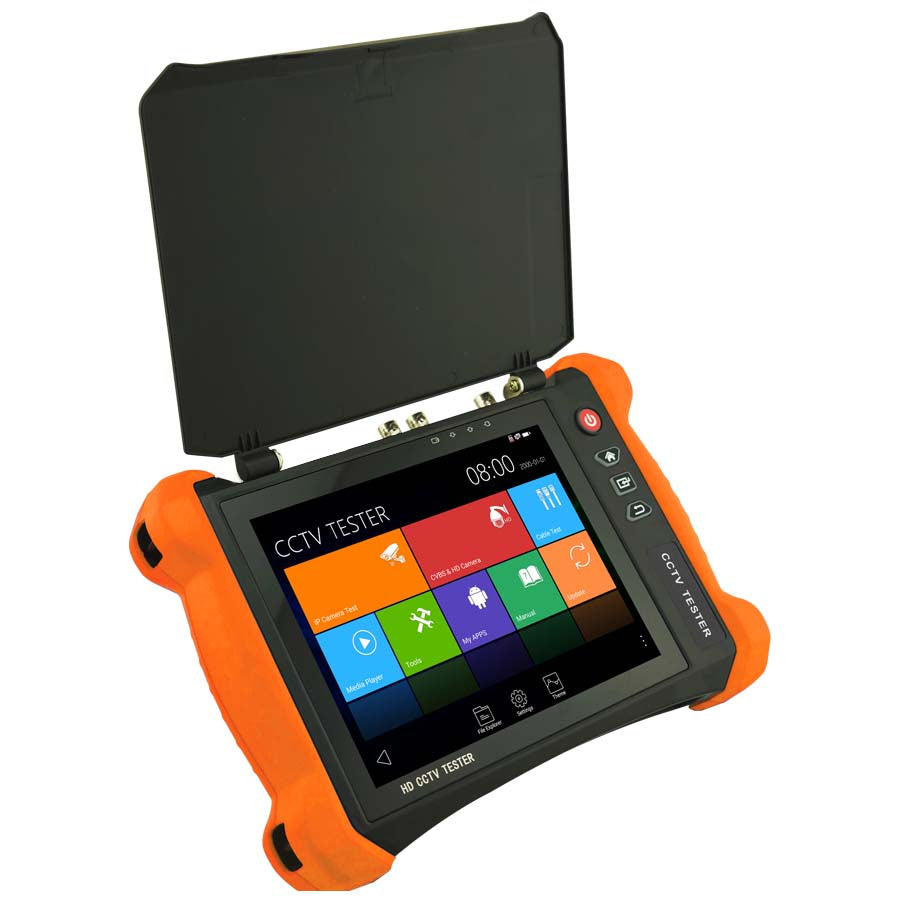

This is Rsrteng X9-ADHS professional IP and HD coaxial security surveillance camera tester. It is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and HD CVI TVI AHD SDI camera and CVBS camera.

X9-ADHS support the testing of up to 32MP IP camera, max 8MP HD CVI TVI AHD SDI camera and CVBS cameras. 4 channels Rapid ONVIF test function is unique to the X9 series. Built-in Professional test app, Dual Gigabit Ethernet ports, POE, cable test, dual-band WiFi, power output, 4K HDMI input&output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at SALES@RSRTENG.COM

Parameters

Brand Rsrteng
Model X9-ADHS
CPU/RAM/ROM 4-core 2.0GHz/2GB(LPDDR4)/16GB(EMMC)
Operating system Android 11.0
Display 8 inch IPS touch screen, 2048*1536 resolution, Backlit buttons
CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable
IP camera test
Max 8K 32MP
IP Discovery/ONVIF/IPC test /RTSP play /Client APK
Rapid Video, Auto view the video, create testing report
Hik test tool, pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool, Dahua camera test, modify the user name, password and IP parameters
IP& CVBS test IP& CVBS test at the same time, converter test  from analog to digital with dual test window

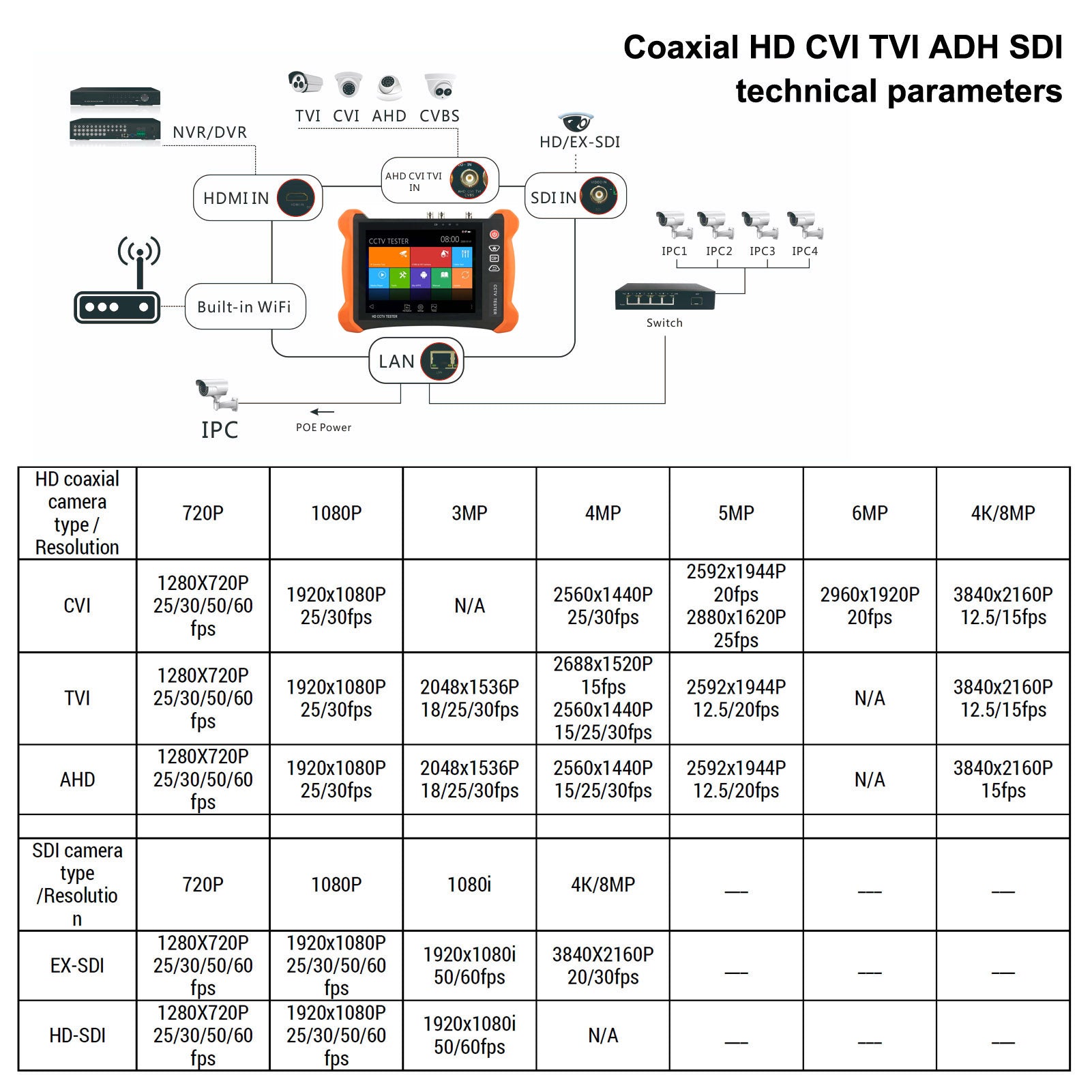

Coaxial HD test 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu, Support coaxial audio
8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
8MP AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu
8MP EX-SDI, HD-SDI, 3G-SDI camera test, UTC control & call OSD menu
HDMI input 1 channel HDMI input, support 4K 3840x2160P 30fps
HDMI output 1 channel HDMI output, support 4K 3840x2160P 60fps
VGA input N/A
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Analog Video out   color bar generatorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable
Power output DC5V/2A:USB DC5V/2A power output, as a power bank
DC12V/3A:DC12V/3A  power output ,supply temporarily power for the camera
DC24V/2A:DC24V/2A  power output ,supply temporarily power for the speed dome camera

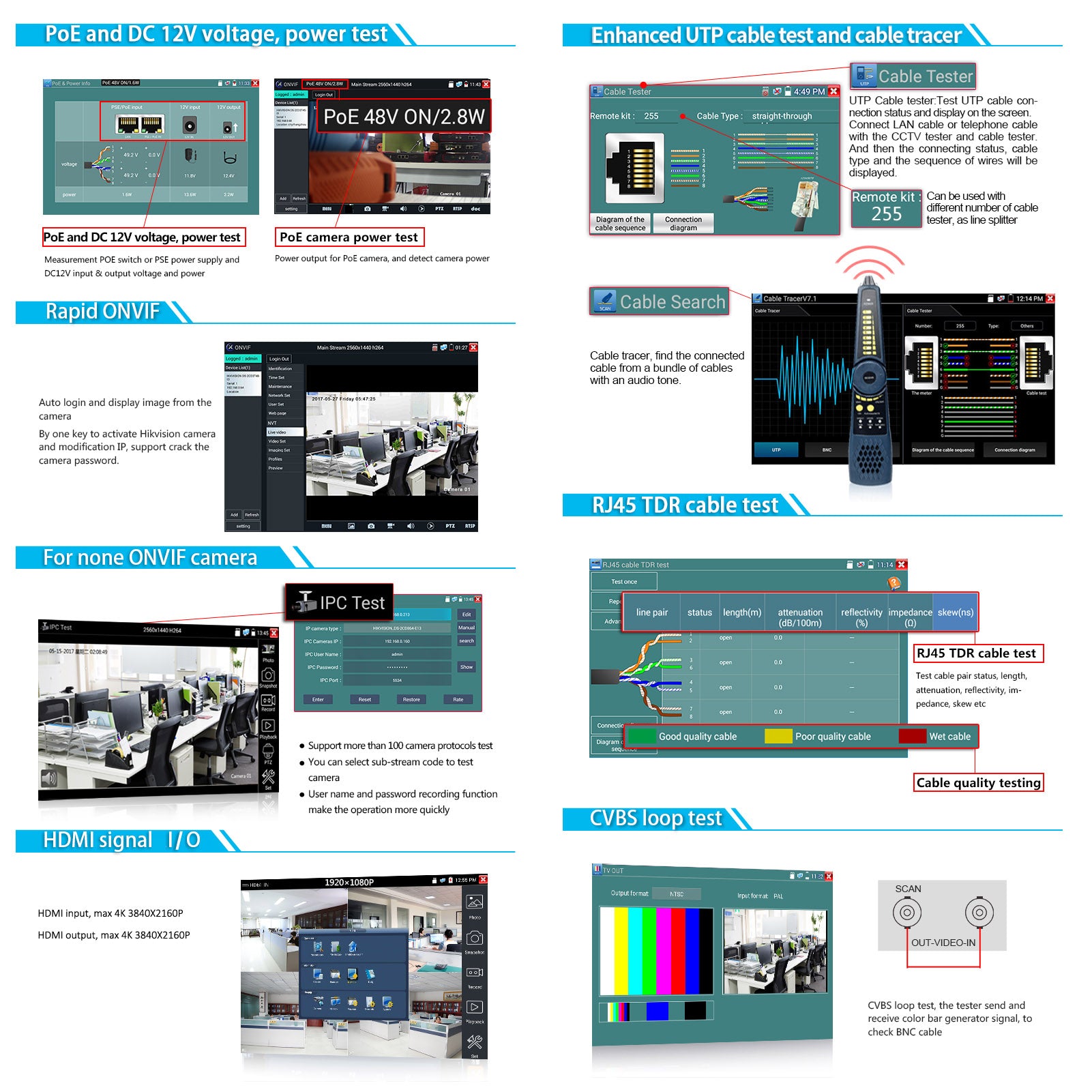

PoE:Standard PoE, POE+ power output, max power 25.5W.

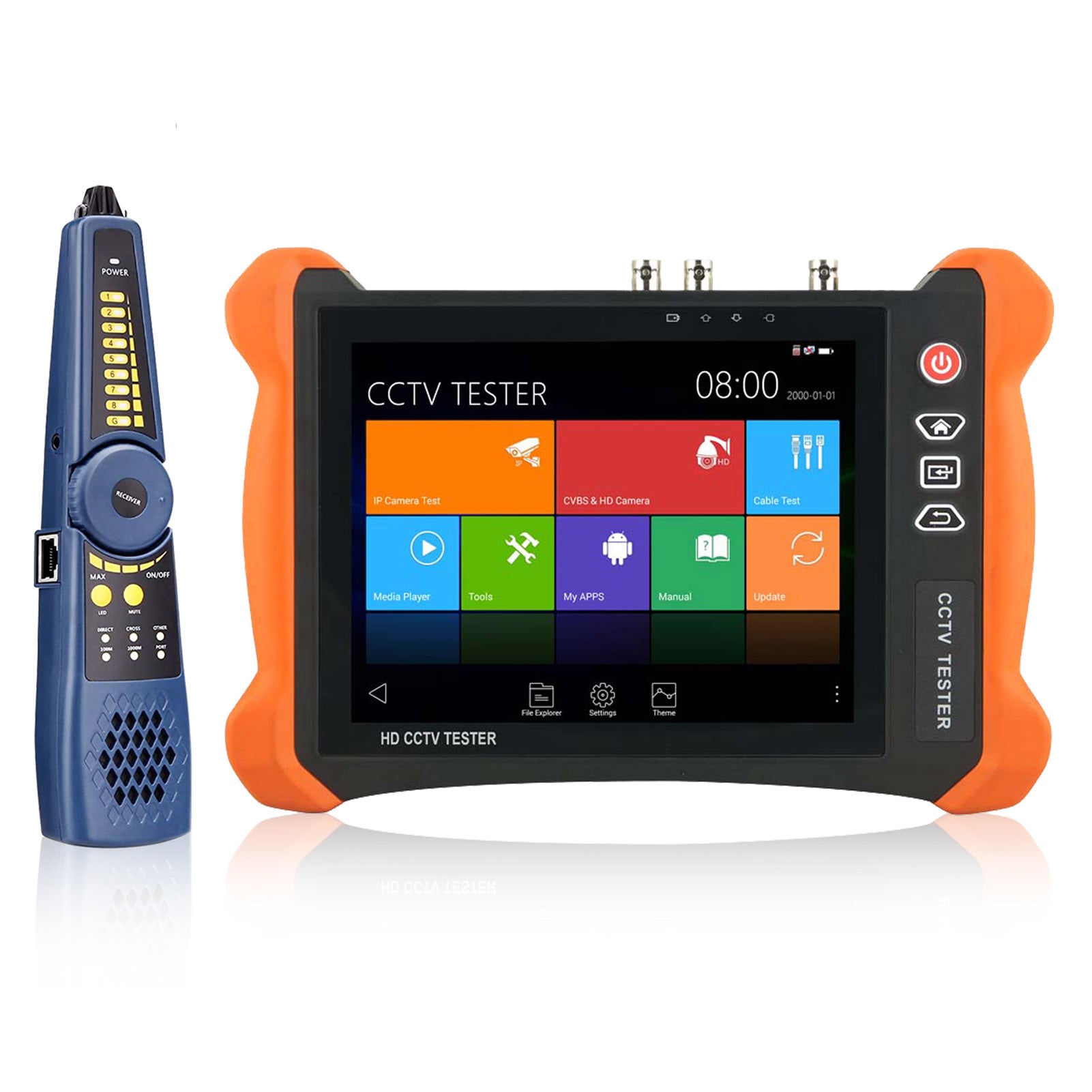

 Cable test Cable tracer(Wire Finder):Contains a digital cable tracer. search BNC cable, network cable and telephone cable from the mess cables.
Support AC voltage detector(NVC). voltage range: AC12V-1000V, Frequency: 50/60Hz, Alarm mode: sound and light double alarm, Safety class: CAT.III 1000V / CAT.IV 600V, CE
UTP cable test:Test UTP cable connection status and display on the screen. Read the number on the screen
RJ45 TDR cable test:Test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.
Color bar test:Support CVI TVI AHD color bar test, max  4K 8MP 15fps. Support CVBS color bar test, NTSC and PAL switchable.
Digital Multimeter
(DMM)
N/A
Optical power meter
(OPM)
N/A
Visual fault locator
(VFL)
N/A
TDR cable test (hardware support) N/A
Video level test N/A

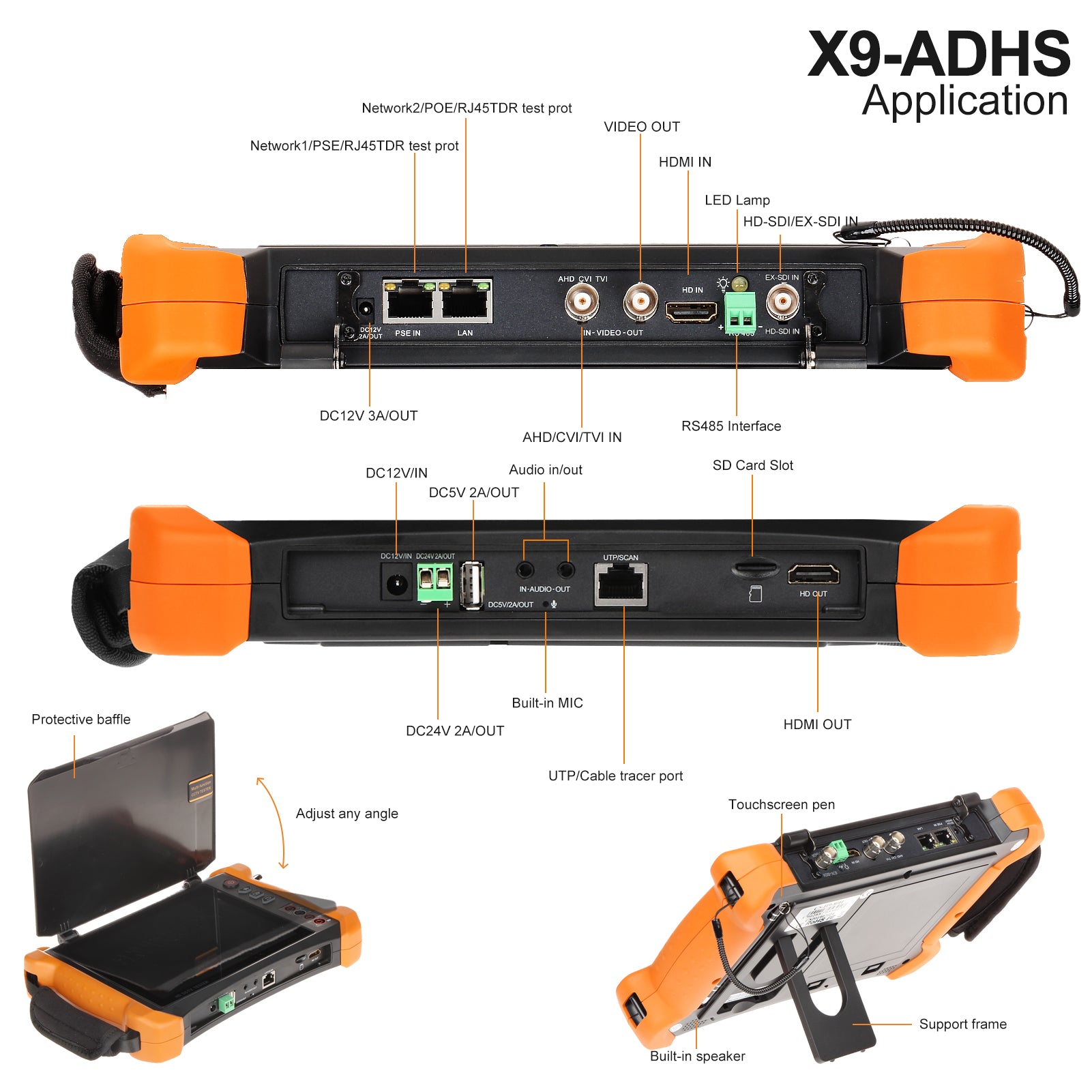

Network interface RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive
Network test Trace route, Link monitor, DHCP server, port flashing, Ping test
Wi-Fi Built in WIFI, 2.4GHz and 5GHz, speeds:433Mbps
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
PoE test Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down menu You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
TesterPlay screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone)
Power supply DC12V/2A

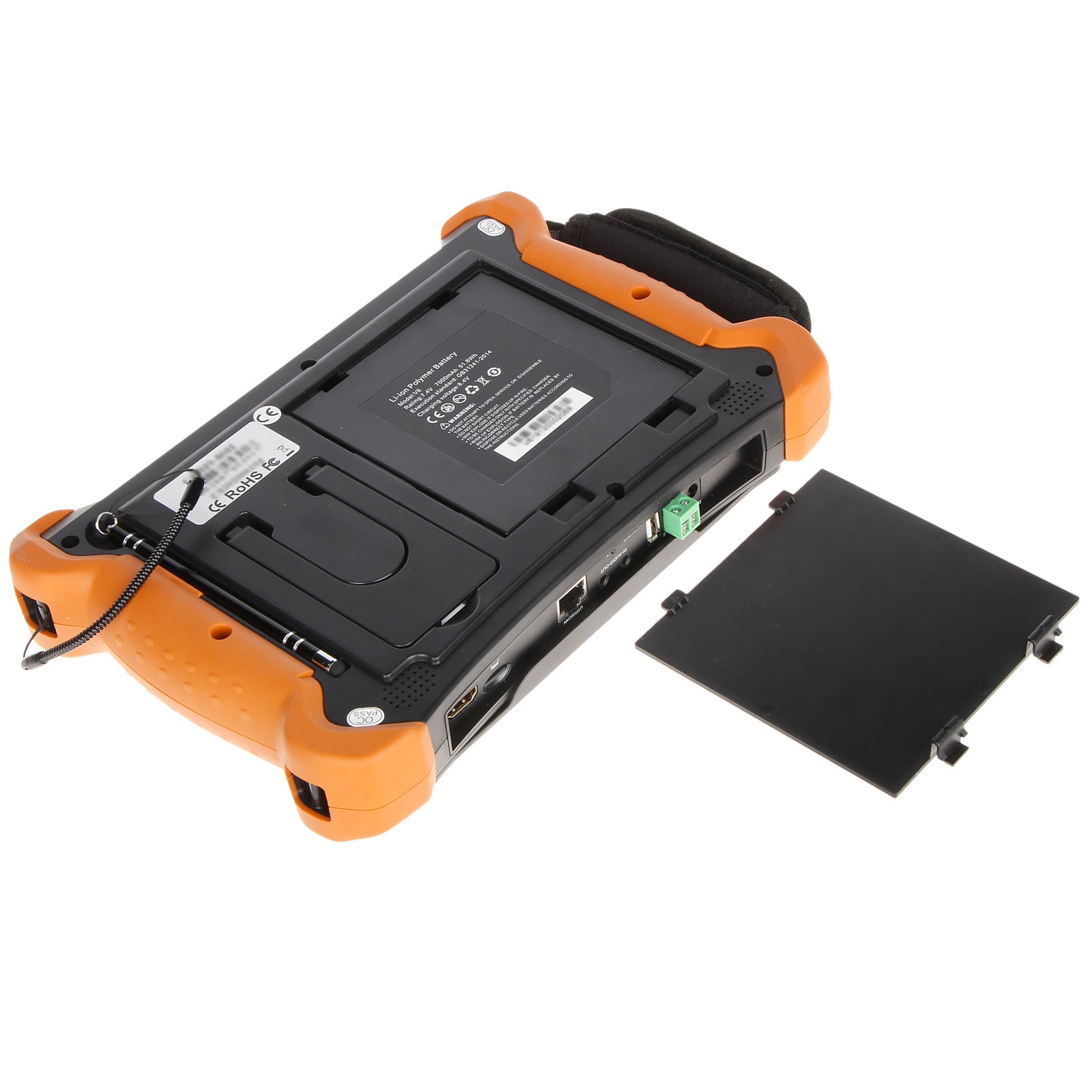

Battery Built-in 7.4V Lithium  polymer battery,7000mAh, 51.8Wh
Rechargeable After charging 3 to 4 hours, normal working time 15 hours
Operation setting OSD menu, select your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc.
Auto off 1 to 30(mins)
Working Temperature -10 to +50 (14 to 122)
Working Humidity 30% to 90%
Dimension/Weight Tester: 260x183x43mm(10.23x7.2x1.69inch) / 1200g(2.65lbs)
Package: 350x300x100mm(13.78x11.81x3.94) / 2740g(6.04lbs)
